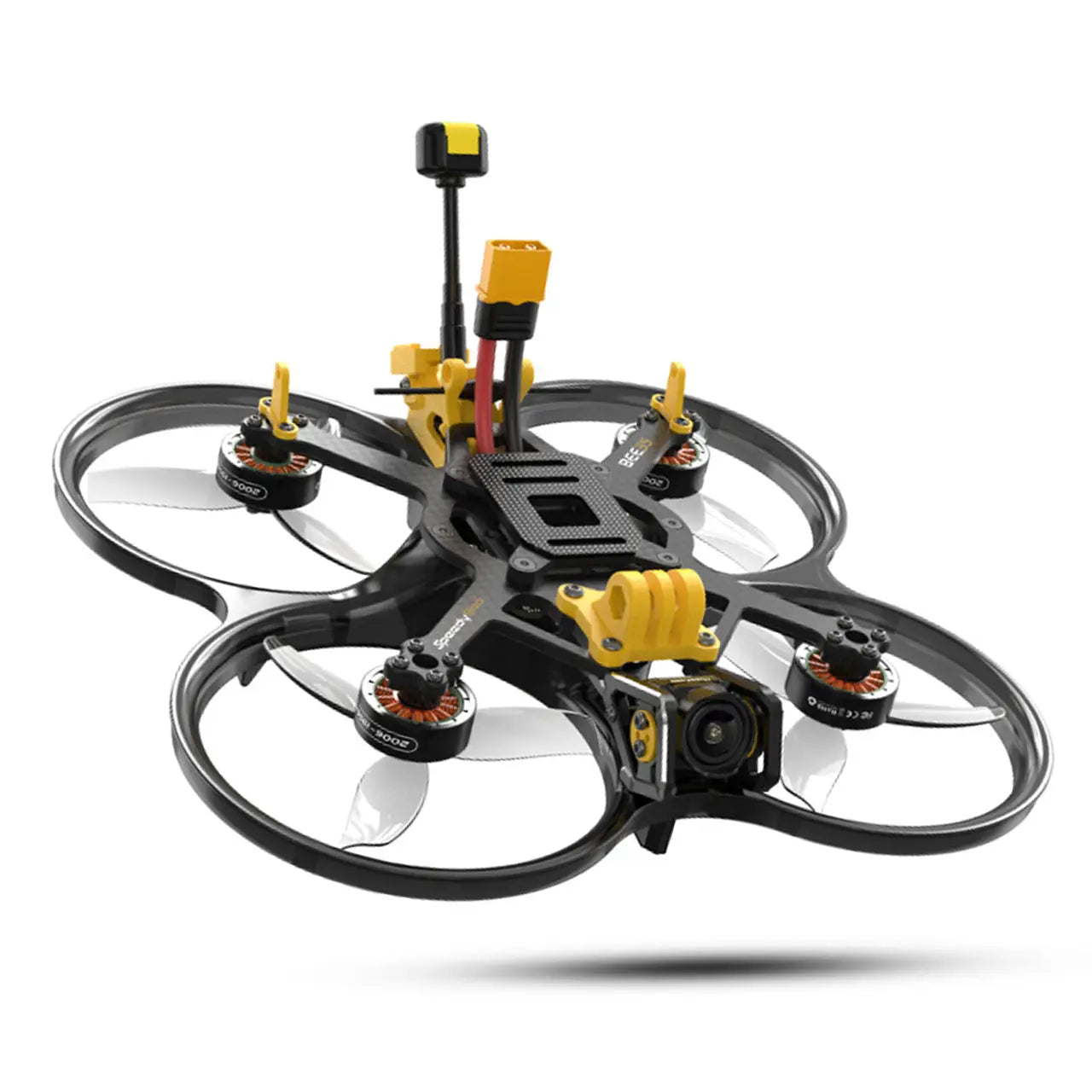

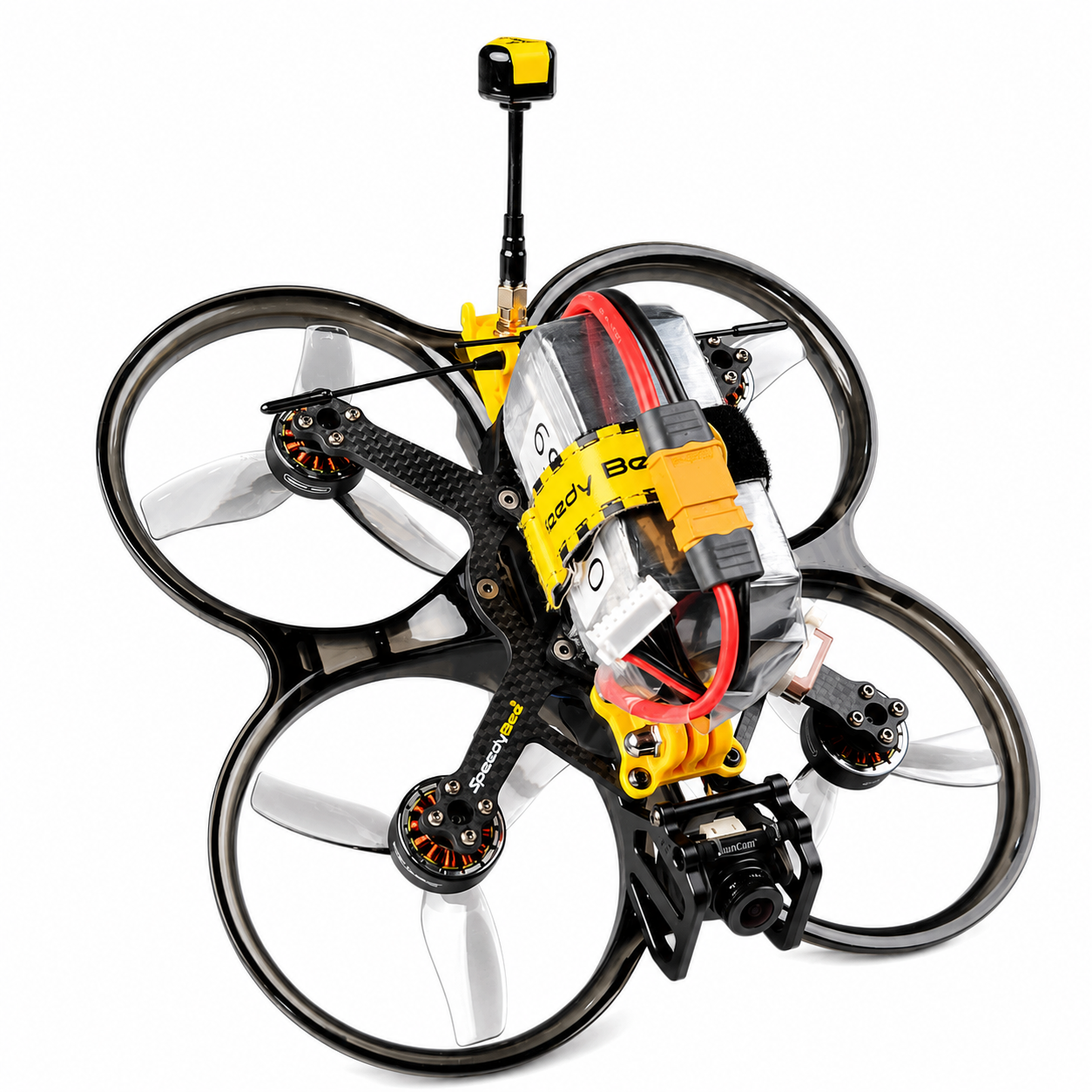

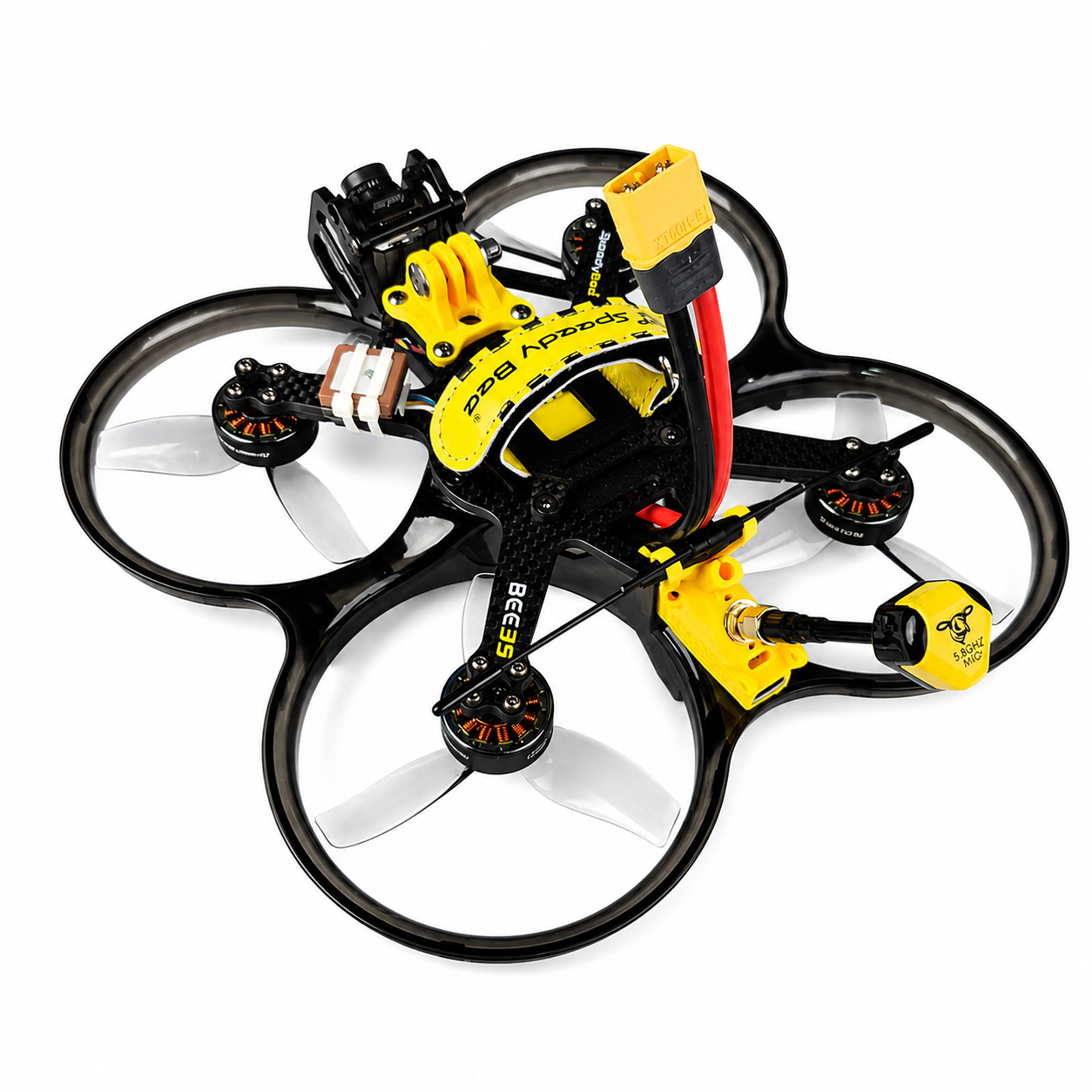

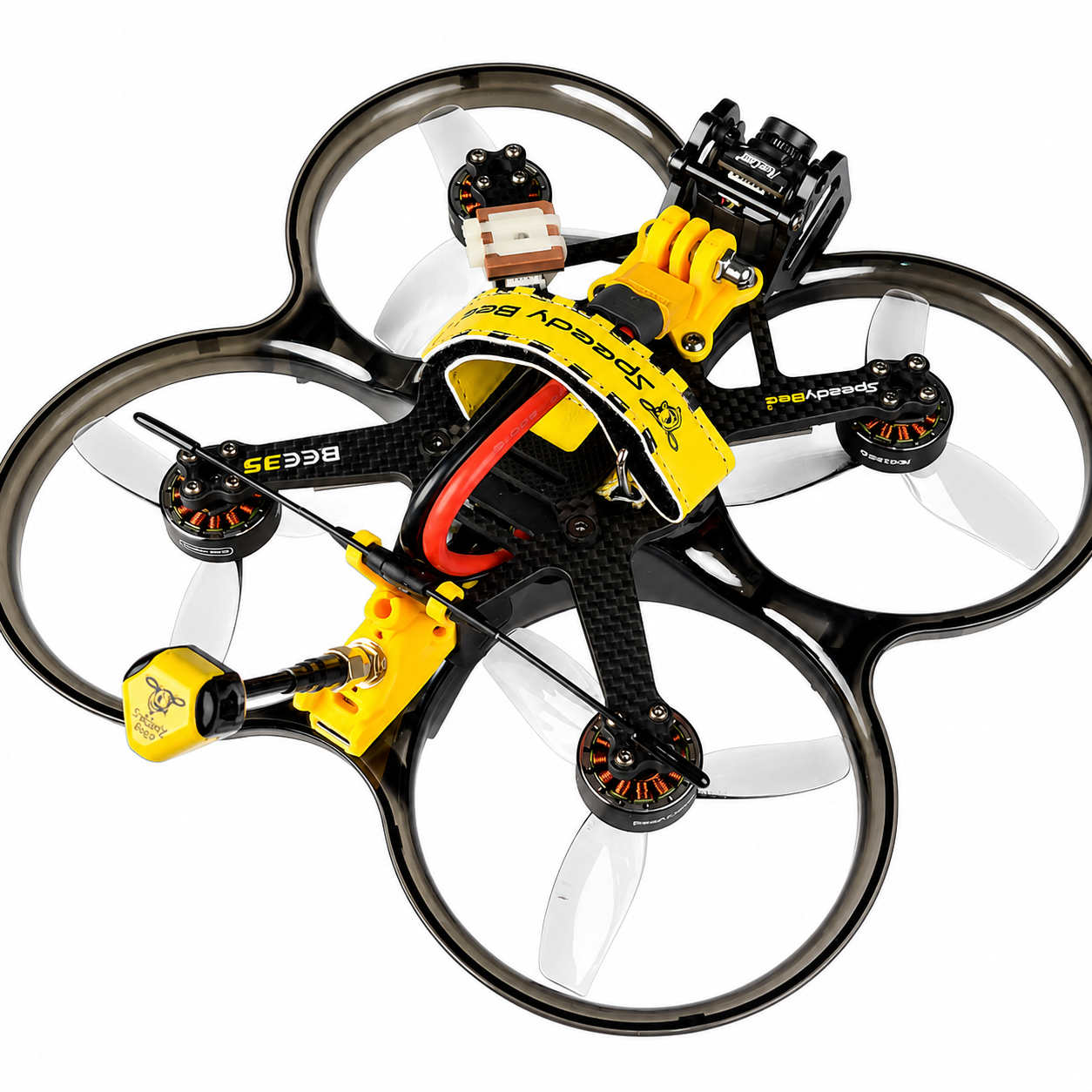

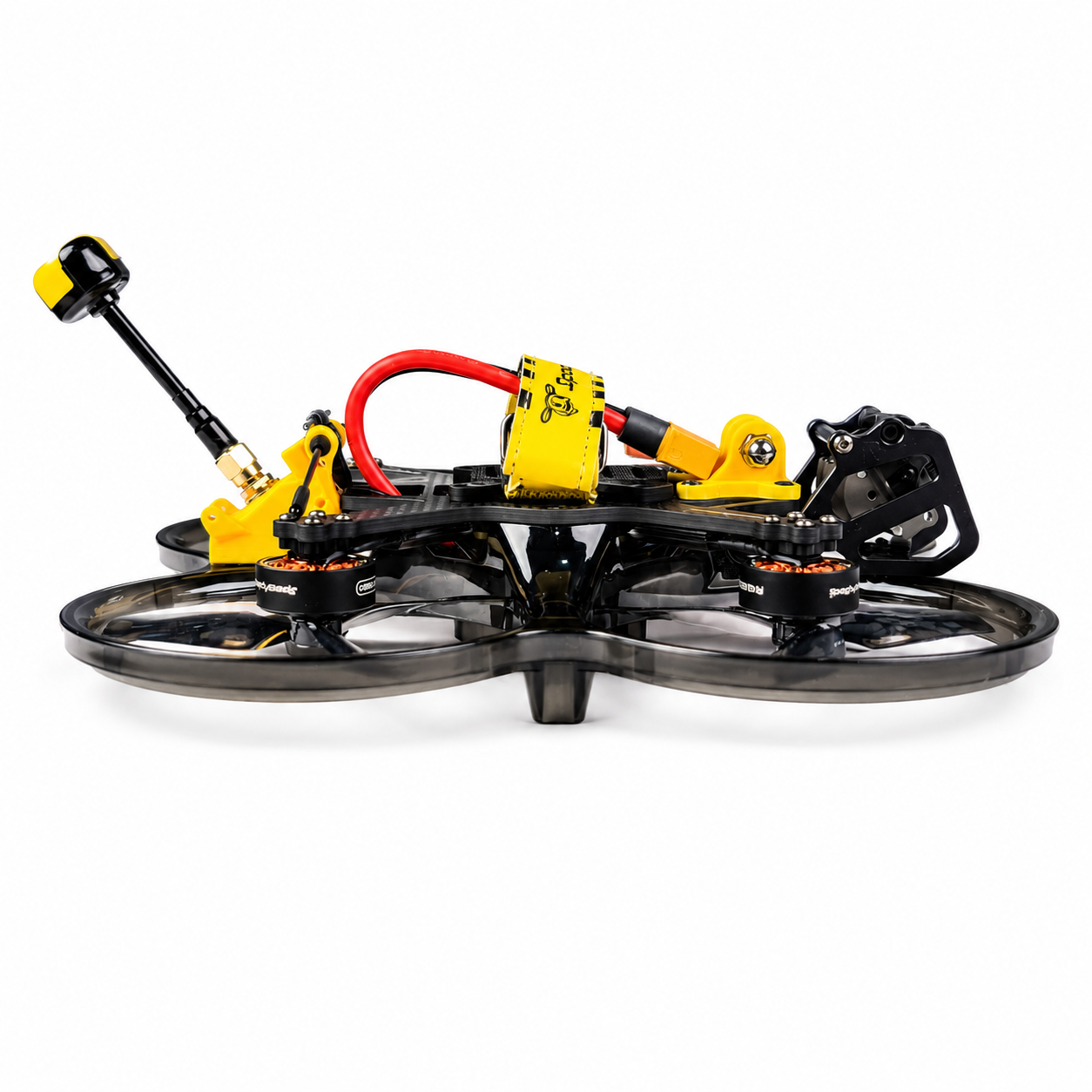

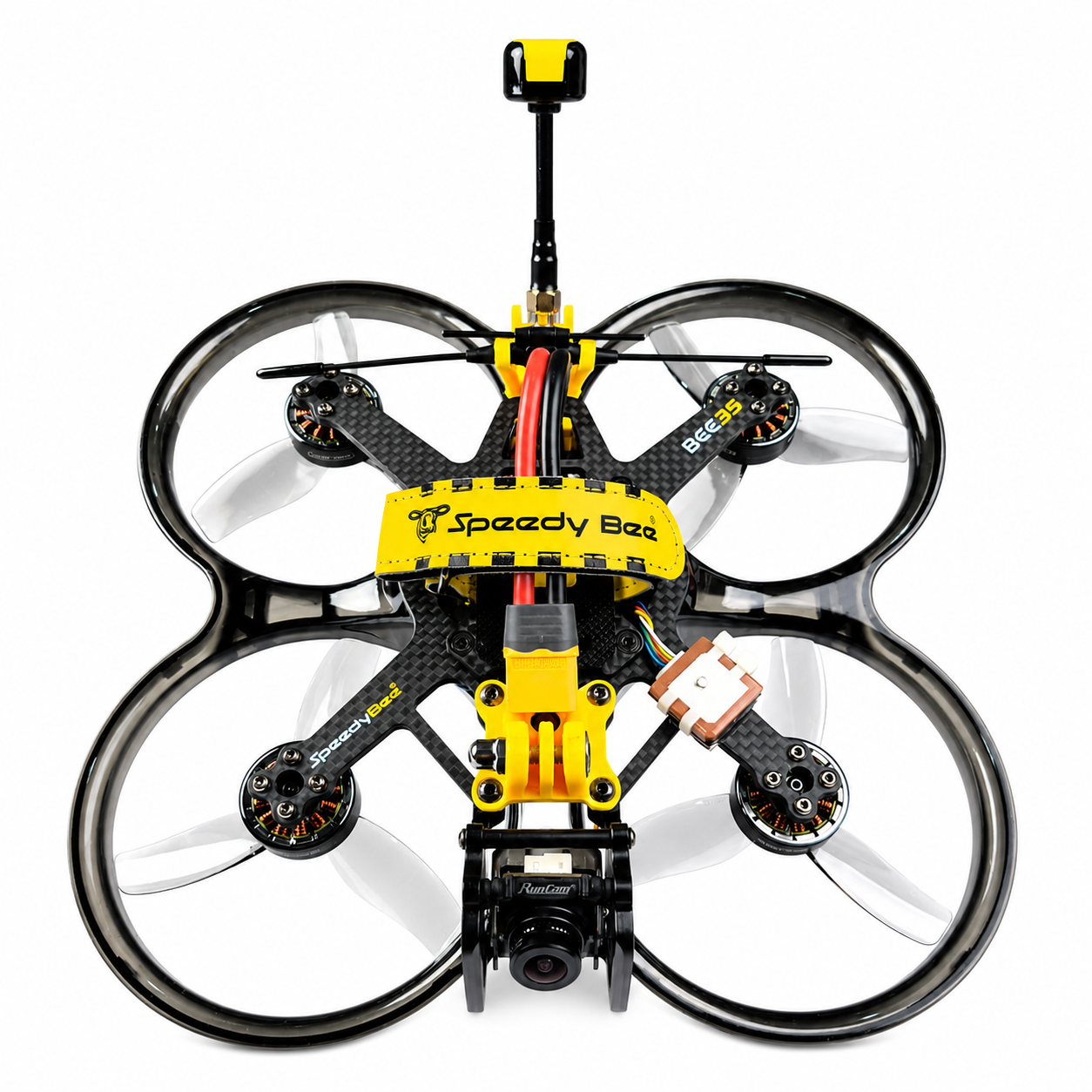

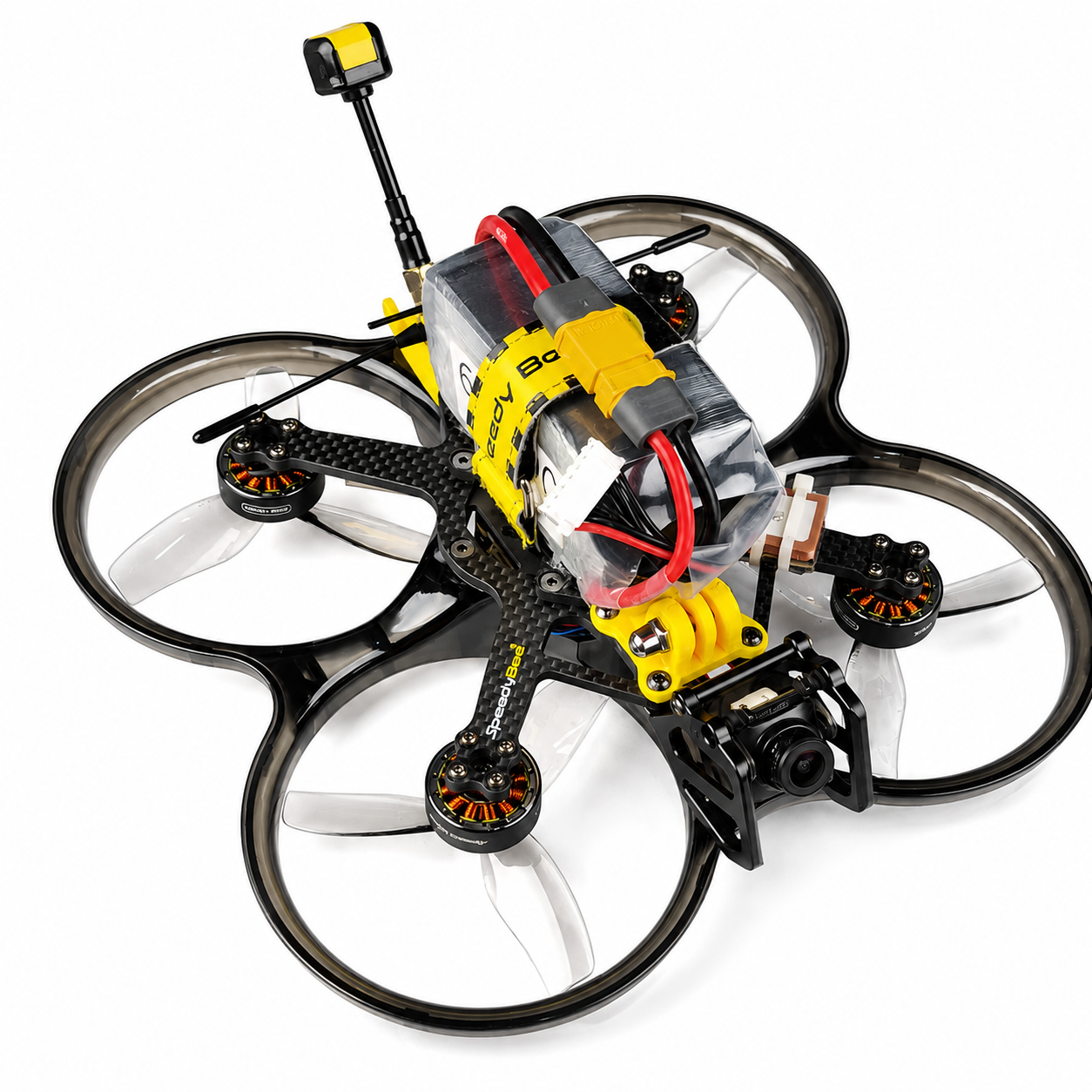

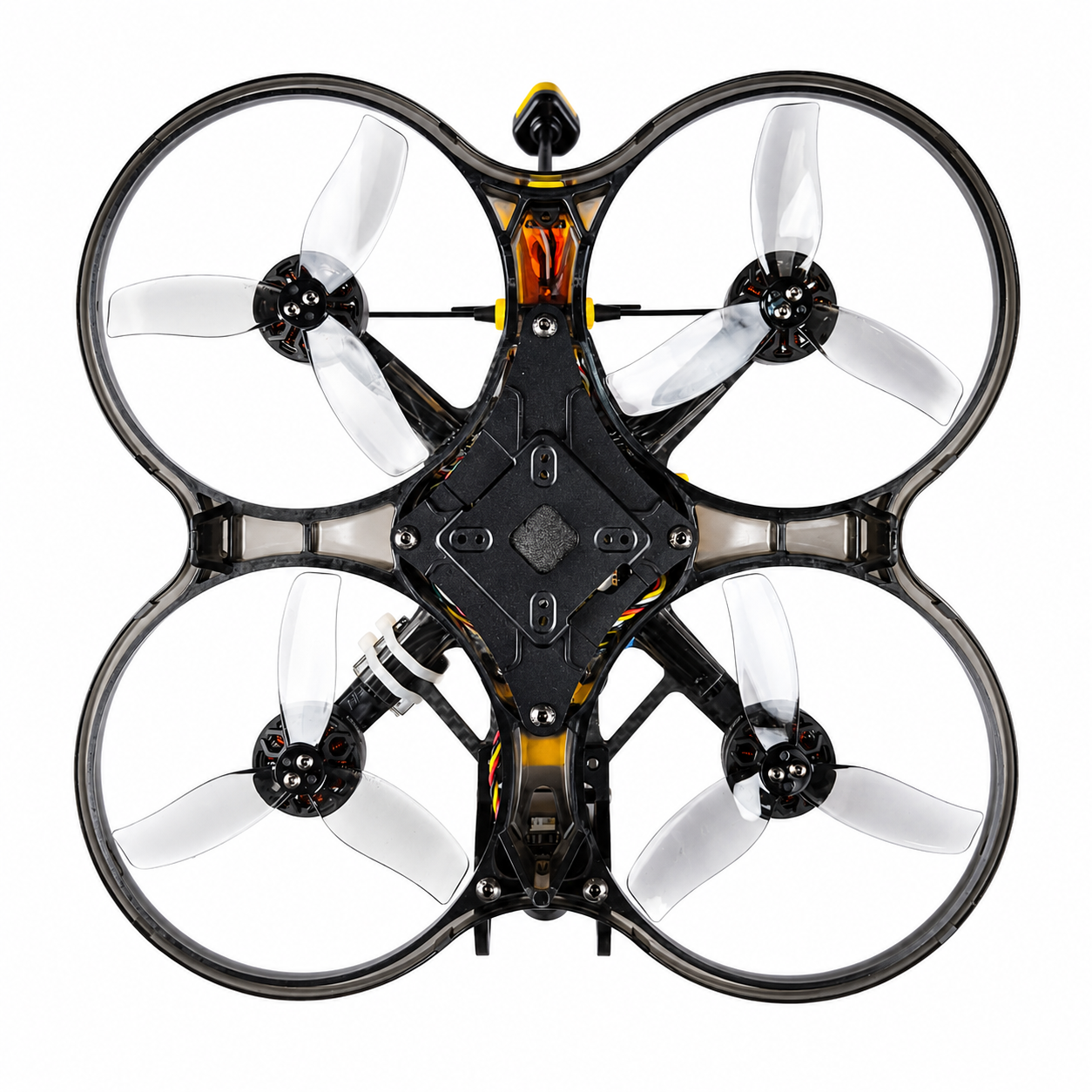

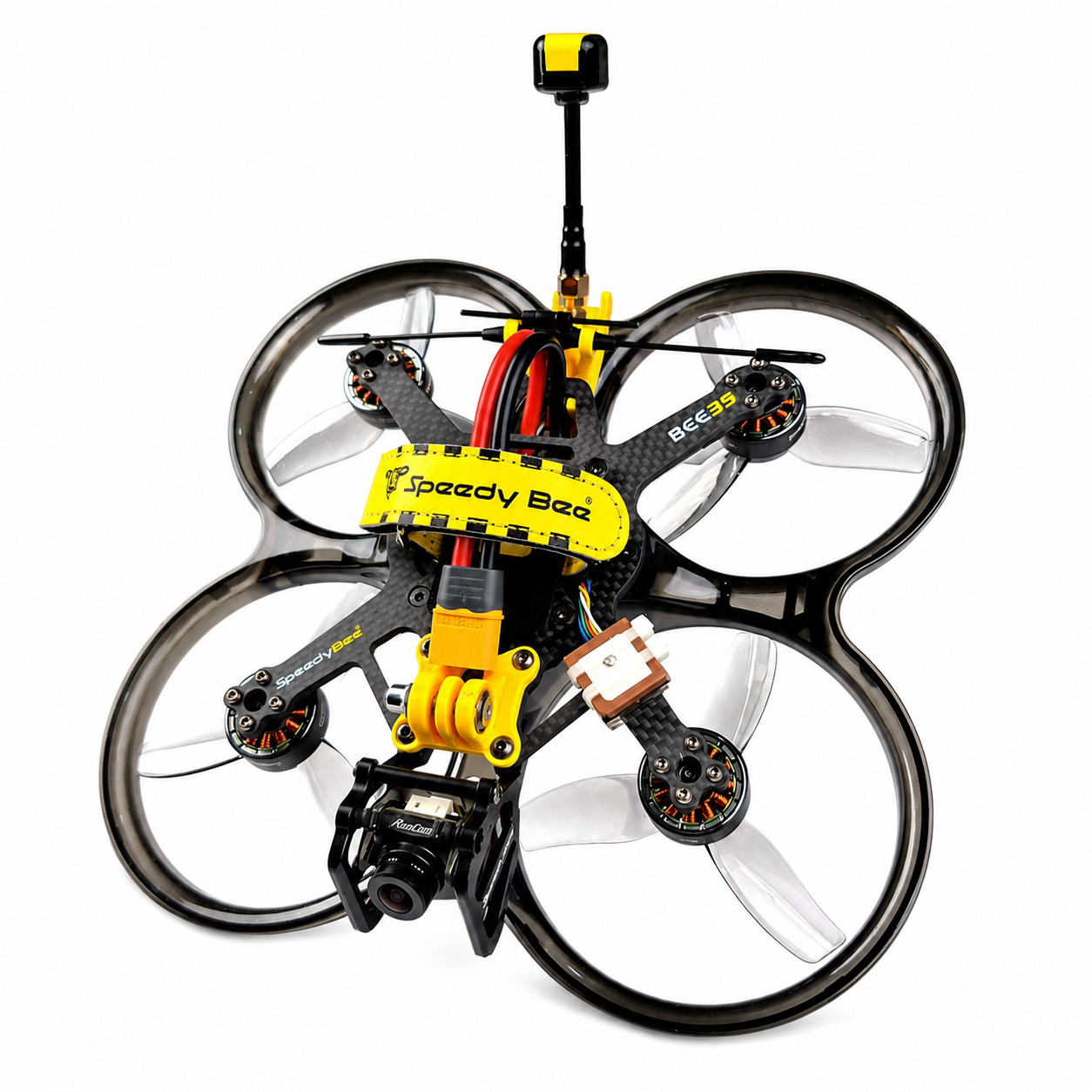

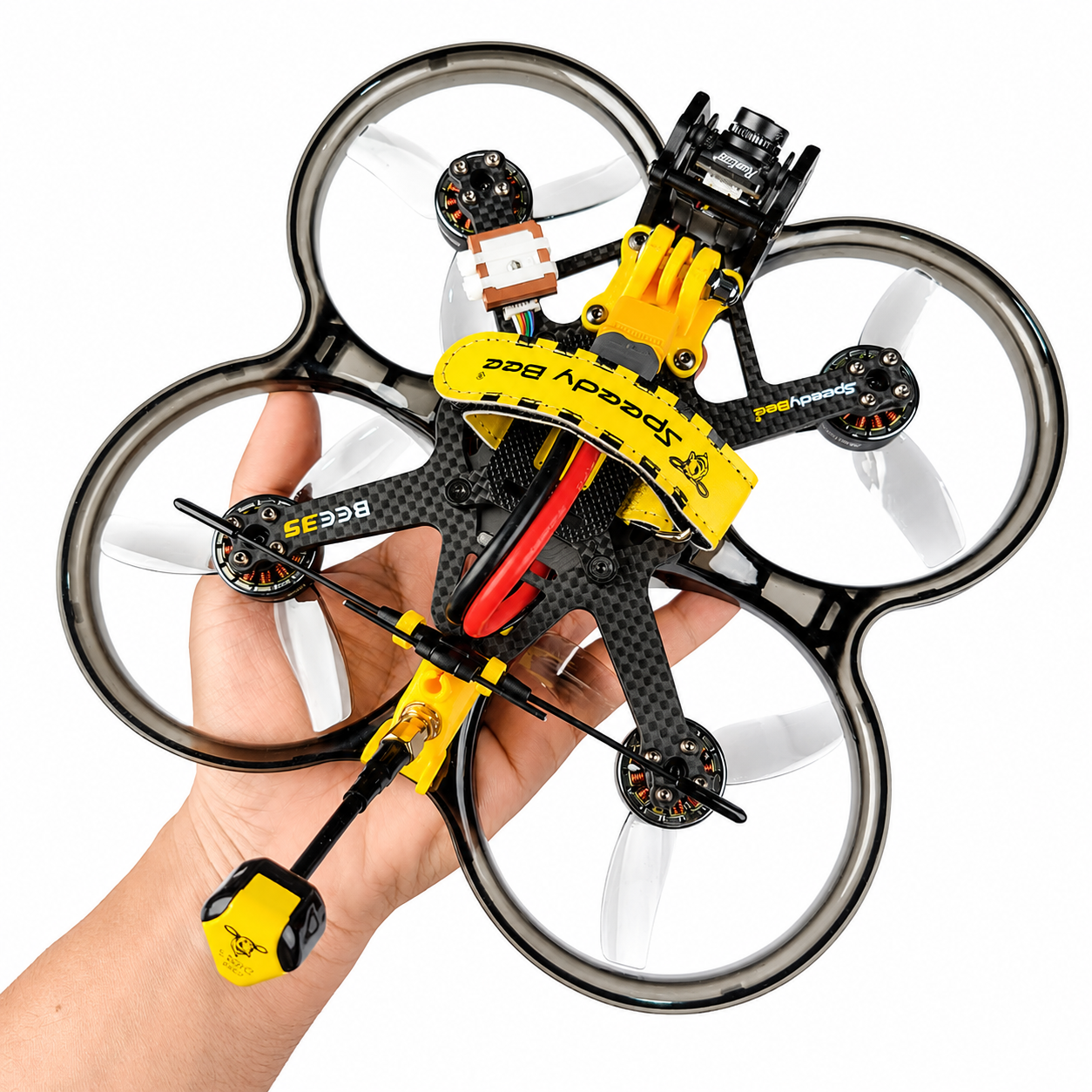

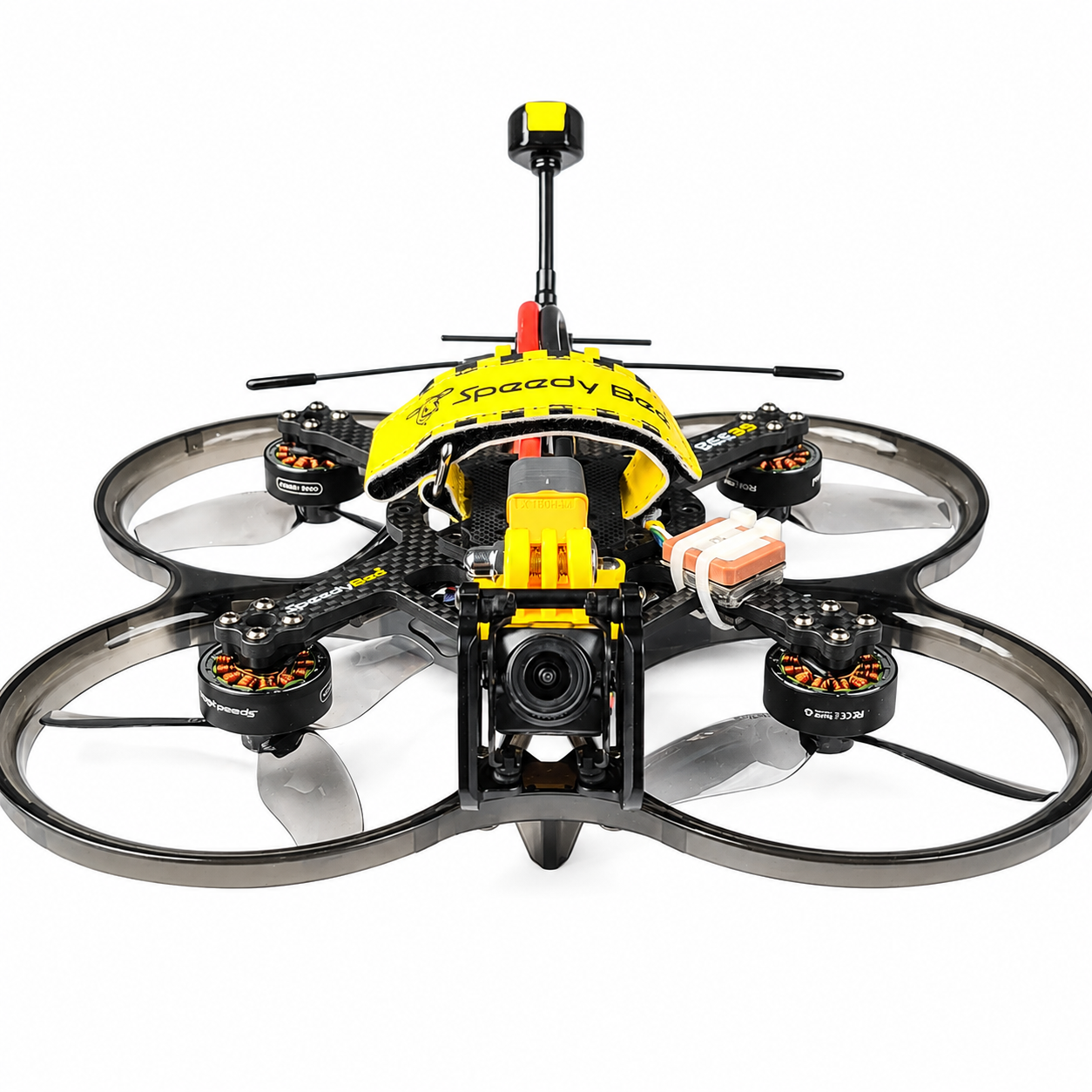

Bee35 3.5 inch Cinewhoop 4-6s Analog FPV Drone – PNP

Note: Product Images/videos are shown for illustrative purposes only and may differ from the actual product.

NOTE: If you buy any PNP Drone from our website and any part of your drone gets damaged while you are using it then we will arrange those parts for you and if that part manufacturing has been stopped then we will provide you a reference product.

DON’T JUST FLY DRONES, CRASH THEM TOO BECAUSE WE ARE HERE FOR YOU.

Bee35 3.5 inch Cinewhoop 4-6s Analog FPV Drone – PNP

Features:
• Universal GOPRO installation bracket so you can use any GoPro Camera and Action Camera.

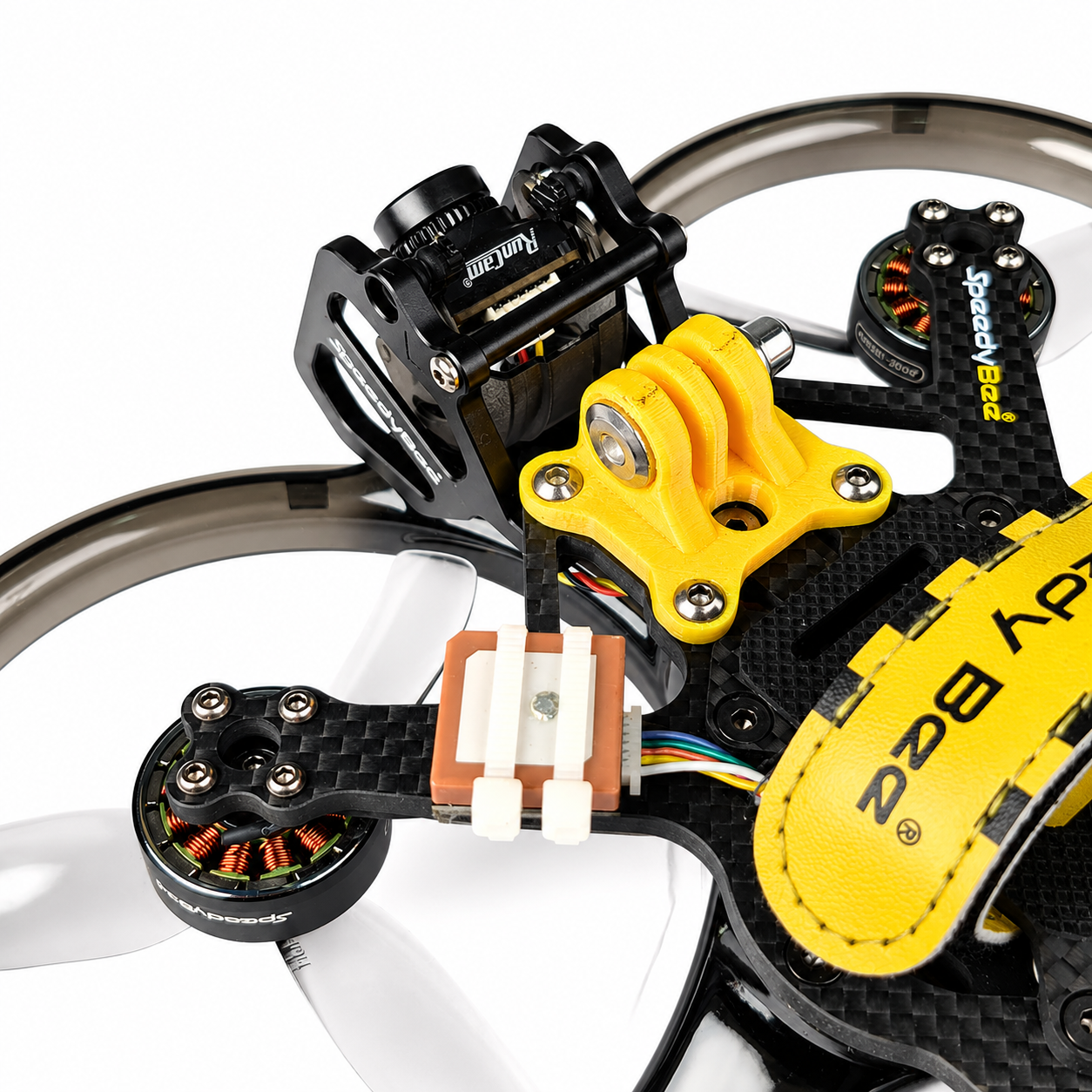

• The aviation-grade aluminium headpiece provides excellent protection for the lens
• Ultra-strong injection-molded protective ring with a cutout for simple LED light strip installation.
• Connects to the flight controller without disassembling the drone, supporting Type-C interfaces.
• Configure your FC and ESC via Bluetooth on your phone and Experience wireless fully configuration anytime & anywhere.

Specification

SpeedyBee Bee35 3.5-inch Cinewhoop Frame
Model: 3.5 inches Frame
Wheelbase: 153mm
TPU Colour: yellow
Prop size: 90mm
Manual

SpeedyBee F405 Mini BLS 35A Stack
MCU: STM32F405
USB Port Type:
Supported Fc Firmware: BetaFlight(Default), INAV
UART: 6sets
Power input: 3-6s lipo
Firmware: BLHeli_S J-H-40
Continuous Current: 35A * 4
Burst Current: 45A(5seconds)
ESC Protocol: DSHOT300/600
Manual

SpeedyBee TX800 Video Transmitter
Output Power: PIT/25mW/200mW/400mW/800mW
Input Voltage:3.7V-5V
Antenna: MMCX
Manual

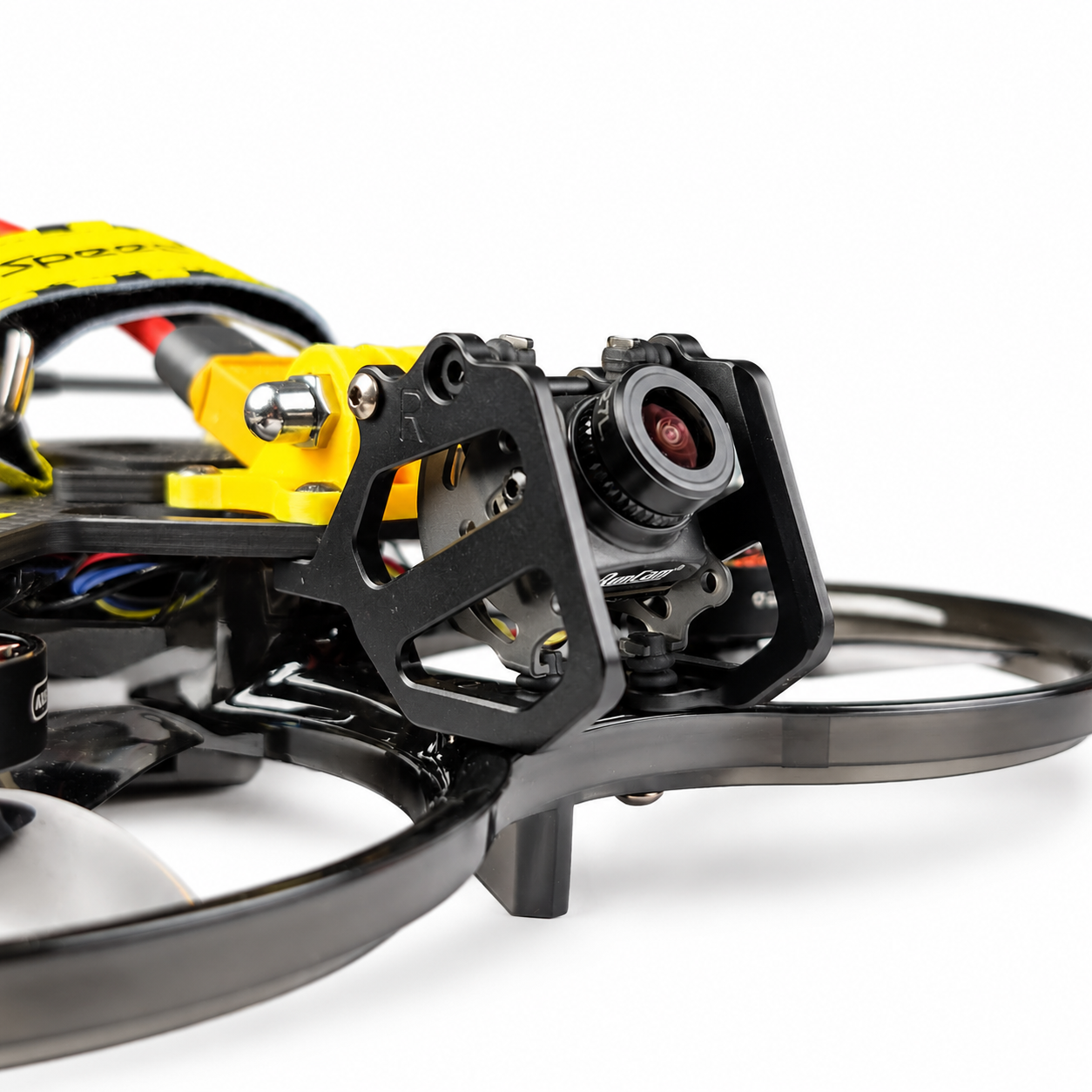

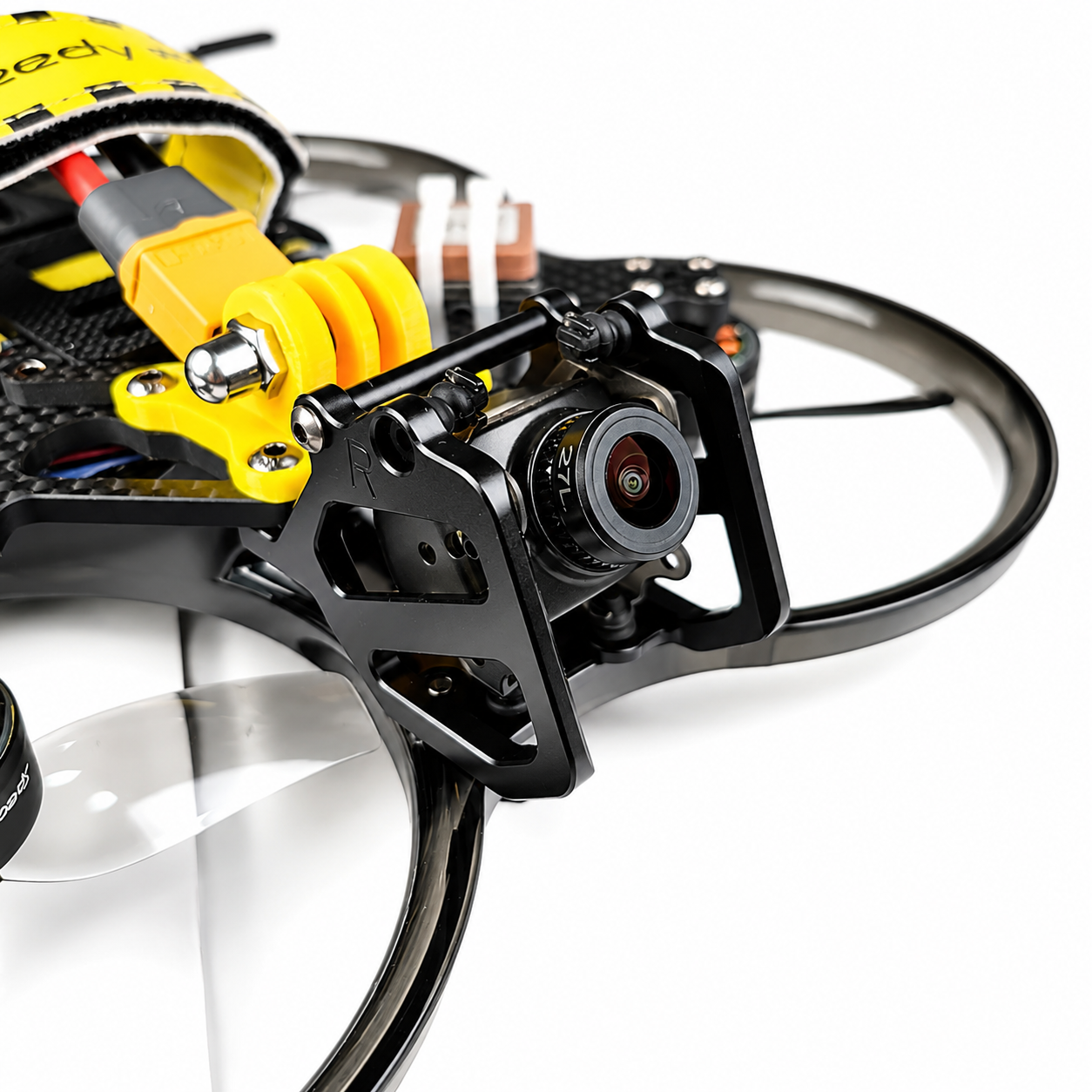

RunCam Phoenix 2 SP V3
Image Sensor: 1/2.8″ Starlight COMS Sensor
Horizontal Resolution: 1500TVL
Signal System: NTSC/PAL
Power: DC 5-36V
Dimension: 19mm

Speedy Bee 5.8 GHz SMA Antenna V2
Frequency range: 5.5-6.0 GHz
Gain: 2.8dBi
Polarization: RHCP
Colour: Yellow+Black

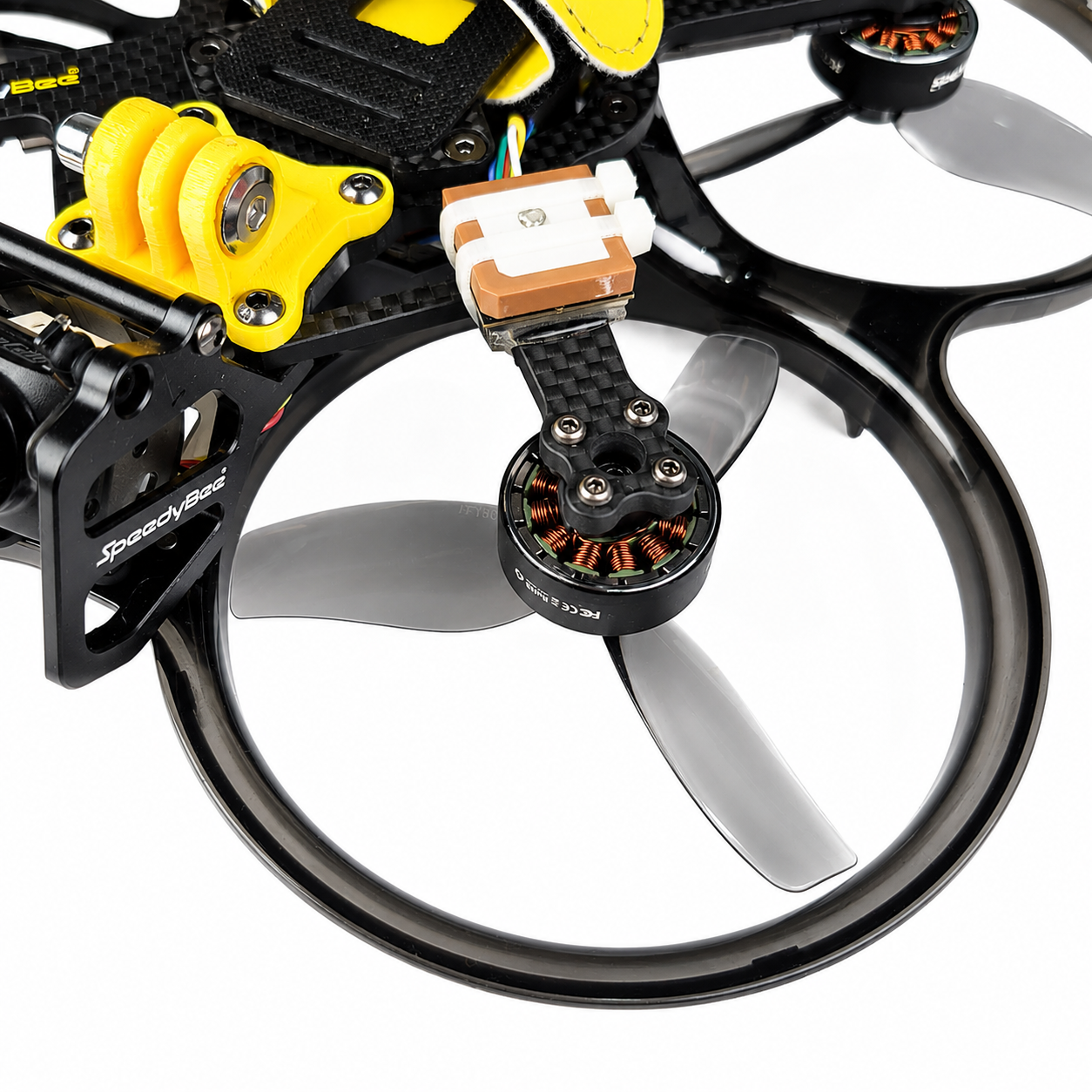

SpeedyBee 2006-1950KV 6S 3.5inch FPV Motor
Model: SB 2006
KV: 1950KV
Input Voltage: 6S
Colour: Black

HQProp T3.5X2.5X3 Grey 2CW+2CCW - Poly Carbonate
HQProp T3.5X2.5X3 Grey 2CW+2CCW – Poly Carbonate

FlyFishRC Motor Wire Protection Tube 98*10MM (4Pcs)
Dimension: 98*10mm

PACKAGE INCLUDE:
1x Bee35 3.5-inch Cinewhoop Frame
4x Speedy Bee 2006 Motor
1x HQProp T3.5X2.5X3 Grey 2CW+2CCW - Poly Carbonate
1x SpeedyBee F405 Mini BLS 35A Stack
1x SpeedyBee TX800 Video Transmitter
1x RunCam Phoenix 2 SP V3
1x Speedy Bee 5.8 GHz SMA Antenna V2
1x Motor Wire Protection Tube 98*10MM

Recommended Parts:
Radio Transmitter:

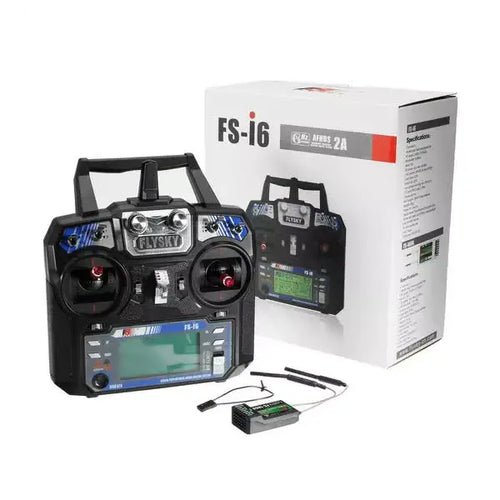

•FlySky FS-i6 2.4G 6CH Radio Transmitter With FS-iA6b Receiver

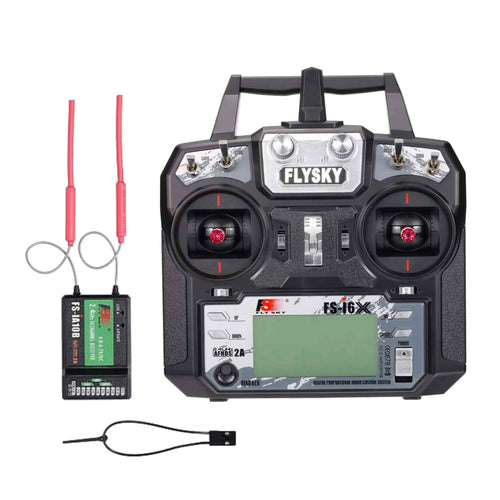

•Flysky FS-i6X 2.4GHz 6CH AFHDS 2A Radio Transmitter With FS-iA10B 2.4GHz 10CH Receiver
•Radiomaster Zorro ELRS Radio with RP1 ExpressLRS 2.4ghz Nano Receiver
•Radiomaster TX12 MKII ExpressLRS Transmitter with RP1 ExpressLRS Nano Receiver

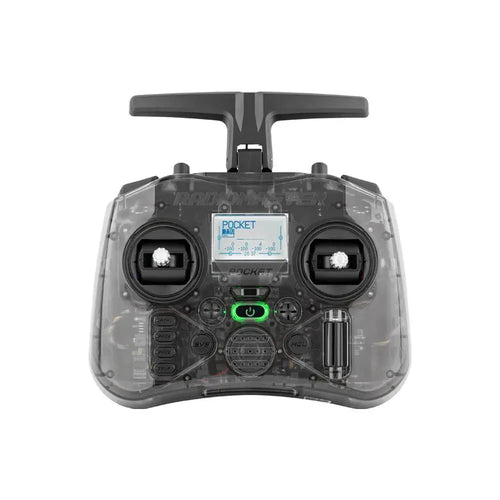

•Radiomaster Pocket Radio Controller – ELRS Version (Transparent)

Radio Receiver:
•RP1 ExpressLRS 2.4ghz Nano Receiver
•SpeedyBee Nano 2.4G ExpressLRS ELRS Receiver

Goggles support – Analog
•Eachine EV800D 5.8G 40CH Diversity FPV Goggles With DVR
•Eachine EV800DM 5.8G 40CH Diversity FPV Goggles
•VR009 5.8GHz 40CH 3 Inch FPV Goggles
•BeastHobby VR100 3.0 Inch 5.8G 40ch FPV Goggles
•008D 5.8G 40CH FPV Goggles For Drones
•Skyzone Cobra Lite V2 FPV Goggles
•iFlight FPV Goggles with DVR Function

Video Receiver
•Skydroid 5.8G UVC OTG Android Audio and Video Receiver For FPV Drone
•EWRF 5.8G UVC OTG Android Audio/Video Phone Receiver

Battery Support 4S-6S Lipo (suggested: 650mah-1000mah)
4s lipo Battery
•14.8V 850mAh 4S 25C Lipo Battery with XT60 Plug (Brand Orange)
•14.8V 1000mAh 30C 4S Lithium Polymer Battery Pack (Orange)
•GNB 650mAh 4S Lipo Battery

6S lipo Battery
•GNB 6S 22.2V 650mAh 70C XT30 Lipo Battery
•22.2V 1000mAh 35C 6S Lithium Polymer Battery Pack (Brand Orange)

Battery Charger
•iMAX B6AC Lipo Battery Professional Balance Charger
•IMAX B6 80W 6A Charger/Discharger 1-6 Cells + DC 5A 12V

Propeller
•Gemfan D90 90mm 3.5″ 5-Blade Ducted Cinewhoop Propeller (Set of 4) – Clear Grey
•Gemfan D90 5-Blade 2mm & M5 Ducted Cinewhoop Propeller (2 Pairs) – Black
•Gemfan D90 90mm 3.5″ 5-Blade Ducted Cinewhoop Propeller (Set of 4) – Whisky
•HQProp T3.5X2.5X3 Grey 2CW+2CCW – Poly Carbonate

Antenna for Goggles:
•RHCP RP-SMA 5.8G 2.8dBi Lollipop Antenna(Long)
•Patch Antenna RP SMA 5.8GHz Triple Feed

Action Camera:
•RunCam 5 Orange Action Camera
•RunCam Thumb Action Camera
•RunCam Thumb Pro Action Camera

Accessories:
•75cm Diameter Fast-fold Landing Pad/Helipad For Drone
•FlyFishRC Gopro 9/10/11 TPU Adjustable Mount – Black
•FlyFishRC Gopro 9/10/11 TPU Adjustable Mount – Tropical Mix
•BEE35 Removable Gimbal

Tools:
•Spanner/Wrench 8mm x 9mm – Taparia
•Allen Key 1.5mm
•Allen Key 2mm
•Allen Key 2.5mm
•25W 230V Soldering Iron (Rajshri)
•60W 230V Soldering Iron (Rajshri)
•35W 230V Soldering Iron (Rajshri)
•Solder Wire 27gm
•Wire Cutter/Stripper 150mm – Taparia

PNP stands for "Plug and Play" or "Plug and Power," indicating that most of the essential components are already installed and connected, it usually includes the airframe, motors, propeller, electronic speed controllers (ESCs), flight controller, FPV camera, and video transmitter. However, it does not include the radio transmitter & receiver, FPV goggles, battery, charger, And GPS If you want to buy all these things then you will have to buy them separately.

SkyRC.in also provide Pre-build (ready-to-fly) Drones if you are interested please follow (3 steps).
Step 1: Select your favourite Drone Kit.
Step 2: Copy the link to that Product.
Step3: Share the link to our customer support on WhatsApp(9142884517).
Our Customer Support will reply as soon as possible and they will explain you further details.

A ready-to-fly (RTF) drone is a complete package that includes all the necessary components for flight, meaning you can start flying it right out of the box without any additional ASSEMBLY/SETUP & PROGRAMMING/CONFIGURATION required. Typically, an RTF drone includes the drone itself, a radio transmitter & receiver, FPV goggles, a battery, and a charger.

(RTF) ready-to-fly drone includes some setup, tuning, and configuration like binding, radio calibration, motor configuration, motor direction, motor ordering, video transmitter setup, camera setup, OSD setup, GPS setup, Flight modes setup, ESC calibration, and FPV goggles setup.
