Hi Tech xyz

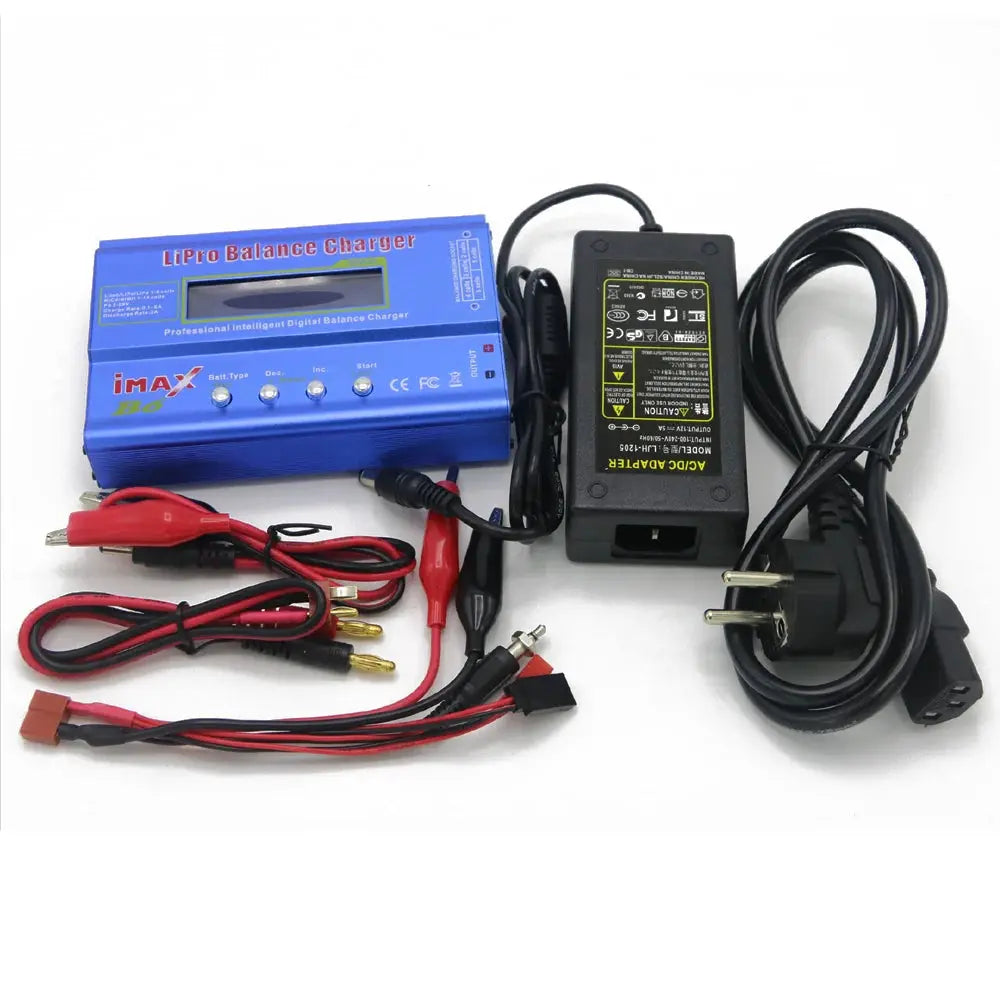

iMAX B6 80W 6A Charger/Discharger 1-6 Cells + DC 5A 12V 60W ADAPTER AC.

iMAX B6 80W 6A Charger/Discharger 1-6 Cells + DC 5A 12V 60W ADAPTER AC.

SKU:065065

Regular price Rs. 2,649.00
Regular price Sale price Rs. 2,649.00
Sale Sold out
Shipping calculated at checkout.

(Including GST)

View full details

Don't forget to buy:

XT60 Male To T Plug Female Adapter

XT60 Male To T Plug Female Adapter is commonly used in RC drones making it easier to switch between different types of batteries or chargers without having to solder new connectors.

B6AC Charger:

The IMAX B6 80W 6A Charger/Discharger 1-6 Cells with DC 5A 12V 60W ADAPTER AC(Copy) is a very advanced charger, able to charge, balance and discharge LiIon, LiPoly, LiFe (A123), NiCd and NiMH batteries. It is microprocessor controlled like all the best chargers and will balance the individual cells in you Li-XX batteries. It will charge from 0.1 to 5.0A and can charge packs up to 6S packs. It’s features input voltage protection so as not to flatten your car battery at the field and will also storage charge your pack for when you are not using it. You can power it with any power supply delivering from 11~18V so it is very flexible.

This charger has a JST-XH charge plug, which makes it compatible with Orange, Zippy, HXT, Loong Max and any pack with a JST adapter.
This package can supply a maximum Power 50W 5A only. If you want 80W 6A output, use another AC adapter.

Features:

  • Microprocessor controlled
  • Delta-peak sensitivity
  • Individual cell balancing
  • LiIon, LiPoly, and LiFe are capable
  • NiCd and NiMH are capable
  • Large range of charge currents
  • Storage charge function
  • Time limit function
  • Input voltage monitoring (Protects car batteries at the field)
  • Data storage (Store up to 5 packs in its memory)
  • Battery break-in and cycling.

Package Includes:

1× IMAX B6 80W 6A Charger/Discharger with T-Plug.


SPECIFICATIONS
Input Voltage 11~18v
Circuit Power Max Charge 50W – Max Discharge 5W
Charge Current Range 0.1~5.0A
Discharge Current Range 0.1~1.0A
NiMH/NiCd Cells 1~15
LiIon/LiPoly Cells 1~6
Pb Battery Voltage 2~20V
Dimensions 133 x 87 x 33 mm.
Weight 277 g



Please feel free to contact us on wa.aisensy.com/+919142884517
