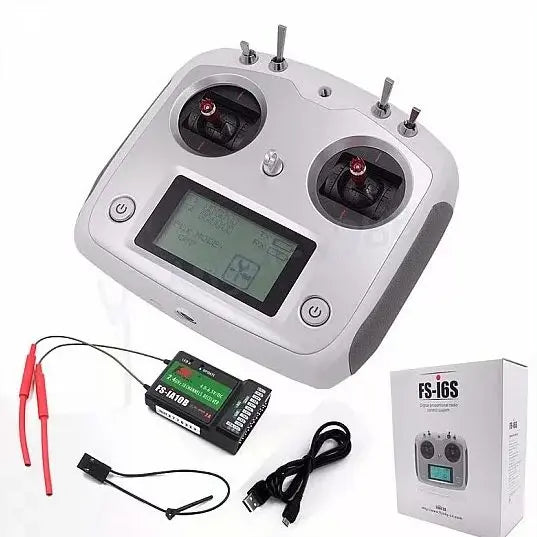

The Flysky FS-i6S 2.4GHz 10CH AFHDS 2A RC Touch Control Transmitter With FS-iA10B 2.4GHz 10CH Receiver. 2.4GHz AFHDS 2A digital proportional computerized RC System. This system supports quadcopters.
The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and patented by Flysky is specially developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and highly reliable receiver sensitivity, Flysky AFHDS technology is considered to be one of the leaders in the RC market today. It has a Full touchscreen interface, more convenient to control.
New Firmware Features:
New(Trims) function
New (Rate/Exp.) function
New(Throttle curve) function
NEW(Throttle mode) function
The New(models) function, supports 5 modes groups.
New Context-aware reset function.
New low signal alarm function.
Features:
Bidirectional Communication:
Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration, and i-BUS Support.
Multi-channel Hopping Frequency:
The bandwidth of This system ranges from 2.4055GHz to 2.475GHz. This band is divided into 140 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean versions) to reduce interference from other transmitters.
Omni-directional Gain Antenna:
The high-efficiency Omni-directional high gain antenna cuts down on interference while using less power and maintaining a strong reliable connection.
Unique ID Recognition System:
Each transmitter and receiver has its own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems from accidentally connecting to or interfering with the system's operation.
Low Power Consumption:
The system is built using highly sensitive low-power consumption components, maintaining high receiver sensitivity, while consuming as little as one-tenth the power of a standard FM system, dramatically extending battery life.
FS-i6s transmitter Specifications:
| Model Type | Digital Radio |
| Modulation Type | GFSK |
| Band-Range | 2.40 ~ 2.48GHz |
| Bandwidth | 500KHz |
| Operating Voltage | 4.2V-6.0V |
| Transmitter | 12 |
| Low Voltage Warning | Yes (at less than 9V) |
| No. of Channels | 10 |
| RF Power | Less Than 20 dBm |
| Default Operating Mode | |
| Mode 2 (Left-Hand Throttle) | |
| Colour | White |
| Dimensions LxWxH | 179x161x81mm |
| Weight | 410gm |
| Certificate | CE, FCC & RoHS |
FS-iA10b Receiver Specifications:
| Channel | 10 |
| Frequency | 2.4055 – 2.475GHz |
| Band Number | 140 |
| Receiver Sensitivity | 105dbm |
| 2.4G Mode | AFHDS 2A |
| Modulation System | GFSK |
| Input Voltage | 4.0V-6.5V DC |
| Antenna Length | 26mm (dual antenna) |
| Weight | 14.9g |
| Dimension | 47*26.2*15mm |
| Colour | White |
| Certification | CE, FCC |
Package Included:
1× FS-i6s transmitter
1× FS-iA10b Receiver
1× Binding key
1× Manual
