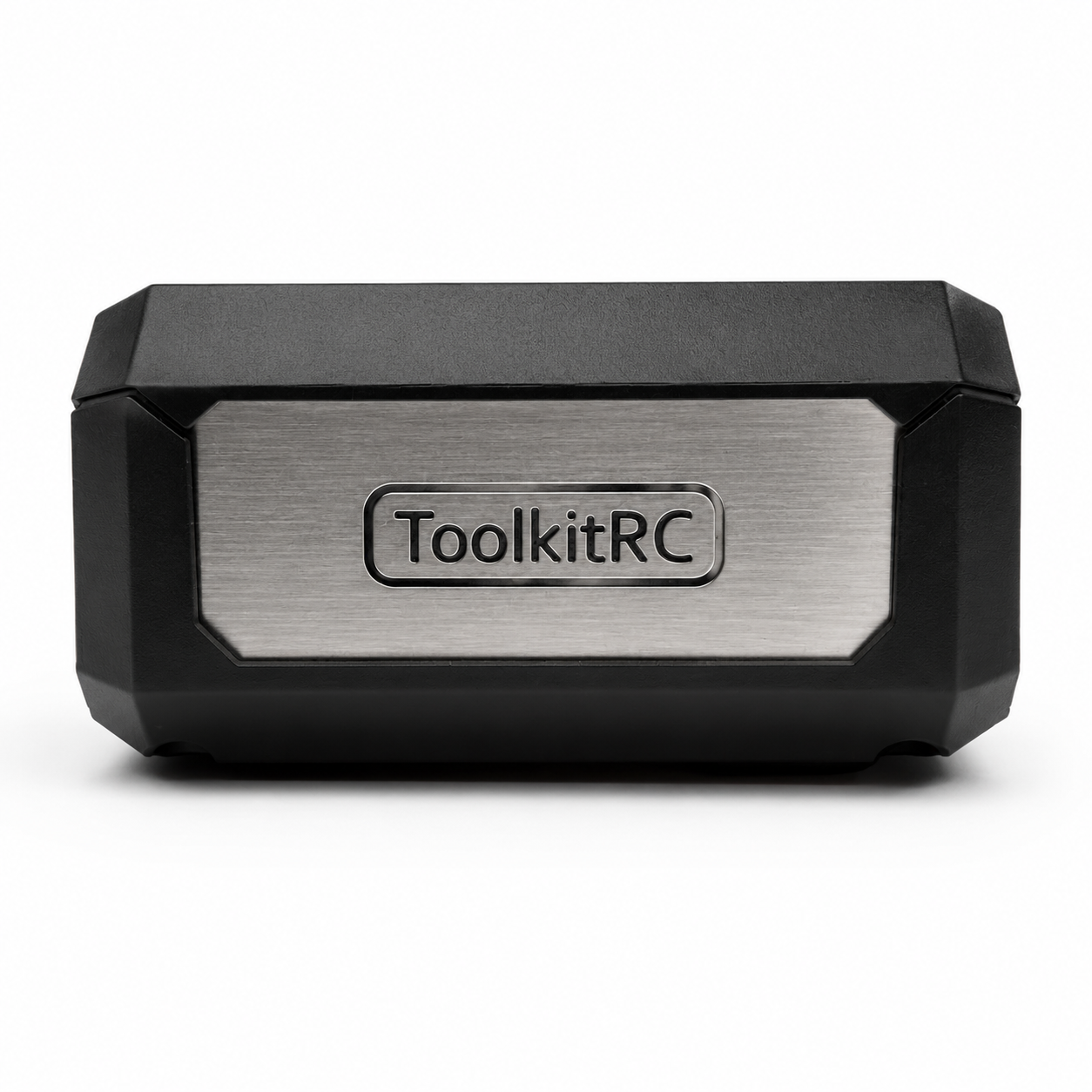

ToolkitRC Charger M7AC.

The ToolkitRC M7 has been reinvented and is better than ever.

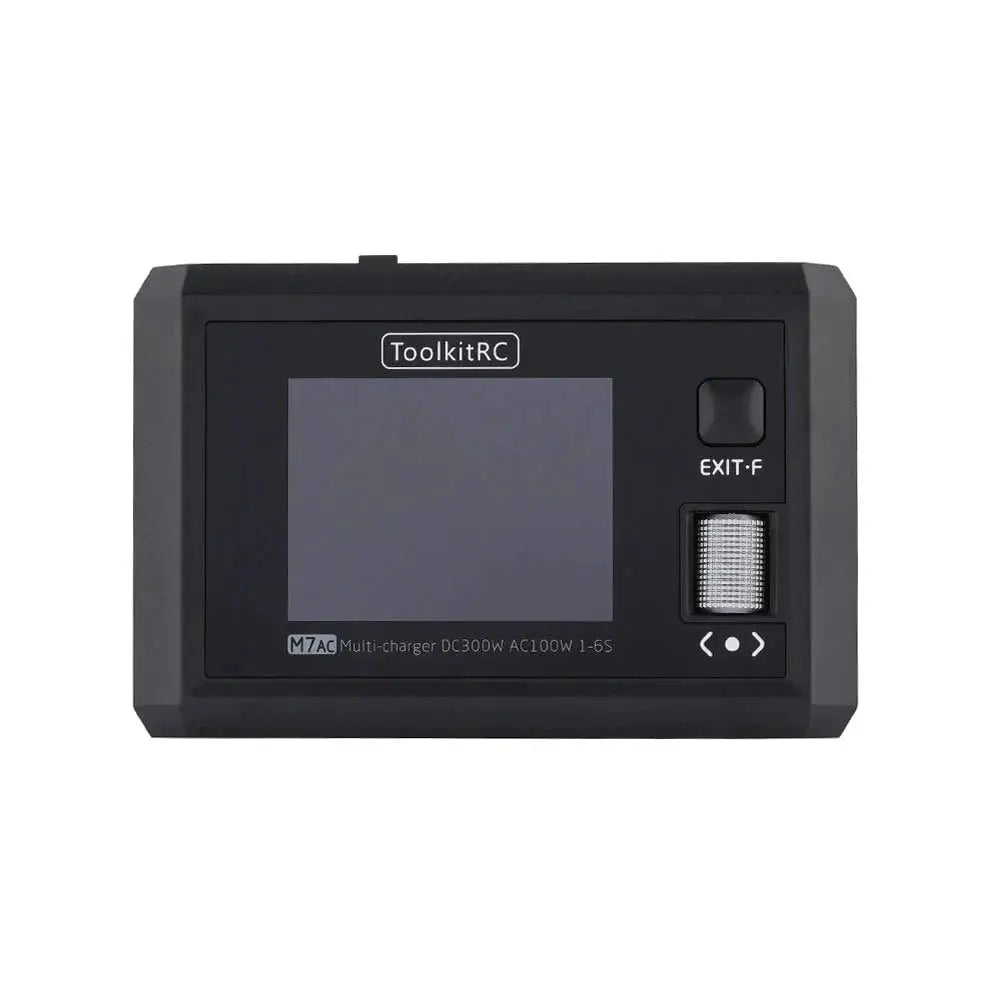

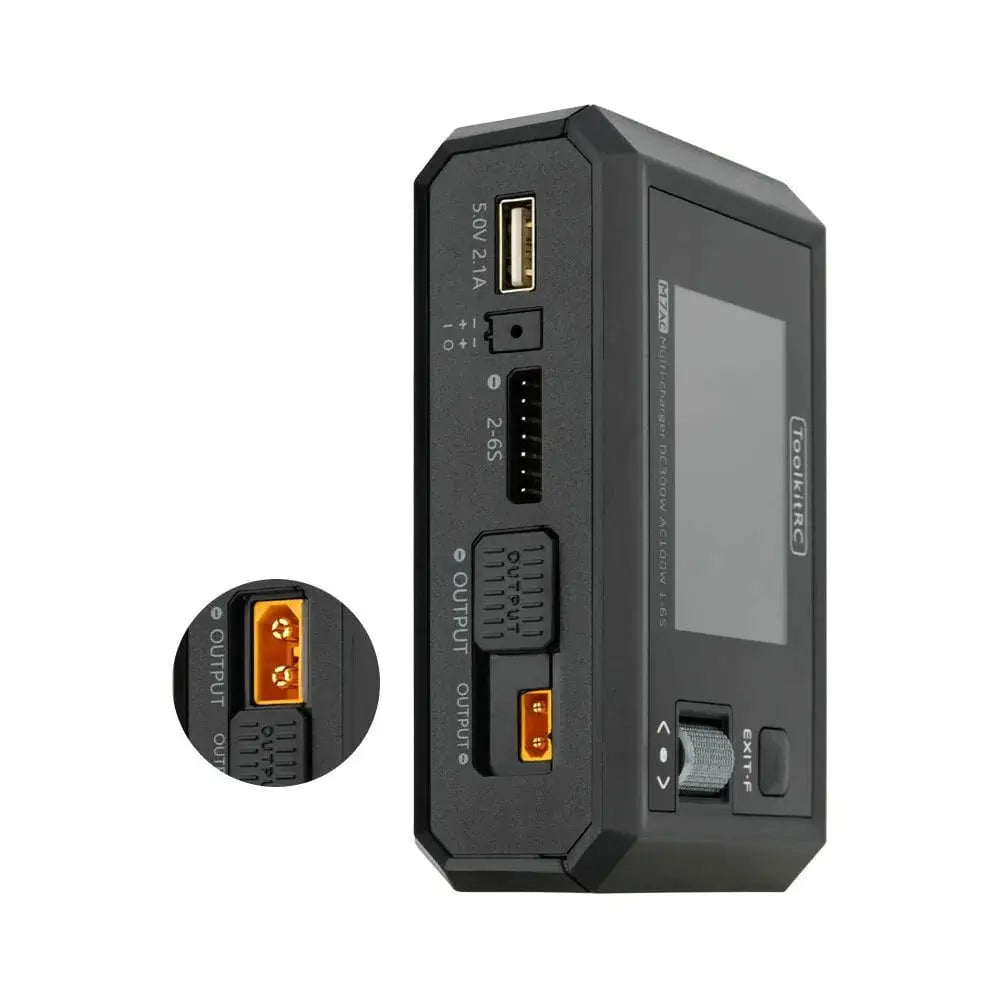

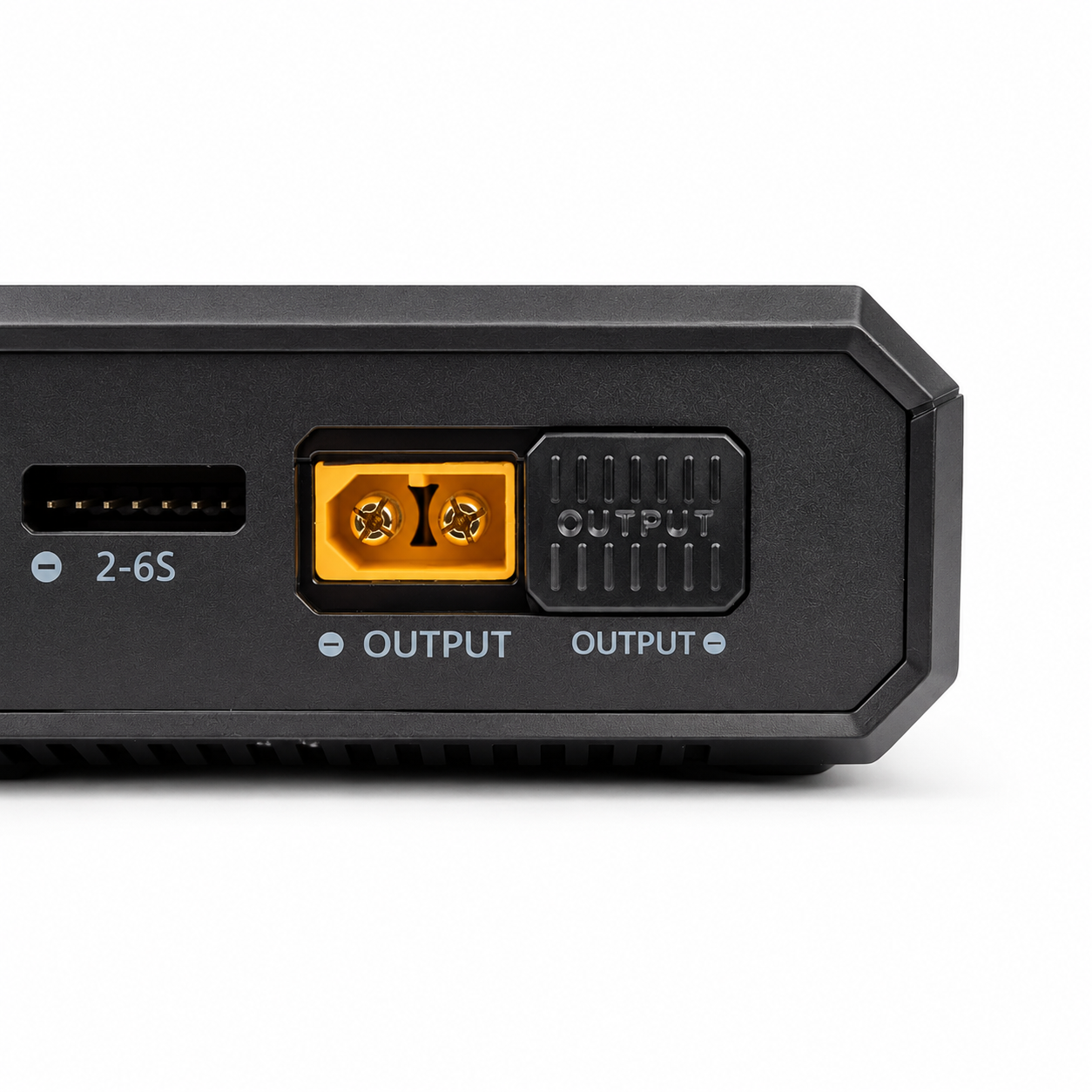

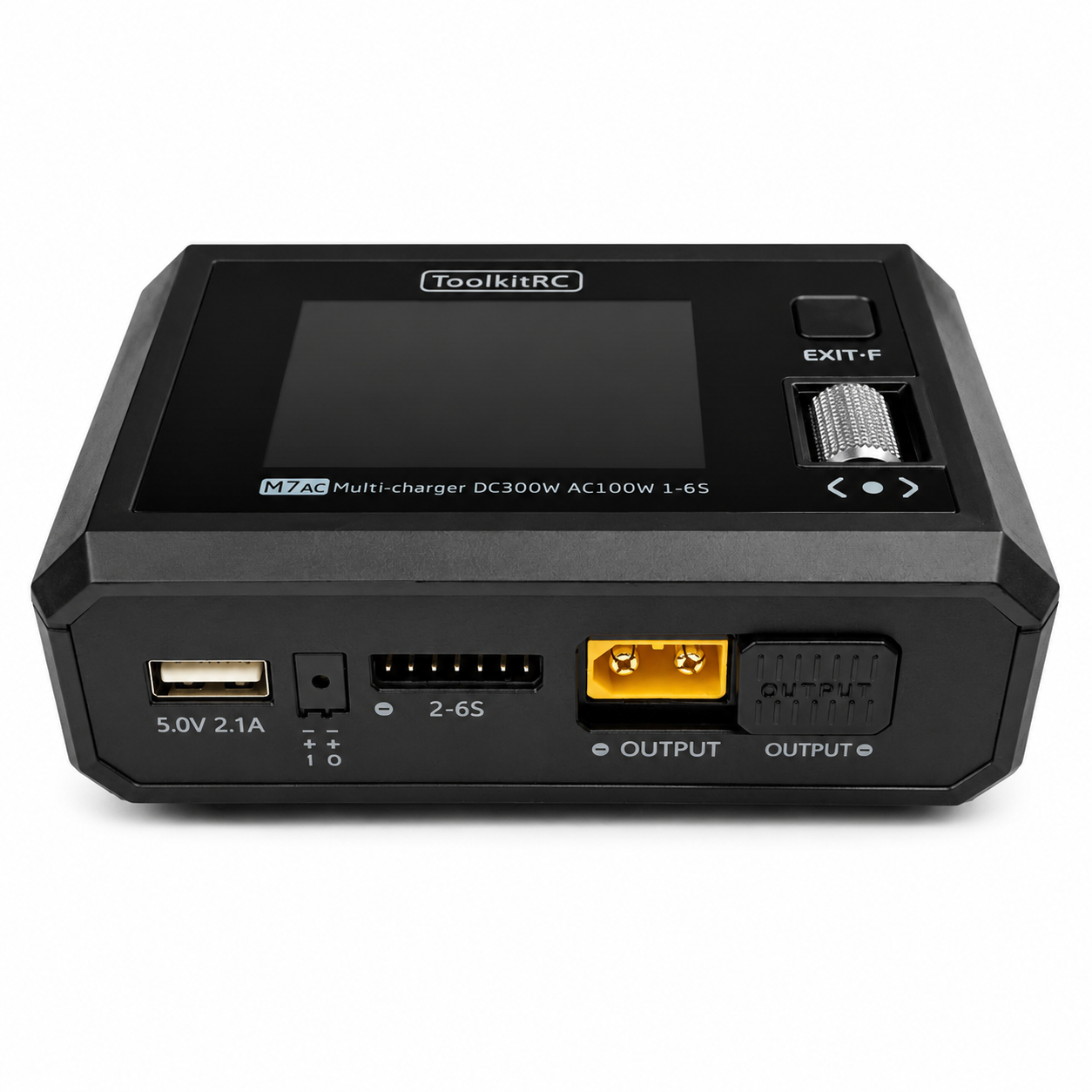

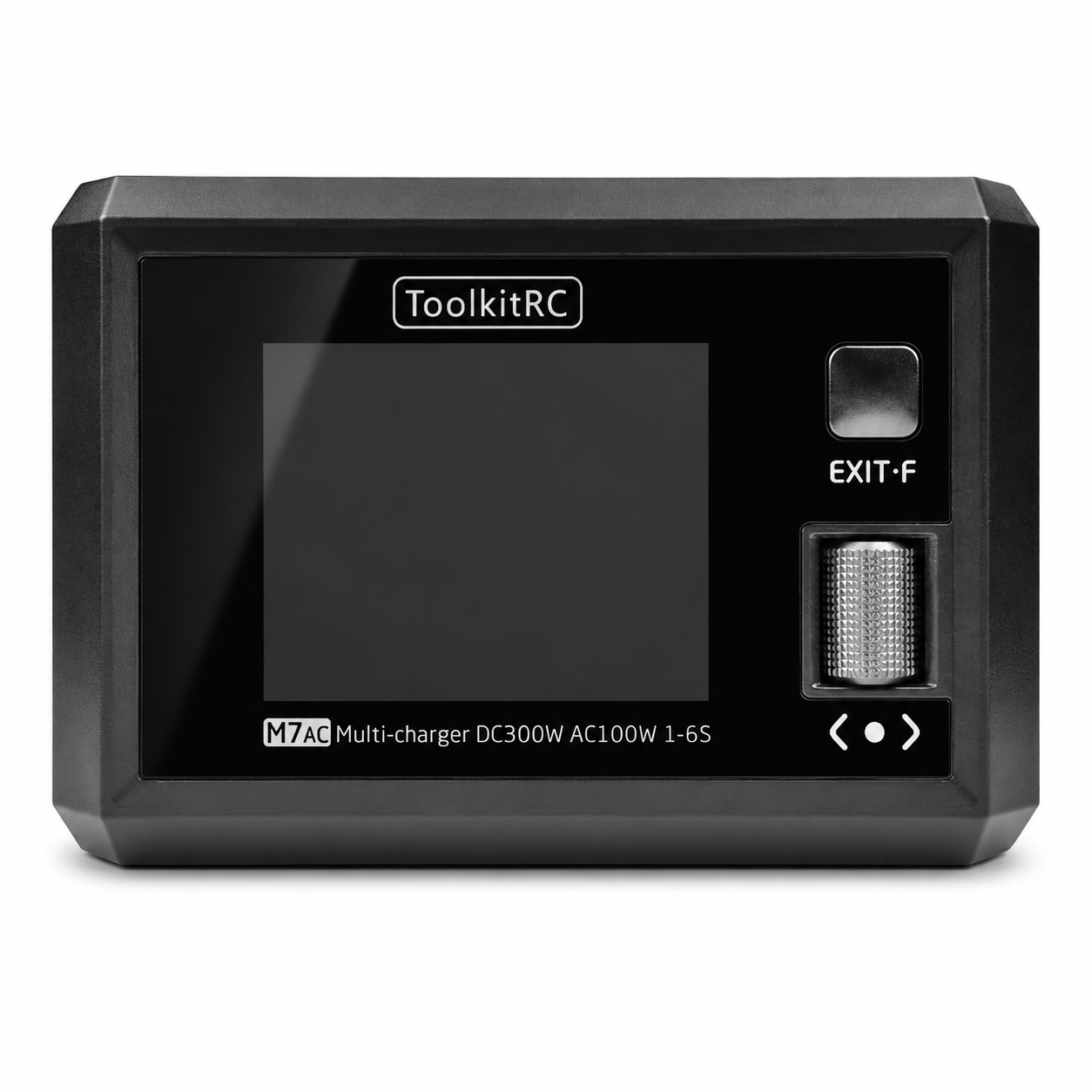

This charger is equipped with a full-colour IPS LCD screen that is easily navigatable with its smooth roller selector. The M7 AC is the same size as its predecessor and is 33% more powerful with a max output of 200W and 15A! Now including ToolkitRC’s dual sliding connector doors which allow you to switch from XT30 to XT60 in a flash!!

Features:

• Battery Charger
• Cell Checker
• Servo Tester
• PWM, PPM.SBUS Input/output & Receiver tester
• Viable AMP/volt DC Power supply (Required external DC input
• Lithium battery cut-off voltage can be set (TVC function)
• Measure battery voltage, internal resistance, balance
• Measure PWM / PPM / xBUS signal values, Accuracy 1ms
• Output PWM / PPM / xBUS standard signal, Accuracy 1ms
• Customizable 1-28V constant voltage, 1-10A constant current
• Charge the drone battery, activate and charge.
• Multi-language optional
• USB 2.1A@5.0V Output, for Mobile devices

Specifications:-

• LCD: IPS  2.0inch
• LCD: 320*240 Pixel

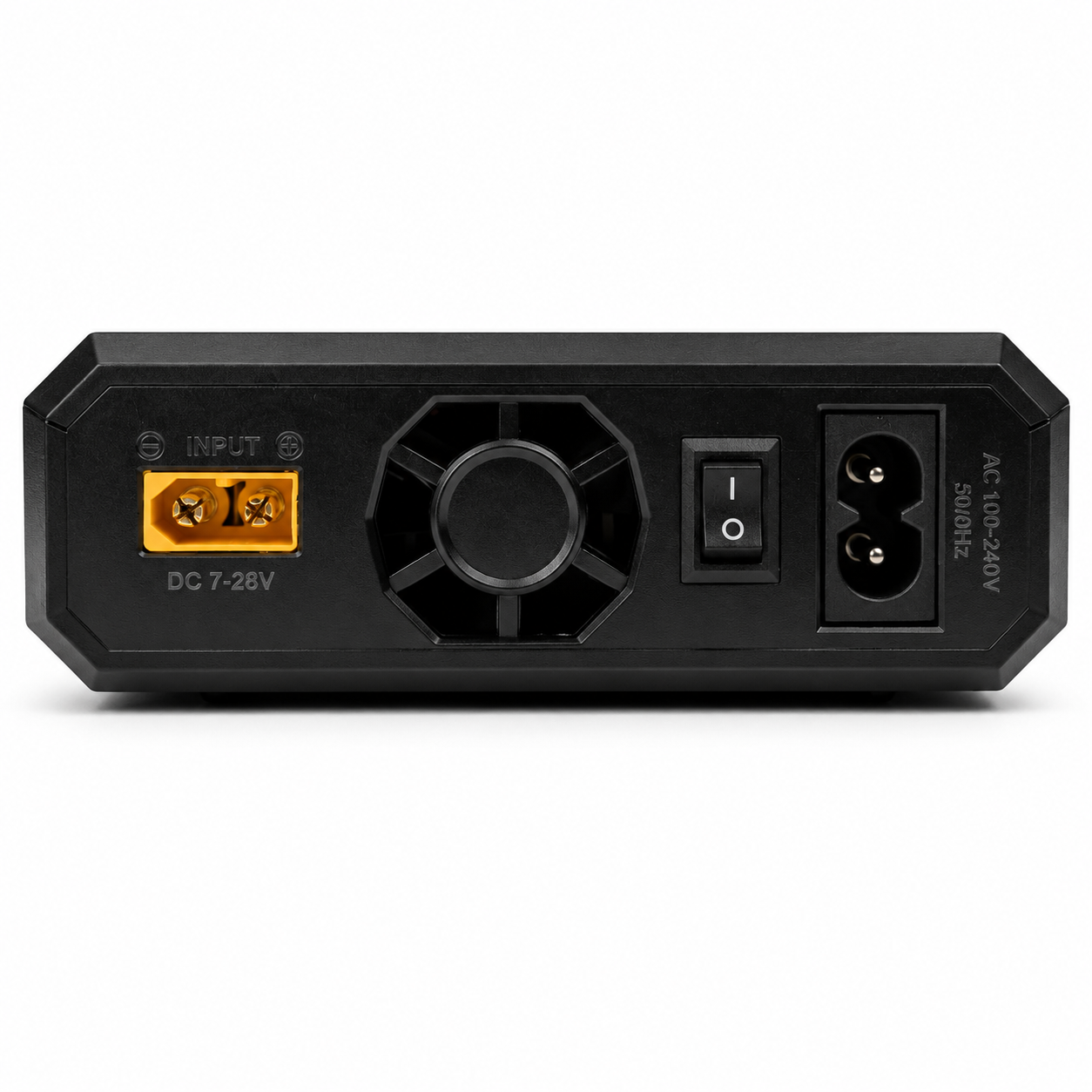

• Input voltage: 7.0-28.0V  @MAX 12A

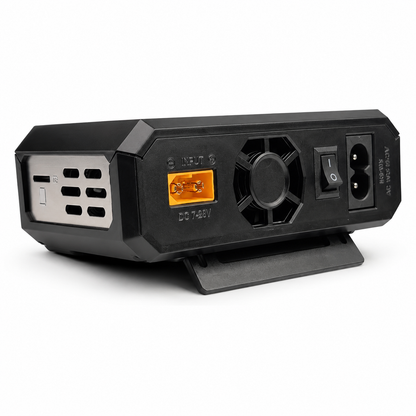

• Input voltage: AC 100-240V MAX 100W 1.5A
• Type of battery:
  • Lipo  LiHV  LiFe Lion@1-6
  • NiMh @1-16S   Pb @1-10S
• Balance current: 400mA @2-6S
• Charger power:
• 200W @MAX 15A
• Discharge power:
  • 200W  @MAX 10A Recycle mode
  • 10W@3A Normal mode
• USB: 2.1A @5.0V or Upgrade
• Product size: 112×72*38 mm
• Product weight: 245g
• Pack size: 144x73x38mm
• Pack weight: 380g

Input

• PWM: 880-2200us @20-400Hz
• PPM: 880-2200us*8CH @20-50Hz
• SBUS: 880-2200us*16CH @20-100Hz
• Voltage: 1.0-5.0V @1-6S
• Internal resistance: 1-99mR @1-6S
• ESC: 200W@10A       PWM Output

Output

• PWM: 500-2500us @20-1000Hz
• PPM: 880-2200us*8CH @20-50Hz
• SBUS: 880-2200us*16CH @20-100Hz
• Power supply: 1.0-28.0V  @1.0-10A  mode:CC+CV
• OverCurrent Cutoff time: <5ms

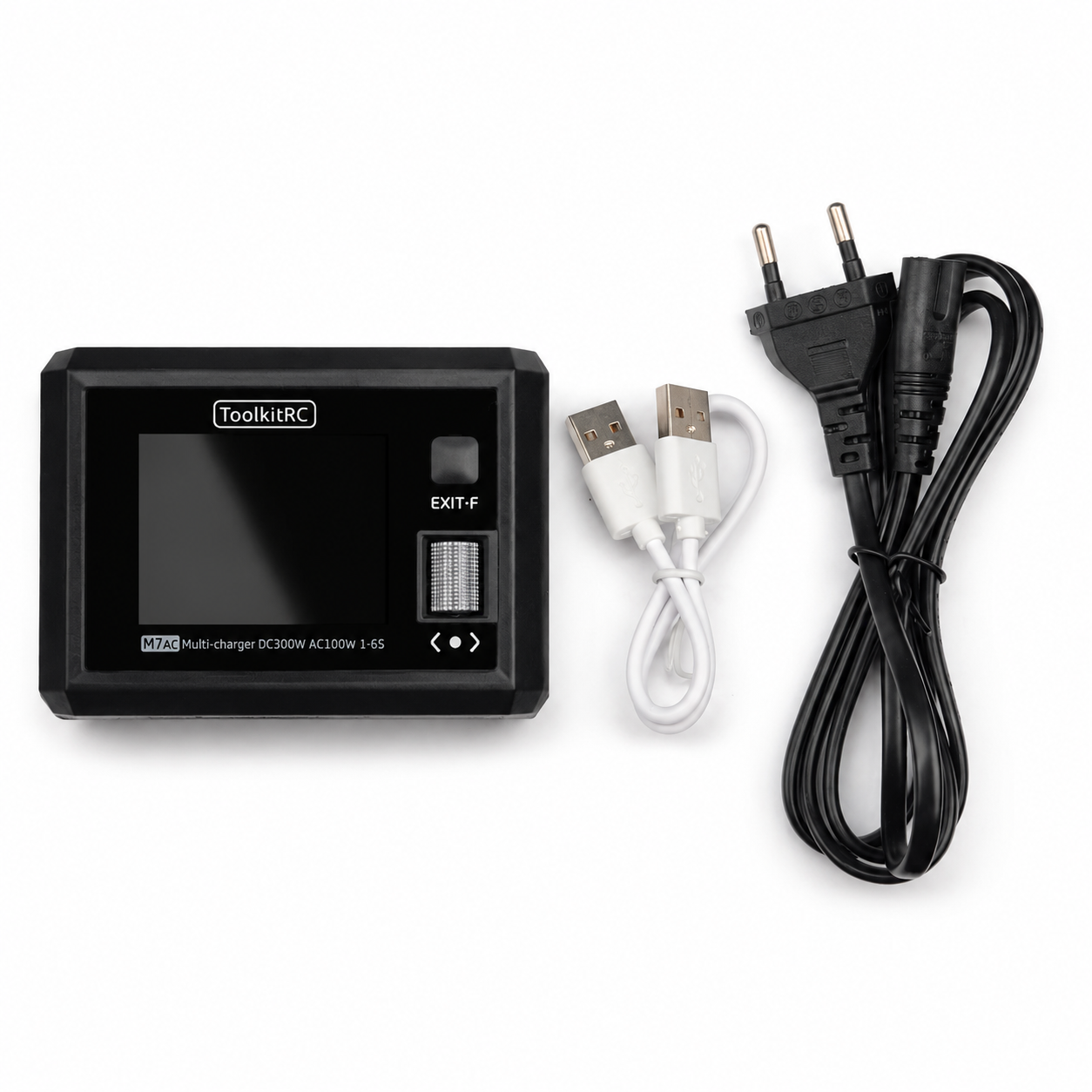

Package Include:

1× ToolKitRC M7 200W 10A 1-6S DC Smart Charger & Diagnostic Tool
