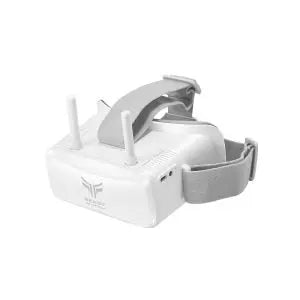

Newly developed, BeastHobby VR100 goggles, greatly heighten the FPV flying experience.
FEATURES
- New Refraction light path design;
- Object distance adjustable could match Myopia degree（0°-700°）；
- Low power consumption, working current 350mA；
- super sensitive 5.8GHz receiver module, strong anti-interference, more stable
signal； - 40 CH modules, channels Auto-Searching；
- 3.0 inch 480*320 Screen resolution Highlight IPS screen；
- Built-in 3.7V/1200mAh Lithium battery；
- TYPE-C charging output；
- Real-time video return, no time delay；
- Support Chinese / English menu；
- Support External video signal input；
- Support Av signal video output could connect with the external DVR for recording
SPECIFICATIONS
- Item VR100
- Name 5.8G FPV Goggle
- Display Screen: 3.0 inch IPS Highlight screen
- Screen resolution: 480*320
- Ratio: 16:9
- View Angle: 360-degree viewing angle
- Backlight brightness: 500cd/m²
- video delay Less than 10 milliseconds
- Interface definition antenna SMA male to RP-SMA female
- charging TYPE-C port charge battery
- headphone 3.5mm AV port available for video input and output
- Language Chinese and English
- Power Supply Power adapter: suggest using DC5V/1 or DC/5V2A interface
- Capacity: Built-in 3.7V/8\1200mAh lithium polymer battery
- Working power:
- Wireless Frequency Table (MHz)
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Band A 5865 5845 5825 5805 5785 5765 5745 5725
Band B 5733 5752 5771 5790 5809 5828 5847 5866
Band E 5705 5685 5665 5645 5885 5905 5925 5945
Band F 5740 5760 5780 5800 5820 5840 5860 5880
Band R 5658 5695 5732 5769 5806 5843 5880 5917 - Appearance Dimension: 107mm * 150mm * 75mm
- Weight: 300g without antenna
Package Include:
- 1× BeastHobby VR100 5.8GHz FPV Goggles
- Lens Cleaning Cloth
- USB Charging Cable
- Antennas
- AV data cable
- Goggle packing bag
- Carry Case
