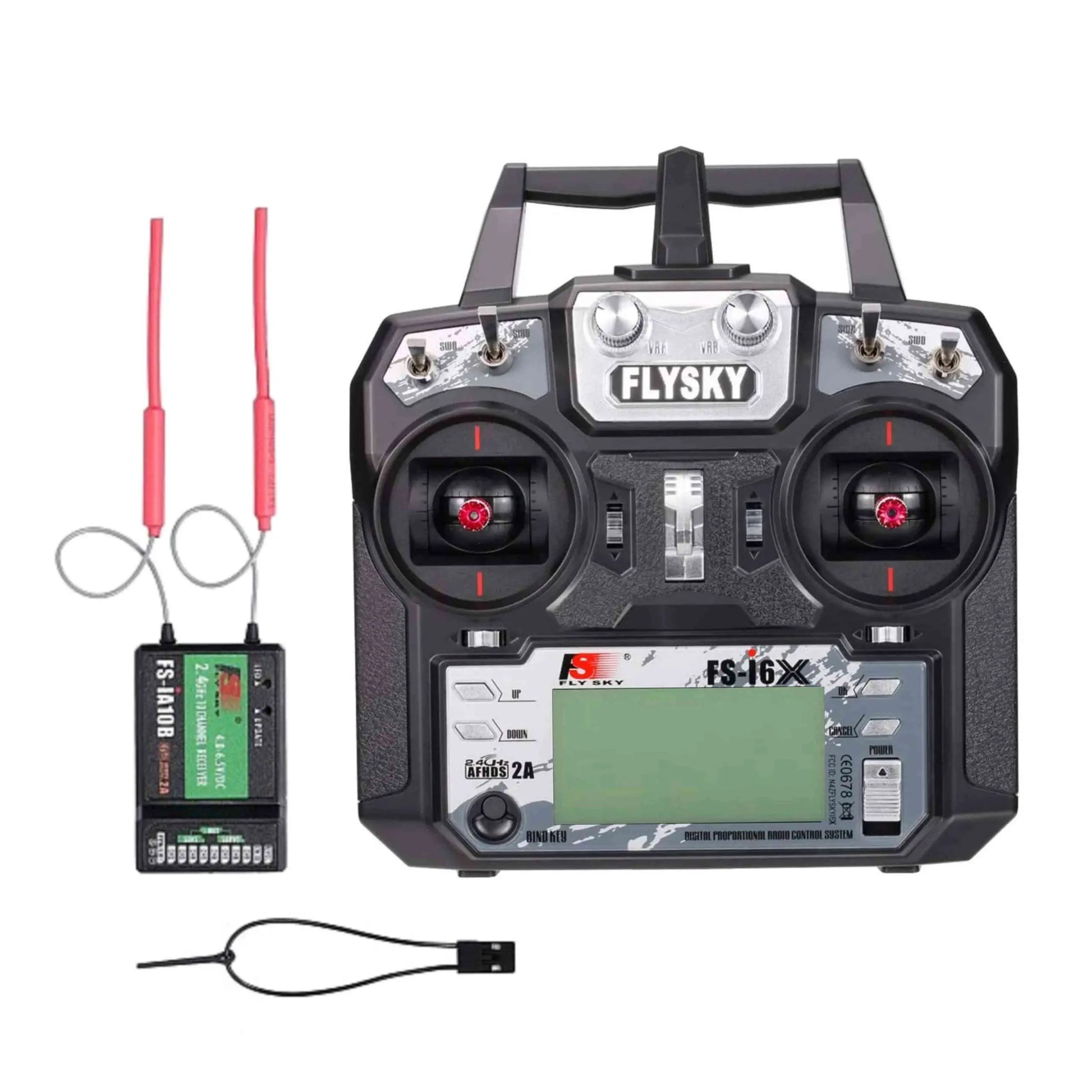

Flysky FS-i6X 2.4GHz 6CH AFHDS 2A Radio Transmitter With FS-iA10B 2.4GHz 10CH Receiver.
Flysky FS-i6X 2.4GHz 6CH AFHDS 2A Radio Transmitter With FS-iA10B 2.4GHz 10CH Receiver.
SKU:060005
(Including GST)
The Flysky FS-i6X is a 6-channel radio transmitter system that provides reliable and precise control for a wide range of RC models. When combined with the FS-iA10B receiver, it offers extended channel capabilities and enhanced features.
Features:
Flysky FS-i6X Transmitter:
2.4GHz Frequency: The transmitter operates on the 2.4GHz frequency, providing a stable and interference-free connection. This technology minimizes the risk of signal interference from other radio systems or external sources.
6 Channels: The FS-i6X offers six channels, allowing you to control various functions on your RC model. This can include throttle, rudder, elevator, aileron, and additional functions based on your specific application.
Large Backlit LCD Screen: The transmitter features a large backlit LCD screen that displays essential information, including channel settings, model memory, battery voltage, signal strength, and more. The screen is especially useful for flying or operating models in low-light conditions.
Model Memory: The transmitter is equipped with model memory, allowing you to save and recall settings for different RC models. This feature is convenient if you have multiple models that you want to control with the same transmitter.
Digital Trims: Digital trims are included, allowing you to fine-tune the control endpoints and center positions of your servos and control surfaces without manual adjustments.
Dual-Rate and Exponential: The FS-i6X typically offers dual-rate and exponential adjustments, enabling you to switch between different sensitivity settings and apply exponential control response to fine-tune the handling characteristics of your RC model.
Servo Reversing: The transmitter allows you to reverse the direction of servos, which is essential for matching the desired control direction for your specific RC model.
Throttle Cut and Safety Switches: Some models include throttle cut and safety switches, providing safety measures to prevent accidental throttle activation and ensuring safe operation.
Battery Power: The transmitter can be powered by rechargeable NiMH batteries or AA batteries, depending on the model. It may include a battery status indicator to monitor battery life.
Range: The 2.4GHz system provides a reliable control range that can extend to several hundred meters, depending on environmental conditions and local regulations.
More Features:
1. 10 channel 2.4GHz radio with telemetry capability
2. Automatic Frequency Hopping Digital System (AFHDS) spread spectrum technology
3. Transmitters come pre-bound to the receiver
4. Multiple control switches including a 3-pos switch and two potentiometers
5. Easy to use and program
6. 20 model
7. Trainer port
8. Backlit LCD screen displays real-time transmitter and receiver voltage
Specification for FS-i6X RC Transmitter:
Item | FS-i6X RC Transmitter | ||||||
Tx Channel | 6 | ||||||
Model Type | Fixed-wing/Glider/Helicopter | ||||||
RF Range | 2.408-2.475GHz | ||||||
RF Power | < 20dBm | ||||||
RF Channel | 135 | ||||||
Bandwidth | 500KHz | ||||||
2.4GHz System | AFHDS 2A / AFDHS | ||||||
Modulation Type | GFSK | ||||||
Stick Resolution | 4096 | ||||||
Low Voltage Warning | < 4.2V | ||||||
DSC port | PS/2 Port PPM | ||||||
Chargeable | No | ||||||
Antenna Length | 26mm (Dual Antenna) | ||||||
Weight | 392g | ||||||
Power | 6V DC 1.5A | ||||||
Display | STN Transflective Display, LCD 128×64 Lattice, VA 73x39mm, LCD with white backlight | ||||||
Size | 174 x 89 x 190 mm | ||||||
Online Update | Yes | ||||||
Colour | Black | ||||||
Certificate | CE0678, FCC |
Specifications for FS-iA10B RC Receiver:
Rx Channels | 10 | ||||
Suitable models | Airplane/glider / helicopter Health | ||||
Frequency range | 2.4-2.48 GHz | ||||
Transmitting power | not more than 20dBm | ||||
Receiver sensitivity | -105dBm | ||||
2.4G modes | automatic frequency second-generation digital system | ||||
Encoding | GFSK | ||||
Antenna length | 26 mm * 2 (dual antenna) | ||||
Weight | 19.3 g | ||||
Input power | 4.0-6 .5 V DC | ||||
Dimensions | 47 x 33.1 x 14.7 mm | ||||
Colour | Black | ||||
Certification | CE0678, FCC | ||||
-BUS Interface | Yes | ||||
Data acquisition interface | Yes | ||||
Colour | Black. | ||||
Model Type | Airplane / Glider / Helicopter | ||||
Compatible Transmitter | Compatible with FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G |
Package Includes:
1× Fly sky FS-i6X 6CH 2.4GHz Radio Transmitter
1× FS-iA10B 2.4GHz 10CH Receiver
1× Binding cable
1× PS2 to USB Update Cable
1× User Manual
