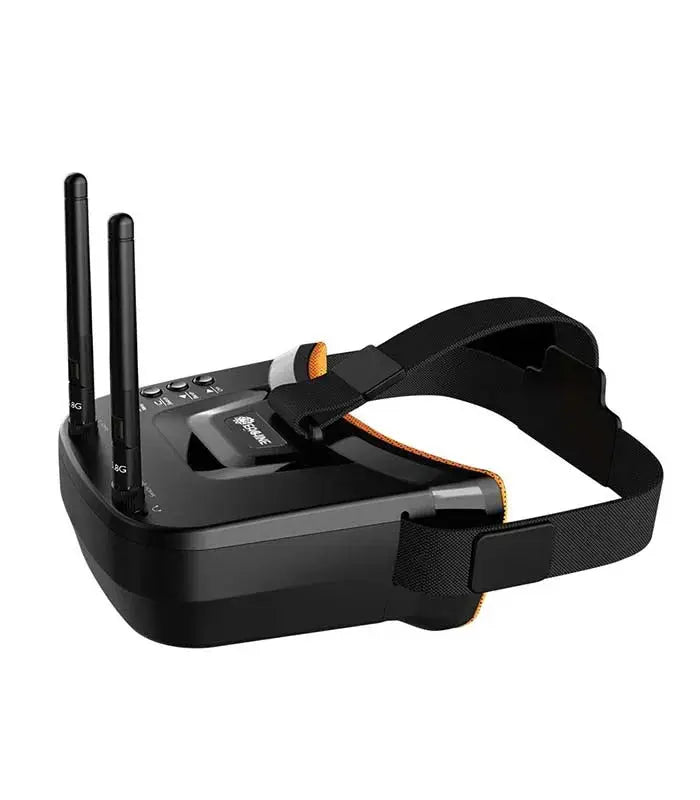

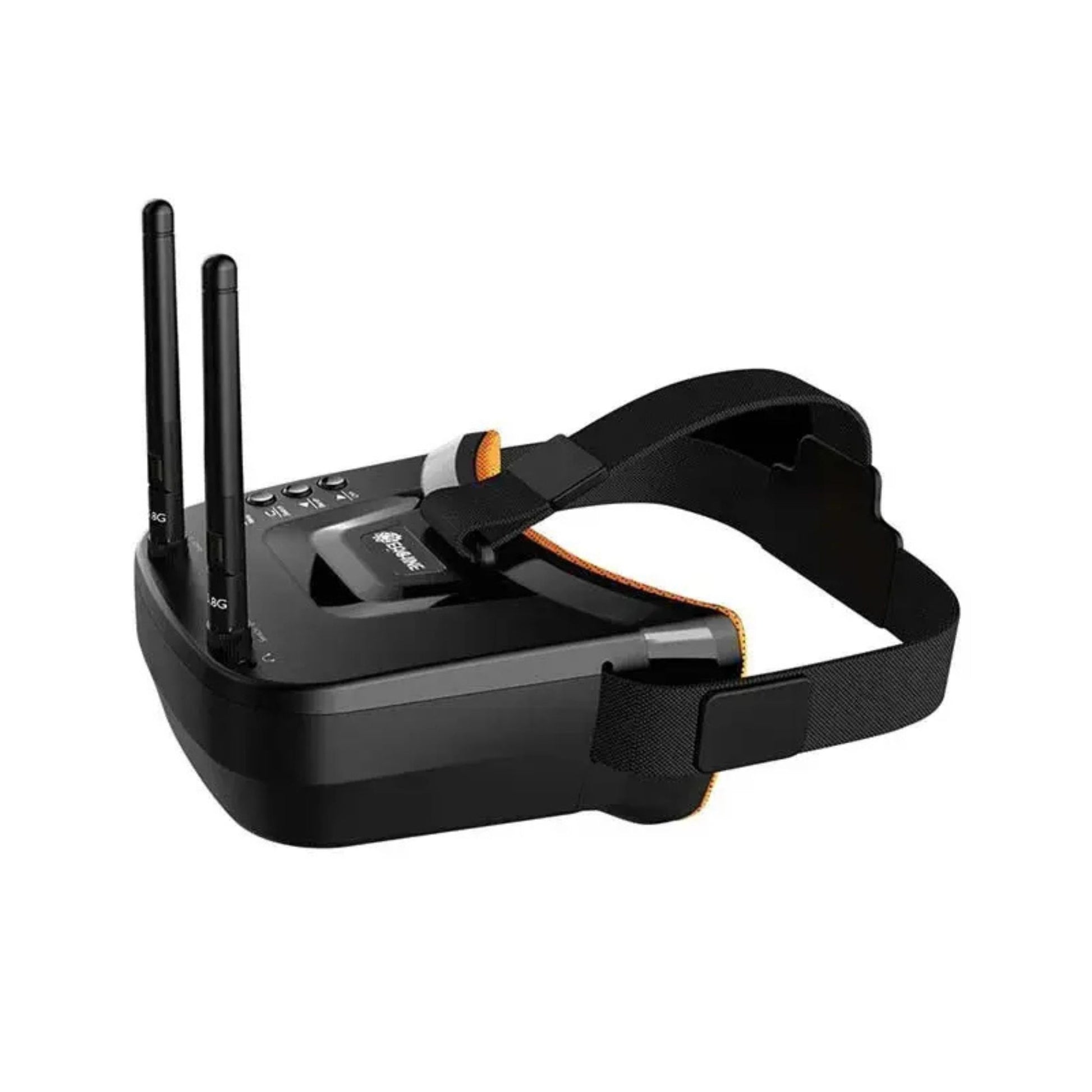

VR009 5.8GHz 40CH 3 Inch FPV Goggles.
VR009 5.8GHz 40CH 3 Inch FPV Goggles.
SKU:055063
(Including GST)
Feature of Eachine VR009:
– Small size and light weight;
– Low power consumption, Working current 300~330mA;
– Double antenna reception to make the signal more stable;
– RaceBand 40 channel, Auto-Searching;
– 3.0 Inch 480*320 dot high brightness LCD screen;
– Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
– Built-in 3.7V/1200mAh high-capacity Li-ion polymer Battery;
– Universal USB charging interface;
– Real-time video return, Very low time delay;
– Bilingual menu in support of Chinese and English;
– Support external video signal input;
– Support AV signal output (Connect external DVR);
Band and Channel selection:
CH CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
GROUP
A 5865 MHZ 5845 MHZ 5825 MHZ 5805 MHZ 5785 MHZ 5765 MHZ 5745 MHZ 5725 MHZ
B 5733 MHZ 5752 MHZ 5771 MHZ 5790 MHZ 5809 MHZ 5828 MHZ 5847 MHZ 5866 MHZ
E 5705 MHZ 5685 MHZ 5665 MHZ 5645 MHZ 5885 MHZ 5905 MHZ 5925 MHZ 5945 MHZ
F 5740 MHZ 5760 MHZ 5780 MHZ 5800 MHZ 5820 MHZ 5840 MHZ 5860 MHZ 5880 MHZ
R 5658 MHZ 5695 MHZ 5732 MHZ 5769 MHZ 5806 MHZ 5843 MHZ 5880 MHZ 5917 MHZ
Package Included:
1x VR009 5.8GHz 40CH 3 Inch FPV Goggles
If you are facing any problems in buying or building your drone then you can consult with our drone expert they will guide you on your problem like which parts to choose, and what will be the best drone/parts in your budget.
Why you should consult with our drone experts
i. For any Doubt
ii. For any Advice & others
Overall, consulting with drone experts can help you make informed decisions, mitigate risks, and optimize the performance of your drone for your specific needs and objectives.
Book your slot now:
Consult with Our Drone Expert
SPECIFICATION:- |
|
Model | Eachine/VR009 |
Name | Mini FPV Goggles |
LCD Screen | Screen size: 3.0 Inch |
Resolution: 480*320 | |
Display Ratio: 16:9 | |
View Angle: 6 o’clock | |
Brightness: 500cd/m² with high brightness backlight LED | |
Video delay | Video time delay less than 20ms |
Lens | 4X Fresnel Lens, 92% transparent rate no distortion of light |
Interface | Antenna: 2 X RP-SMA male |
USB: To charge the battery | |
AV Jack: External video signal input or internal AV signal output | |
Languages | English and Chinese |
Power Supply | Power adapter: DC5V/1A (USB interface) |
Battery: 3.7V/1200mAh,Each full charge revive around 2.5hr working time | |
Power Consumption: | |
*The device operating current of 300~330mA at 3.7~4.2V; | |
*Built-in battery maximum charge current of 500mA; | |
Body | Dimension: 13.5cm * 13.2cm * 6.5cm |
Weight: 180g(with headband, not included antennas) |
