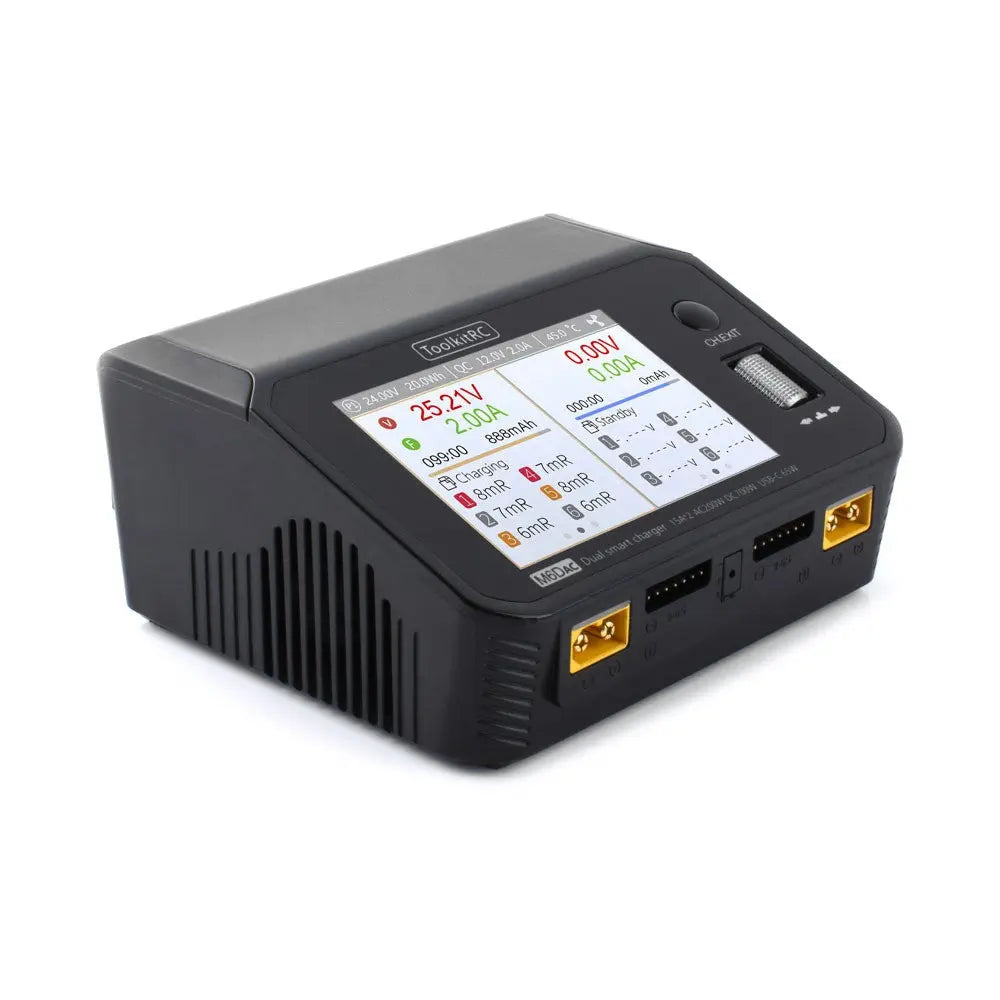

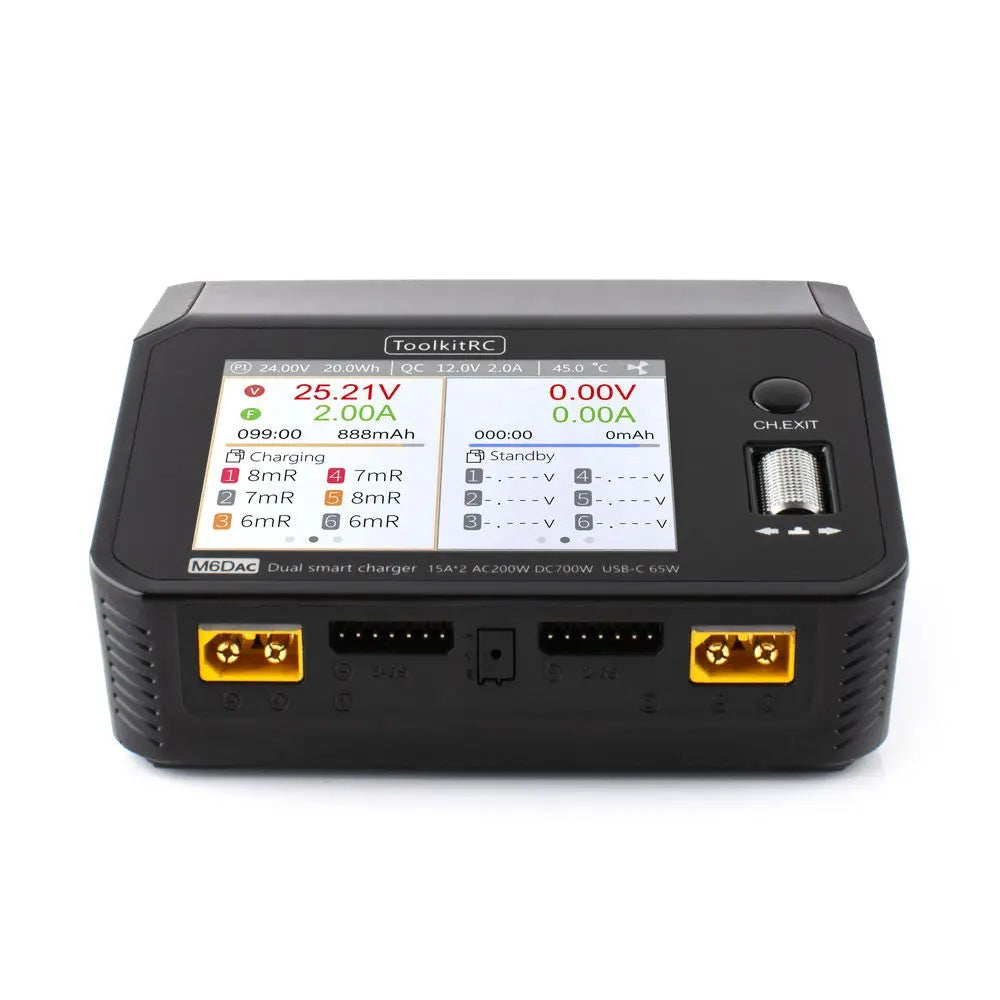

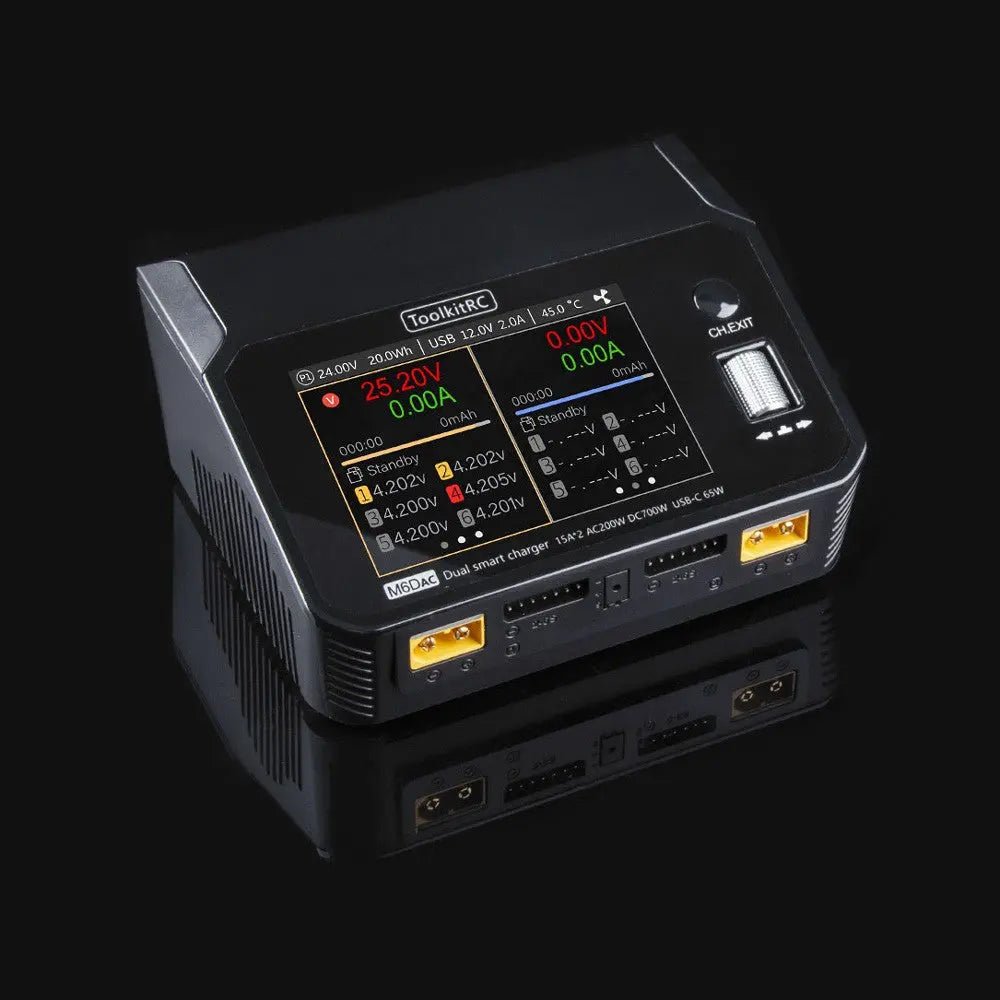

The ToolkitRC M6DAC 200w AC/DC Smart Charger is a desktop power supply with a 3.5″ IPS wide-angle display and 65w fast charge output. This power supply has an AC/DC dual-mode input which is ideal for your charging needs. The metal dial wheel allows for better control and can withstand well over 100,000 clicks!
Features:
- 3.5″ IPS Panel with 48×320 Resolution Display
- Multi Dial Wheel with Tactile Feel
- Higher DC-Input Voltage (7-28V)
- 65W TypeC Fast Charge Output
- Dual-Channel Charge Function
- Built-In 200w AC Power Supply
- IPS Full Viewing Angle Display
- No External Adapter Needed
- Multilingual User Interface
- AC/DC Dual Mode Input
- IPS Wide-angle viewing
Specifications
- USBC protocol: PD,QC,AFC,FCP,SCP,PE,SFCP,VOC
- USBC power: MAX 65W 3.25A @20.0V or Upgraded
- Charger power:
- 0.1-15A @350W *2 (Asynchronous mode)
- 0.1-25A @700W (Synchronous mode)
- Discharge power:
- 350W @MAX 15A *2（Recycle mode)
- 15W@3A *2 (Normal mode)
- LCD: IPS 3.5 inch LCD 480×320 Pixel
- Internal resistance: 1-100mR@1-6S
- Input voltage:
- DC 7.0-28.0V @MAX 30A
- AC 100-240V @ MAX 2.5A
- Type of battery:
- Lipo LiHV LiFe Lion@1-6S
- NiMh @1-16S Pb @1-10S
- Battery voltage: 1.0V-5.0V@1-6S
- Balance current: 1000mA @2-6S
- Product size: 127x106x57 mm
- Pack size: 158x134x63 mm
- Balance accuracy: <0.005V
- Product weight: 520g
- Pack weight: 700g
Package Includes:
1× ToolkitRC M6DAC 200w AC/DC Smart Charger
