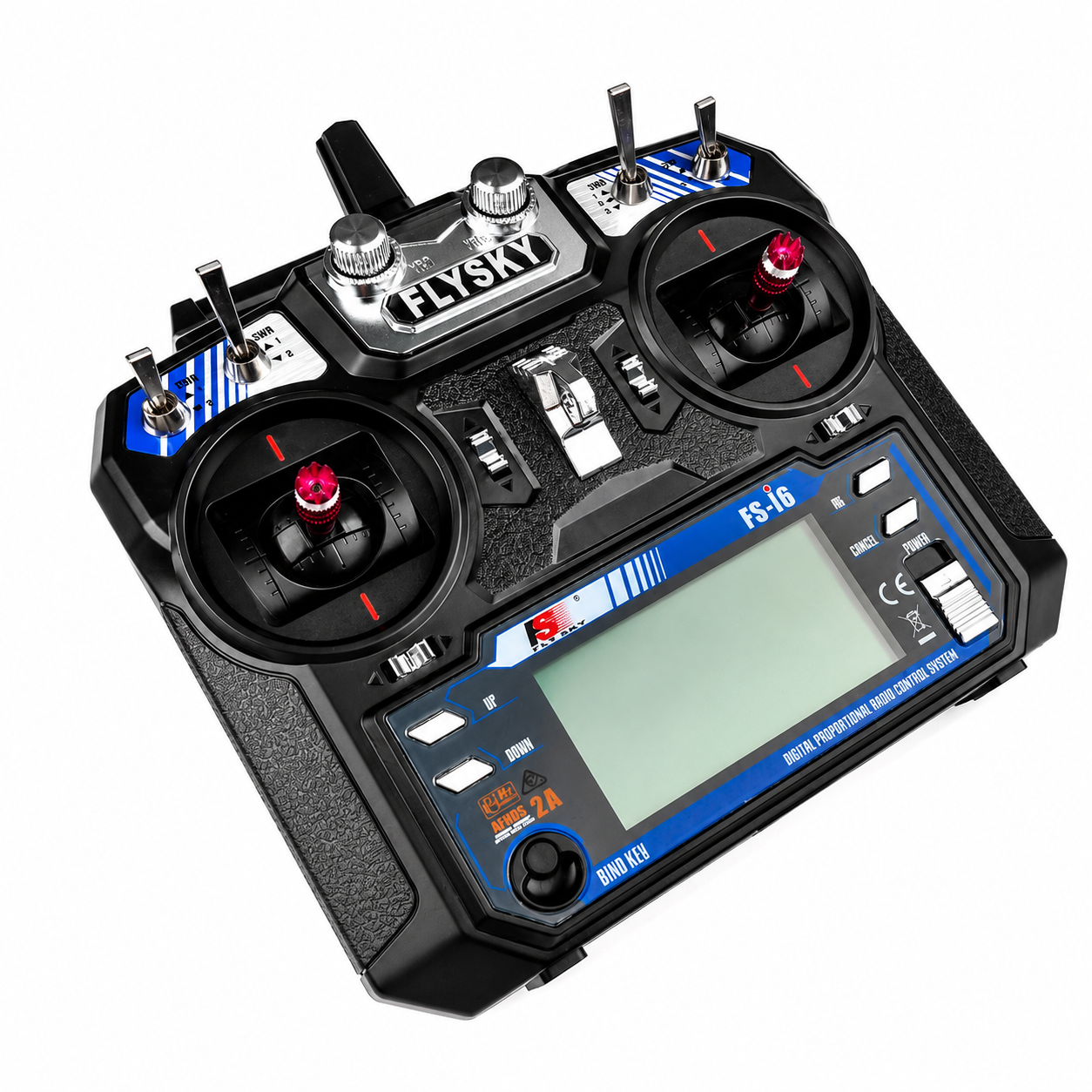

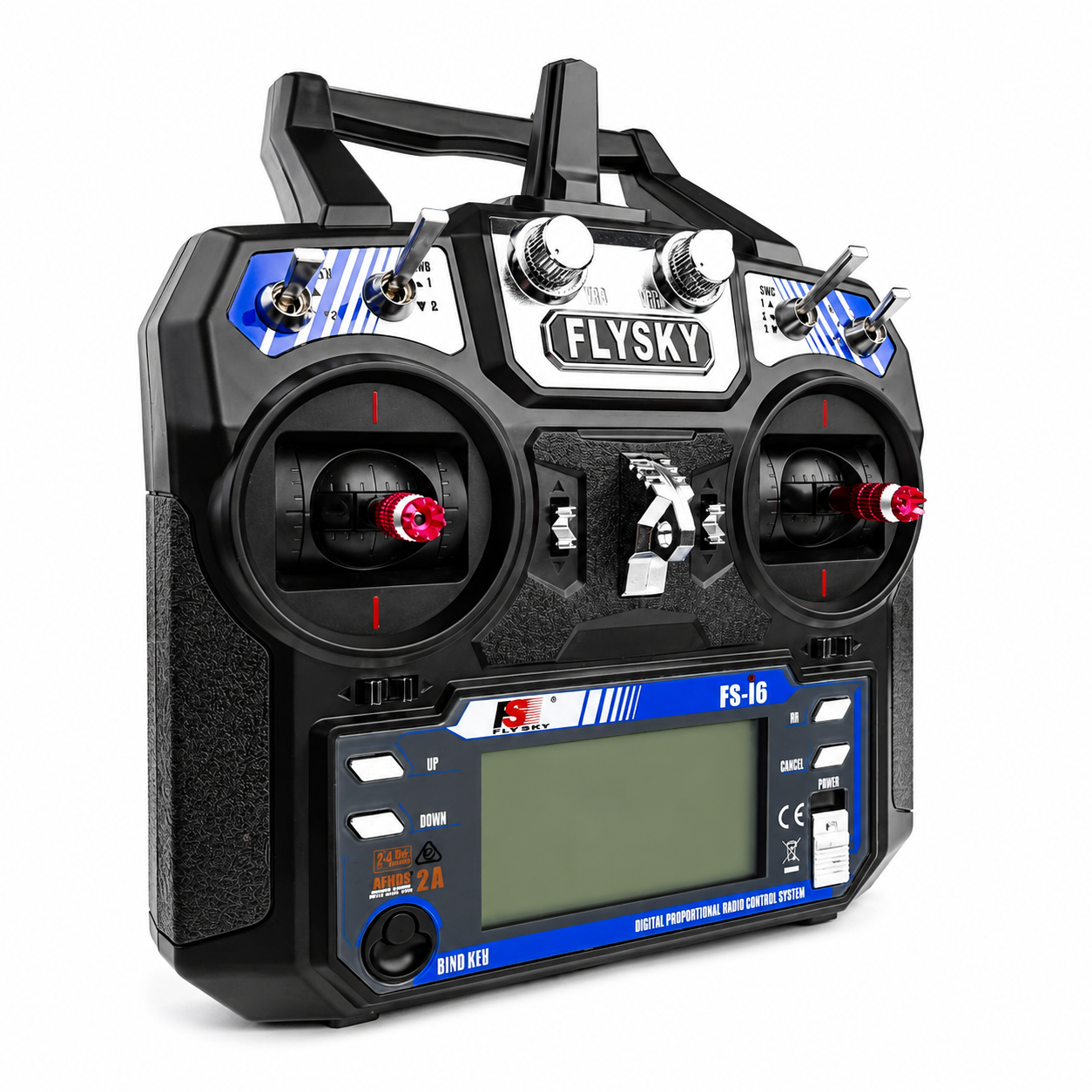

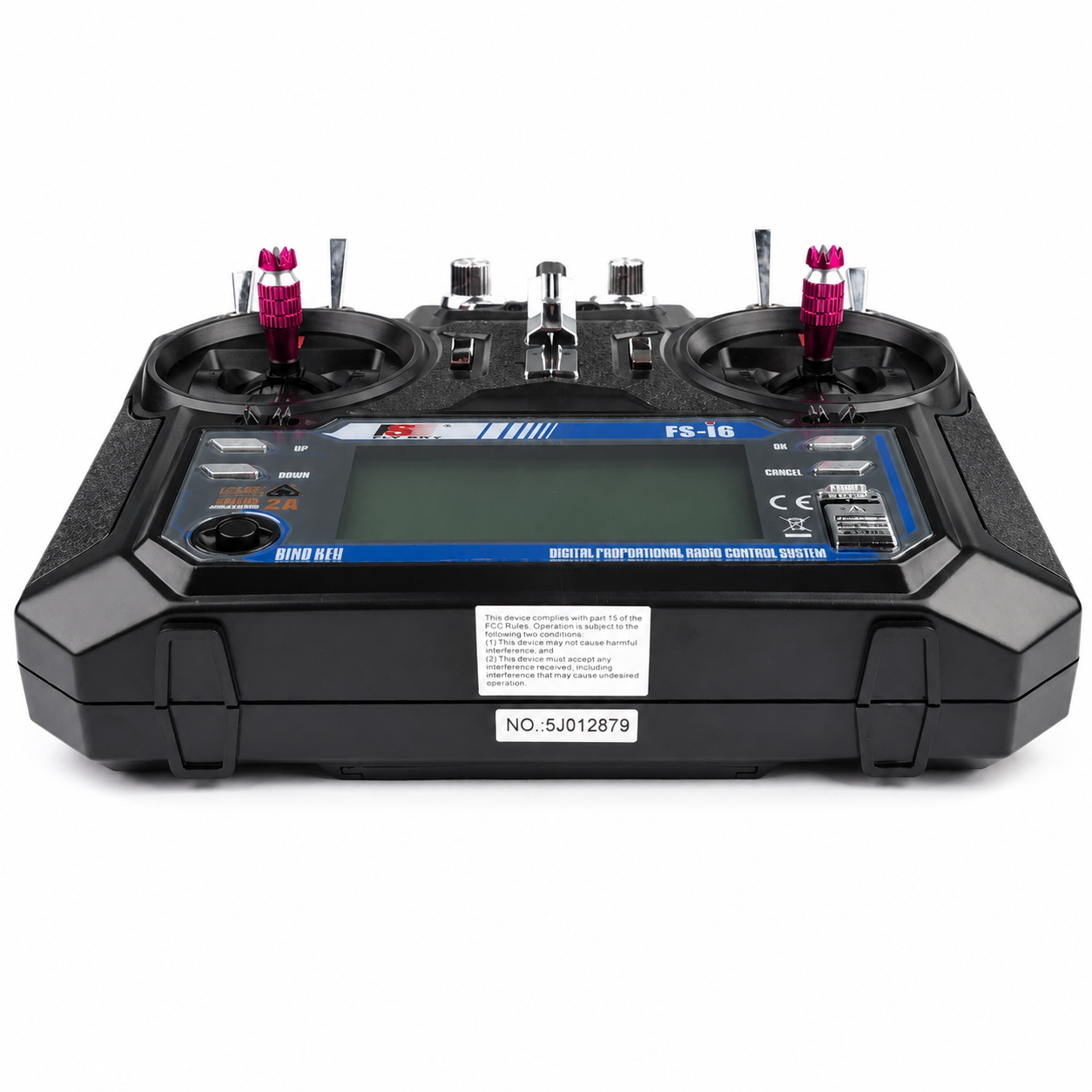

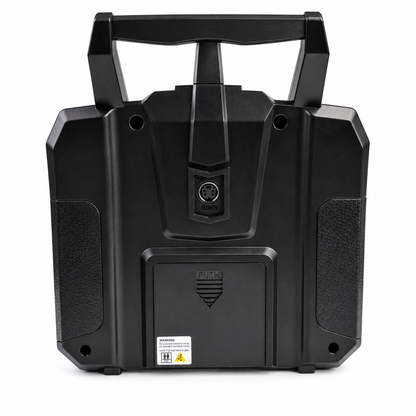

The FlySky FS-i6 is a 6-channel radio transmitter system designed for hobbyists and enthusiasts engaged in remote-controlled models. It offers a user-friendly interface, a range of advanced features, and reliable communication with the included FS-iA6b receiver, making it suitable for various applications.
Features:
2.4GHz Frequency: The use of a 2.4GHz radio frequency provides a stable and interference-free connection. This technology minimizes the likelihood of signal interference from other radio systems or external sources.
6 Channels: The FS-i6 offers six channels, allowing you to control various functions on your RC model. You can configure these channels to manage throttle, rudder, elevator, aileron, and additional functions based on your specific application.

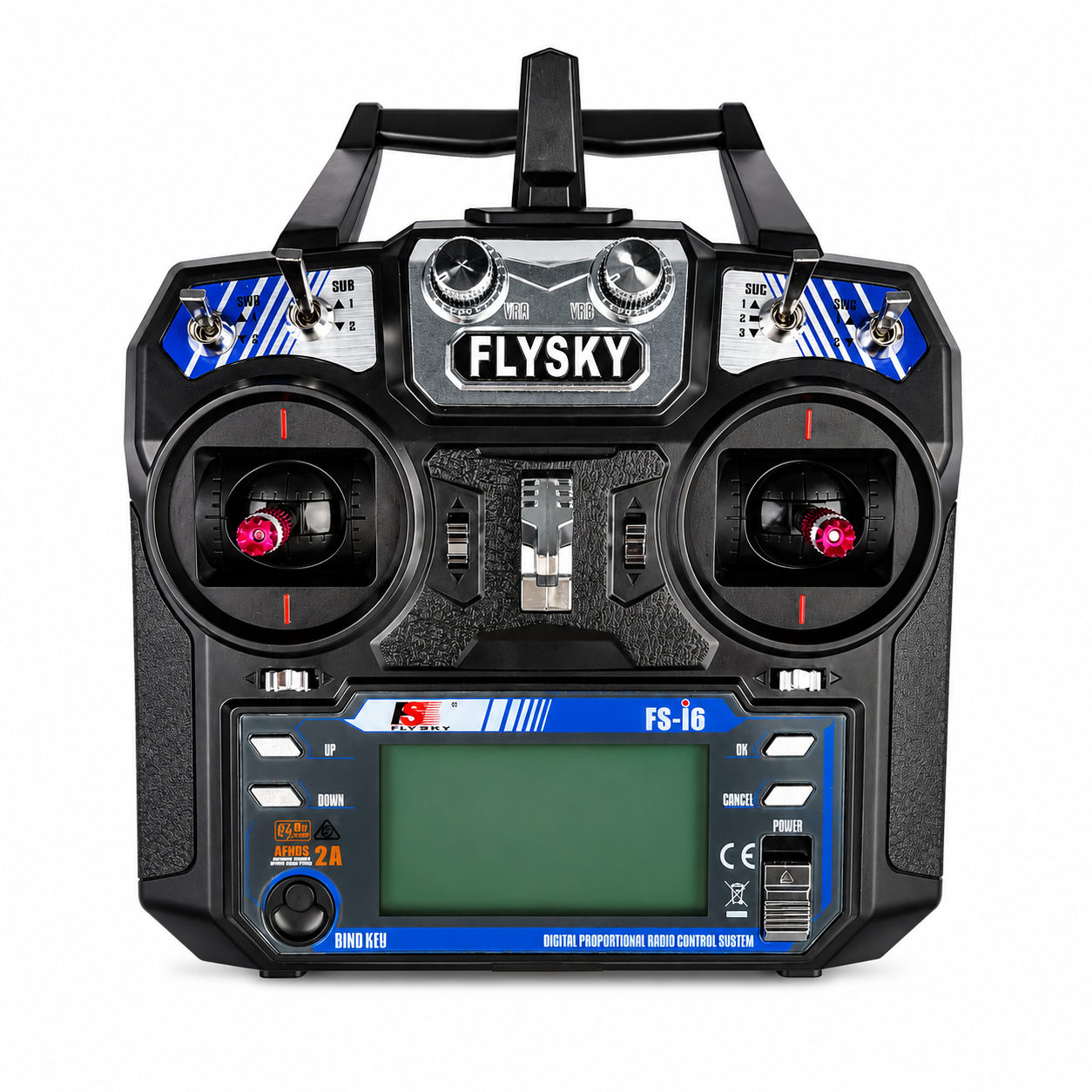

Backlit LCD Screen: The transmitter features a backlit LCD screen that displays essential information, including channel settings, battery voltage, signal strength, and more. This feature is especially useful for flying or operating models in low-light conditions.
Model Memory: The transmitter is equipped with model memory, allowing you to save and recall settings for different RC models. This is a convenient feature if you have multiple models that you want to control with the same transmitter.
Digital Trims: Digital trims are included, allowing you to fine-tune the control endpoints and center positions of your servos and control surfaces without manual adjustments.
Dual-Rate and Exponential: The FS-i6 typically offers dual-rate and exponential adjustments, enabling you to switch between different sensitivity settings and apply exponential control response to fine-tune the handling characteristics of your RC model.
Servo Reversing: The transmitter allows you to reverse the direction of servos, which is essential for matching the desired control direction for your specific RC model.
Throttle Cut and Safety Switches: Some models include throttle cut and safety switches, providing safety measures to prevent accidental throttle activation and ensuring safe operation.
Battery Power: The transmitter can be powered by rechargeable NiMH batteries or AA batteries, depending on the model. It may include a battery status indicator to monitor battery life.
Range: The 2.4GHz system provides a reliable control range that can extend to several hundred meters, depending on environmental conditions and local regulations.
FS-iA6b Receiver: The included FS-iA6b receiver is designed to be compatible with the transmitter. It provides six channels and connects to various servos and components on your RC model, receiving control signals from the transmitter and relaying them to the appropriate devices.
Fail-Safe: The receiver may offer a fail-safe function that, in the event of signal loss, can be programmed to return your model to a preset position or perform another predefined action for safety.
Telemetry Support: Some models of the FS-iA6b receiver offer telemetry support, enabling you to receive real-time information about the state of your RC model, such as battery voltage and signal strength.
FS-i6 Specifications
| Channels | 6 Channels | ||
| Model Type | Glider/Heli/Airplane | ||
| RF Range | 2.40-2.48GHz | ||
| Bandwidth | 500KHz | ||
| Band | 142 | ||
| RF Power | Less Than 20dBm | ||
| 2.4ghz System | AFHDS 2A and AFHDS | ||
| Code Type | GFSK | ||
| Sensitivity | 1024 | ||
| Low Voltage Warning | less than 4.2V | ||
| DSC Port | PS2;Output | PPM | |
| Charger Port | No | ||
| ANT length | 26mm*2(dual antenna) | ||
| Transmitter Weight | 392g | ||
| Package Weight | 676g | ||
| Transmitter Size | 174x89x190mm | ||
| Package Size | 23.5×21.2×10.6cm | ||
| Power | 6V 1.5AA*4 | ||
| Display mode | 128*64 dot matrix VA73*39mm, white backlight. | ||
| On-line update | yes | ||
| Colour | Black | ||
| Certificate | CE0678,FCC | ||
| Model Memories | 20 | ||
| Control Range | 500m | ||
FS-iA6Bb Specifications
| Channel | 6 | ||||||
| Frequency Range | 2.4055–2.475GHZ | ||||||
| Band Width Number | 140 | ||||||
| Transmitting Power | ≤ 20dBm | ||||||
| RF Receiver Sensitivity | -105dbm | ||||||
| 2.4G Mode | The second generation of an enhanced version of the automatic FM digital system | ||||||
| Encoding | GFSK | ||||||
| Antenna Length | 26mm * 2 (dual antenna) | ||||||
| Input Power | 4.0-6.5V DC | ||||||
| Dimension | 47 x 26.2 x 15mm | ||||||
| Weight | 14.9g | ||||||
| Colour | Black | ||||||
| i-Bus Interface | Yes | ||||||
| Data Acquisition Interface | Yes | ||||||
| Model Type | Airplane / Glider / Helicopter | ||||||
| Compatible Transmitter | Compatible with FS-i6 & FS-i6s | ||||||

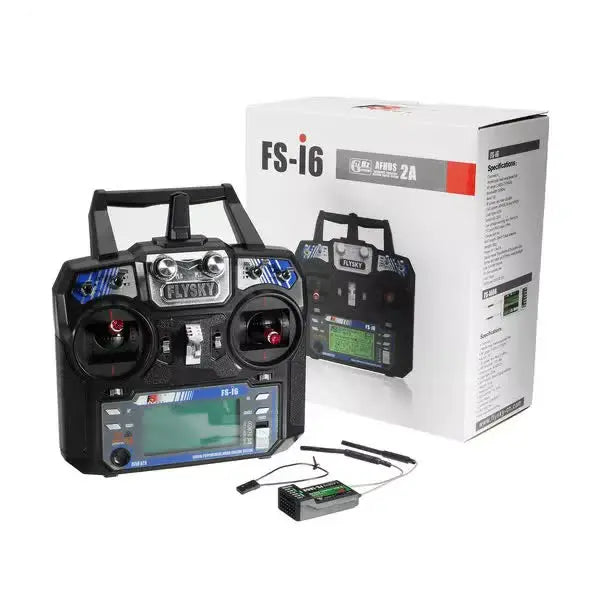

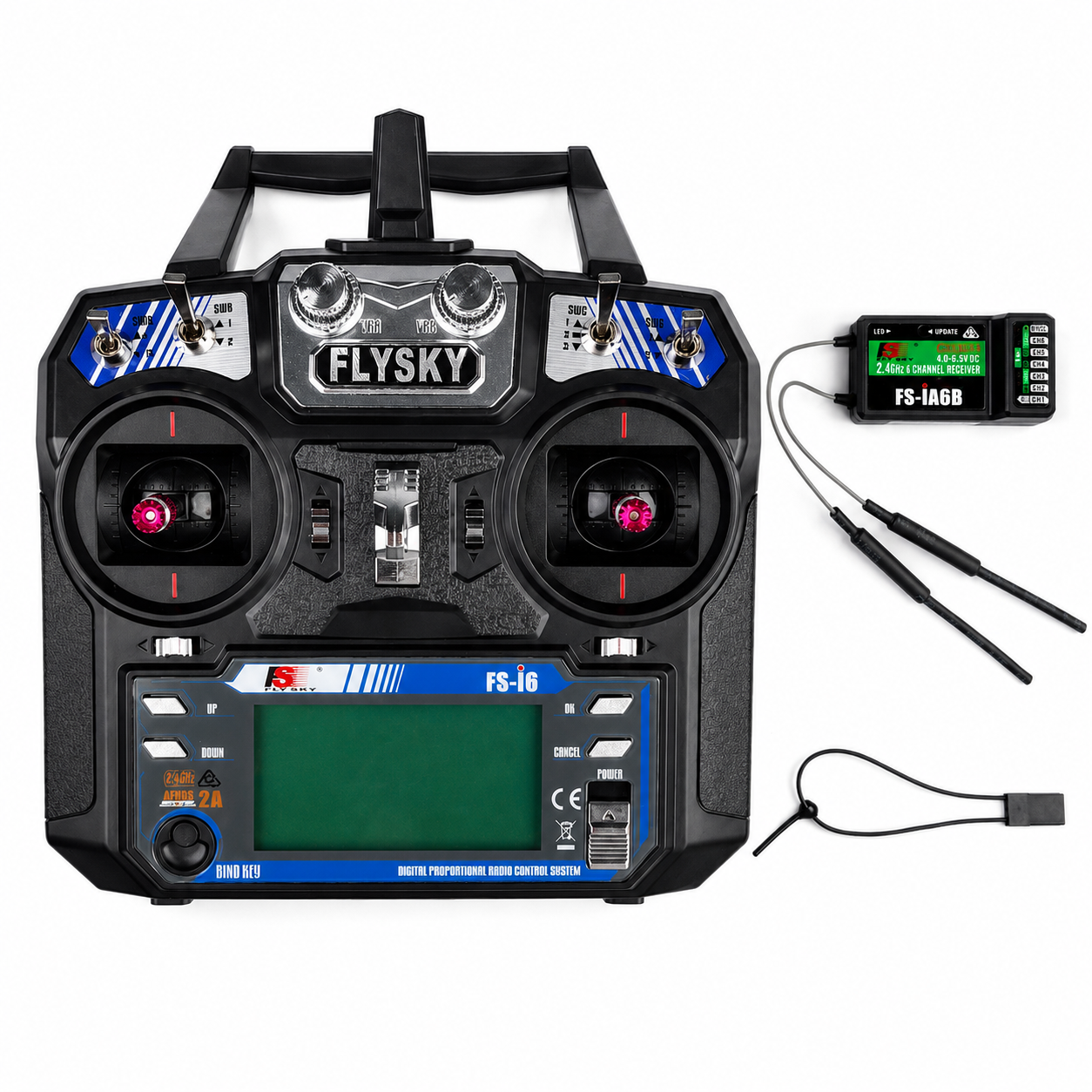

Package Included:
1 x FS-i6 transmitter
1 x FS-iA6b Receiver
1 x Binding key

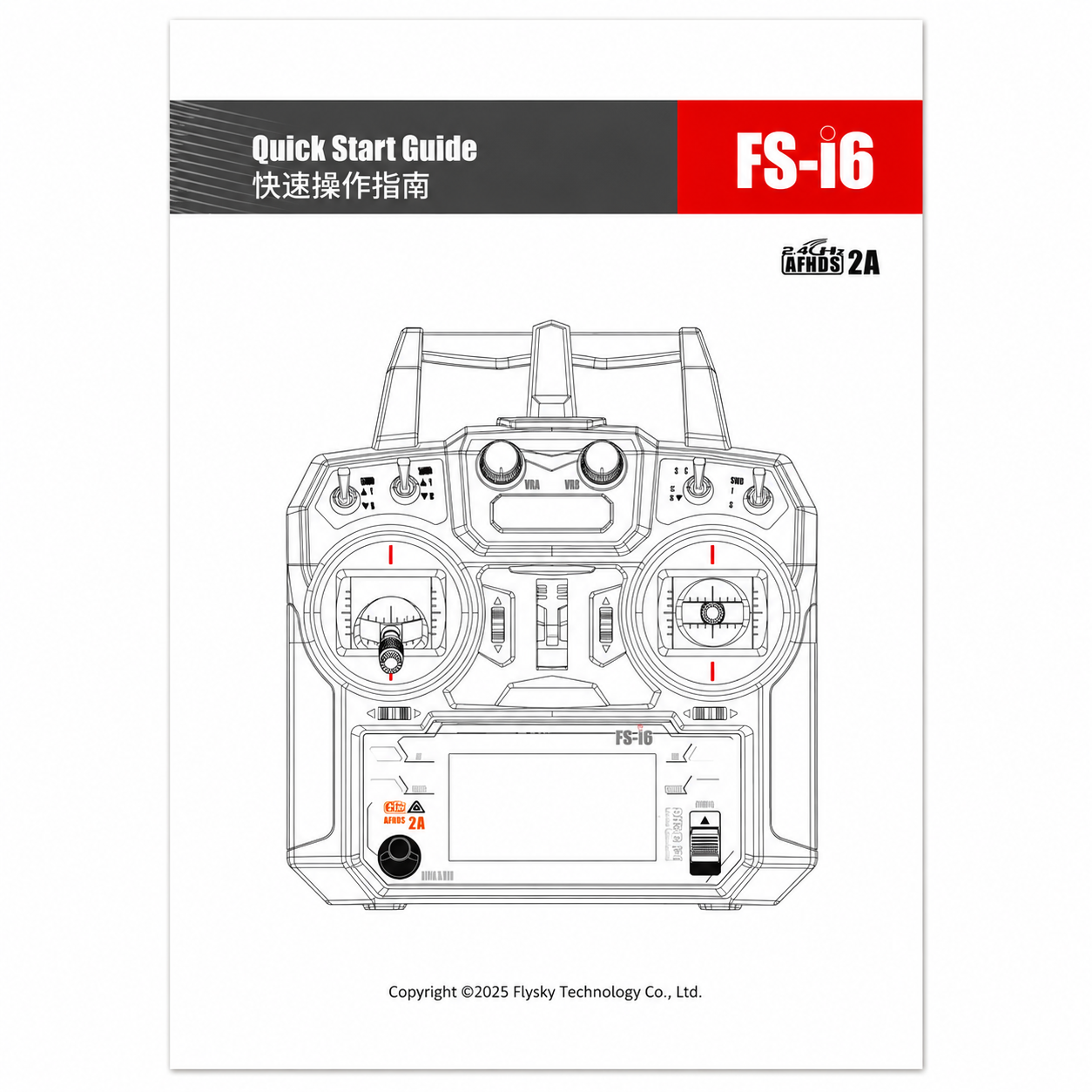

1 x Manual
