If you are looking for a ready-to-fly drone, we will build it for you, but there will be extra making and programming charges. For more details, please check the description below.
NOTE 1 – Product Images/videos are shown for illustrative purposes only and may differ from the actual product.
NOTE 2 – Please buy separately if the Radio Transmitter, Battery Charger, and FPV Goggles are not included in this kit.
NOTE 3 – You will get the reference product if any product in this kit is currently out of stock, this will be informed on call before dispatching your order.

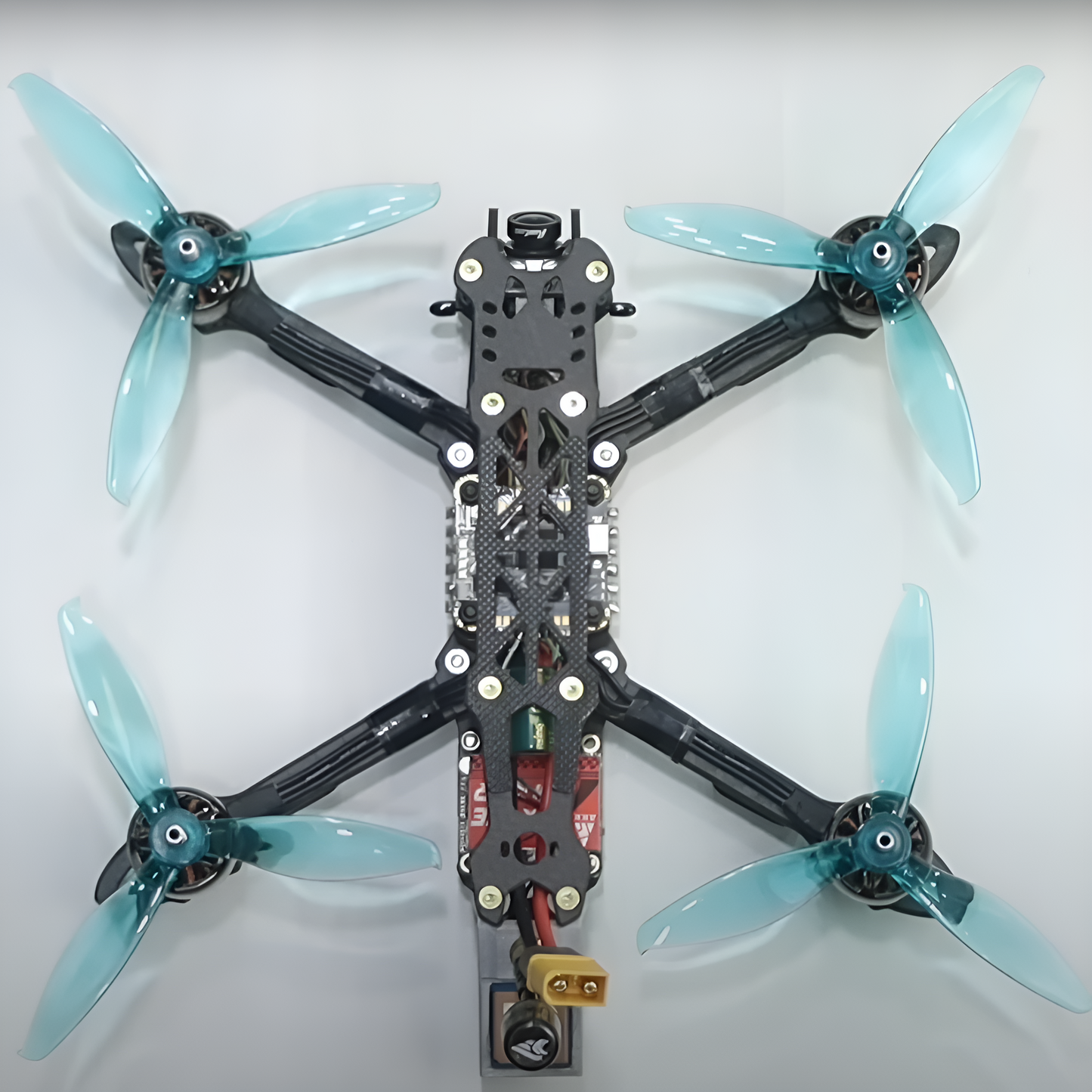

The Mark4 225mm 5-inch Carbon Fiber Quad Frame is a quadcopter frame designed for FPV (First-Person View) drone enthusiasts and pilots who want to build their custom quadcopter for racing, freestyle flying, or other aerial activities. Here’s a description of the Mark4 225mm frame and its key features:
Specification:-
Mark4 5Inch Frame
Item Type: Frame Kit
Model: Mark4
Compatible Prop: 5Inch
Wheelbase: 225mm
Thickness: 5mm
GT2205 Motor
Model: GT2205
KV Rating: 2300KV
Rotation: CCW
Colour: Red
Propellers
Brand: Gemfan
Size: 51477
Rotation: 2CW & 2CCW
Colour: Light Blue
F405 V4 FC & ESC Stack
USB Port Type: Type-C
UART: 6sets
Power input: 3-6s lipo
Weight: 13.8g
RunCam Phoenix 2 SPV4.
Image Sensor: 1/3'' CMOS
Horizontal Resolution: 1200TVL
Signal System: NTSC/PAL
Power: DC 5-23V
Weight: 6g
TX800 VTX
Output Power: PIT/25mW/200mW/400mW/800mW
Input Voltage:3.7V-5V
Antenna: MMCX
Manual
Speedy Bee 5.8 GHz SMA Antenna V2
Gain: 2.82dBi
Frequency: 5.8GHz
Polarization: RHCP
Connector: SMA
Wire Protector Tube
Dimension: 98*10MM
Allen Key 1.5mm
Size: 1.5mm
Shape: Hex / Torx
Allen Key 2mm.
Size: 2mm
Shape: Hex / Torx
Recommended Parts:
Goggles support – Analog
Battery Support 4S-6S Lipo (suggested: 1300mah-2000mah)
6S lipo Battery
Propeller
Tools
PNP stands for "Plug and Play" or "Plug and Power," indicating that most of the essential components are already installed and connected, it usually includes the airframe, motors, propeller, electronic speed controllers (ESCs), flight controller, FPV camera, and video transmitter. However, it does not include the radio transmitter & receiver, fpv goggles, battery, charger And GPS If you want to buy all these things then you will have to buy it separately.
Hi tech xyz.in also provide Pre-build (Ready to Fly) Drones if you are interested please follow (3 steps).
Step1: Select your favorite Drone Kit.
Step2: Copy the link of that Product.
Step3: Share the link to our customer support on WhatsApp(9142884517).
Our Customer Support will reply as soon as possible and they will explain you the further details .
A ready-to-fly (RTF) drone is a complete package that includes all the necessary components for flight, meaning you can start flying it right out of the box without any additional ASSEMBLY/SETUP & PROGRAMMING/CONFIGURATION required. Typically, a RTF drone includes the drone itself, a radio transmitter & receiver, FPV goggles, battery and charger.
(RTF) ready-to-fly drone include with some setup, tuning, configuration like binding, radio calibration, motor configuration, motor direction, motor ordering, video transmitter setup, camera setup, OSD setup, GPS setup, Flight modes setup, ESC calibration and FPV goggles setup.
If you are facing any probelm in buying or building your own drone then you can consult to our drone expert they will guide you on your problem like which parts to choose, what will be the best drone/parts in your budget.
Why you should consult with our drone experts
i. For any Doubt
ii. For any Advice & others
Overall, consulting with drone experts can help you make informed decisions, mitigate risks, and optimize the performance of your drone for your specific needs and objectives.
