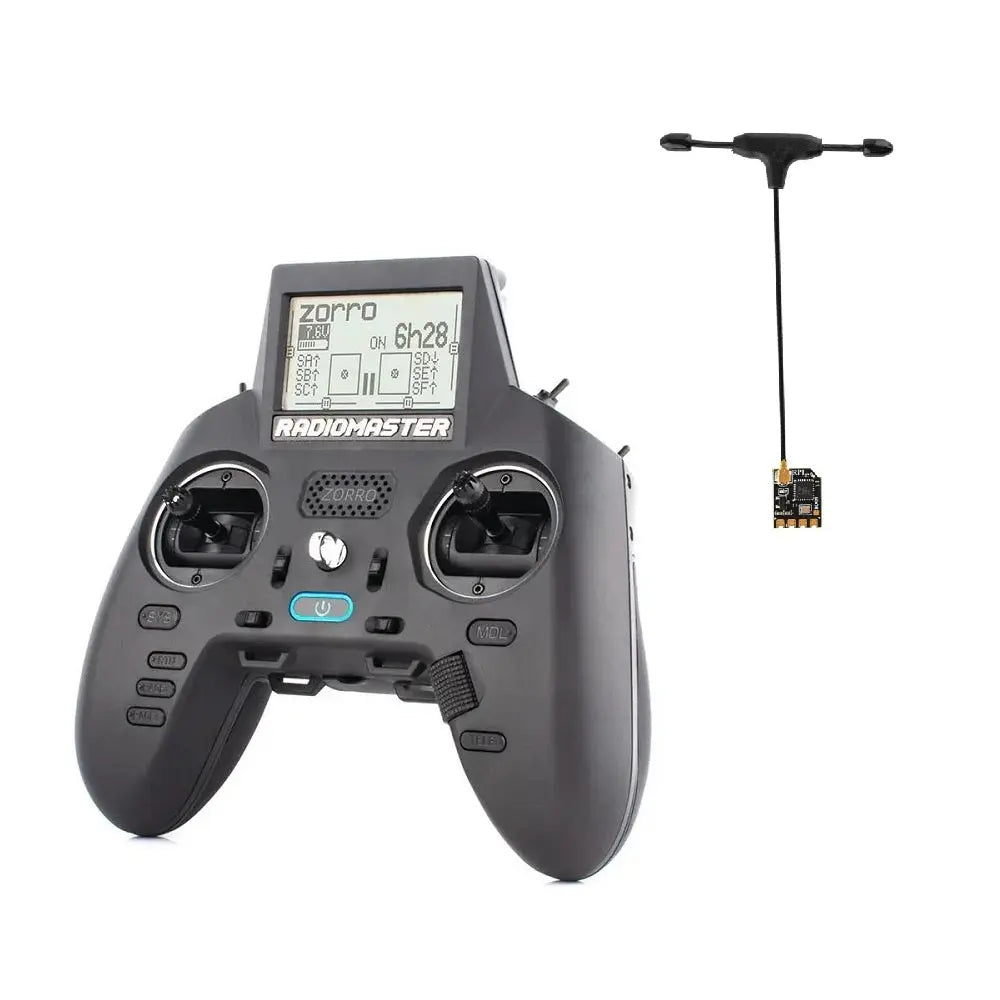

Radiomaster Zorro ELRS Radio with RP1 ExpressLRS 2.4ghz Nano Receiver.

Radiomaster Zorro ELRS Radio with RP1 ExpressLRS 2.4ghz Nano Receiver.

SKU:060006

Regular price Rs. 15,399.00
Regular price Sale price Rs. 15,399.00
Sale Sold out
Shipping calculated at checkout.

(Including GST)

View full details

The RadioMaster Zorro Radio Controller ELRS is the best RC in its class. This radio controller features an oversized LCD display and officially supports OpenTX and EDGETX Firmware. It can be charged via USB-C and uses an external 2S power supply. The external module supports both TBS and ELRS. This is the ExpressLRS version.

Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.

Features:
Foldable Antenna
ELRS Model
Oversized LCD Screen
Soft Leather Grips
Supports External 2S Power Supply
Supports USB-C direct charging
Supports OPEN TX & EDGETX
18350 Battery Compartments
Ergonomically Designed
Adjustable Hall Gimbals
Improved Metal Roller for Precise Control
External Module Bay Supports TBS / ELRS

Package Includes:
1× Radiomaster Zorro ELRS Radio with RP1 ExpressLRS 2.4ghz Nano Receiver

Recommended Parts:
Battery

900mah 3.7v Li-ion cell for zorro radio controller (2pcs)

Radio master 900mah 3.7v Li-ion cell for zorro radio controller (2pcs)

Specification Details
Radio Specifications
Frequency Range 2.4GHz ISM Band
Transmitter Protocol ExpressLRS
Channels Up to 16 channels
Output Power 25mW, 100mW, 250mW, 500mW
Display 128 x 64 monochrome LCD
Compatibility ExpressLRS systems
Battery 2 x 18350 Li-ion cells (not included)
Charging USB-C 5V charging
Gimbals Precision Hall sensor gimbals
Switches 4 x 2-position switches, 2 x momentary buttons
Size Compact, ergonomic design
Weight 350g (without batteries)



RP1 Nano Receiver Specifications
Frequency Range 2.4GHz ISM Band
Protocol ExpressLRS
Antenna Connector IPEX (u.FL)
Power Input 5V
Telemetry Support Yes
Latency Ultra-low latency
Range Long-range (depending on environment)
Weight 0.5g
Dimensions 10mm x 10mm
