NOTE: Product Images are shown for illustrative purposes only and may differ from the actual product.

NOTE: If you buy any PNP Drone from our website and any part of your drone got damaged while you are using it then we will arrange those parts for you and if that parts manufacturing has been stop then we will provide you a reference product.

DON’T JUST FLY DRONES, CRASH THEM TOO BECAUSE WE ARE HERE FOR YOU.

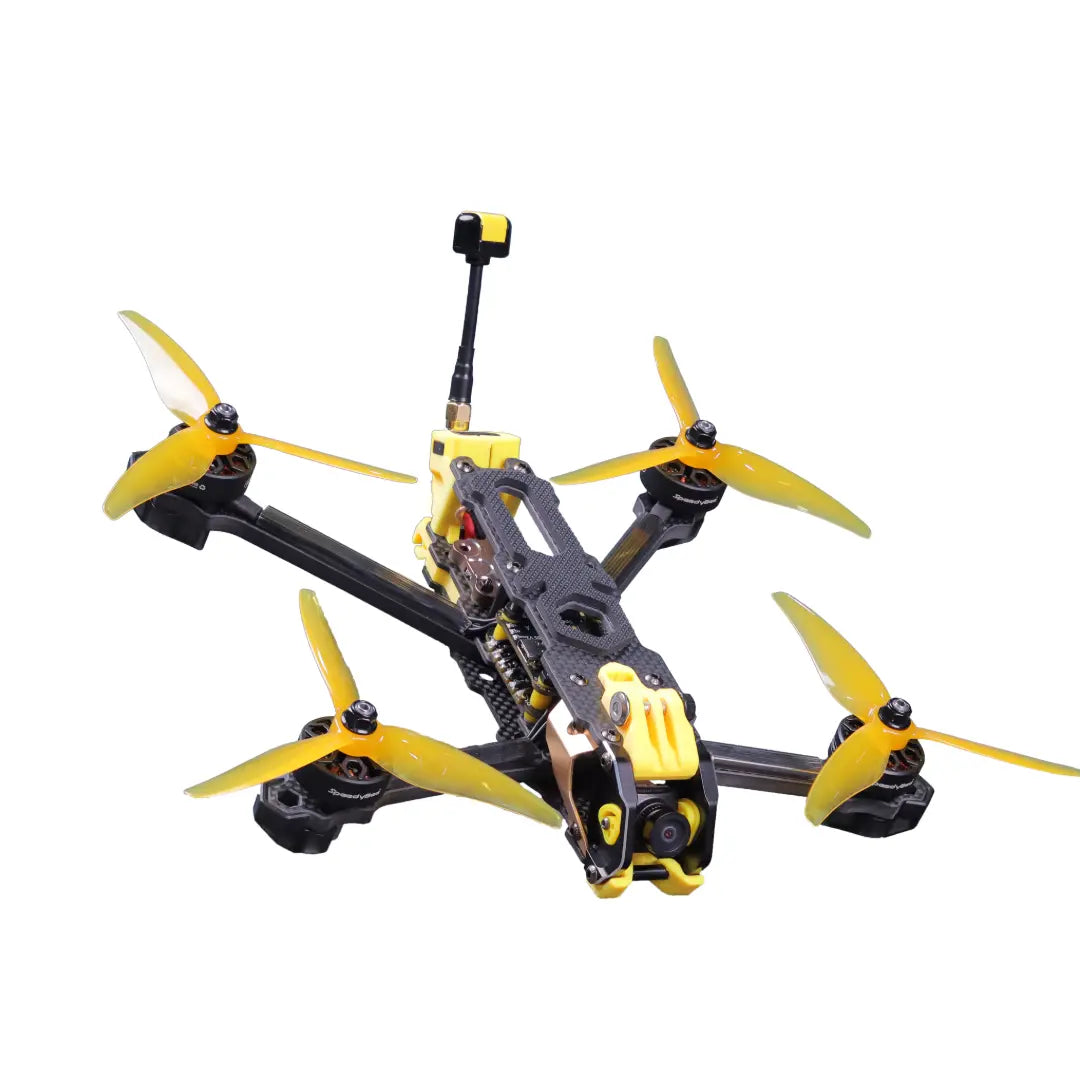

Mario 5 DC Freestyle 4-6s Analog FPV Drone - PNP

Features:
• Replaceable arms for quick disassembly without taking apart the whole frame.
• Universal GOPRO installation bracket so that you can use any GoPro Camera and Action Camera.
• Honeycomb-shaped aluminium alloy cooling speeds up the heat dissipation under the VTX.
• Innovative Independent Anti-shock stack Fixed Structure.
• Honeycomb-shaped CNC 7075 magnesium aluminium alloy camera mount side plate.
• Configure your FC and ESC via Bluetooth on your phone and Experience wireless fully configuration anytime & anywhere.
•A fixed power outlet for convenience and protecting your power cable from cutting by propellers

SB Mario 5 DC
Model: 5 inches Frame
Wheelbase: 222mm
Size: 225*210mm
TPU Colour: Yellow
Arm thickness: 5mm
Prope size: 5inch
Manual

F405 V3 FC & ESC Stack
USB Port Type: Type-C
UART: 6sets
Power input: 3-6s lipo
Weight: 13.8g

TX800 VTX
Output Power: PIT/25mW/200mW/400mW/800mW
Input Voltage:3.7V-5V
Antenna: MMCX
Manual

RunCam Phoenix 2 SP V3
Image Sensor: 1/2.8″ Starlight COMS Sensor
Horizontal Resolution: 1500TVL
Signal System: NTSC/PAL
Power: DC 5-36V
Dimension: 19mm

Speedy Bee 5.8 GHz SMA Antenna V2
Gain: 2.82dBi
Frequency: 5.8GHz
Polarization: RHCP
Connector: SMA

SpeedyBee 2306.5-1800KV Motor
Model: Flash 2306.5
KV: 1800KV
Input Voltage: 6S Lipo
Colour: Black

Propeller
Size: 51466
Color: Bumble Bee
Type: tri-blade

Wire Protector Tube
Dimension: 98*10MM

TPU Base Mount
Colour: Yellow

Package Includes:
1× SpeedyBee Mario 5 DC Advanced Version Frame
1× 51466 V2 Hurricane HD Propeller PC 3 Blade – Bumble Bee
1× RunCam Phoenix 2 SP V3
1× Speedy Bee 5.8 GHz SMA Antenna V2
1× SpeedyBee TX800 Video Transmitter
1× Allen Key 1.5mm
1× Allen Key 2mm
1× Allen Key 2.5mm
1× SpeedyBee F405 V3 BLS 50A 30×30 FC & ESC Stack
4× SpeedyBee 2306.5-1800KV 2s-6s 5' FPV Motor
1 x FlyFishRC Motor Wire Protection Tube 98*10MM (4Pcs)

Recommended Parts:

Radio Transmitter:
•FlySky FS-i6 2.4G 6CH Radio Transmitter With FS-iA6b Receiver
•Flysky FS-i6X 2.4GHz 6CH AFHDS 2A Radio Transmitter With FS-iA10B 2.4GHz 10CH Receiver
•Radiomaster Zorro ELRS Radio with RP1 ExpressLRS 2.4ghz Nano Receiver
•Radiomaster TX12 MKII ExpressLRS Transmitter with RP1 ExpressLRS Nano Receiver
•Radiomaster Pocket Radio Controller – ELRS Version (Transparent)

Radio Receiver:
•RP1 ExpressLRS 2.4ghz Nano Receiver
•SpeedyBee Nano 2.4G ExpressLRS ELRS Receiver

Goggles support – Analog:
•Eachine EV800D 5.8G 40CH Diversity FPV Goggles With DVR
•Eachine EV800DM 5.8G 40CH Diversity FPV Goggles
•VR009 5.8GHz 40CH 3 Inch FPV Goggles
•BeastHobby VR100 3.0 Inch 5.8G 40ch FPV Goggles
•008D 5.8G 40CH FPV Goggles For Drones
•Skyzone Cobra Lite V2 FPV Goggles
•iFlight FPV Goggles with DVR Function

Video Receiver:
•Skydroid 5.8G UVC OTG Android Audio and Video Receiver For FPV Drone
•EWRF 5.8G UVC OTG Android Audio/Video Phone Receiver

Battery Support 4S-6S Lipo (suggested: 1300mah-2000mah):
4s lipo Battery:
•14.8V 1500mAh 4S 100C Lipo Battery with XT60 Plug (Brand Orange)

6S lipo Battery:
•22.2V 1400mAh 6S 130C Lipo Battery with XT60 Plug (Brand Bonka)
•22.2V 1380mAh 6S 150C Lithium Polymer Battery Pack (Brand Bonka)
•22.2V 1400mAh 6S 130C Lipo Battery With XT60 Plug (Brand Orange)

Battery Charger:
•iMAX B6AC Lipo Battery Professional Balance Charger
•iMAX B6 80W 6A Charger/Discharger 1-6 Cells + DC 5A 12V

Propeller:
•51466 V2 Hurricane HD Propeller PC 3 Blade – Bumble Bee
•5149 HD Tri-Blade Flash Durable Propellers 2CW+2CCW (2 Pair)-Transparent Purple
•5149 HD Tri-Blade Flash Propellers 2CW+2CCW (2 Pair) – Transparent Orange
•5149 HD Tri-Blade Flash Propellers 2CW+2CCW (2 Pair) – Transparent Blue

Antenna for Goggles:
•RHCP RP-SMA 5.8G 2.8dBi Lollipop Antenna(Long)
•Patch Antenna RP SMA 5.8GHz Triple Feed

Action Camera:
•RunCam 5 Orange Action Camera
•RunCam 6
•RunCam Thumb Pro Action Camera

Accessories:
•75cm Diameter Fast-fold Landing Pad/Helipad For Drone
•FlyFishRC Gopro 9/10/11 TPU Adjustable Mount – Black
•FlyFishRC Gopro 9/10/11 TPU Adjustable Mount – Tropical Mix
•BEE35 Removable Gimbal

Tools:
•Spanner/Wrench 8mm x 9mm – Taparia
•Allen Key 1.5mm
•Allen Key 2mm
•Allen Key 2.5mm
•25W 230V Soldering Iron (Rajshri)
•60W 230V Soldering Iron (Rajshri)
•35W 230V Soldering Iron (Rajshri)
•Solder Wire 27gm
•Wire Cutter/Stripper 150mm – Taparia
