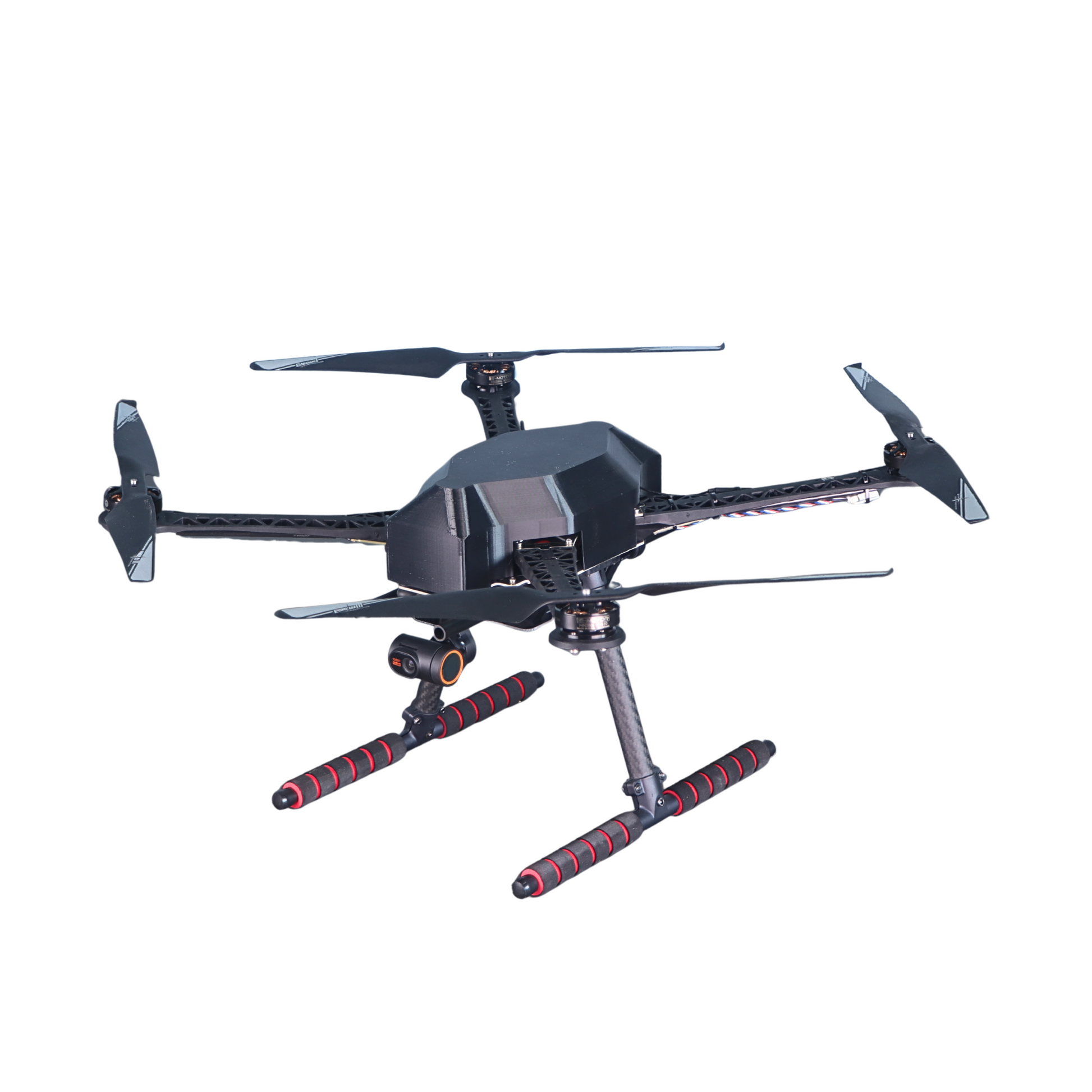

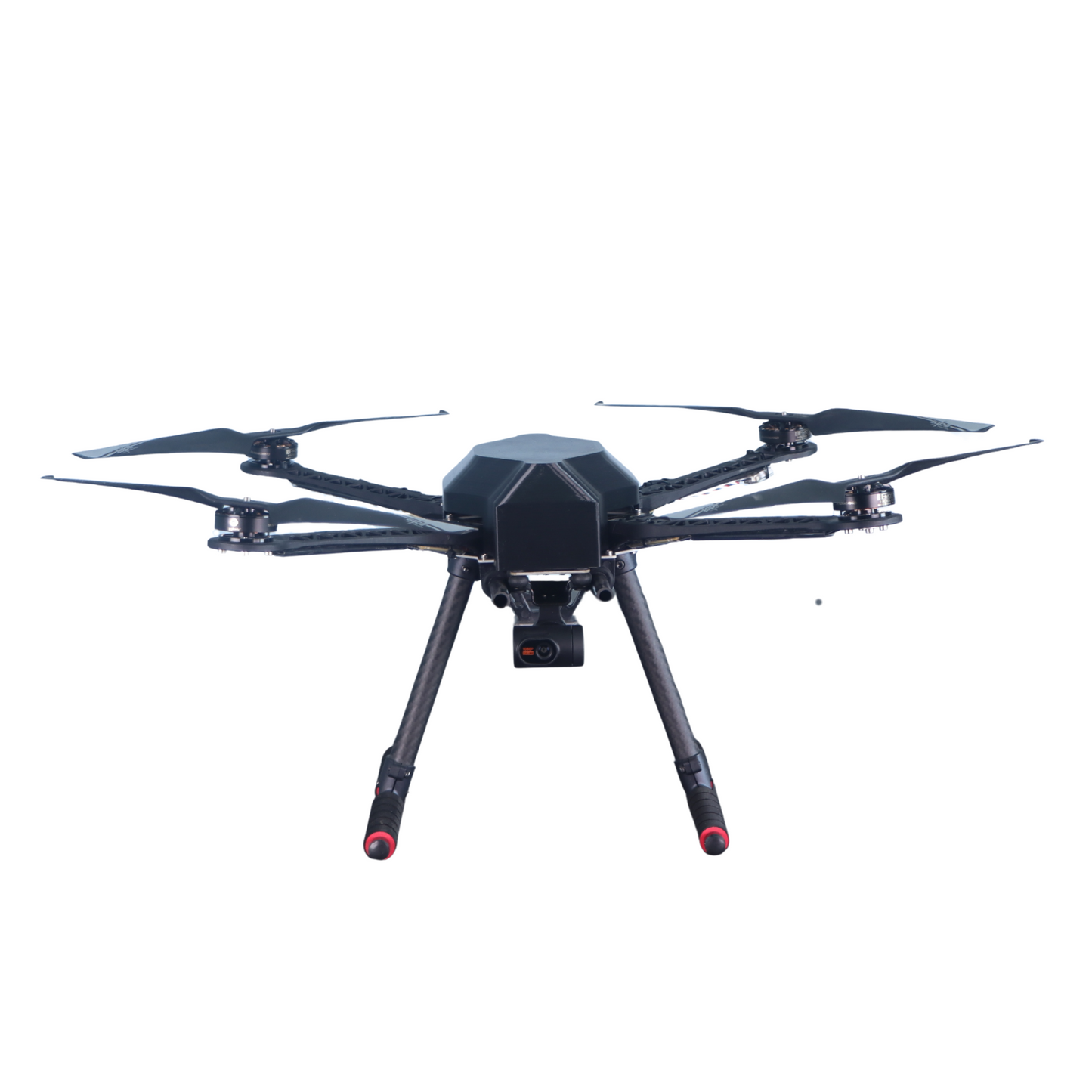

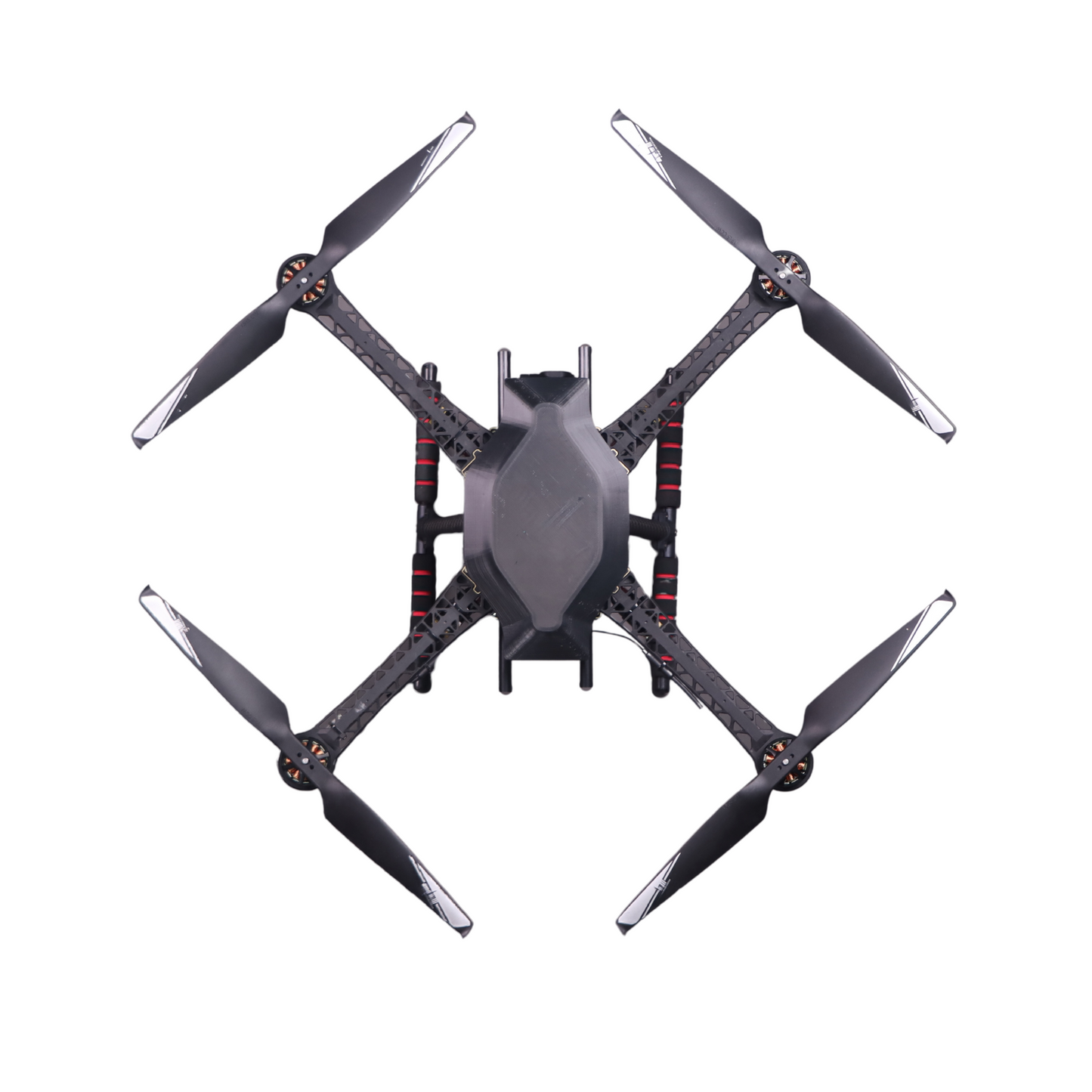

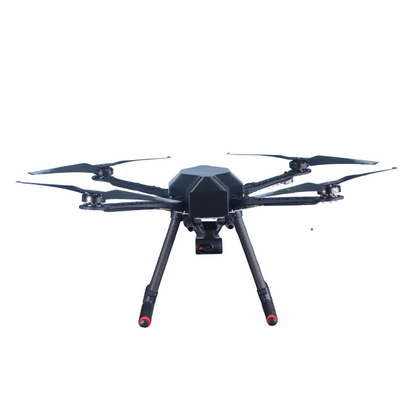

[010021] - S500 Quadcopter Autopilot Advance Drone with Skydroid T10 & 2 Axis Gimbal - PNP
Specification:-
S500 Frame
Model: S500 Quad Frame
Wheelbase: 500mm
Prop Size: 9 & 10 Inches
Frame Colour: Black
RS2212 920KV CCW BLDC Motor
Model: 2212 920KV
KV Rating: 920V
Rotation: CCW
Input Voltage: 4S Lipo
Colour: Red
RS2212 920KV CW BLDC Motor
Model: 2212 920KV
KV Rating: 920V
Rotation: CW
Input Voltage: 4S Lipo
Colour: Red
Propellers:
Size: 9045
Type: Bi-Blade
Colour: White
30A Opto ESC:
Type: Brushless ESC
Input Supply Support: 2-6S Lipo
Burst Current: 35A
Bootloader: BLHeli S
Crossflight Flight Controller:
Item Type: Flight Controller
Processor: HC32F4A0PITB
Input Voltage: 2 to 12S
Input Current: 90A
Output Voltage: 5.1V
PWM Output: 10
Shock Absorber
Type: Shock Absorber
Colour: Black
Material: Glass Fibre
TS100 GPS
Operating Voltage (VDC): 5+
Accuracy: 50-Cemrimete
Average Current Consumption: 50~55mA
Maximum Speed: 515m/s
GPS Stand
Item: GPS Stand
Material: Aluminium
Base Plate diameter: 35mm
Height: 14cm
XT60 Battery Connector
Connector Type: XT60 Male
Material of Connector: High-Temp nylon
Length: 9cm
Cable Thickness: 14AWG
Metal Material: Brass
Battery Strap:
Brand: Ready to Sky
Material: Nylon
Colour: Black
Length: 200mm
Zip Ties
Item: Self Locking adjustable Zip Ties
Material: Nylon (PA66)
Length: (150mm) 6 Inches
Quantity: 12pcs
Width: 2.5mm
Allen Key 2mm
Type: L-Shaped / T-Handle / Ball-End
Size: 2mm
Material: Steel / Chrome Vanadium
Finish: Chrome Plated / Black Oxide
Shape: Hex / Torx
Allen Key 2.5mm
Type: L-Shaped / T-Handle / Ball-End
Size: 2.5mm
Material: Steel / Chrome Vanadium
Finish: Chrome Plated / Black Oxide
Shape: Hex / Torx
20AWG Silicon Wire
Wire AWG: 20
Length: 1m
Rated Voltage: 600V
Rated Temperature (°C): -60 ~ 200
Heat Shrink 2mm
Item Type: CB-HF
Diameter (mm): 2mm
Length (mm): 1000
Shrink Temperature (°C): 90
15cm Extension Cable
Wire AWG: 22
Length: 15cm
Color: Black, Red & Yellow
Weight: 0.015kg

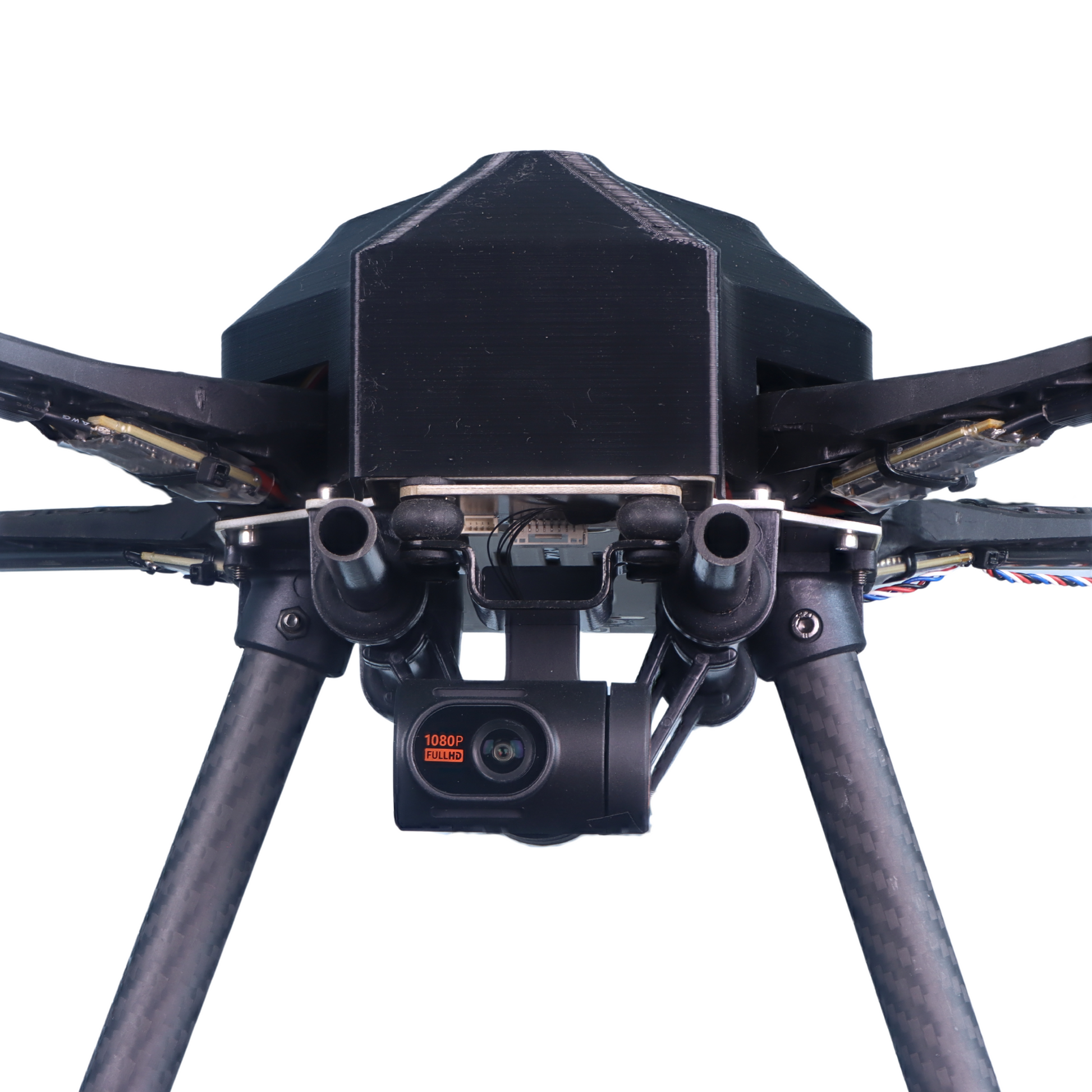

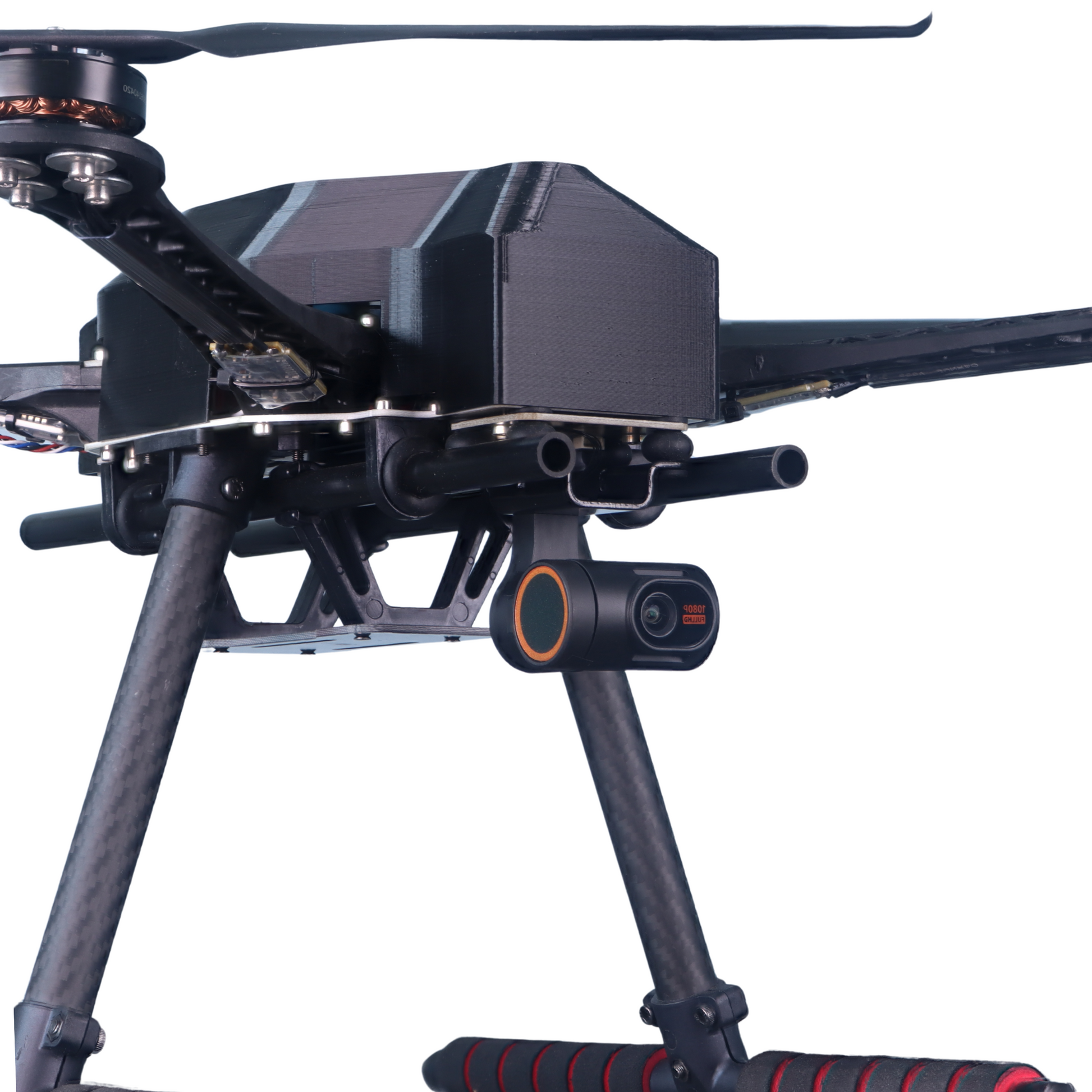

Gimbal Camera
Brand: Skydroid
Lens: 1/2.7sensor EFL=2.4mm
Image Size: 640×360
Operating Voltage: 3.5-5.5V
Working Current: 50 ~ 200mAh
T10 Radio Transmitter
Brand: Skydroid
Frequency: 2.4GHz
Channels: 10 Channels
Battery Voltage: 7.4V to 11.1V
Battery Type: LiPo / Li-ion Battery (not included)
Recommended Parts:
Battery Support 3s - 4s Lipo (suggested:-3300mah to 5500mah)
3s Lipo
4s Lipo
