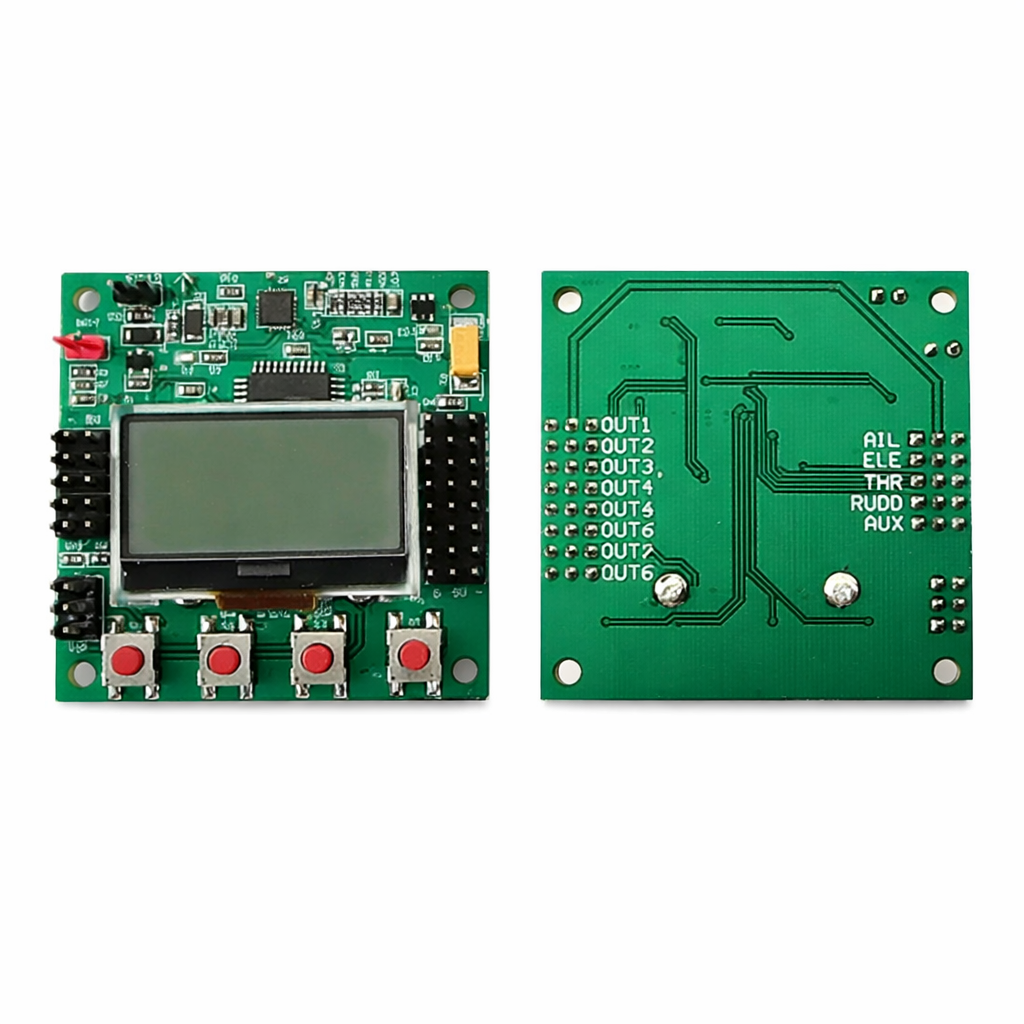

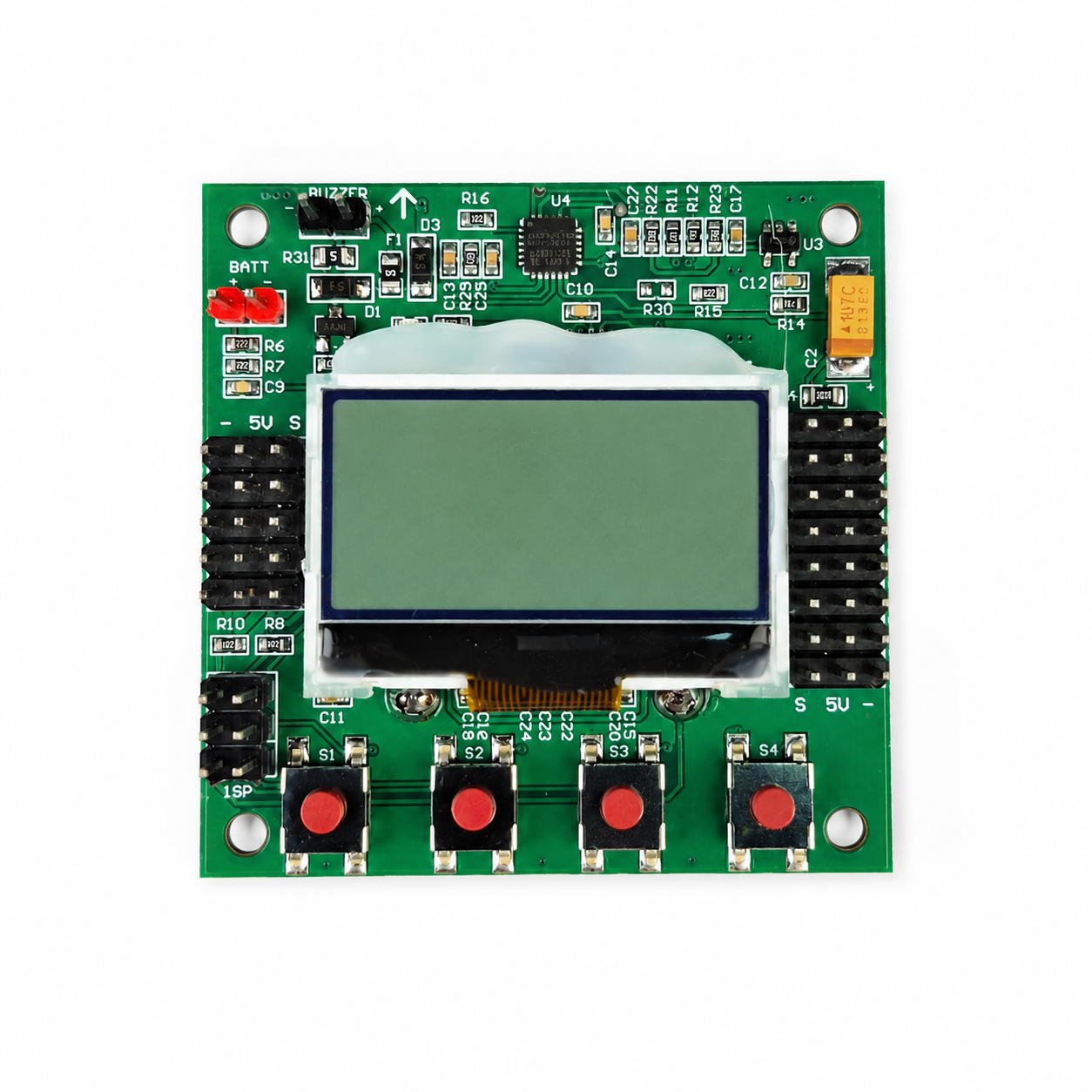

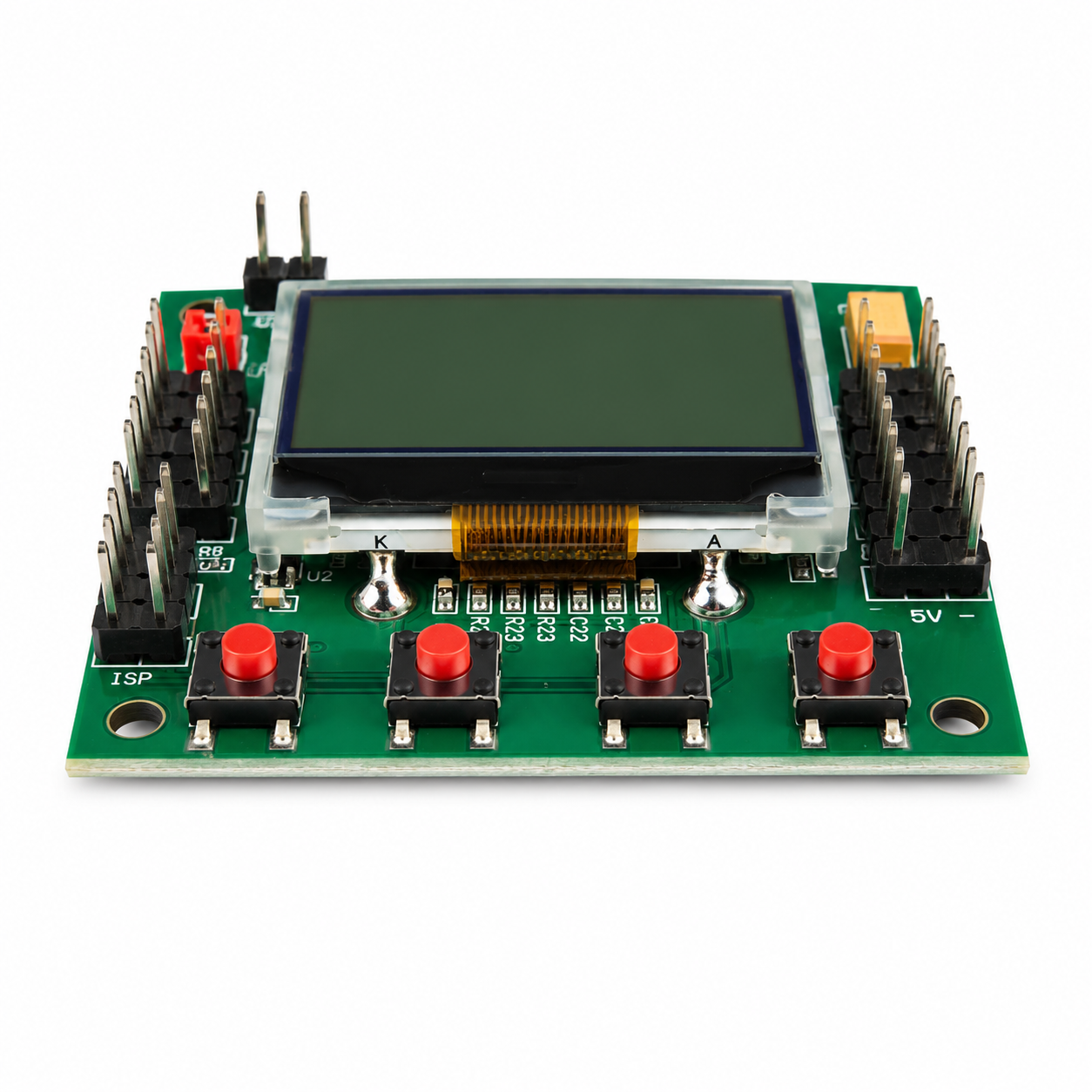

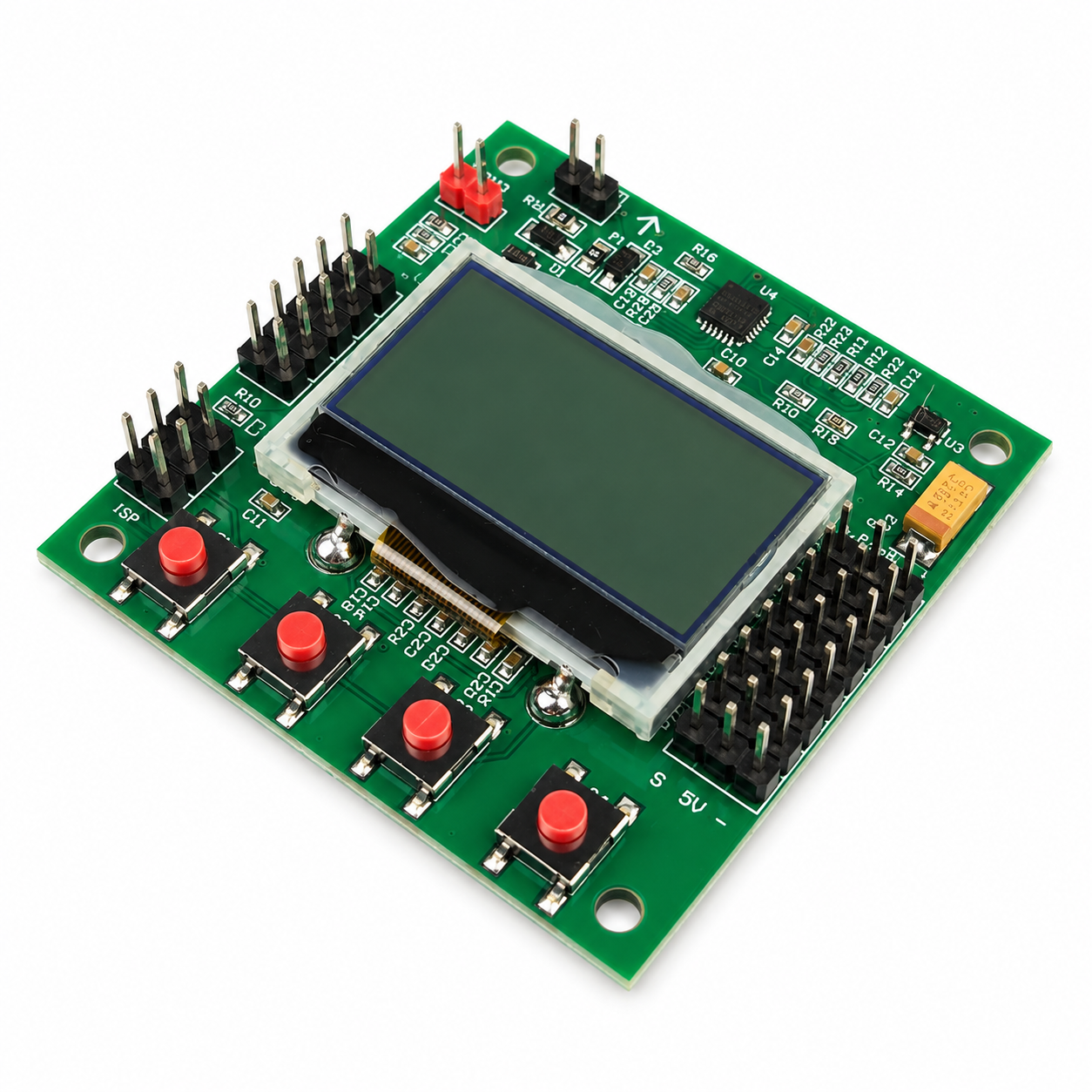

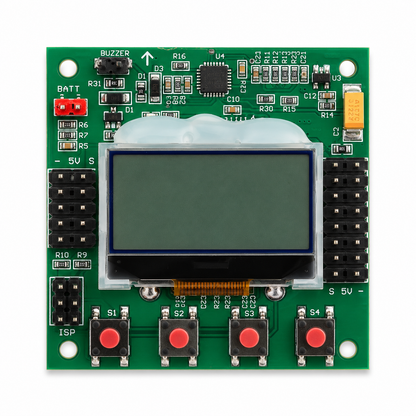

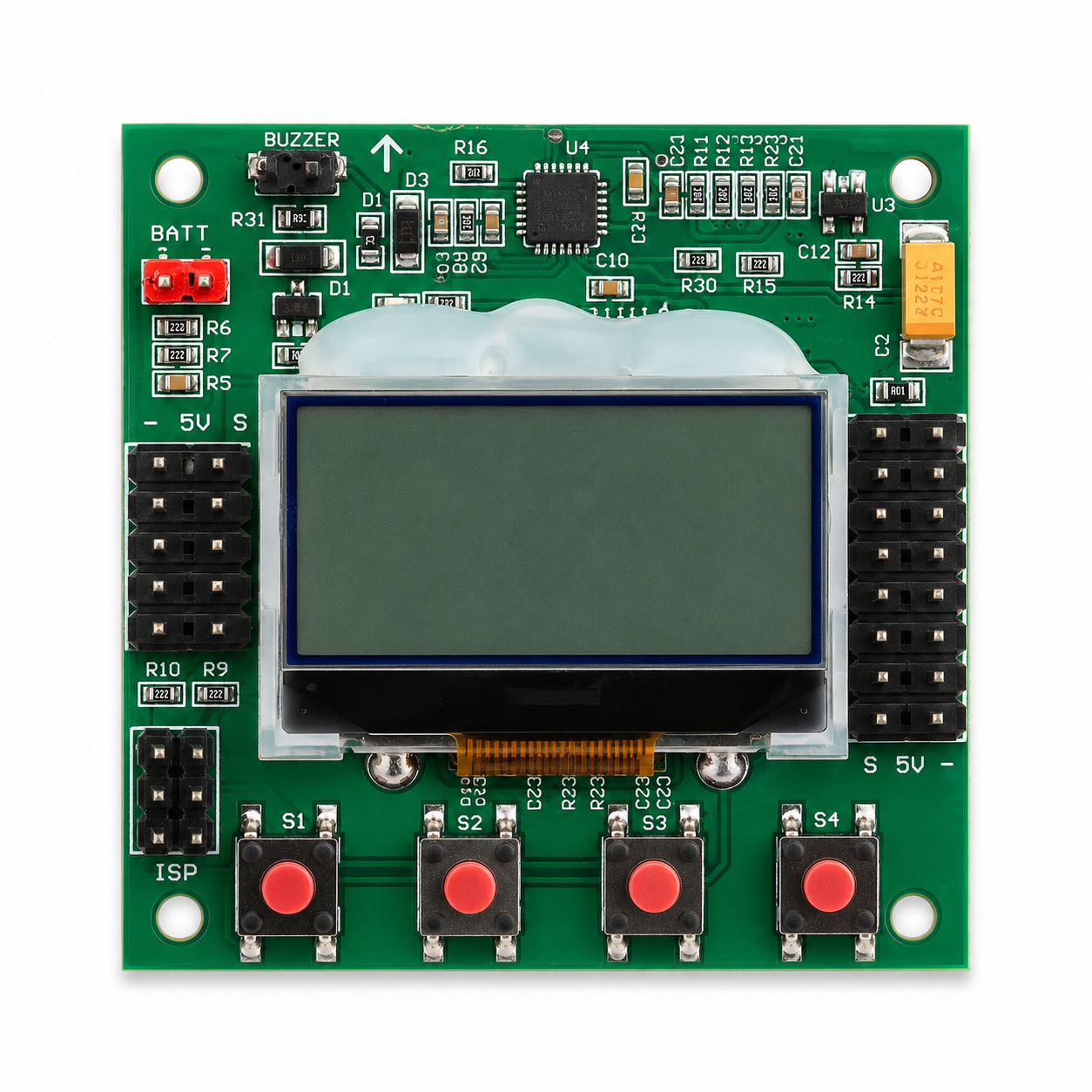

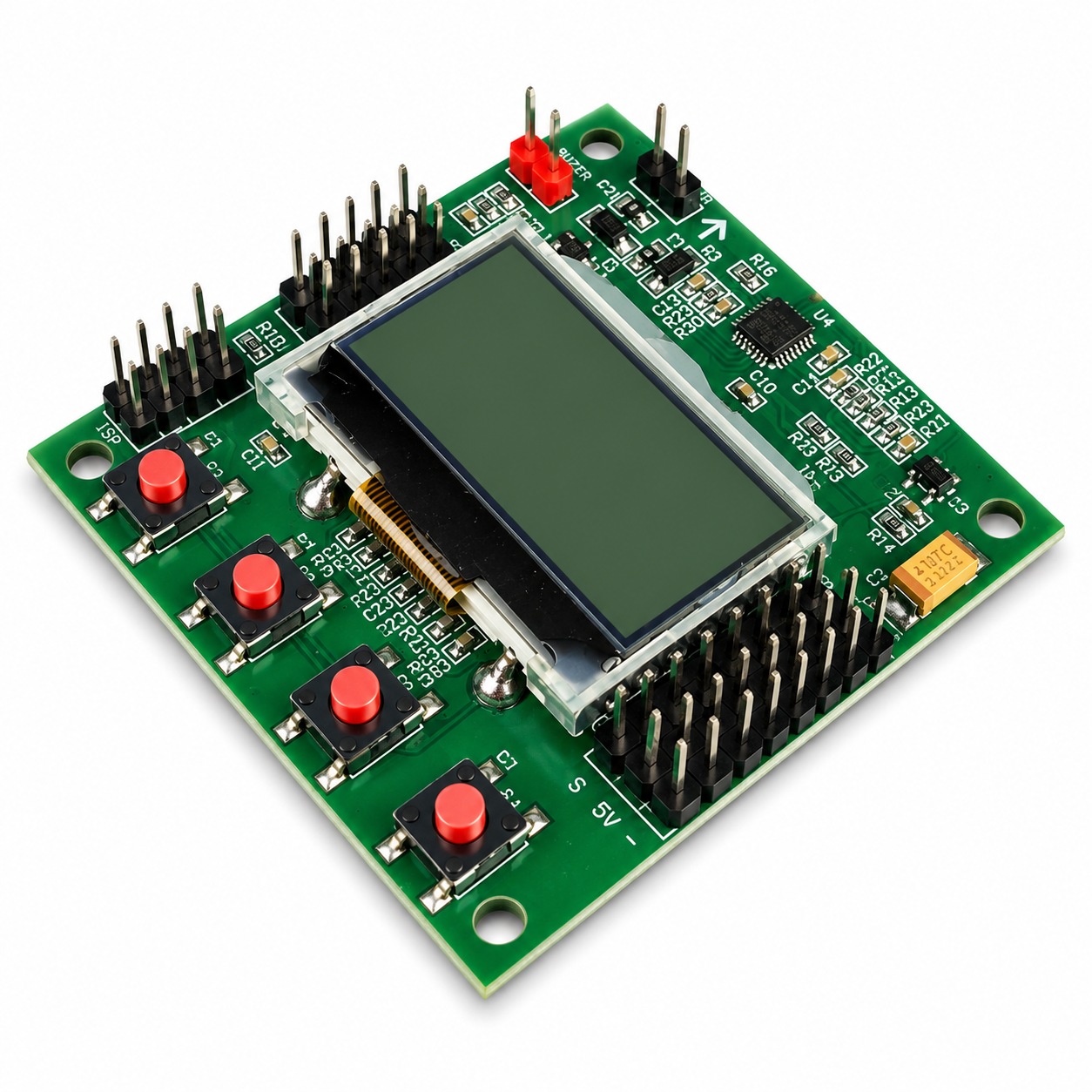

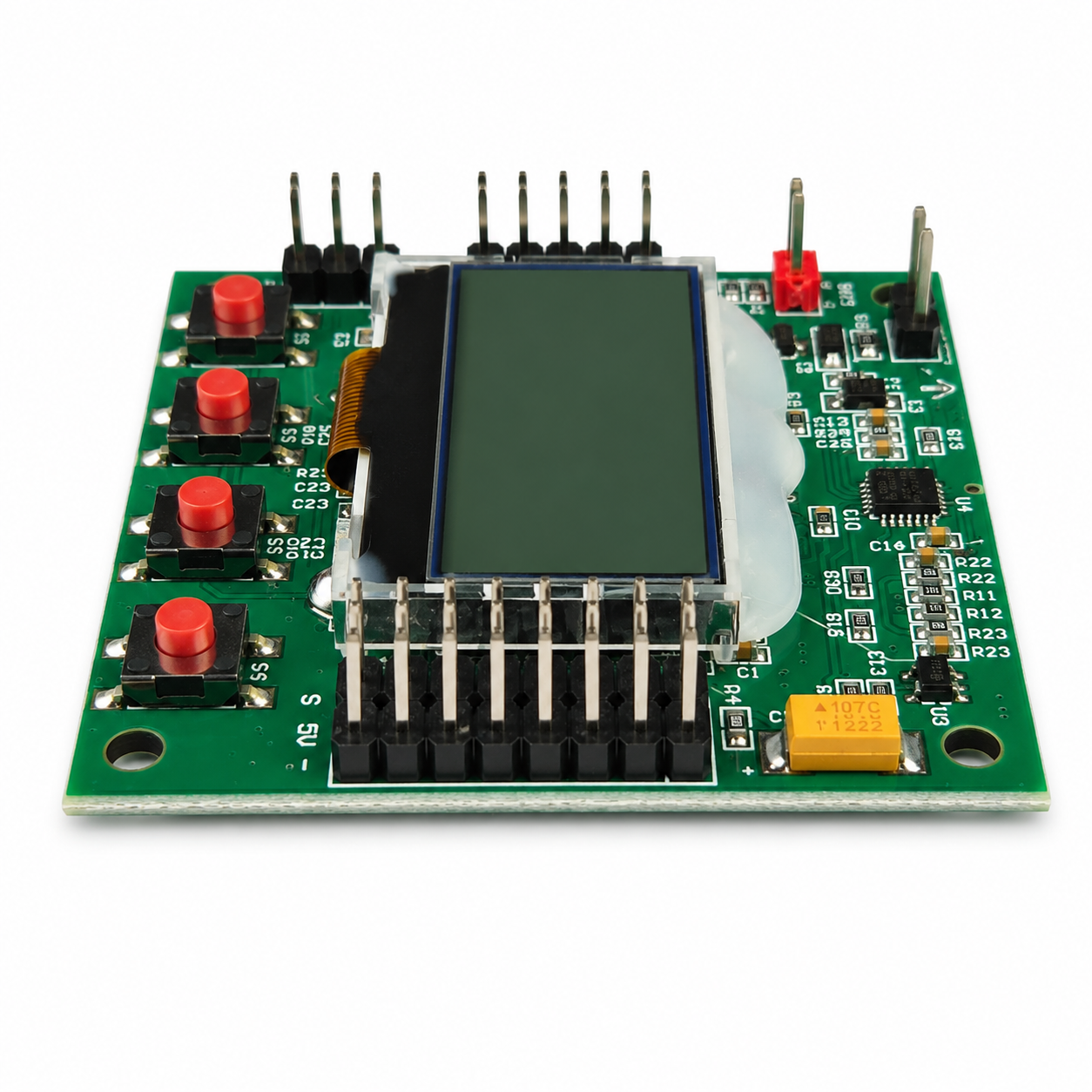

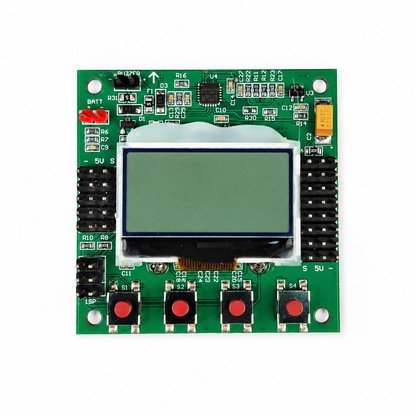

KK2.1.5 Flight Controller Board For Multirotor Drone – Red Switch.
KK2.1.5 Flight Controller Board For Multirotor Drone – Red Switch.
SKU:040001
(Including GST)
The KK2.1.5 Flight Controller Board is a compact electronic device that serves as the central brain of a multirotor drone. It is responsible for stabilizing and controlling the aircraft during flight, making it an essential component for both beginners and experienced drone enthusiasts.
Features:
Multirotor Compatibility: The KK2.1.5 is designed to work with various multirotor configurations, including quadcopters, hexacopters, and octocopters. This versatility makes it suitable for a wide range of drone projects.
Ease of Use: One of the standout features of the KK2.1.5 is its user-friendly interface. It typically features a built-in LCD screen and an intuitive menu system, allowing users to configure the flight controller without the need for additional software or complex programming.
Self-Levelling Mode: The board includes a self-levelling mode, which helps stabilize the drone and make it easier to fly, especially for beginners. When enabled, the drone will automatically level itself when the pilot releases the control sticks.
Manual Mode: For more experienced pilots, the board offers a manual mode that provides full control over the drone’s movements, allowing for more advanced manoeuvres and acrobatics.
Adjustable PID Parameters: The KK2.1.5 typically allows users to adjust PID (Proportional, Integral, Derivative) parameters, which are critical for fine-tuning the flight characteristics of the drone. This level of customization can help optimize performance.
Power Distribution: The board may include a built-in power distribution system, simplifying the connection of ESCs (Electronic Speed Controllers) and motors to the flight controller.
Multiple Flight Modes: Depending on the firmware installed, the KK2.1.5 may support multiple flight modes, such as stability, acro, and more, catering to different pilot preferences and skill levels.
Voltage Monitoring: Many variants of this board come with voltage monitoring capabilities, which help monitor the battery’s voltage and provide warnings if the battery is running low, helping prevent accidental crashes.
Compact Design: The board is compact and lightweight, ensuring it can be easily integrated into the drone’s frame without significantly impacting the overall weight and balance.
Durable Construction: The board is typically designed to be durable and resistant to vibrations and external influences, ensuring its reliability during flight.
Red Switch Version: The “Red Switch” version may have specific updates or improvements compared to earlier versions, but these improvements can vary. It’s important to check the product documentation or manufacturer’s website for details on what makes the “Red Switch” version unique.
Item number: KK2.1.5
Size: 51mm x 51mm x 12mm
Weight: 21 grams (Inc Piezo buzzer)

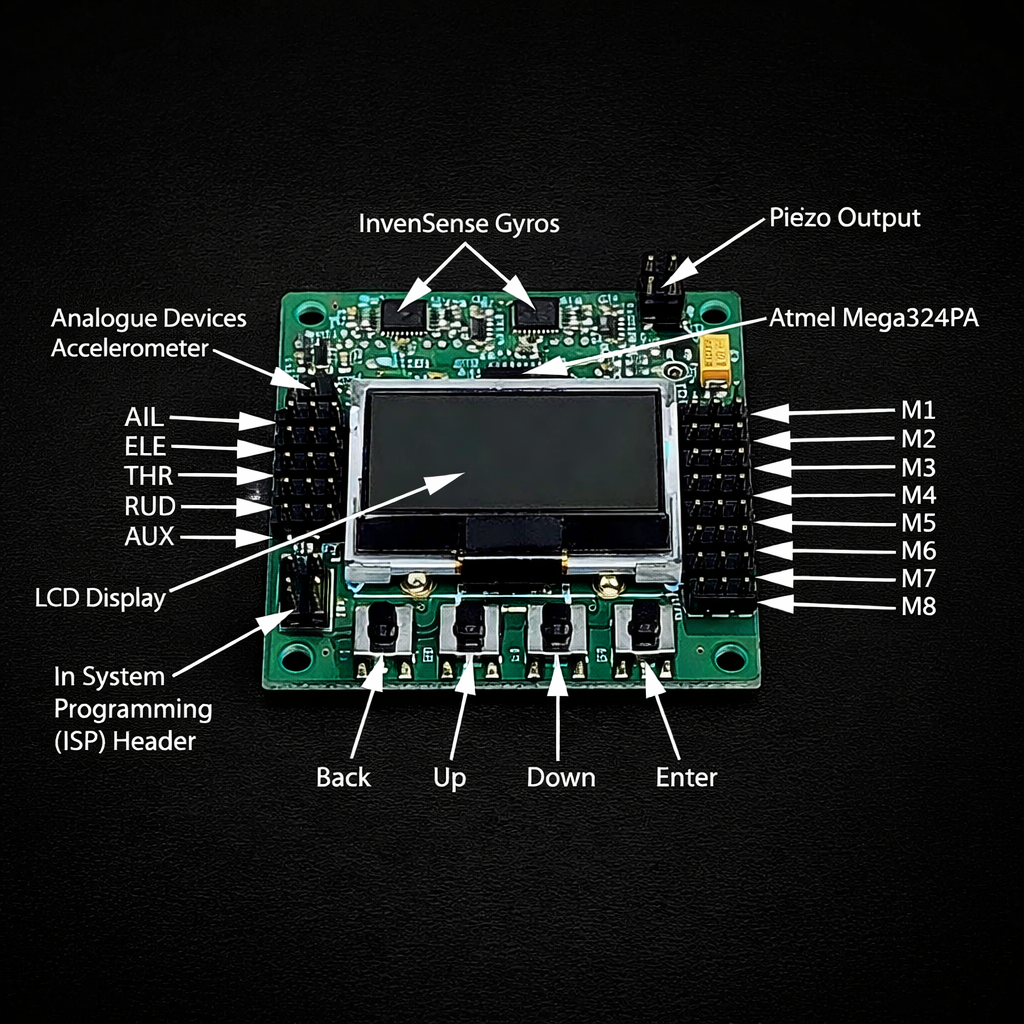

IC: Atmega

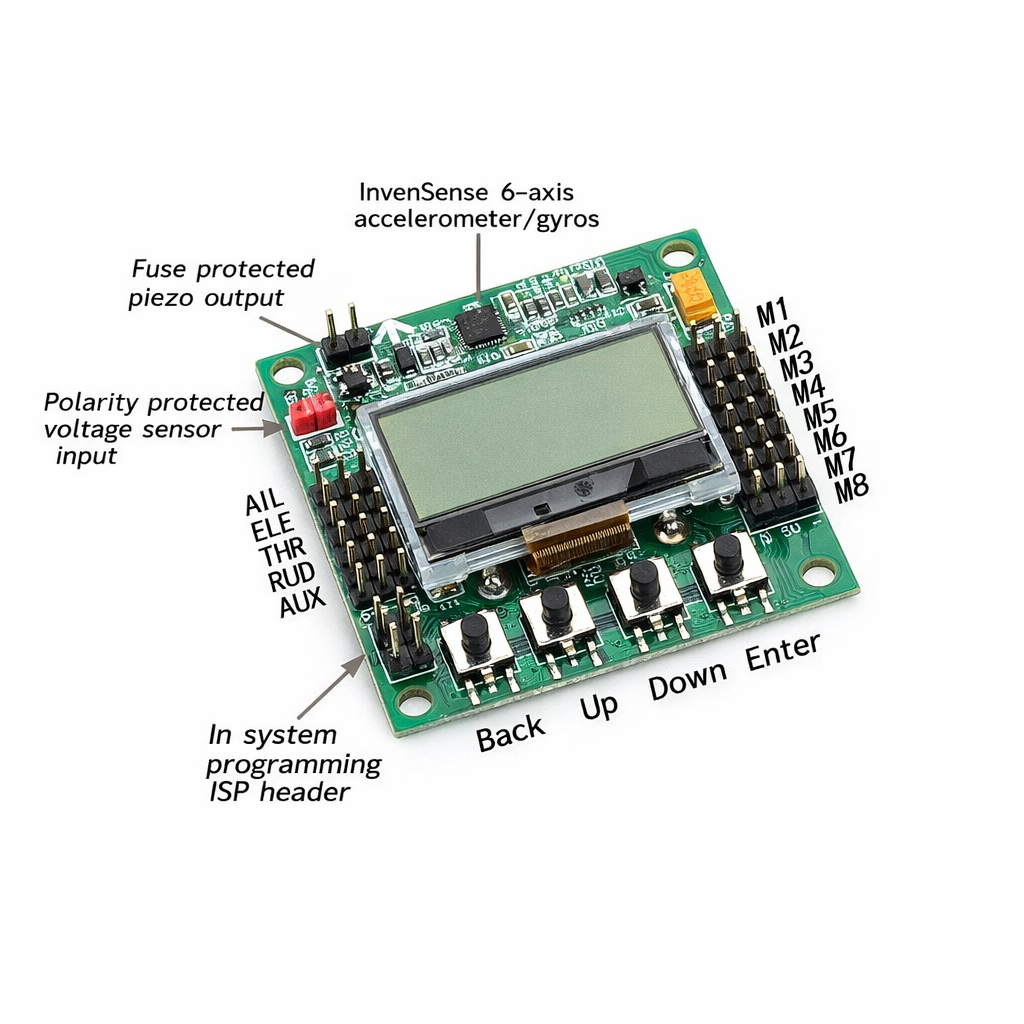

Gyro/Acc: InvenSense Inc.
Auto-level: Yes
Input Voltage: 4.8-6.0V
AVR interface: standard 6-pin

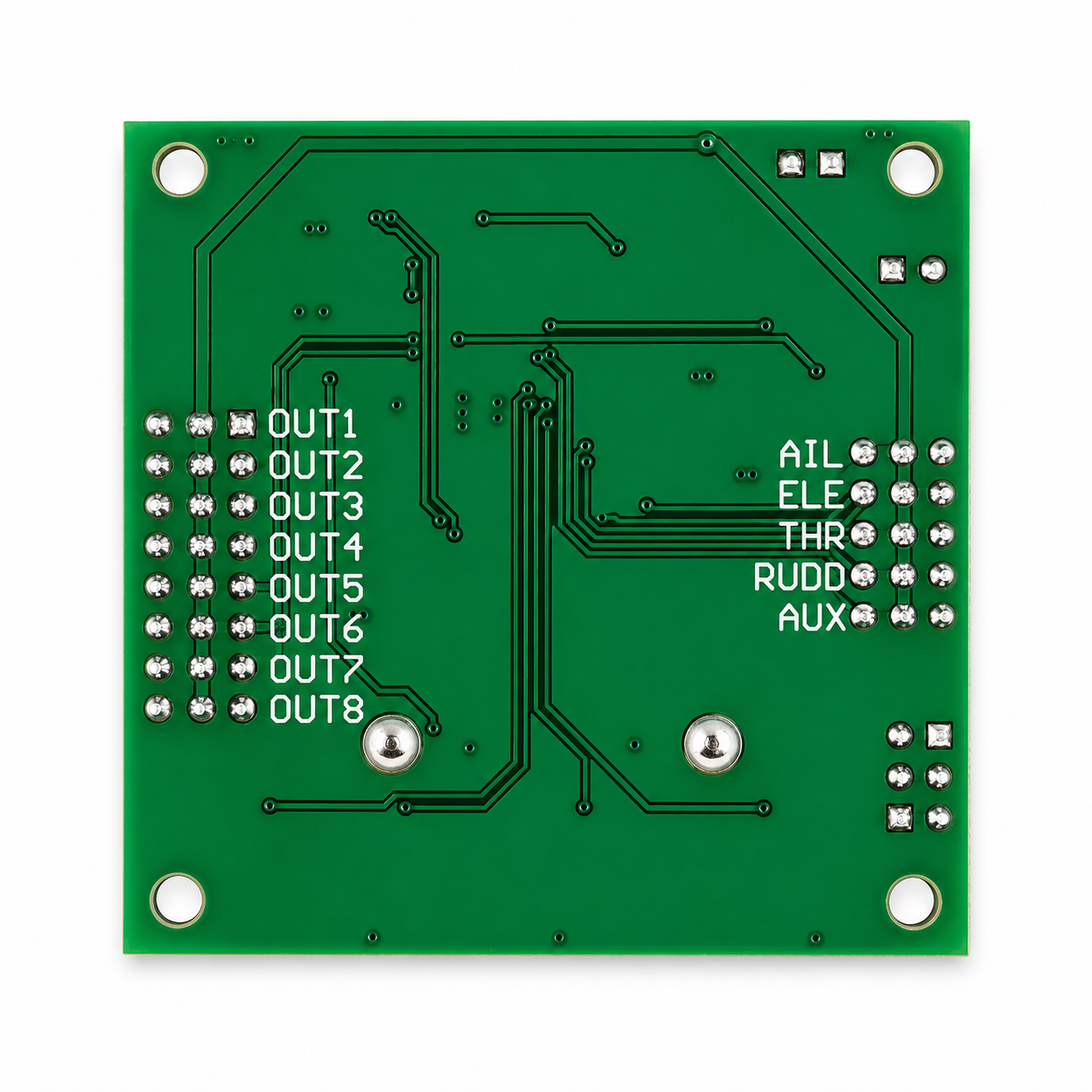

Signal from Receiver: 1520us (5 channels)
Signal to ESC: 1520us
Applicable models: (Pre-installed firmware)
Dualcopter
Tricopter
Y6
Quadcopter +
Quadcopter X
Hexcopter +
Hexcopter X
Octocopter +
Octocopter X
X8 +
X8 X
H8
H6
V8
V6
Singlecopter 2M 2S
Singlecopter 1M 4S

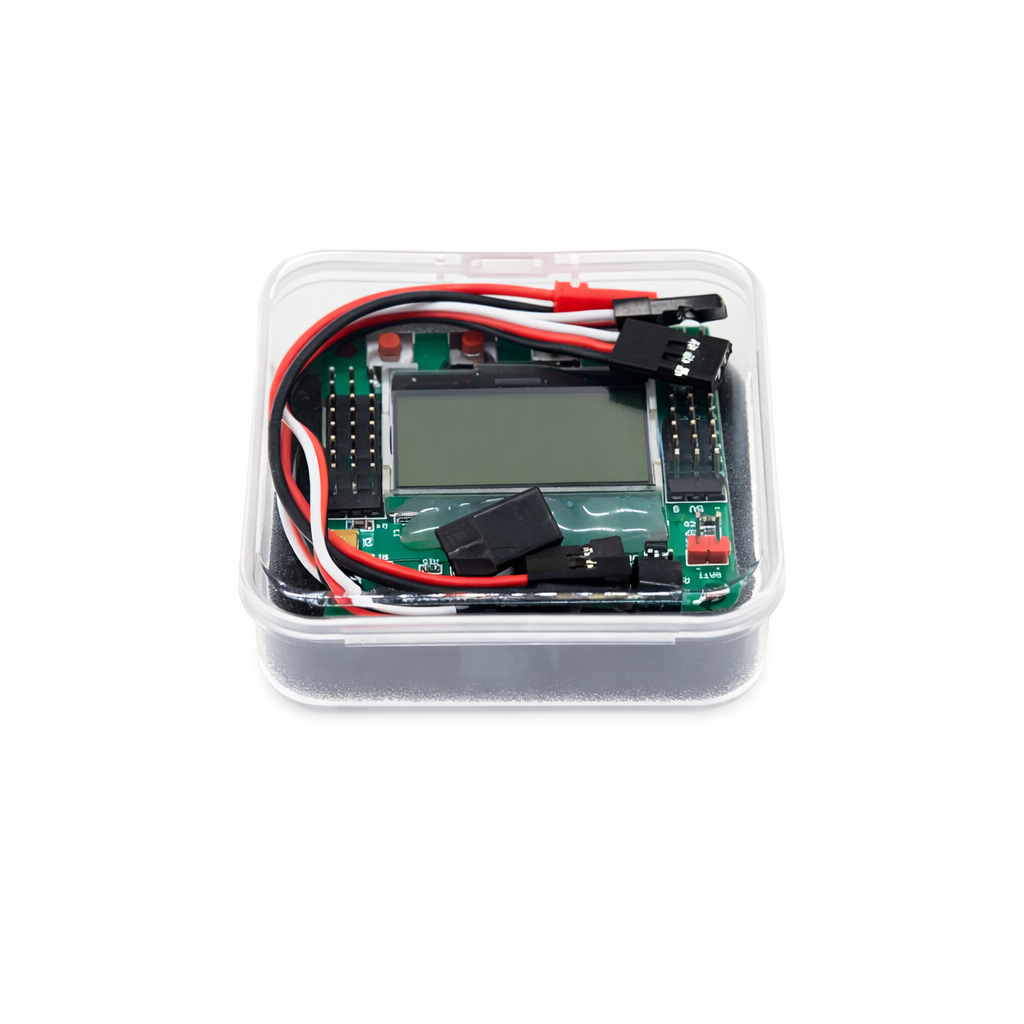

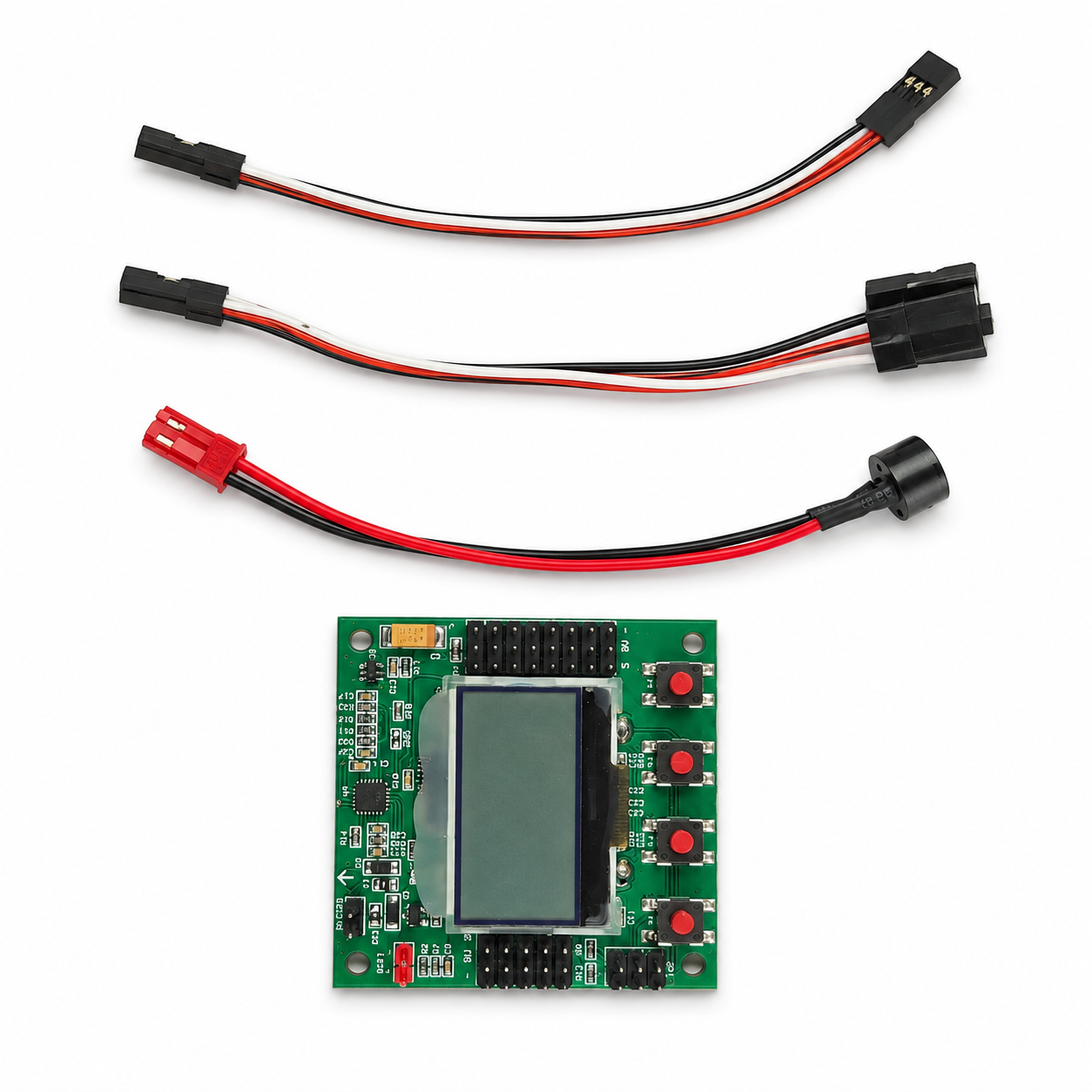

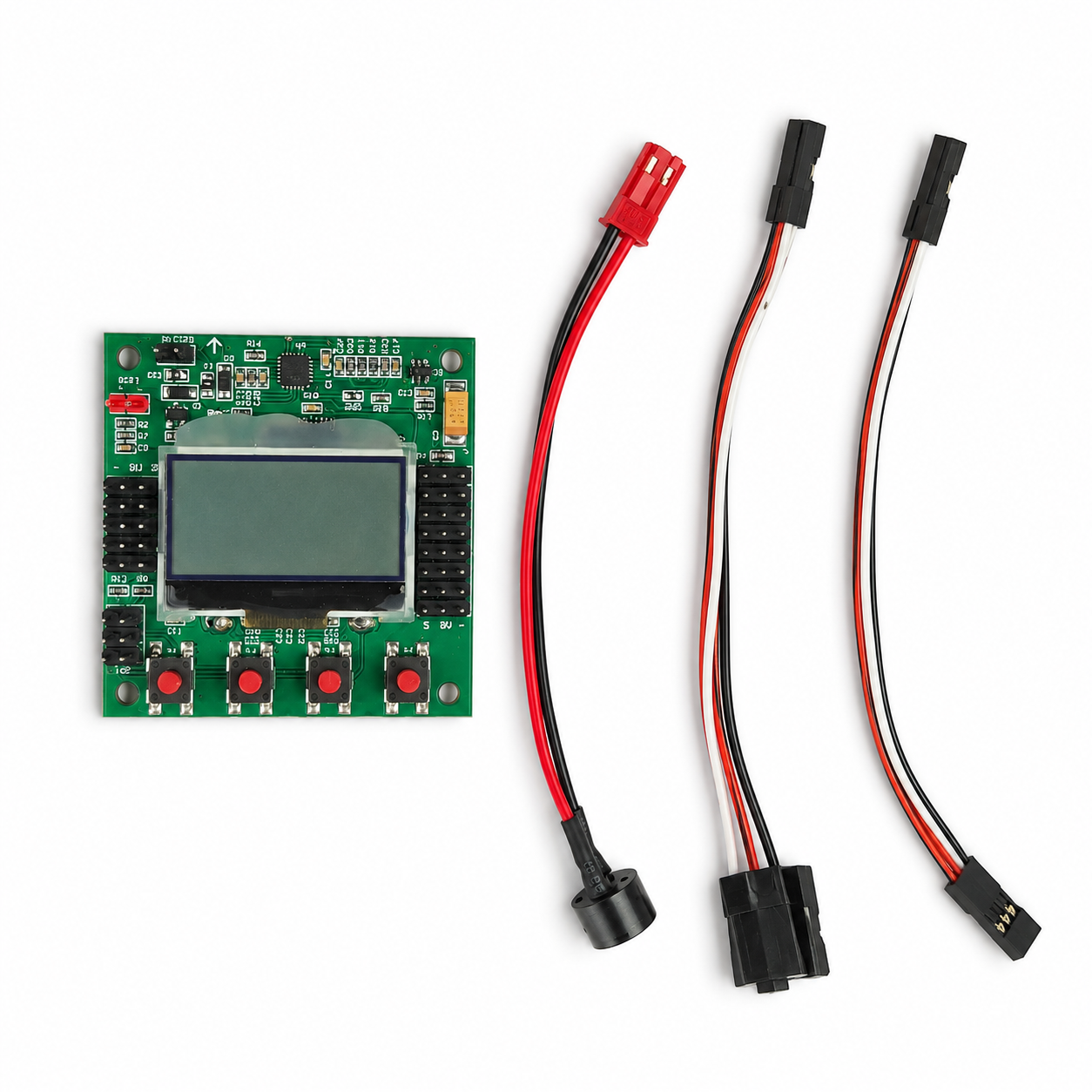

Package included:
1× KK2.1.5 Flight Controller Board For Multirotor Drone – Red Switch
1× Buzzer
2× DuPont Cable

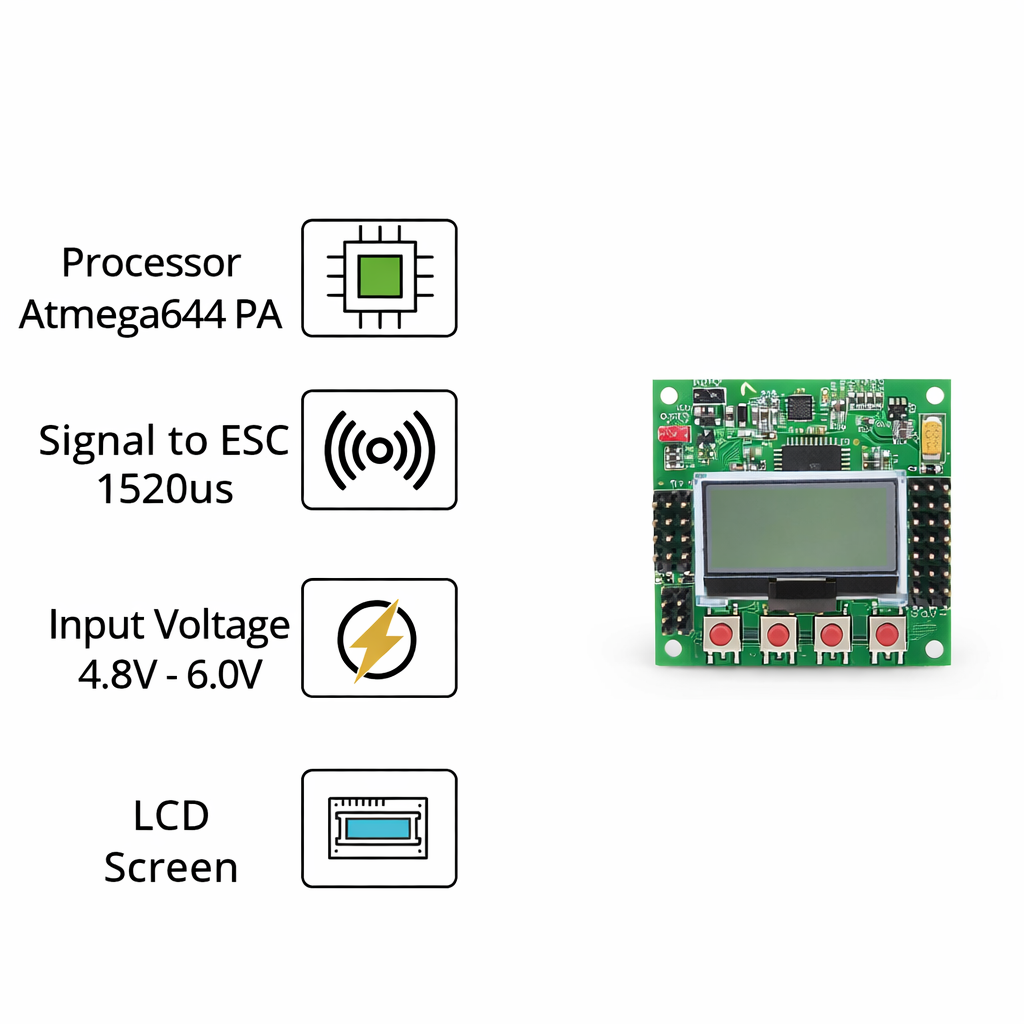

Specification:-
Model | KK2 |
Input Voltage (V) | 4.8V-6.0V |
Firmware | Pre-installed firmware |
Sensors | 6050 MCU |
Processor | Atmel 644PA |
Micro-SD Card Slot | No |
Length (mm) | 52 |
Width (mm) | 52 |
Height (mm) | 12 |
Weight (gm) | 26 |
Shipment Weight | 0.03 kg |
Shipment Dimensions | 6 × 6 × 3 cm |
