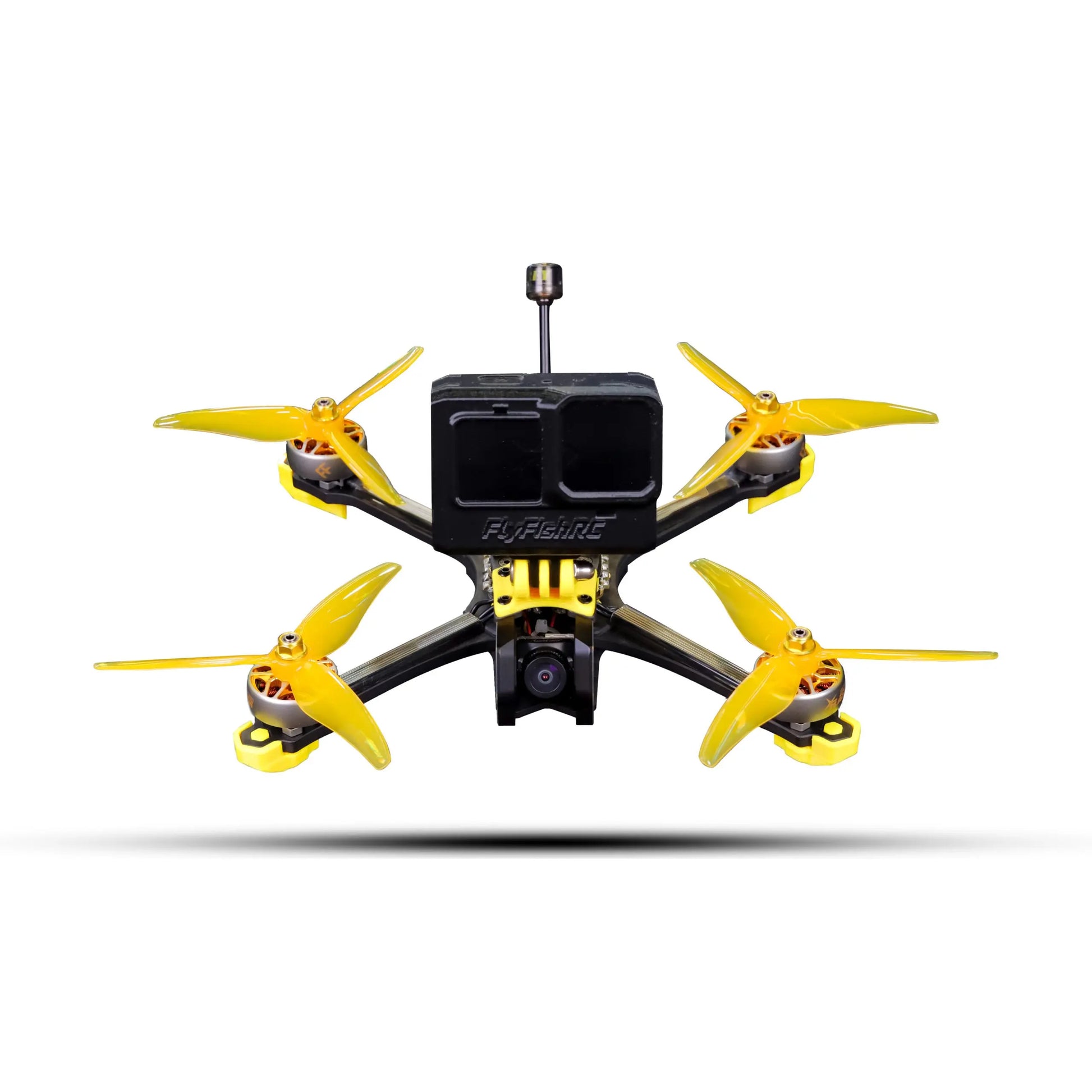

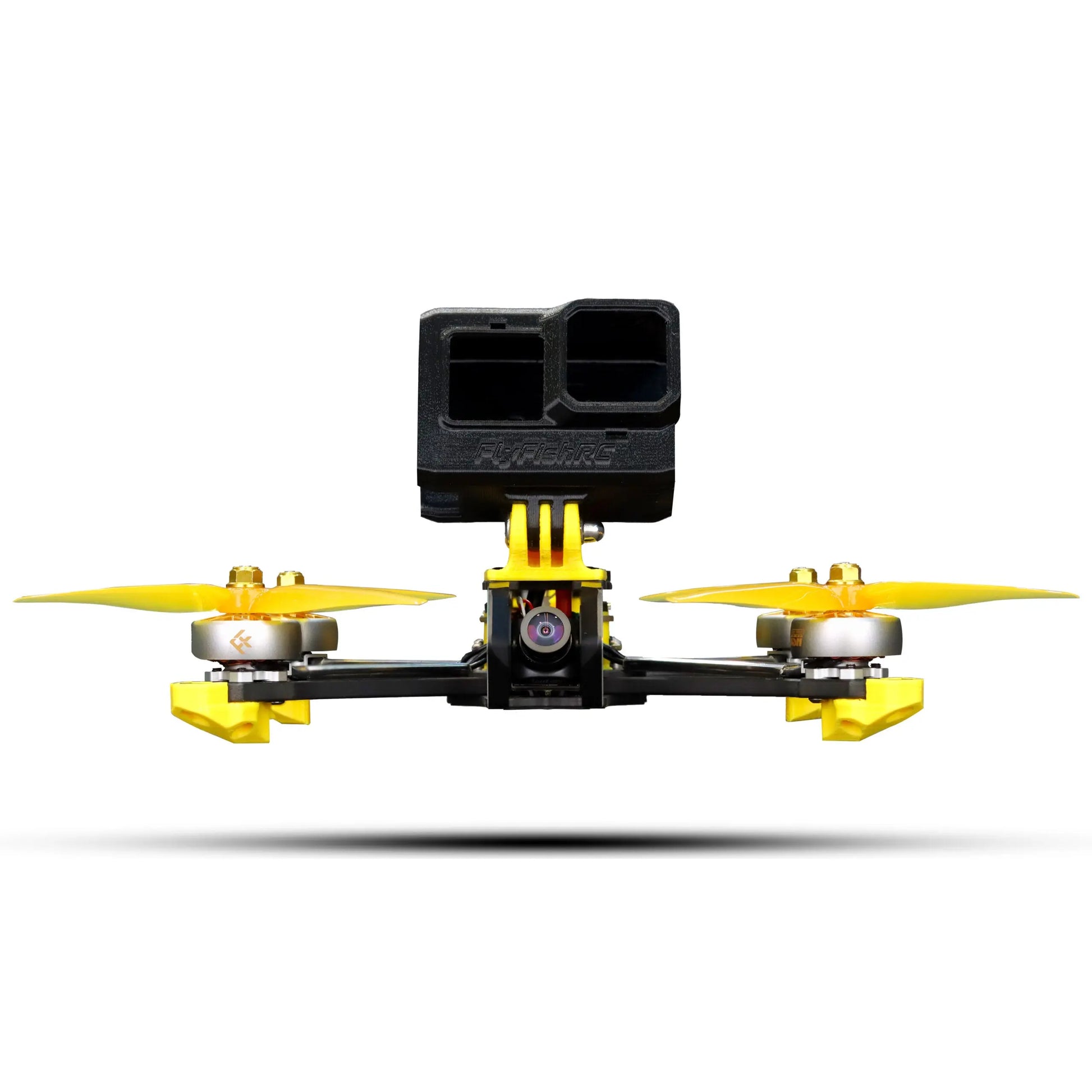

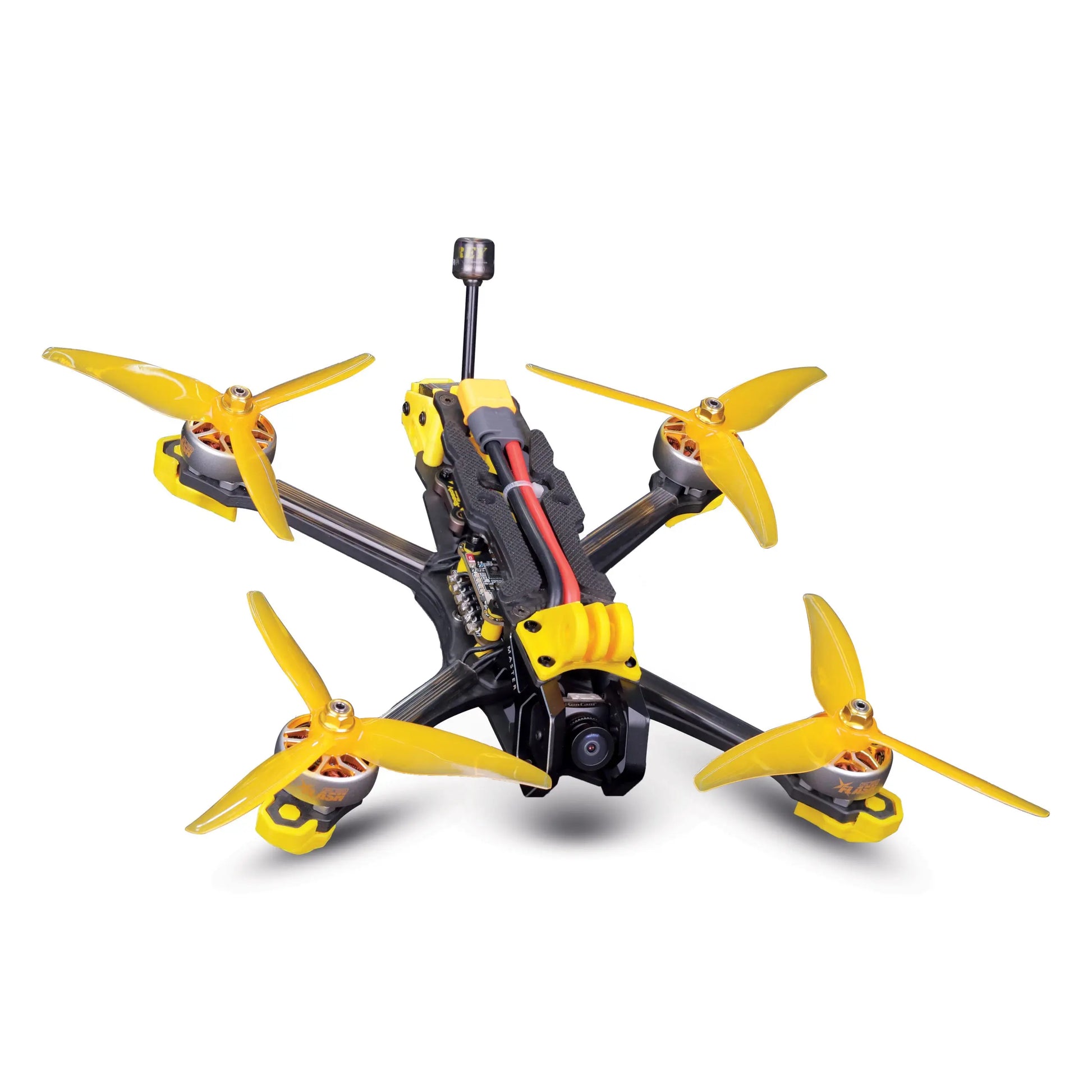

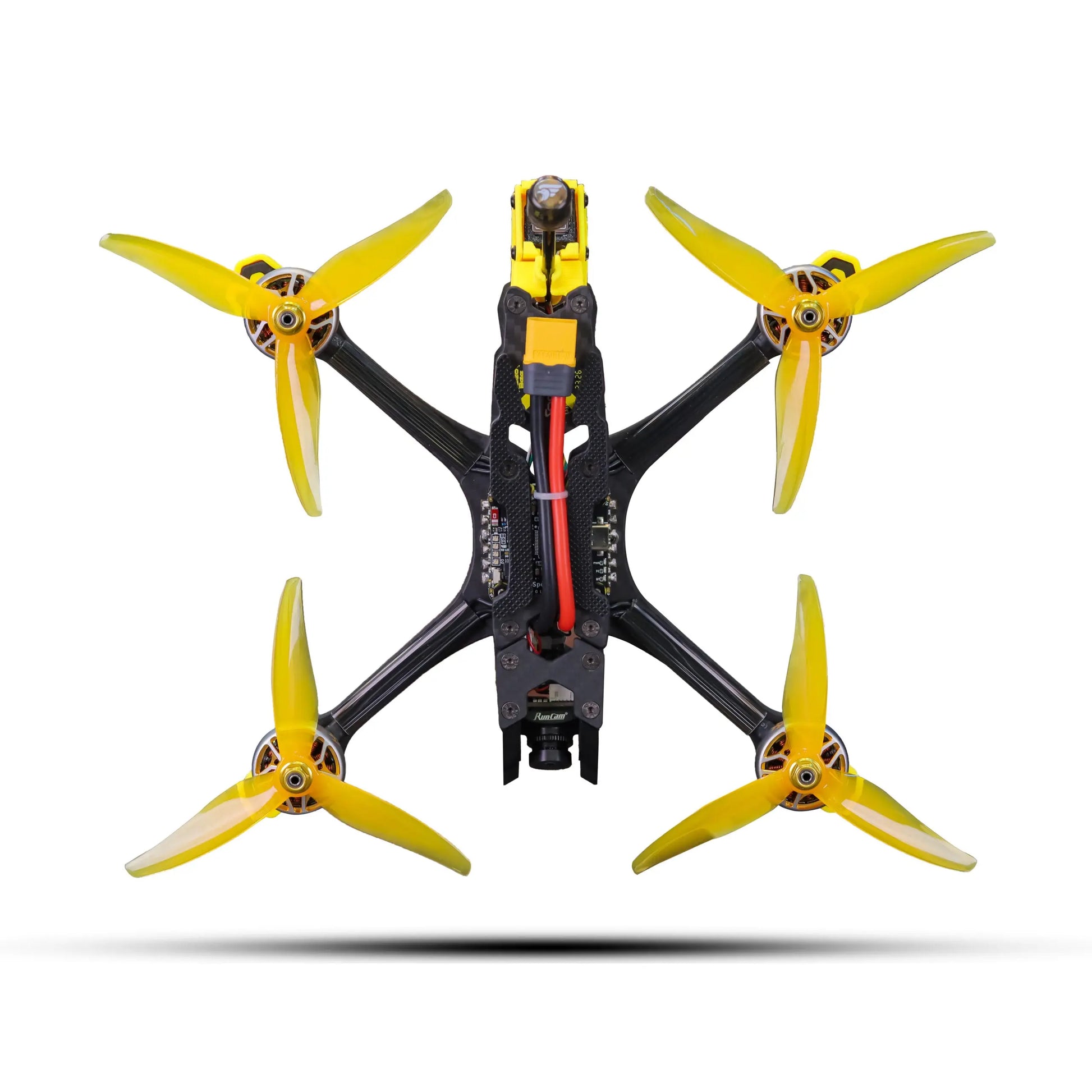

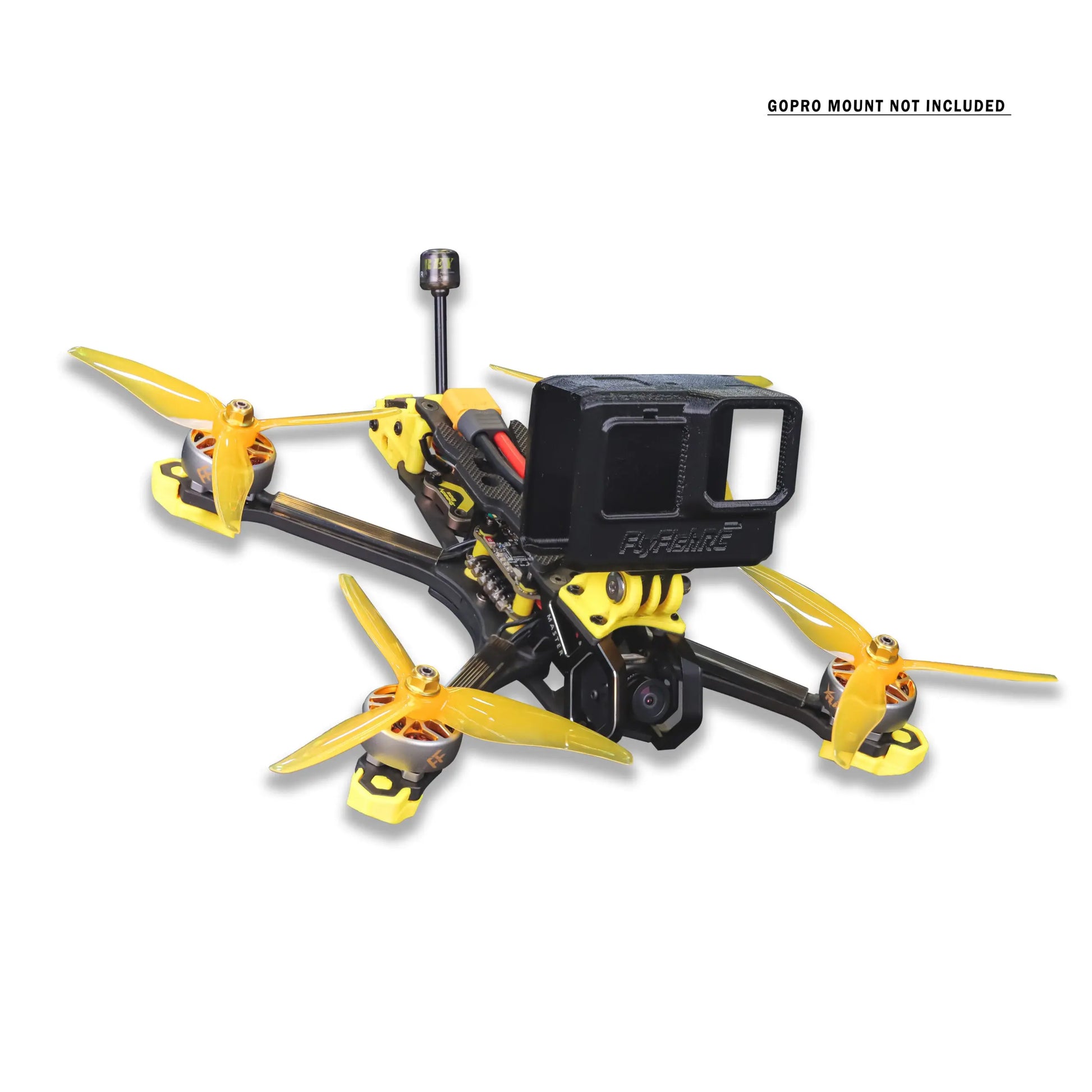

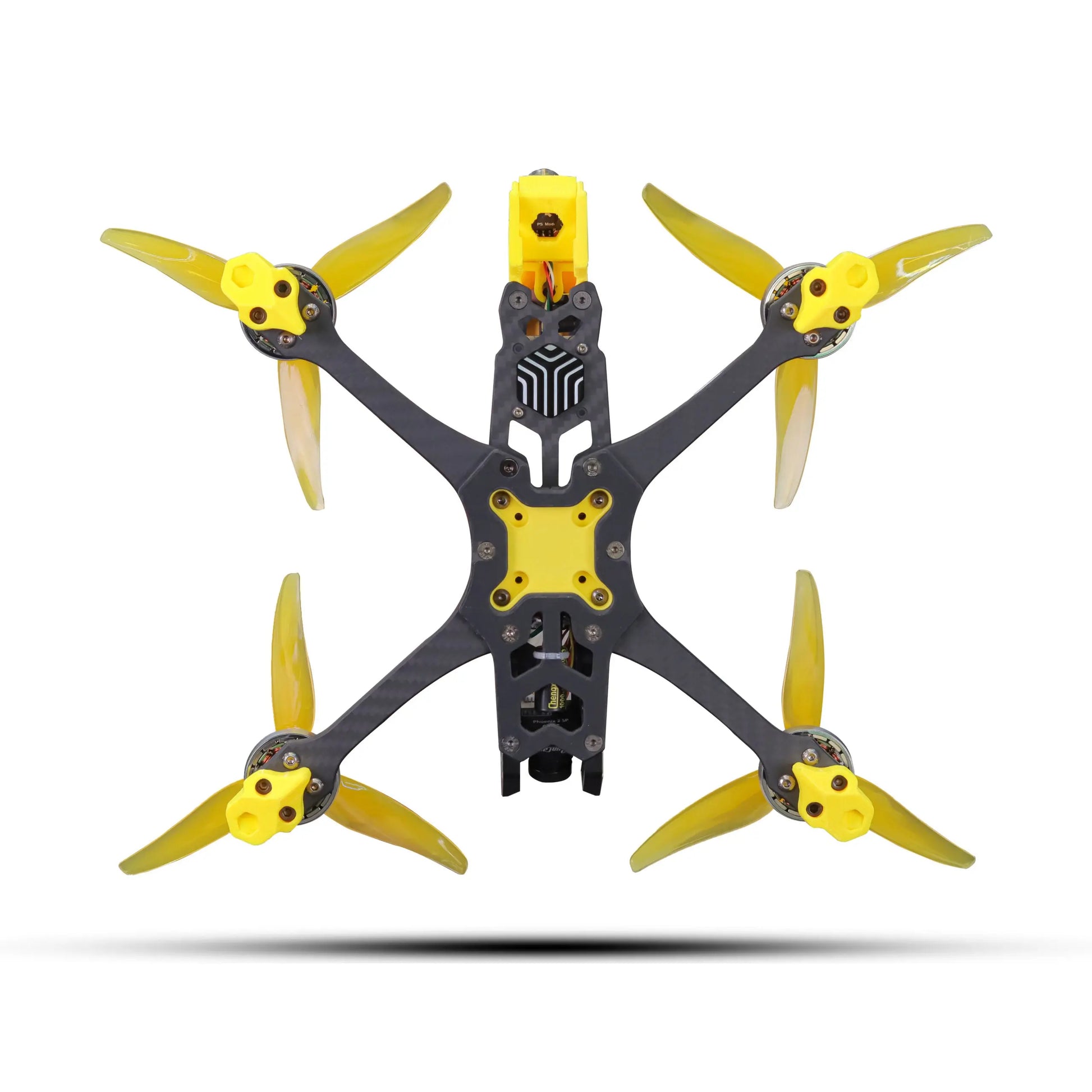

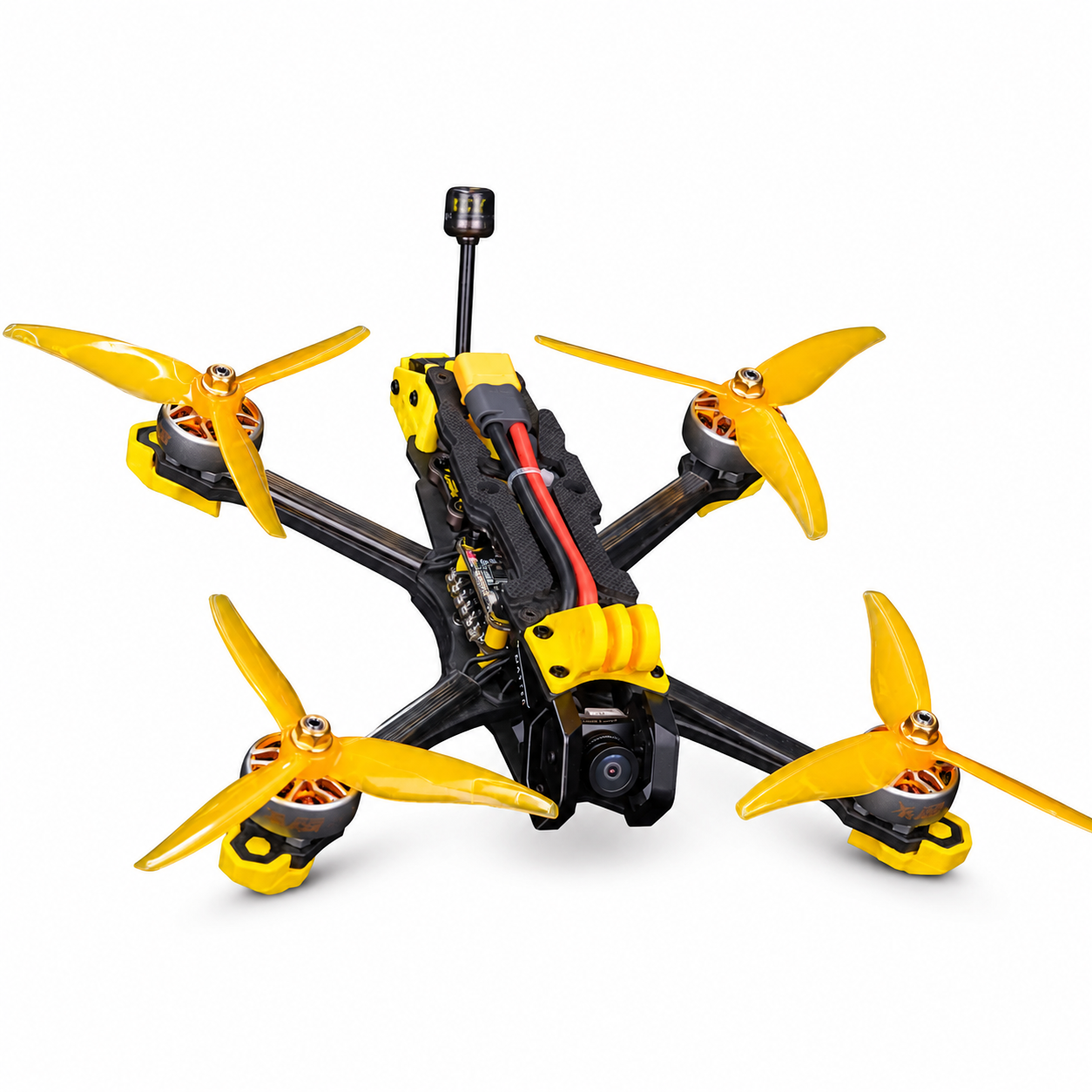

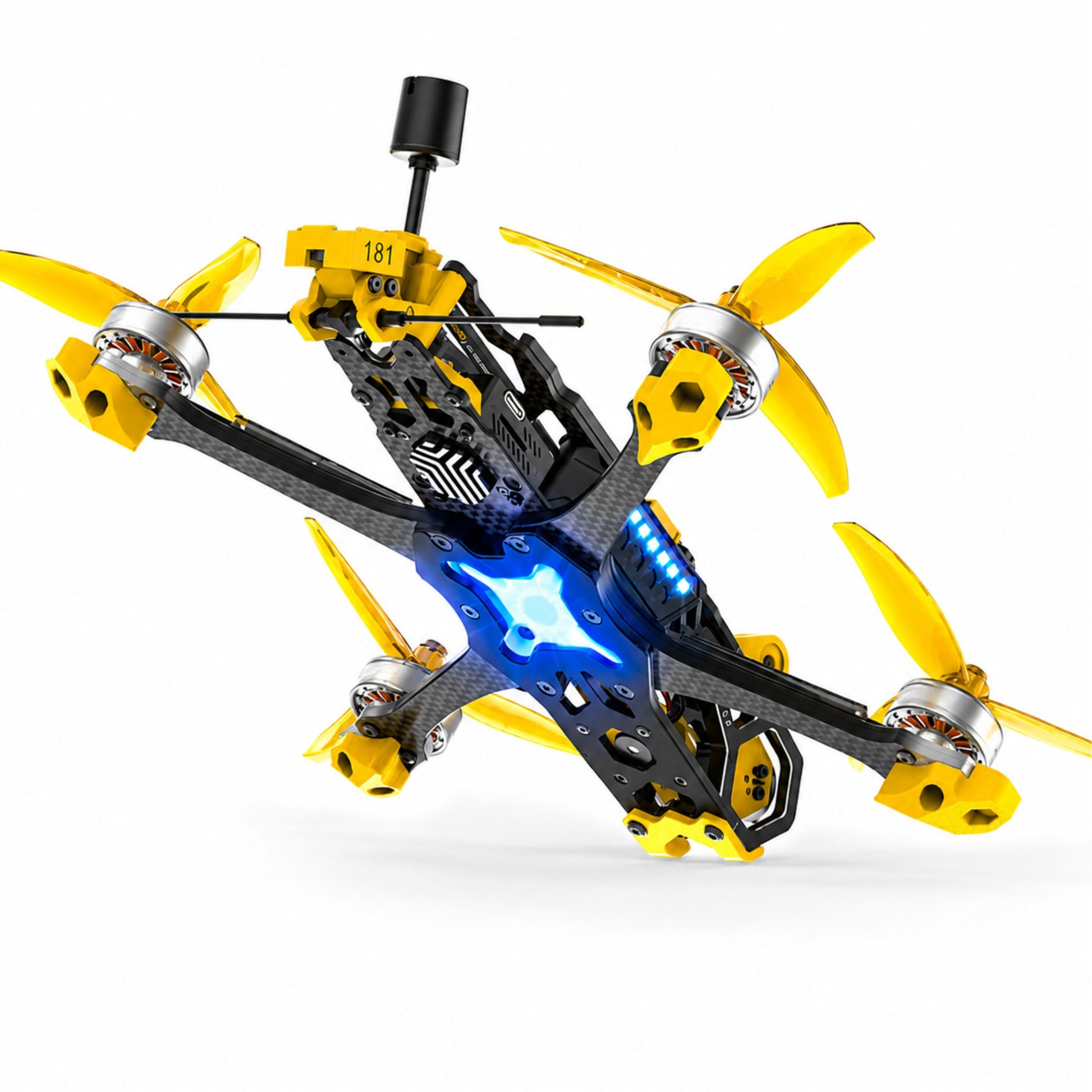

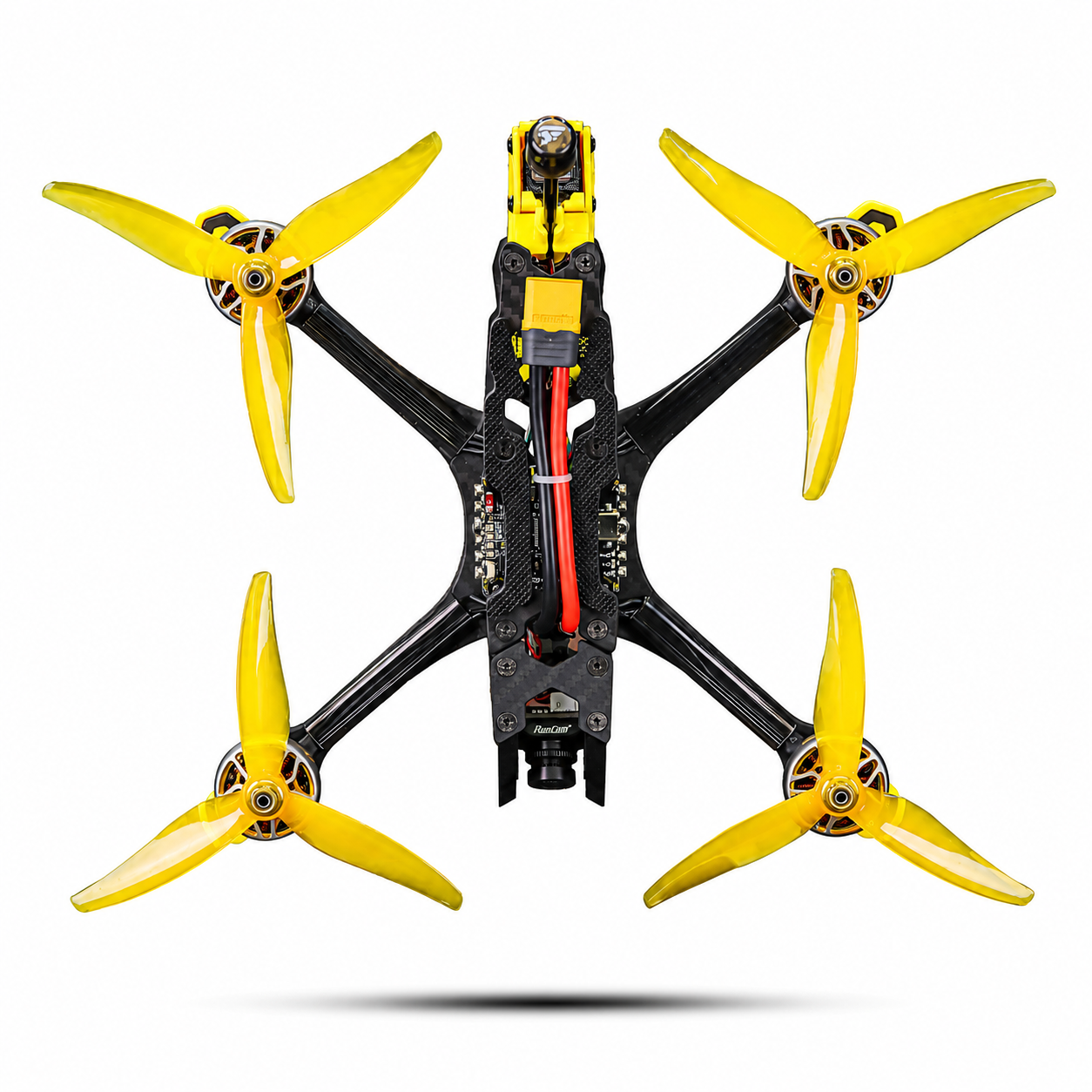

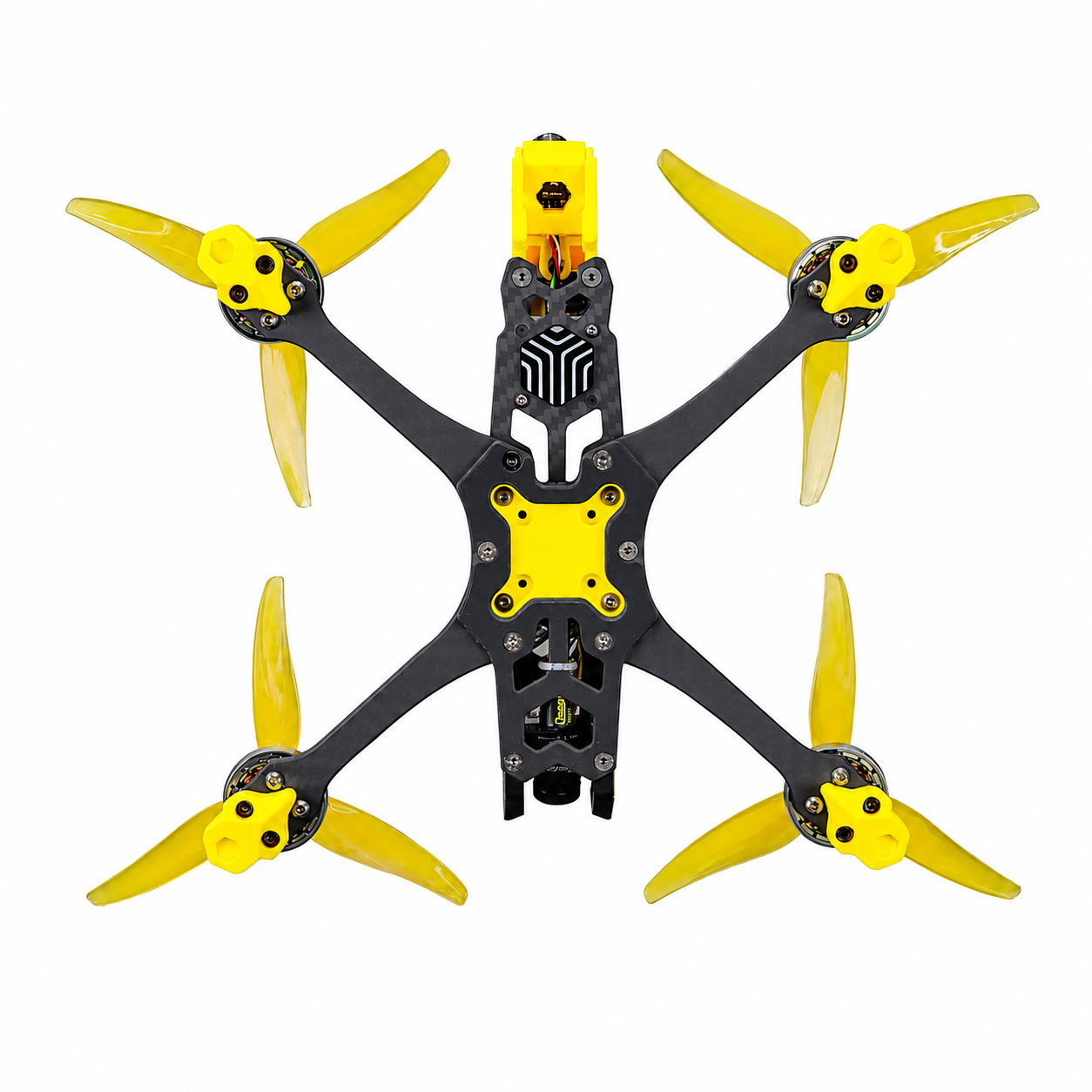

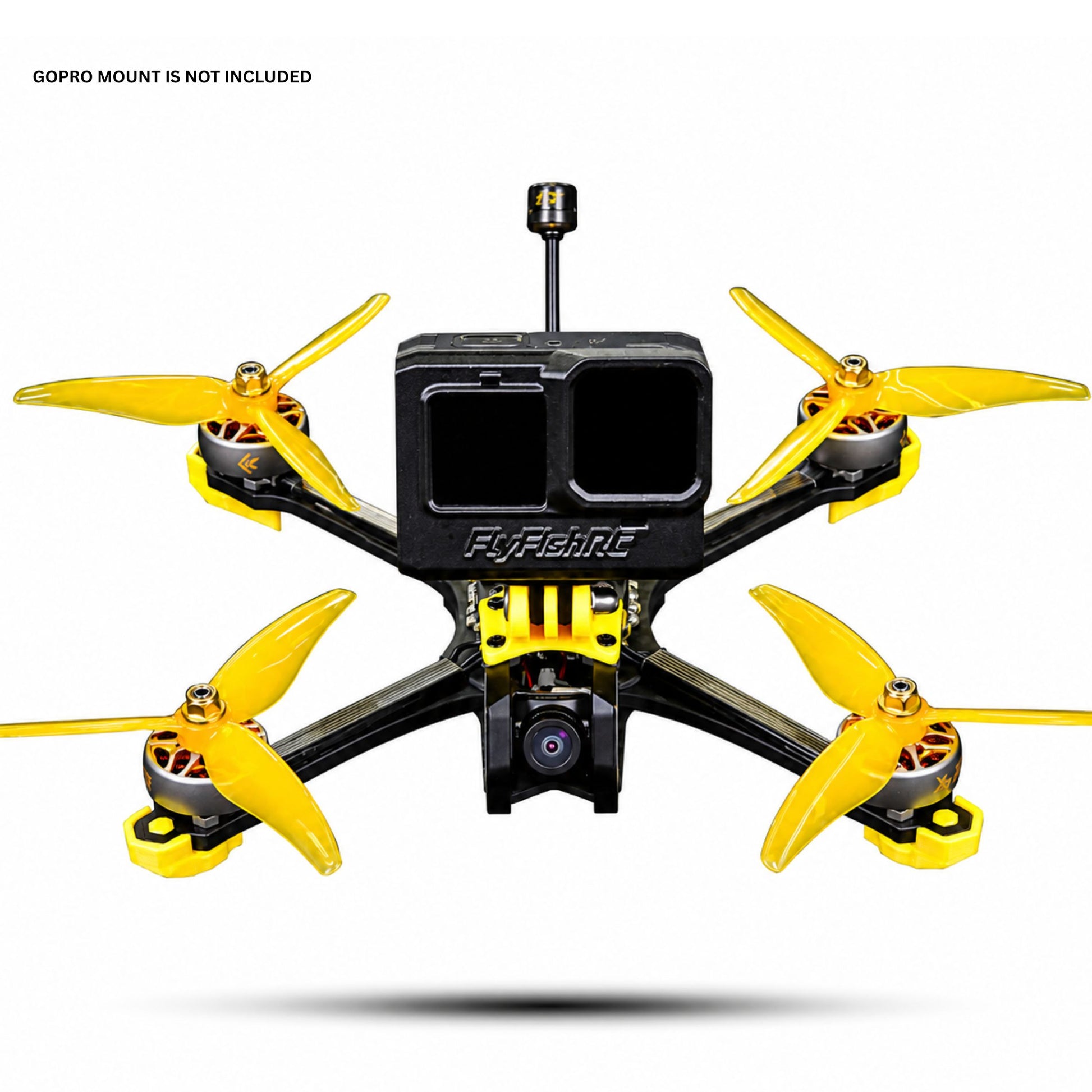

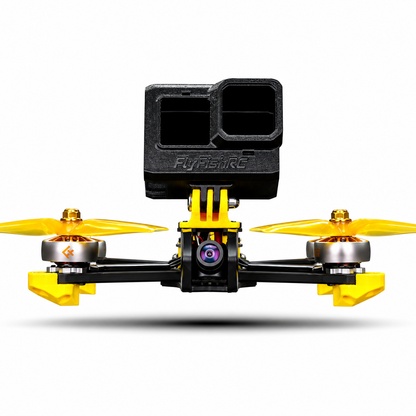

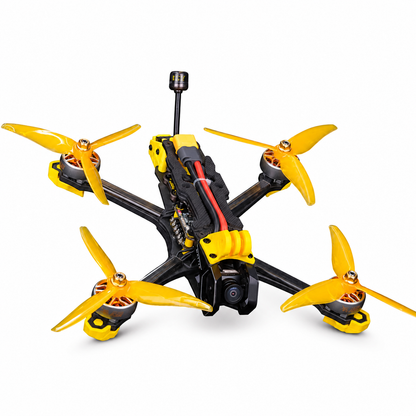

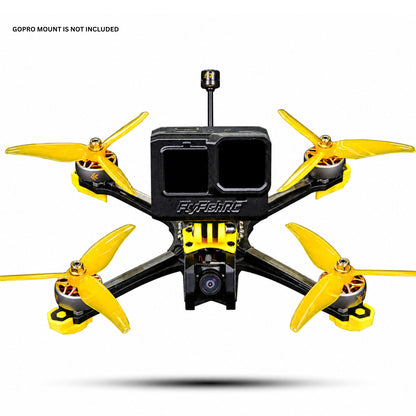

Master 5 Freestyle 4-6s Analog FPV Drone - PNP

NOTE: Product Images are shown for illustrative purposes only and may differ from the actual product.

NOTE: If you buy any PNP Drone from our website and any part of your drone gets damaged while you are using it then we will arrange those parts for you and if that parts manufacturing has been stopping then we will provide you reference product.

DON’T JUST FLY DRONES, CRASH THEM TOO BECAUSE WE ARE HERE FOR YOU.

Master 5 Freestyle 4-6s Analog FPV Drone – PNP

Features:
• Replaceable arms for quick disassembly without taking apart the whole frame.

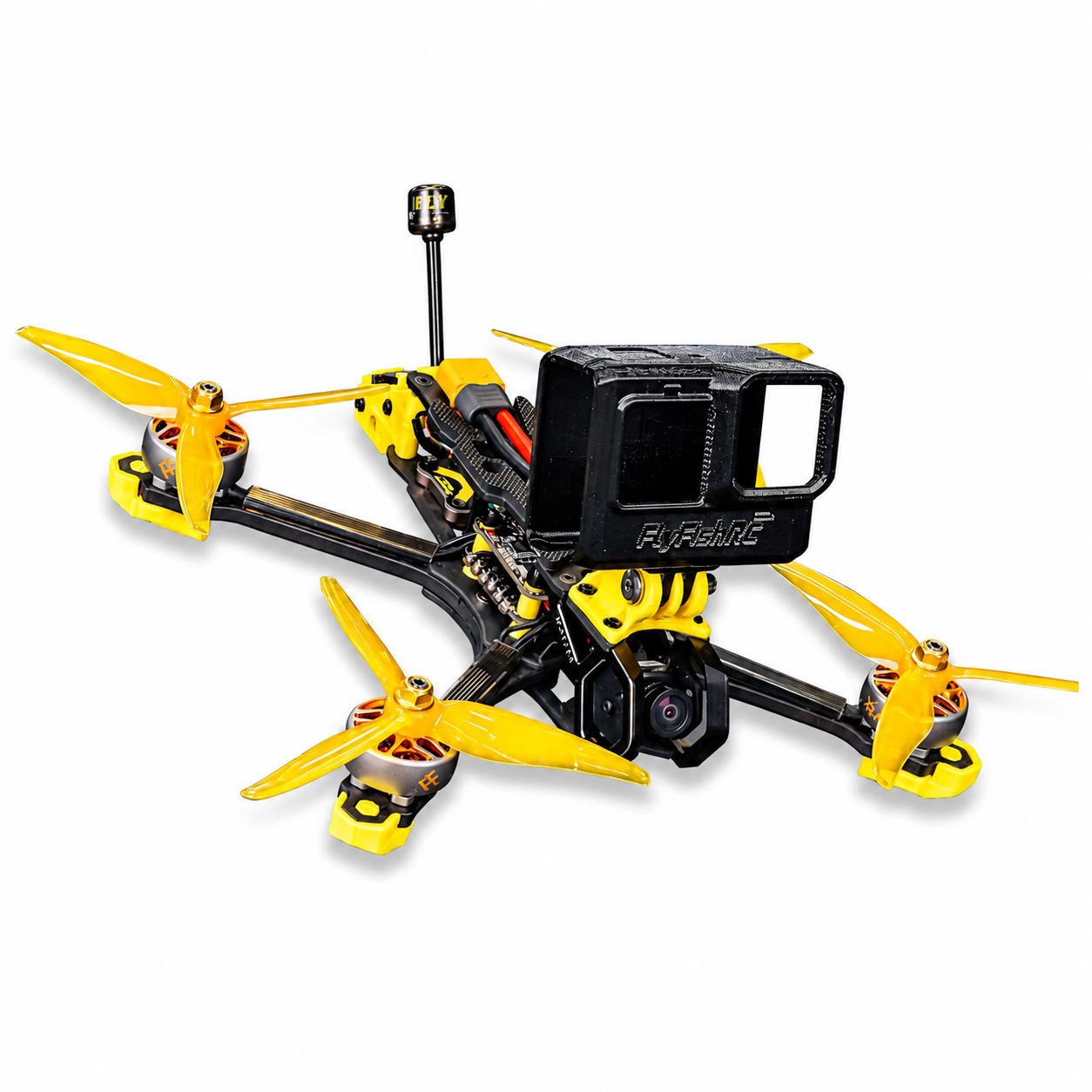

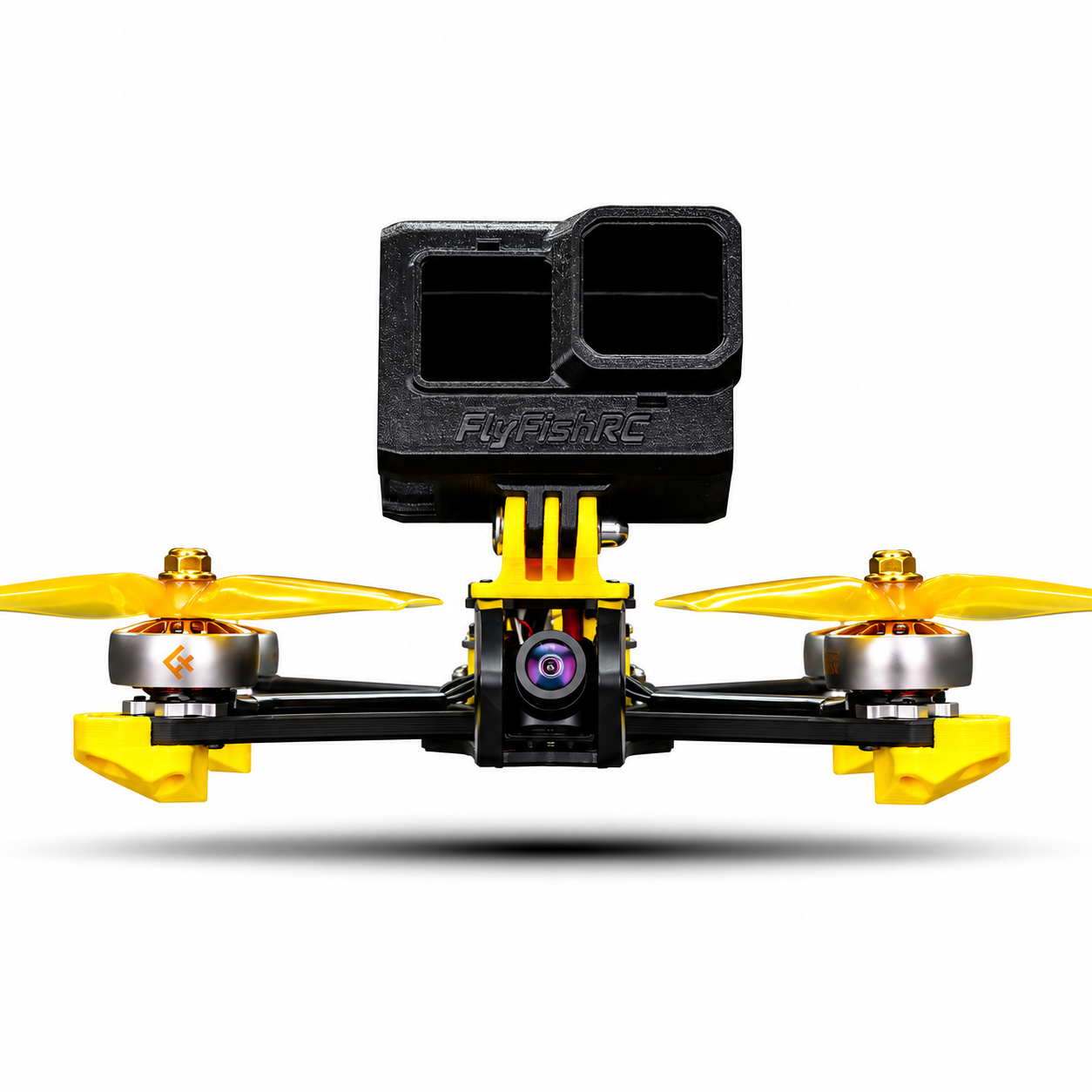

• Universal GOPRO installation bracket so that you can use any GoPro Camera and Action Camera.
• Honeycomb-shaped aluminium alloy cooling speeds up the heat dissipation under the VTX.
• Innovative Independent Anti-shock stack Fixed Structure.
• Honeycomb-shaped CNC 7075 magnesium aluminium alloy camera mount side plate.
• Configure your FC and ESC via Bluetooth on your phone and Experience wireless fully configuration anytime & anywhere.

Specification:

Master 5 V1 Frame
Model: 5 inches Frame
Wheelbase: 222mm
Size: 225*210mm
TPU Colour: Yellow
Arm thickness: 5mm
Prope size: 5inch
Manual

F405 V3 Flight Controller
MCU: STM32F405
USB Port Type: Type-C
Supported Fc Firmware: BetaFlight(Default),INAV
UART: 6sets
Power input: 3-6s lipo
Manual

F405 BLS 50A 4-in-1 ESC
Firmware: BLHeli_S JH50
Configuration: Wireless Configuration
Continuous Current: 50A*4
Burst Current: 55A(5seconds)
ESC Protocol: DSHOT300/600
Input Voltage: 3-6S Lipo
Capacitor: 35v 1000uf low ESR
Manual

TX800 VTX
Output Power: PIT/25mW/200mW/400mW/800mW
Input Voltage: 3.7V-5V
Antenna: MMCX
Manual

RunCam Phoenix 2 SP V3
Image Sensor: 1/2.8″ Starlight COMS Sensor
Horizontal Resolution: 1500TVL
Signal System: NTSC/PAL
Power: DC 5-36V
Dimension: 19mm

Speedy Bee 5.8 GHz SMA Antenna V2
Gain: 2.82dBi
Frequency: 5.8GHz
Polarization: RHCP
Connector: SMA

FlyFishRC Flash 2406 1950KV Motor - Gold.
Model: Flash 2406
KV: 1950KV
Input Voltage: 6S Lipo
Colour: Gold

Propeller
Size: 51466
Colour: Bumble Bee
Type: tri blade

Wire Protector Tube
Dimension: 98*10MM

TPU Base Mount
Colour: Yellow

PACKAGE INCLUDE:
1× Master 5 V1 Frame
1× F405 V3 Flight Controller
1× F405 BLS 50A 4-in-1 ESC
1× TX800 VTX
1× Phoenix 2 SP V3
1× 5.8 GHz SMA Antenna V2
4× FlyfishRC flash 2406 1950 KV Motor
4× Propeller
4× Wire protector tube Set
2× 250mm Battery strap
1× TPU Base Mount

Recommended Parts:
Radio Transmitter:
•FlySky FS-i6 2.4G 6CH Radio Transmitter With FS-iA6b Receiver
•Flysky FS-i6X 2.4GHz 6CH AFHDS 2A Radio Transmitter With FS-iA10B 2.4GHz 10CH Receiver
•Radiomaster Zorro ELRS Radio with RP1 ExpressLRS 2.4ghz Nano Receiver
•Radiomaster TX12 MKII ExpressLRS Transmitter with RP1 ExpressLRS Nano Receiver

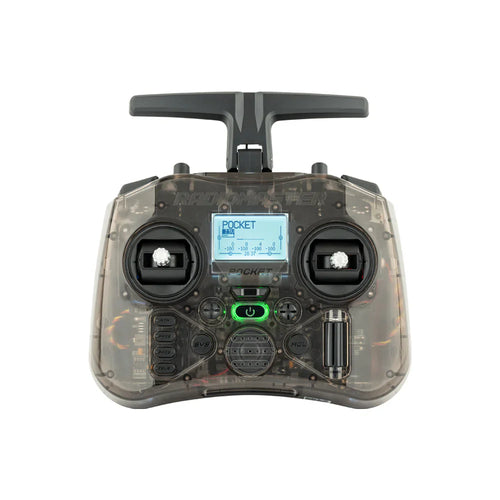

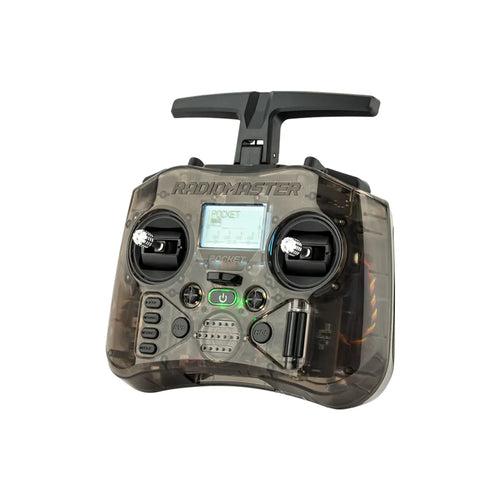

•Radiomaster Pocket Radio Controller – ELRS Version (Transparent)

Radio Receiver:
•RP1 ExpressLRS 2.4ghz Nano Receiver
•SpeedyBee Nano 2.4G ExpressLRS ELRS Receiver

Goggles support – Analog
•Eachine EV800D 5.8G 40CH Diversity FPV Goggles With DVR
•Eachine EV800DM 5.8G 40CH Diversity FPV Goggles
•VR009 5.8GHz 40CH 3 Inch FPV Goggles
•BeastHobby VR100 3.0 Inch 5.8G 40ch FPV Goggles
•008D 5.8G 40CH FPV Goggles For Drones
•Skyzone Cobra Lite V2 FPV Goggles
•iFlight FPV Goggles with DVR Function

Video Receiver
•Skydroid 5.8G UVC OTG Android Audio and Video Receiver For FPV Drone
•EWRF 5.8G UVC OTG Android Audio/Video Phone Receiver

Battery Support 4S-6S Lipo (suggested: 1300mah-2000mah)
4s lipo Battery
•14.8V 1500mAh 4S 100C Lipo Battery with XT60 Plug (Brand Orange)

6S lipo Battery
•22.2V 1400mAh 6S 130C Lipo Battery with XT60 Plug (Brand Bonka)
•22.2V 1380mAh 6S 150C Lithium Polymer Battery Pack (Brand Bonka)

Battery Charger
•iMAX B6AC Lipo Battery Professional Balance Charger
•IMAX B6 80W 6A Charger/Discharger 1-6 Cells + DC 5A 12V

Propeller:
•51466 V2 Hurricane HD Propeller PC 3 Blade – Bumble Bee
•5149 HD Tri-Blade Flash Durable Propellers 2CW+2CCW (2 Pair)-Transparent Purple
•5149 HD Tri Blade Flash Propellers 2CW+2CCW (2 Pair) – Transparent Orange
•5149 HD Tri-Blade Flash Propellers 2CW+2CCW (2 Pair) – Transparent Blue

Antenna for Goggles:
•RHCP RP-SMA 5.8G 2.8dBi Lollipop Antenna(Long)
•Patch Antenna RP SMA 5.8GHz Triple Feed

Action Camera:
•RunCam 5 Orange Action Camera
•RunCam Thumb Action Camera
•RunCam Thumb Pro Action Camera

Accessories:
•75cm Diameter Fast-fold Landing Pad/Helipad For Drone
•FlyFishRC Gopro 9/10/11 TPU Adjustable Mount – Black
•FlyFishRC Gopro 9/10/11 TPU Adjustable Mount – Tropical Mix
•BEE35 Removable Gimbal

Tools:
•Spanner/Wrench 8mm x 9mm – Taparia
•Allen Key 1.5mm
•Allen Key 2mm
•Allen Key 2.5mm
•25W 230V Soldering Iron (Rajshri)
•60W 230V Soldering Iron (Rajshri)
•35W 230V Soldering Iron (Rajshri)
•Solder Wire 27gm
•Wire Cutter/Stripper 150mm – Taparia

PNP stands for "Plug and Play" or "Plug and Power," indicating that most of the essential components are already installed and connected, it usually includes the airframe, motors, propeller, electronic speed controllers (ESCs), flight controller, FPV camera, and video transmitter. However, it does not include the radio transmitter & receiver, fpv goggles, battery, charger And GPS If you want to buy all these things then you will have to buy it separately.

SkyRC.in also provide Pre-build (Ready to Fly) Drones if you are interested please follow (3 steps).
Step1: Select your favorite Drone Kit.
Step2: Copy the link of that Product.
Step3: Share the link to our customer support on WhatsApp(9142884517).
Our Customer Support will reply as soon as possible and they will explain you the further details .

A ready-to-fly (RTF) drone is a complete package that includes all the necessary components for flight, meaning you can start flying it right out of the box without any additional ASSEMBLY/SETUP & PROGRAMMING/CONFIGURATION required. Typically, a RTF drone includes the drone itself, a radio transmitter & receiver, FPV goggles, battery and charger.

(RTF) ready-to-fly drone include with some setup, tuning, configuration like binding, radio calibration, motor configuration, motor direction, motor ordering, video transmitter setup, camera setup, OSD setup, GPS setup, Flight modes setup, ESC calibration and FPV goggles setup.
