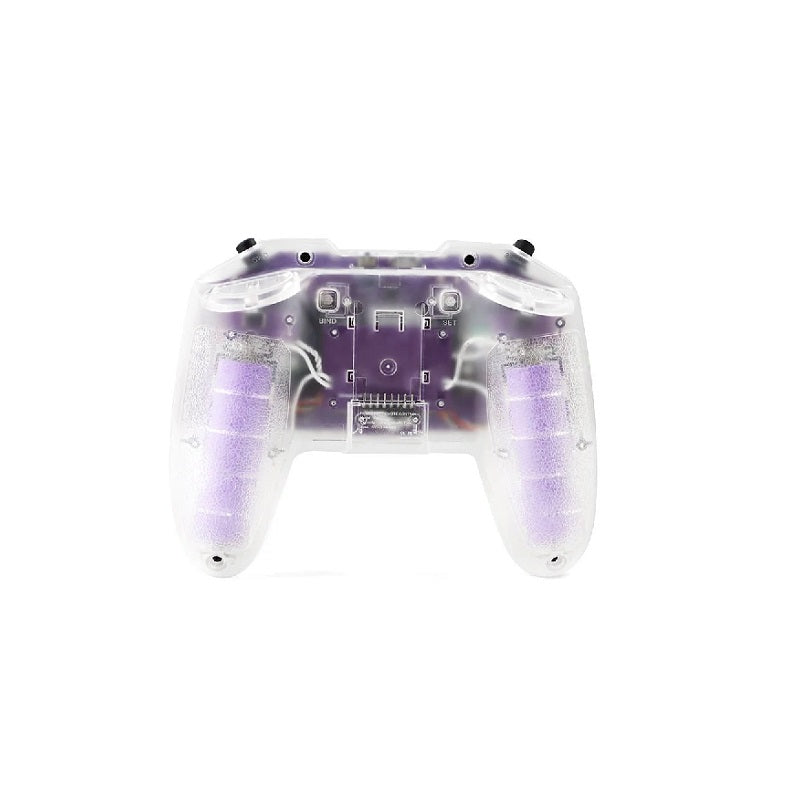

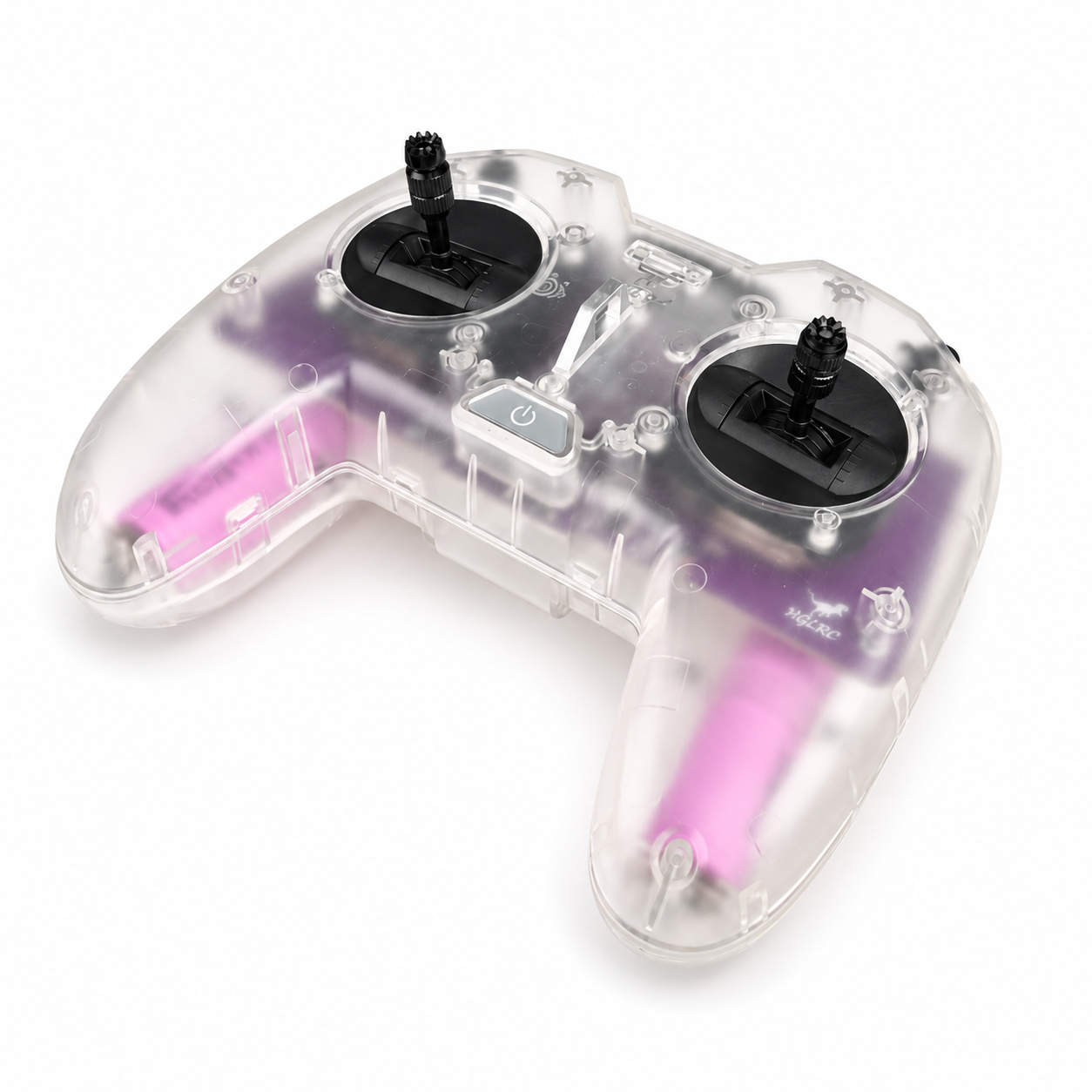

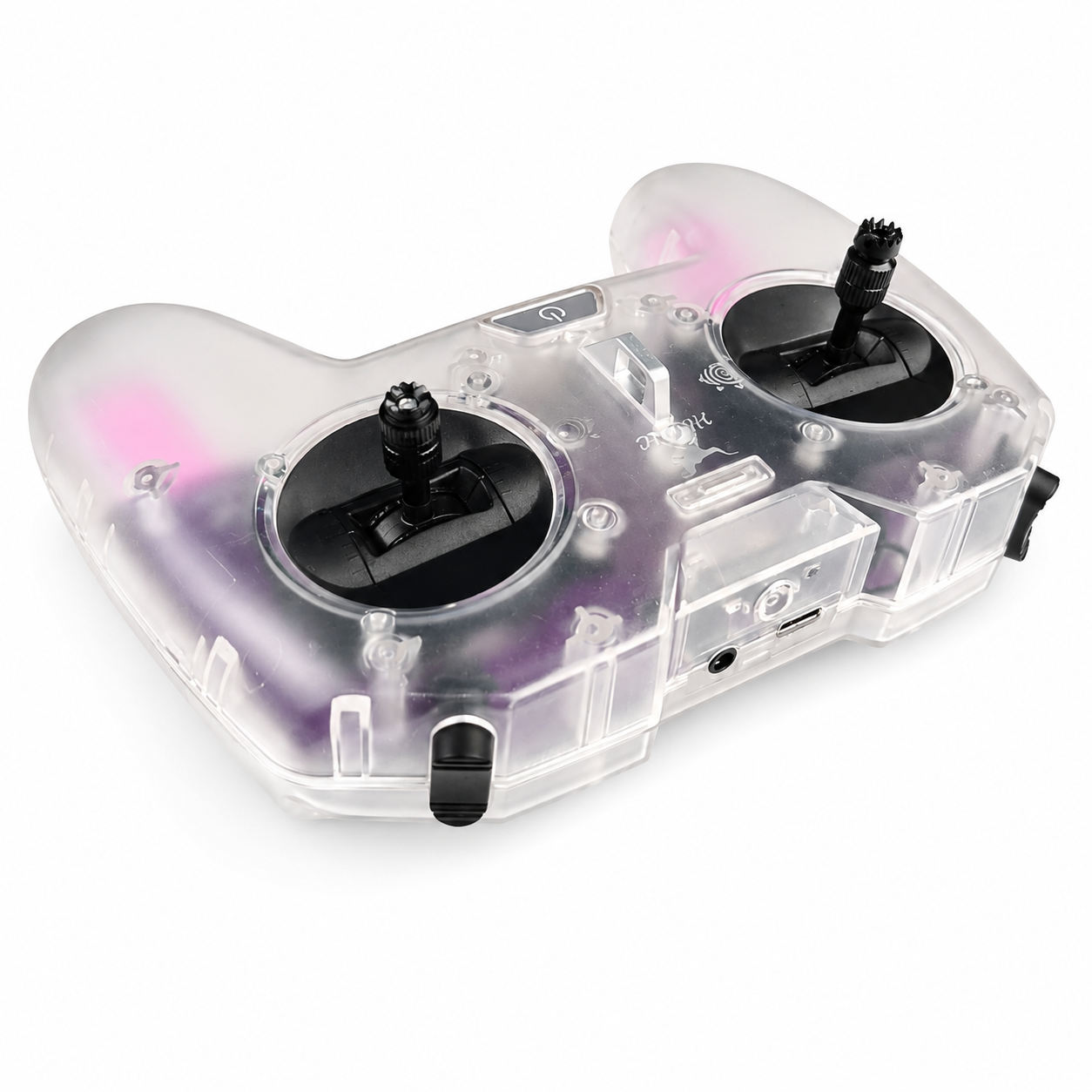

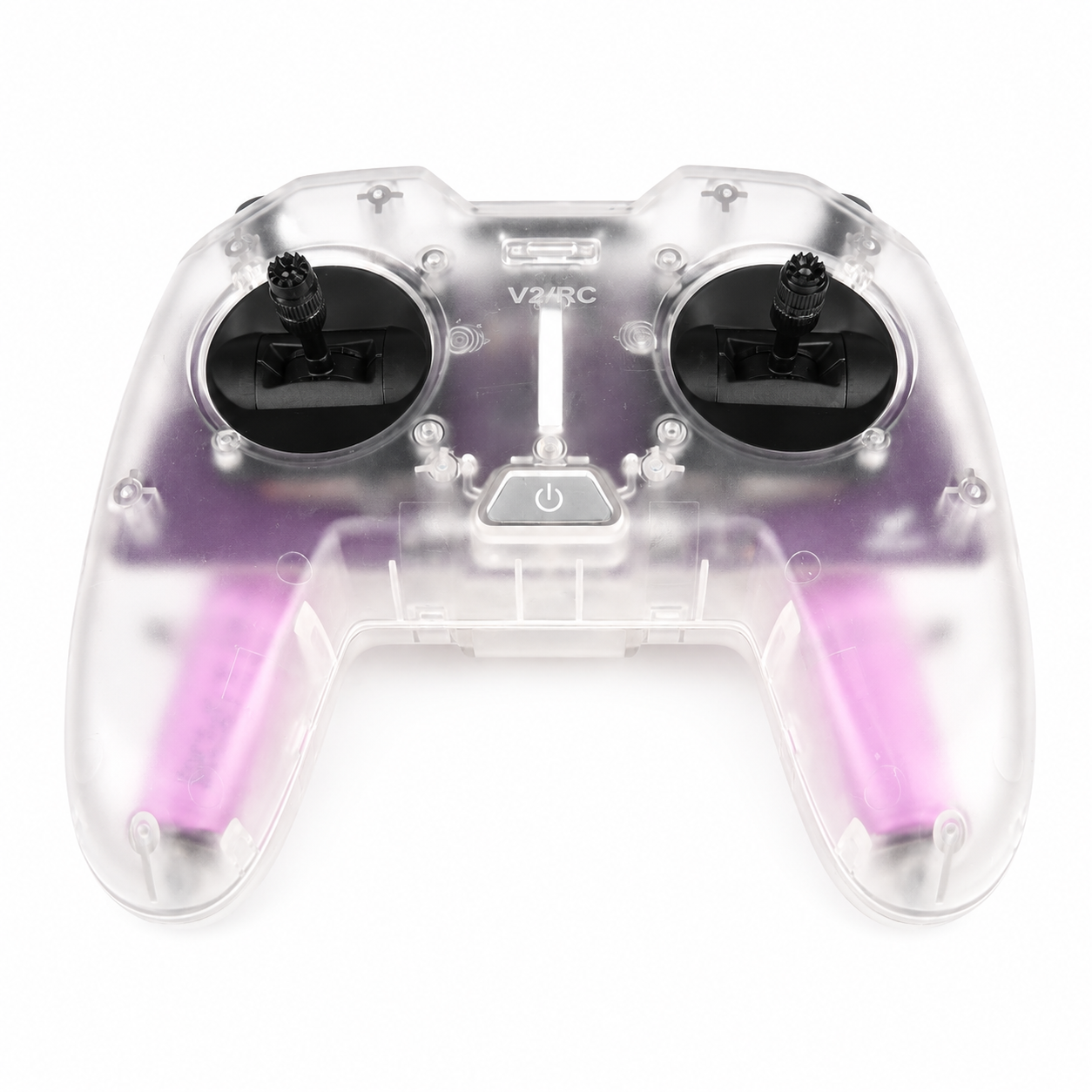

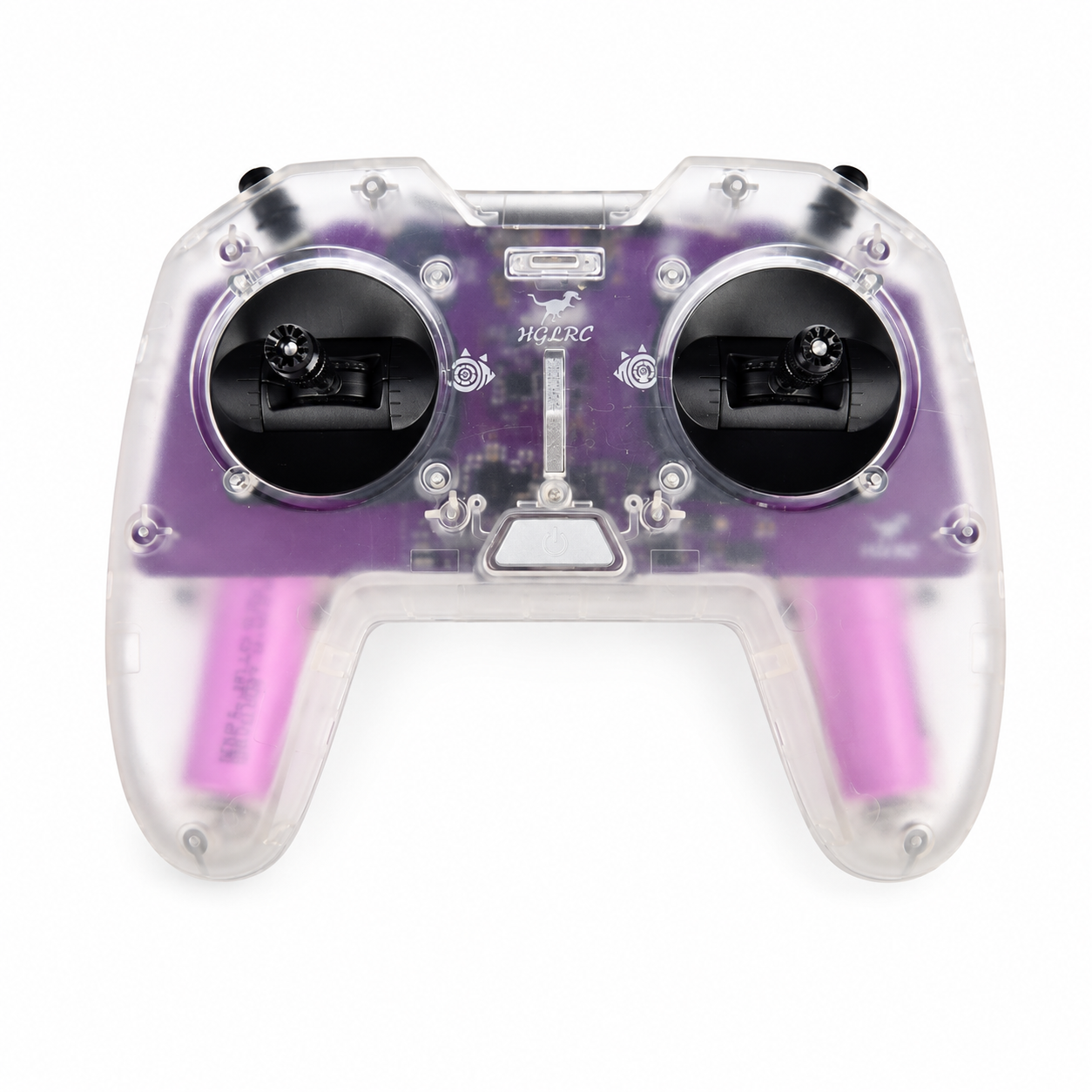

HGLRC C1 Remote Control

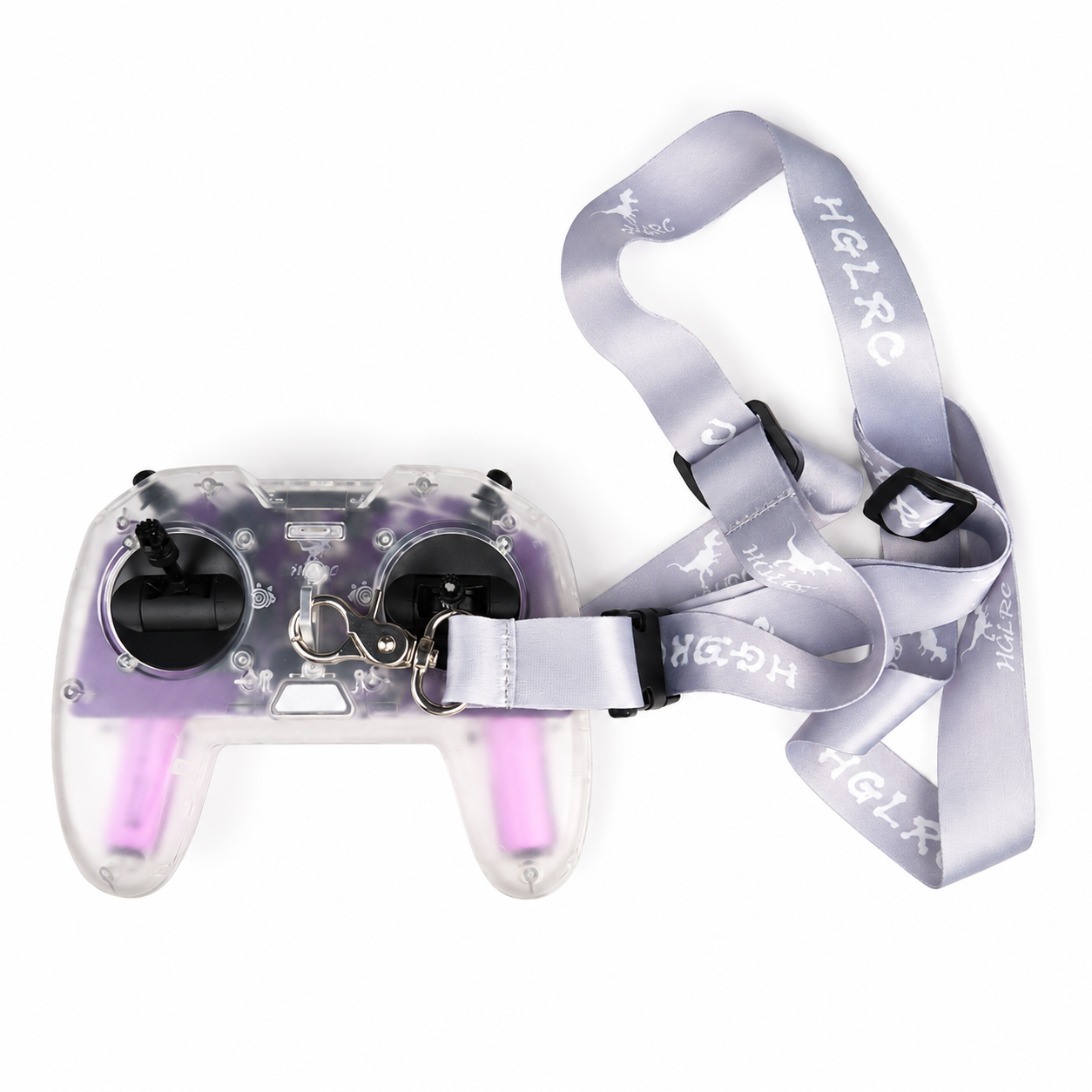

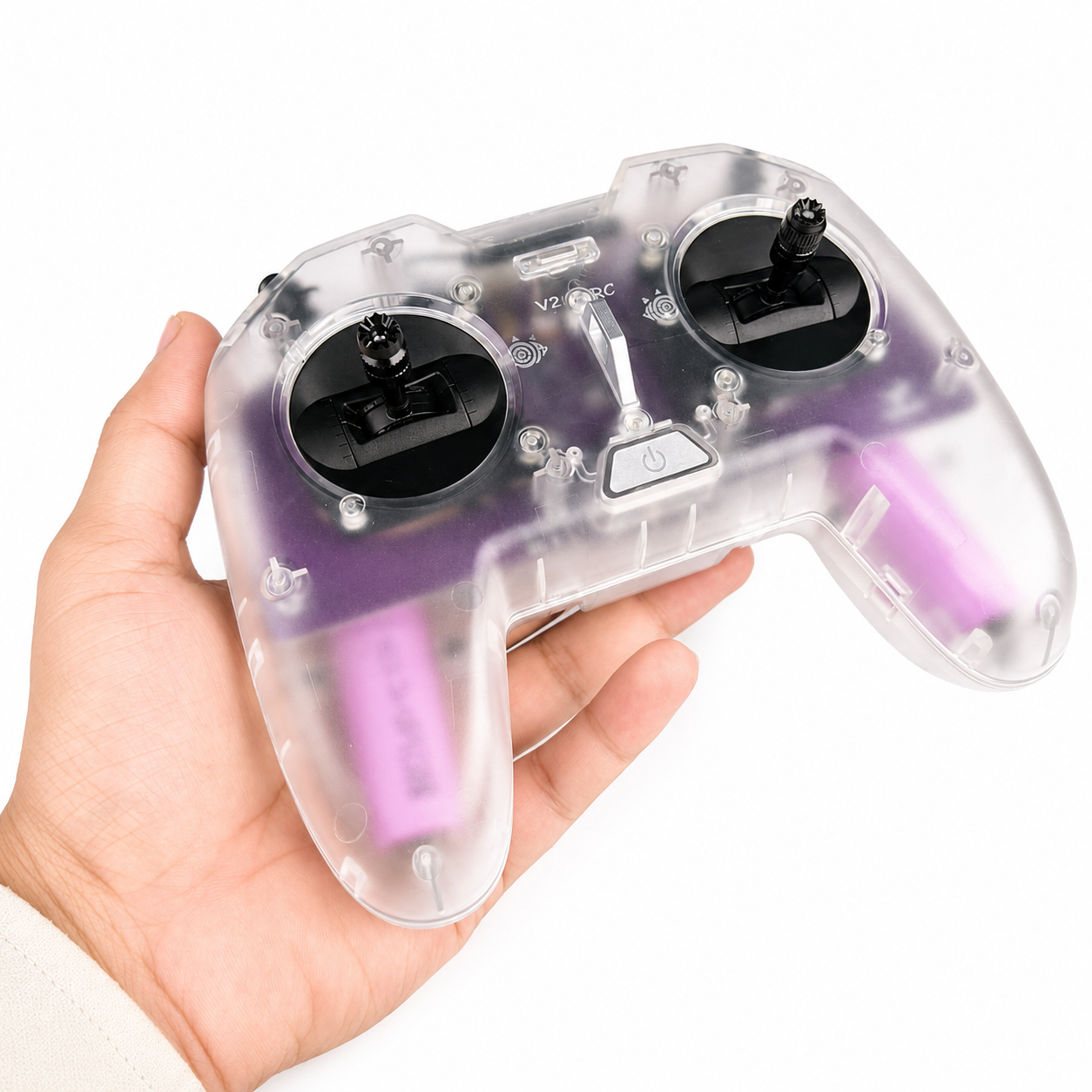

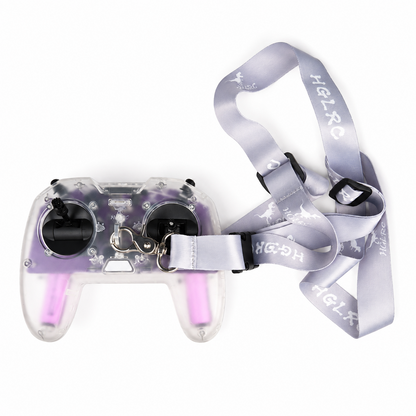

The HGLRC C1 Remote Control offers intuitive drone piloting with its ergonomic design and reliable performance. It comes with a comfortable strap for extended use and a convenient dongle for seamless connectivity. With precise control and a user-friendly interface, it enhances the flying experience while ensuring stability and responsiveness during flight.

Features:

1. Built-in 500mw radio frequency module, which can realize stable signal transmission and remote control distance;
2. The operation procedures are extremely simplified, and common operations such as frequency pairing, power adjustment, and joystick calibration can be realized without a screen, and you can get started quickly;
3. Mix and match design of three-stage switch and two-stage switch;

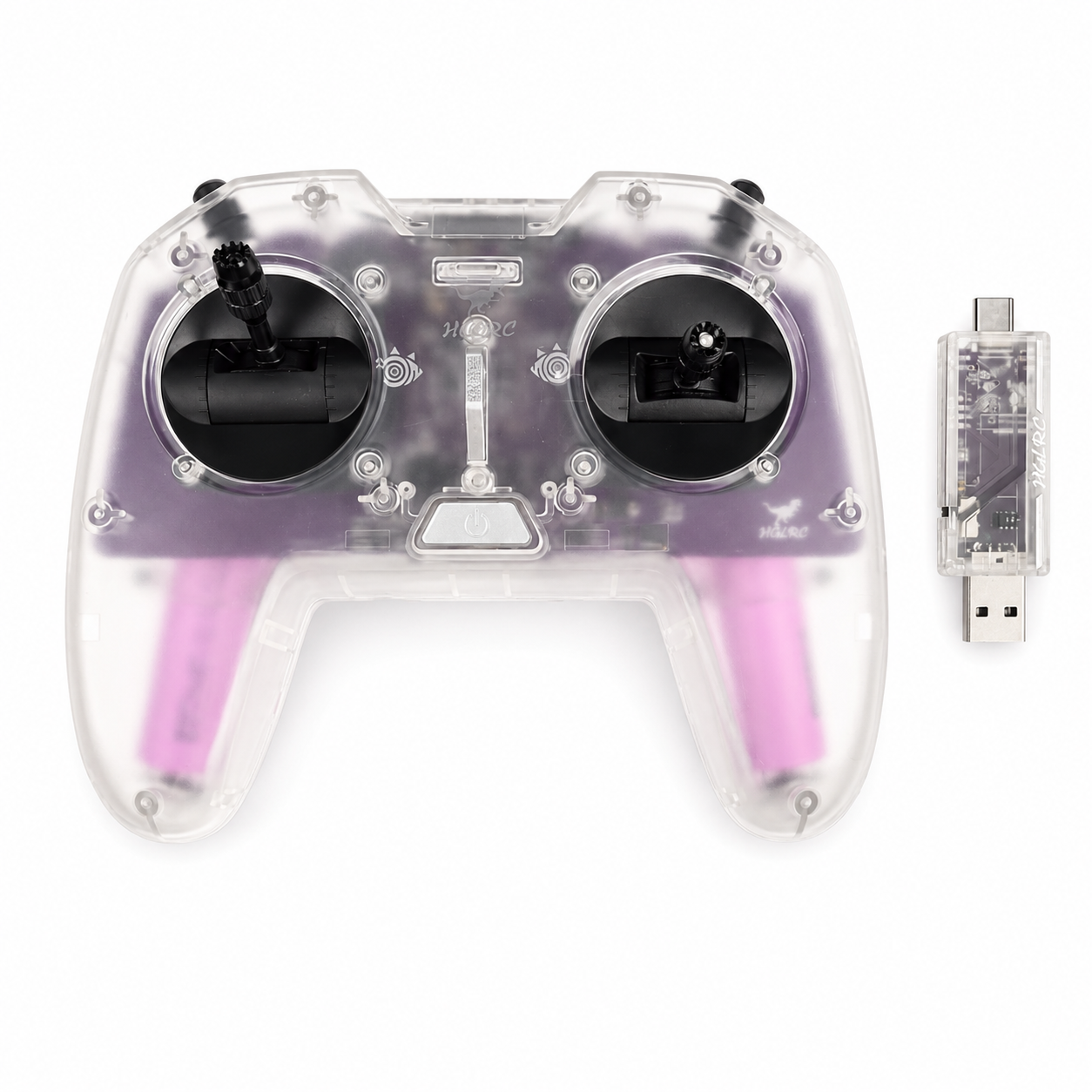

4. It can be equipped with a wireless dongle, no need to connect a USB data cable when practicing the simulator, and the dongle also has USB-A and USB-C dual interfaces;
5. Support the installation of third-party receivers and tuners;

Remote control parameters:

1. Built-in ELRS: ELRS 2.4GHZ
2. Built-in ELRS refresh rate: 250Hz
3. Remote control sensor type: potentiometer sensor
4. Antenna: built-in ipex1 generation copper tube antenna
5. Working voltage: 6-8.4v DC
6. Remote control distance: greater than 500m

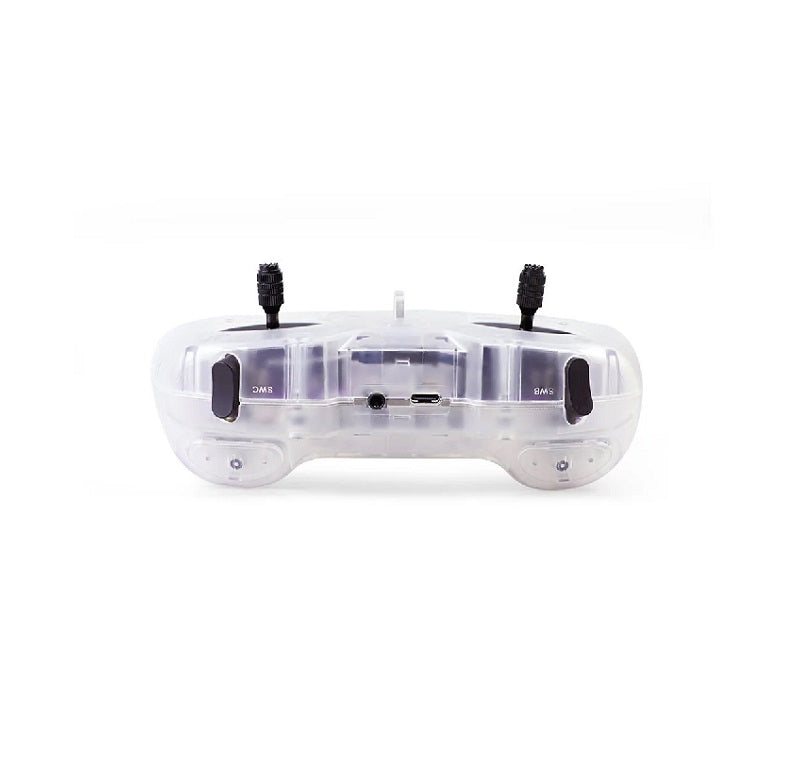

7. Output interface: TX module NANO bin (crsf protocol) TYPE-C (only charging and firmware flashing) 3.5MM analog trainer port

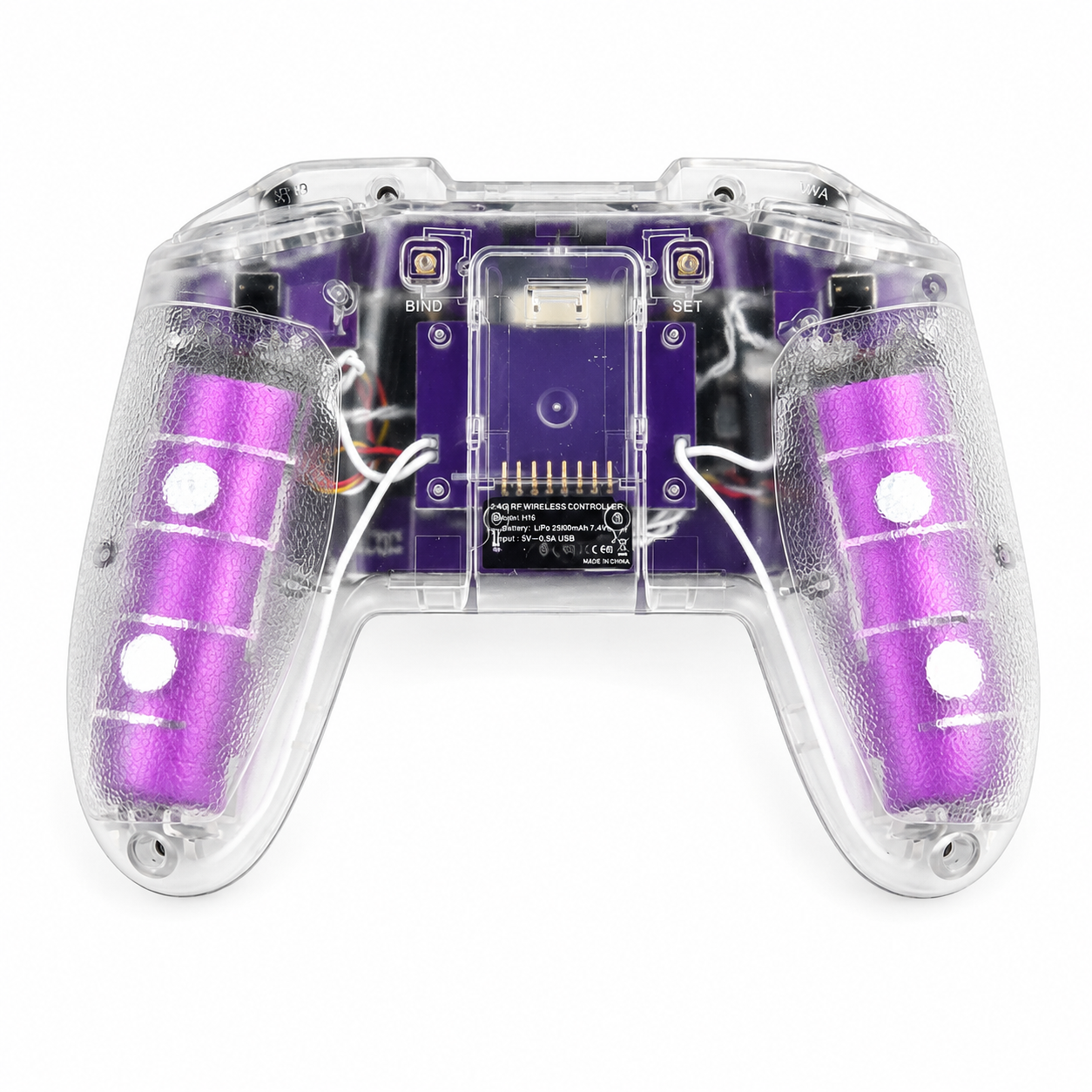

8. Battery: 18650 flat head battery x2 (need to be installed by yourself)
9. Charging: TYPE-C charging current 1.2A The charging time is about 3-4 hours
10. Remote control channel: 8 channels
11. Bluetooth: Bluetooth 4.2
12. ELRS firmware upgrade method: WIFI or TYPE-C wire brush
13. ELRS firmware version: ELRS 3.0
14. ELRS firmware name: DIY devices 2.4 GHz DIY ESP32+ E28 2.4GHz TX
15. Weight: 195g (excluding battery)
16. Size: 160mmx130mmx50mm (excluding remote control)

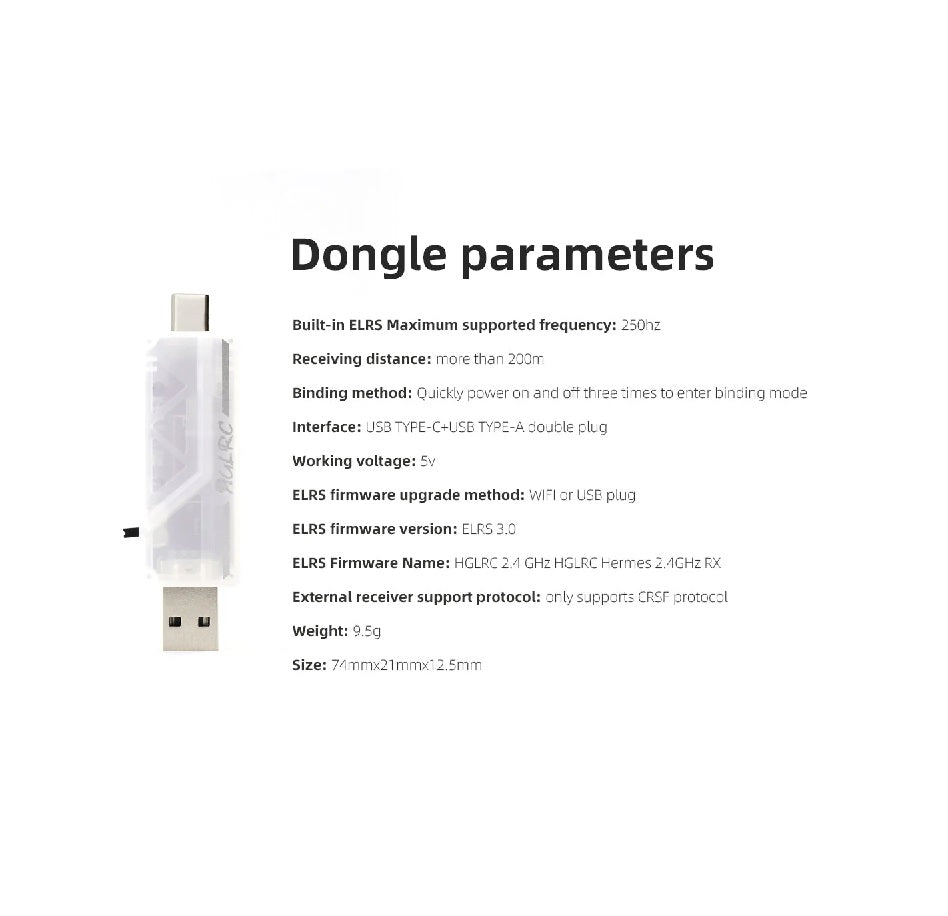

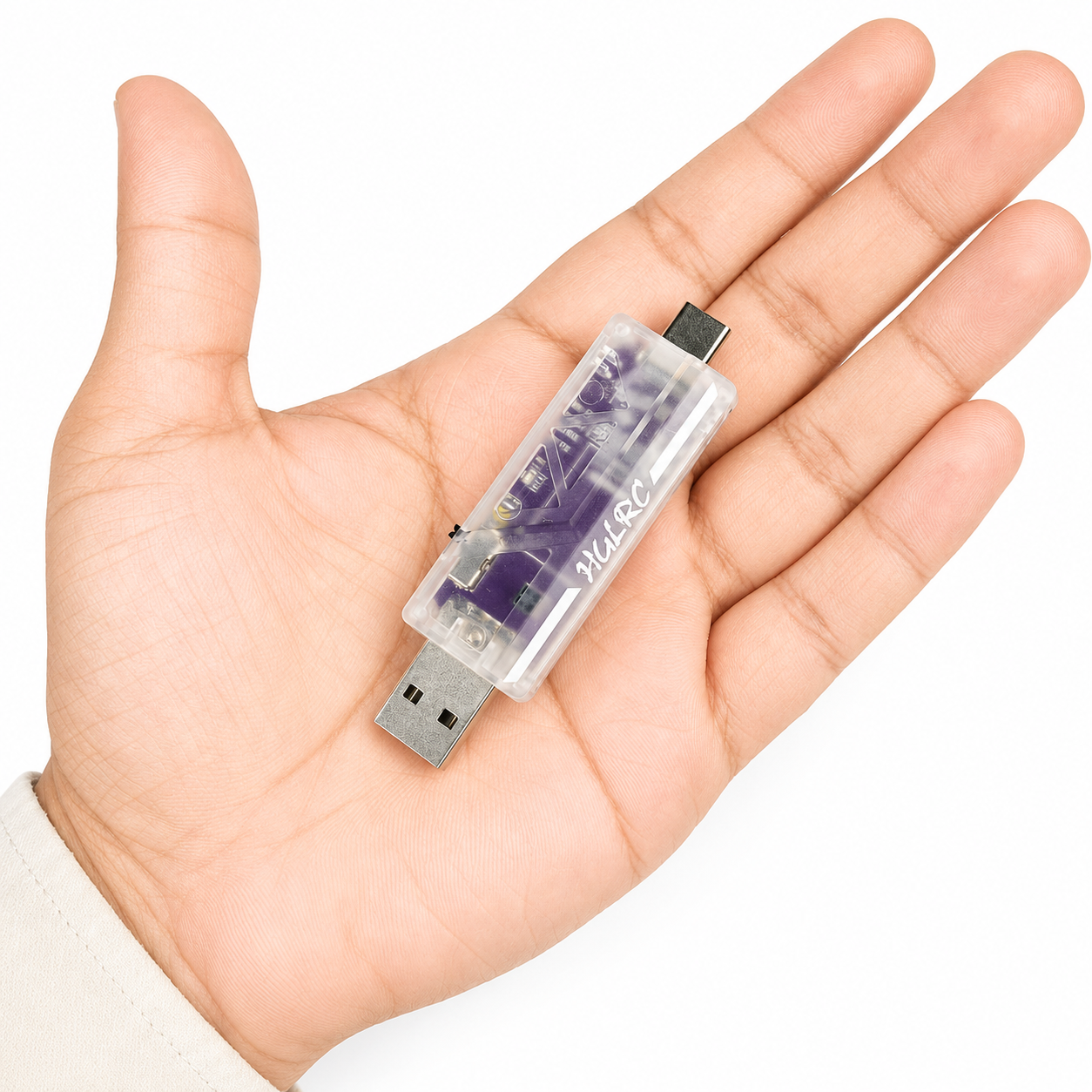

Dongle parameters:

1. Built-in ELRS Maximum supported frequency: 250hz
2. Receiving distance: more than 200m
3. Binding method: Quickly power on and off three times to enter binding mode
4. Interface: USB TYPE-C+USB TYPE-A double plug
5. Working voltage: 5v
6. ELRS firmware upgrade method: WIFI or USB plug
7. ELRS firmware version: ELRS 3.0
8. ELRS Firmware Name: HGLRC 2.4 GHz HGLRC Hermes 2.4GHz RX
9. External receiver support protocol: only supports CRSF protocol
10. Weight: 9.5g
11. Size: 74mmx21mmx12.5mm

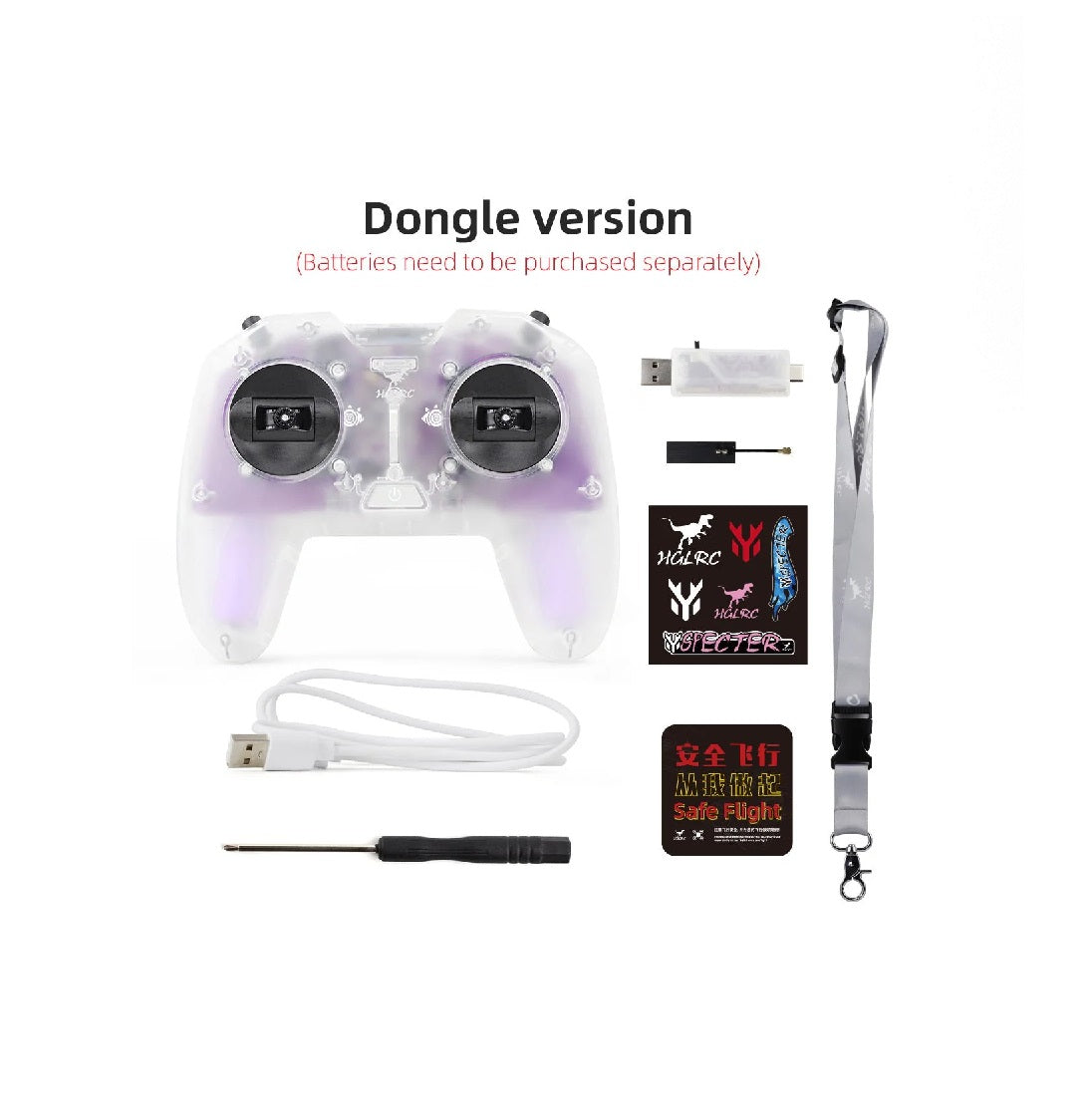

Package Includes:

1× remote control

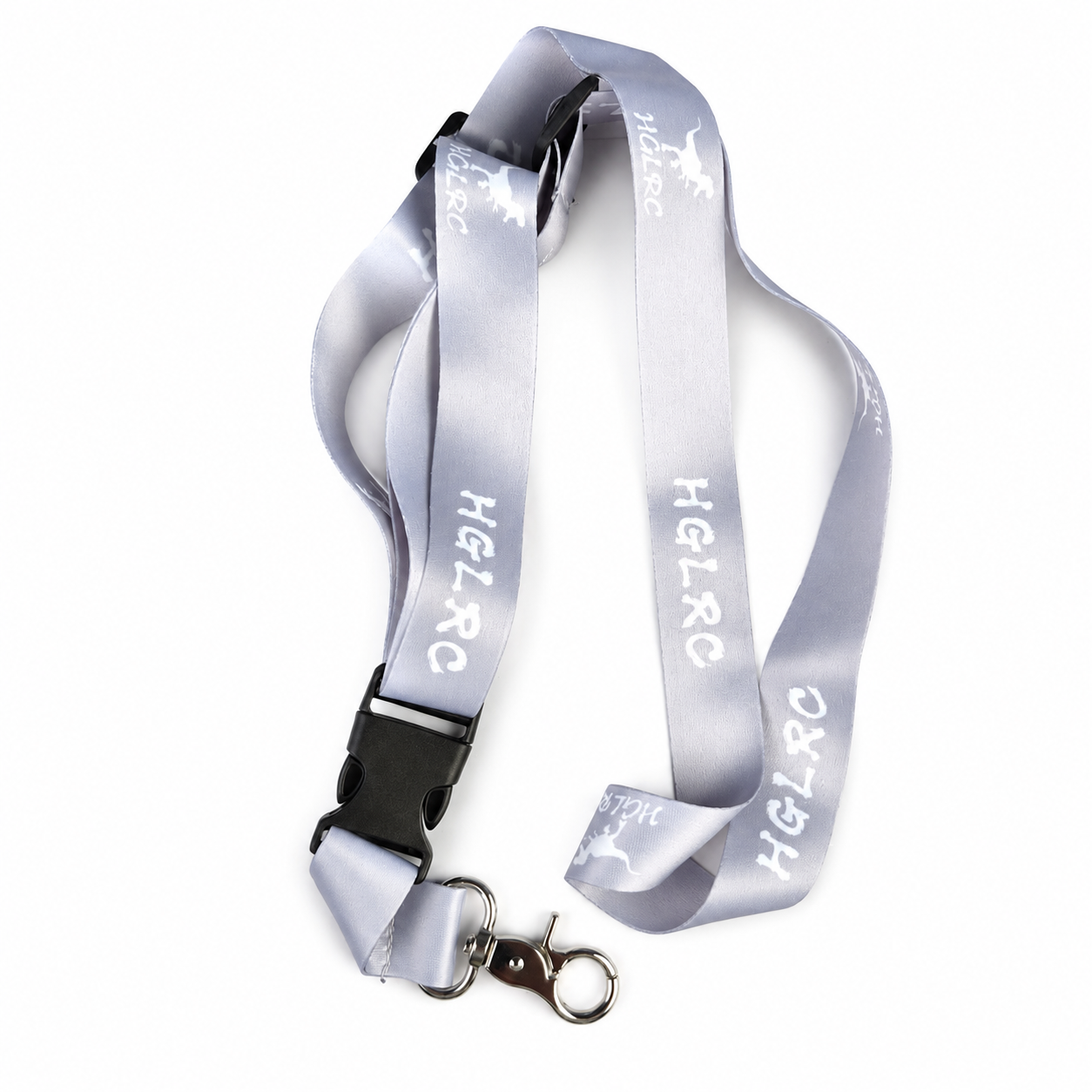

1× remote control hanging strap

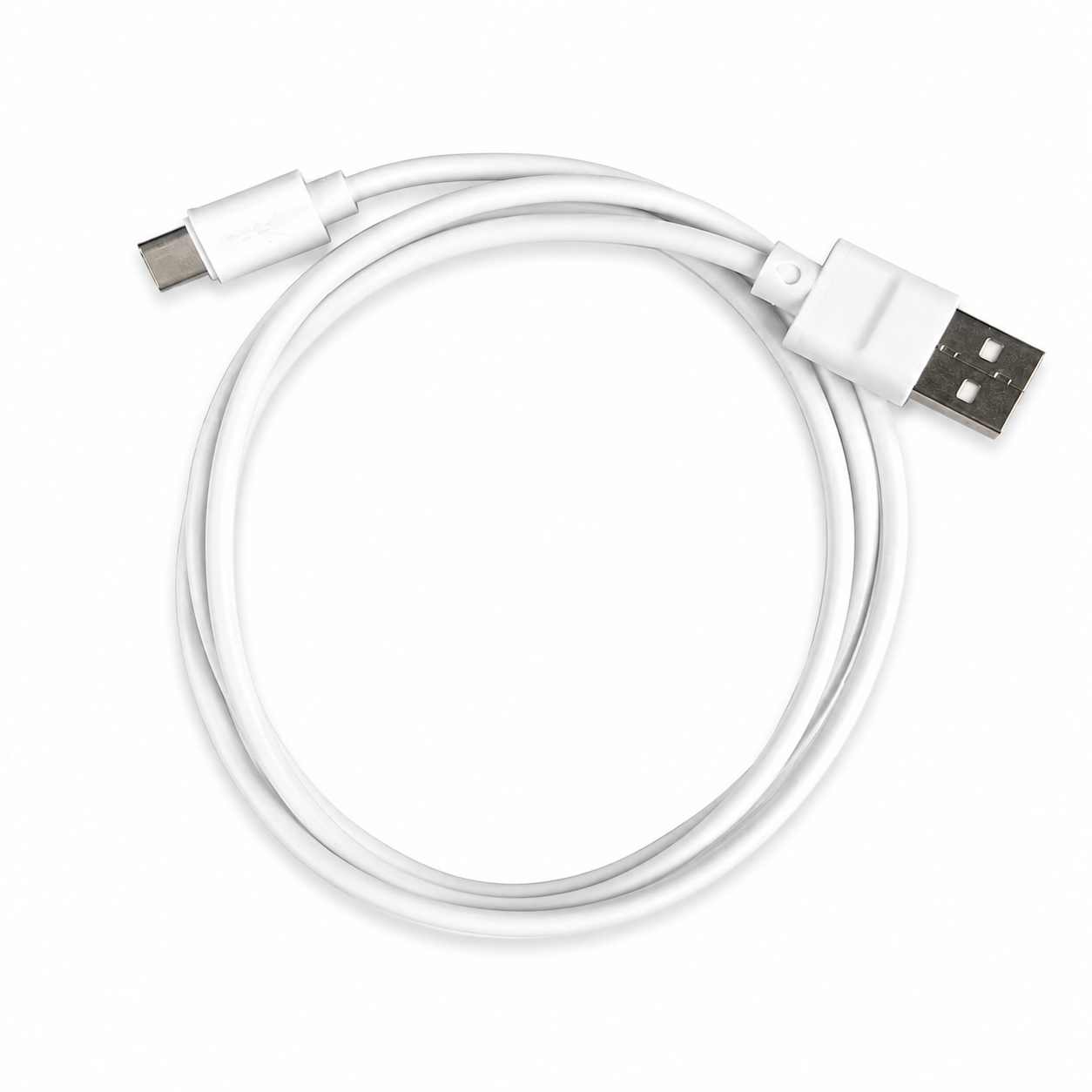

1× USB-C data cable

Specification:-
