Features:
- Model: YRRC Radio Telemetry V3
- Frequency: 433Mhz
- Receive sensitivity: -140dBm
- Transmit power: up to 30dBm (1000mW@9600bps)
- CP2102 USB to TTL Chips
- Air data rate: up to 250kbps

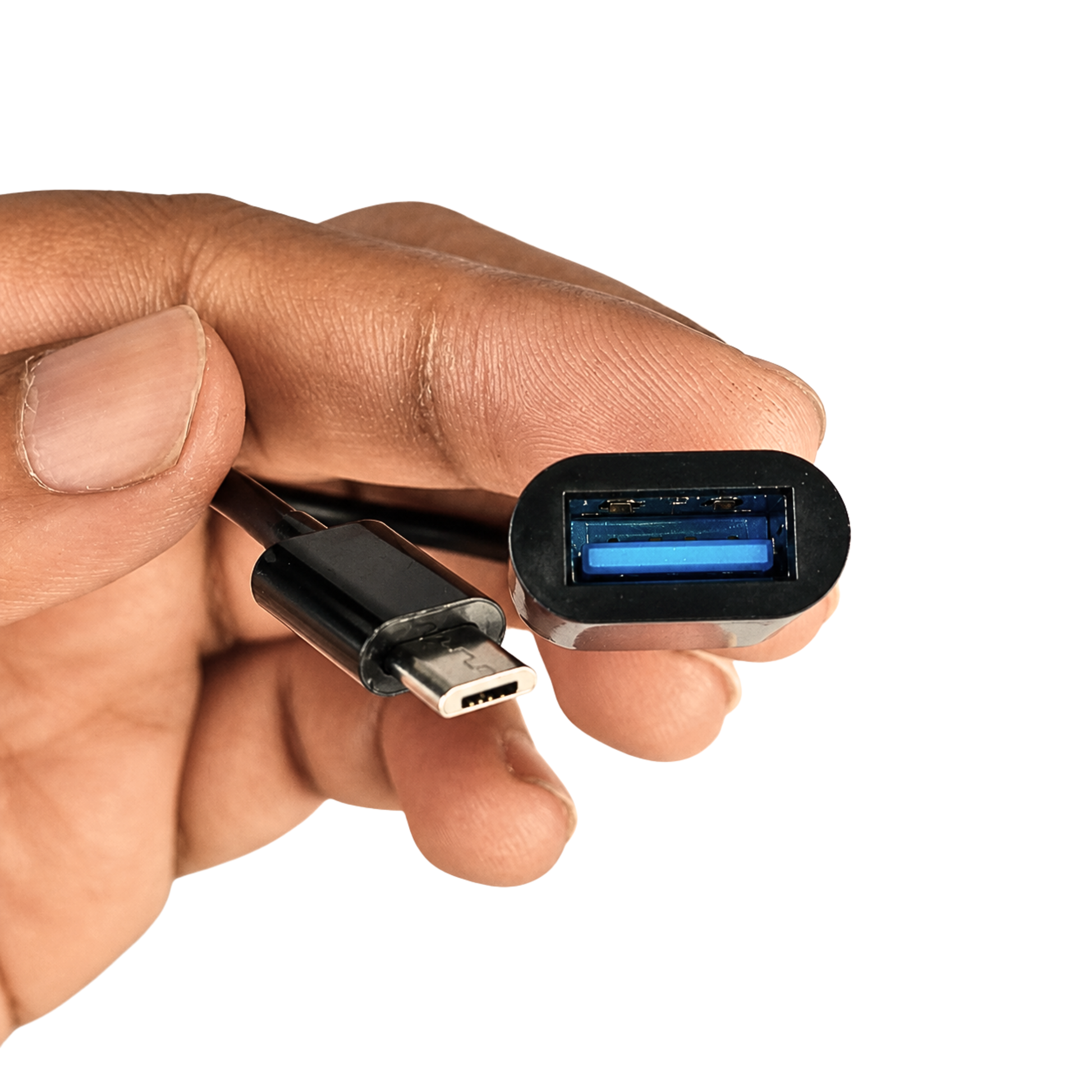

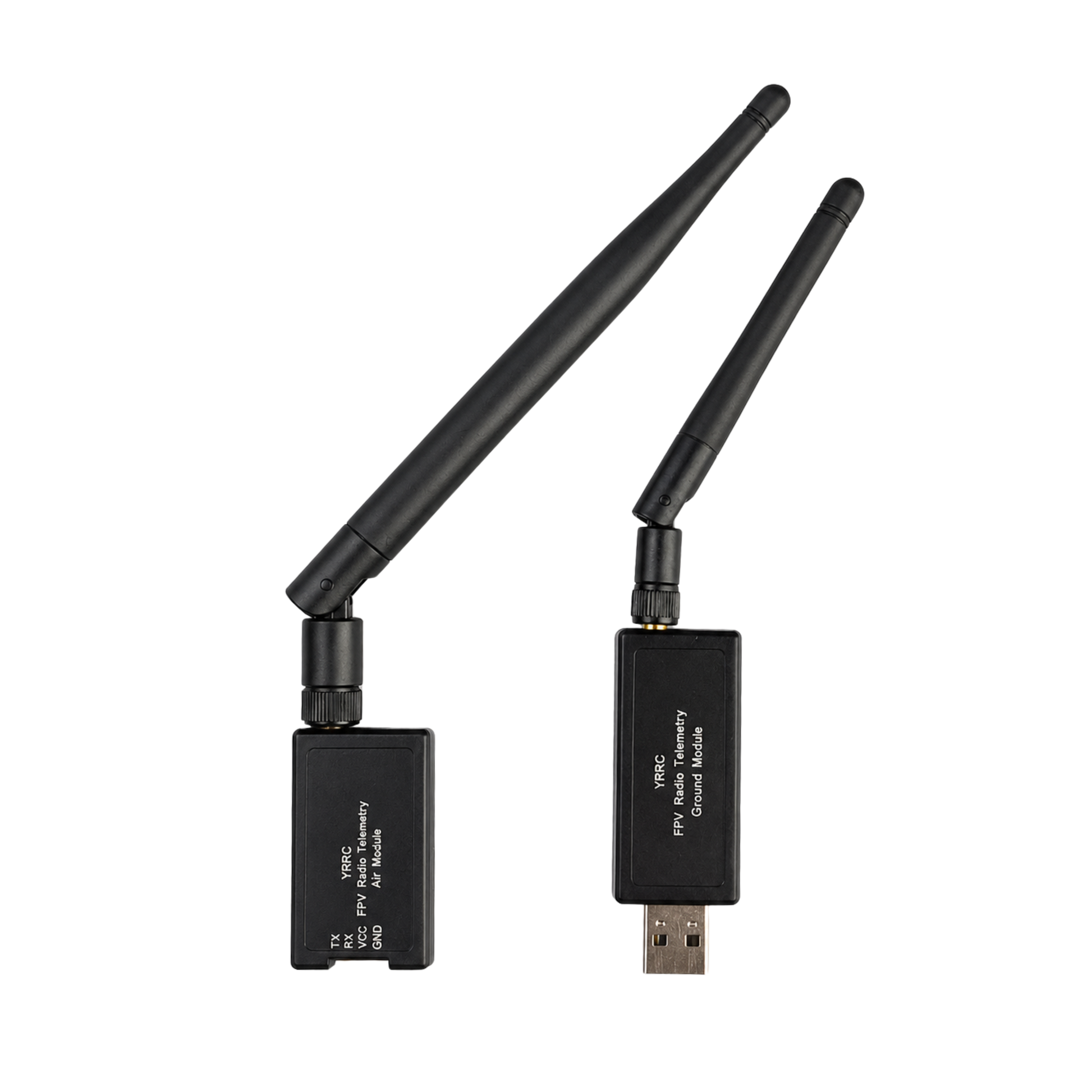

Radio Telemetry 433Mhz 1000MW with 2~3km Data Telemetry has an independent signal amplifier (1W). Both modems here have the same design and can be used both in the ground station and in the air, and each also has a Micro USB TTL connector. The small omnidirectional antenna has a range of several kilometers, with a bidirectional amplifier a longer range is achievable.
This product is based on HM-TRP radio modules with Si1000 8051 microcontrollers. *2Km range is only possible when used in proper weather condition, very low air data rate and line of sight Ground-Air. With default settings and full transmit power on both ends the range is around 300-500 meters.
Specifications:
- 433MHz Frequency Range
- Receiver sensitivity to -117dBm
- Transmit power up to 20dBm (100mW)
- Transparent serial link
- Air data rates up to 250kbps
- MAVLink protocol framing and status reporting
- Frequency hopping spread spectrum (FHSS)
- Adaptive time division multiplexing (TDM)
- Support for LBT and AFA
- Configurable duty cycle
- Built in error correcting code (can correct up to 25% data bit errors)
- Demonstrated range of several kilometers with a small omni antenna
- Can be used with a bi-directional amplifier for even more range
- Open source firmware
- AT commands for radio configuration
- RT commands for remote radio configuration
- Adaptive flow control when used with APM
- Based on HM-TRP radio modules, with Si1000 8051 micro-controller and Si4432 radio module
Parameters:
- Product name: 3dr radio Telemetry module
- Range: 433MHz
- Antenna connectors: RP-SMA connector
- Power: 500MW
- Sensitivity: -117dbm Sensitivity
- Interface: Standard TTL UART
- Connection status: LED indicators
- Net weight: 56.5g
- Air module type: 51 x 30 x 10mm / 12g
- Dimensional modular module: 70 x25 x12 mm / 15 g

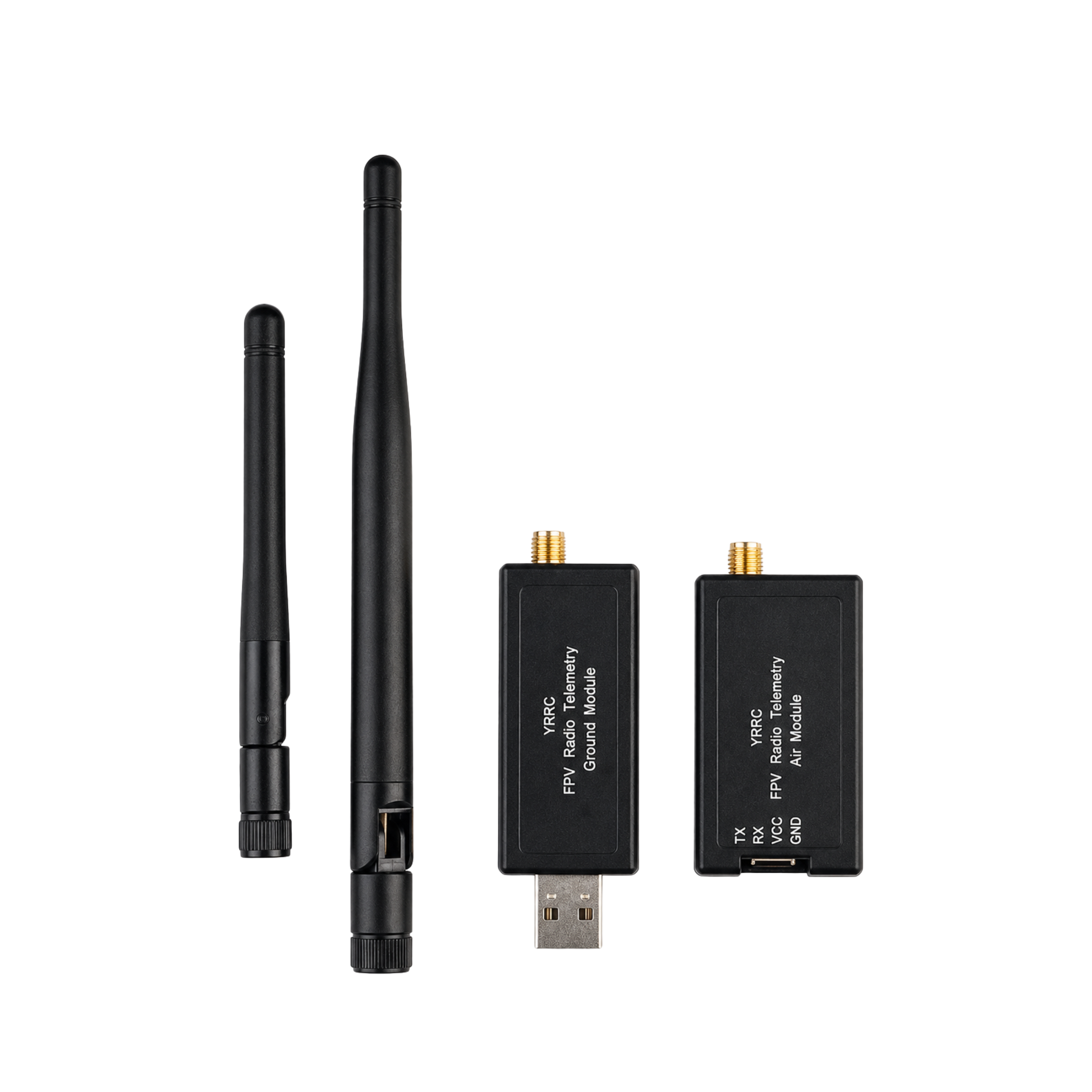

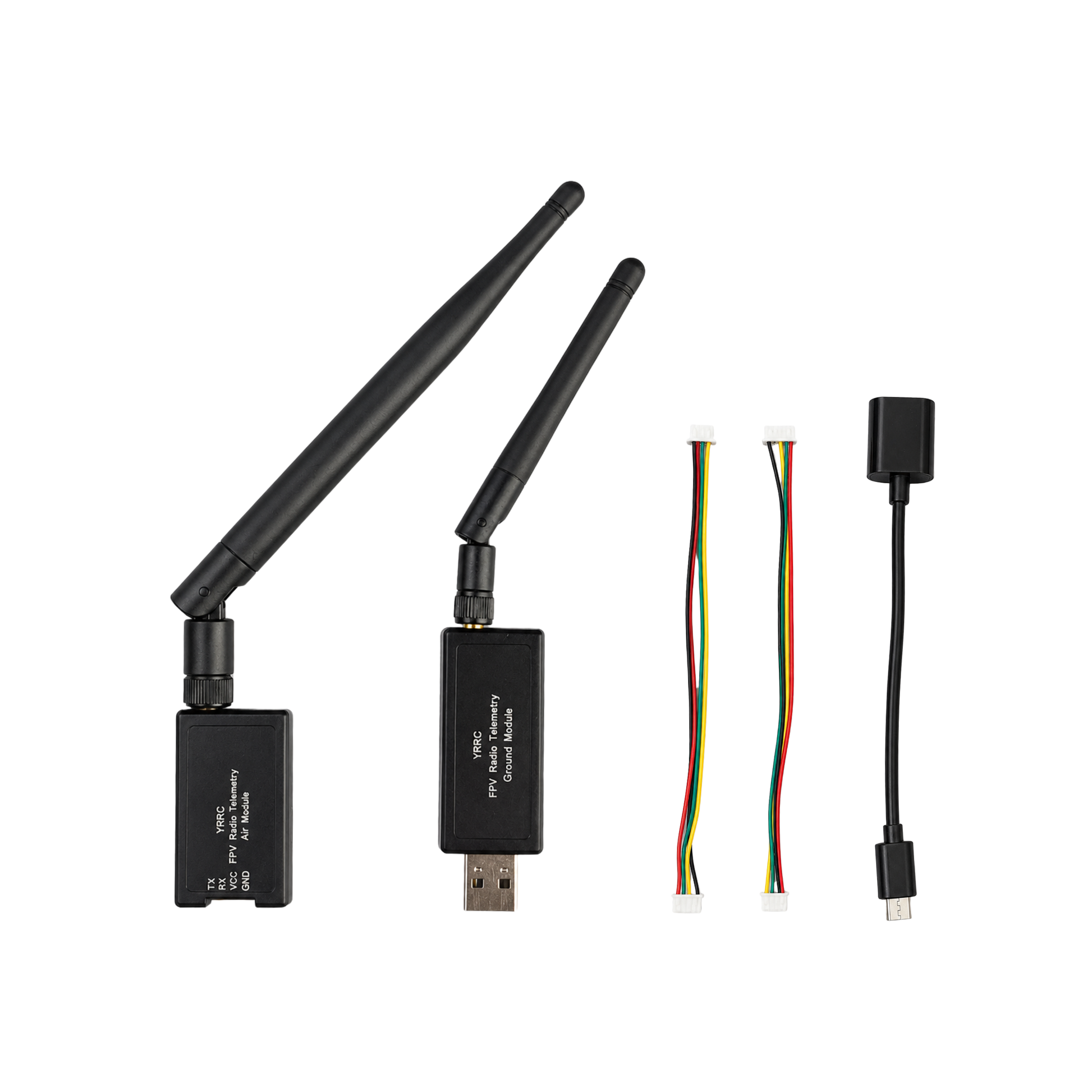

Package Included:

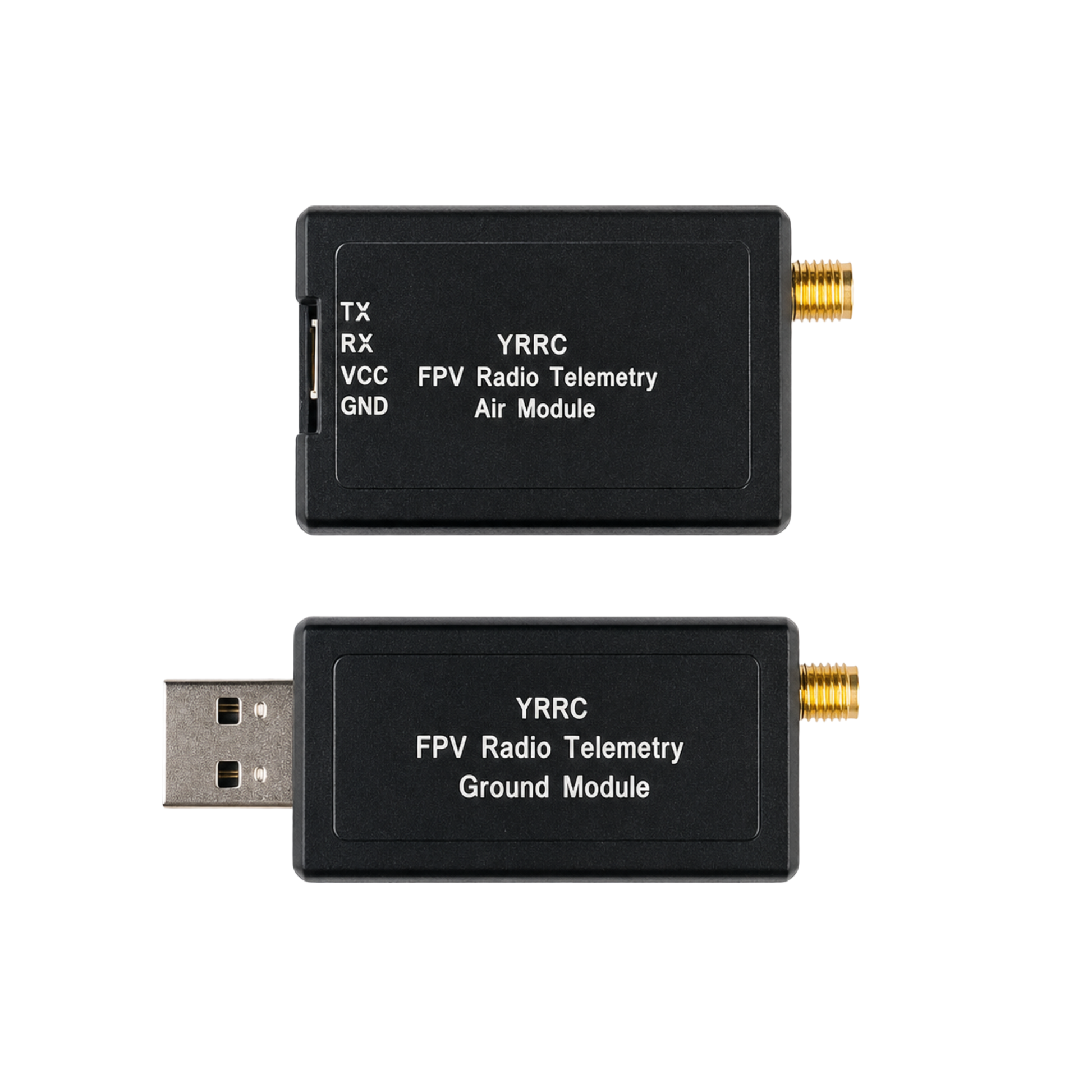

- 1× 433 telemetry radio base station (USB connection)

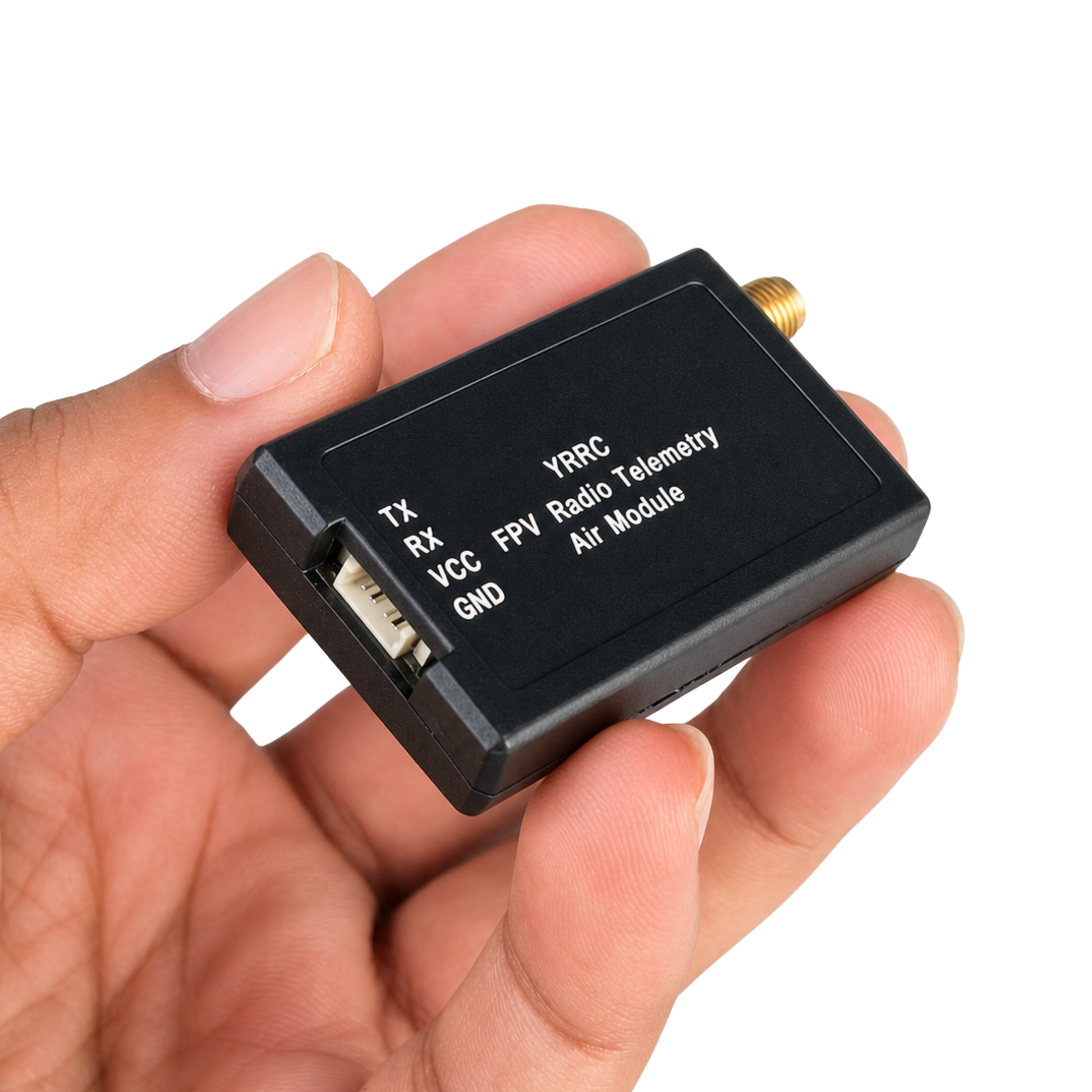

- 1× 500MW radio telemetry Air module

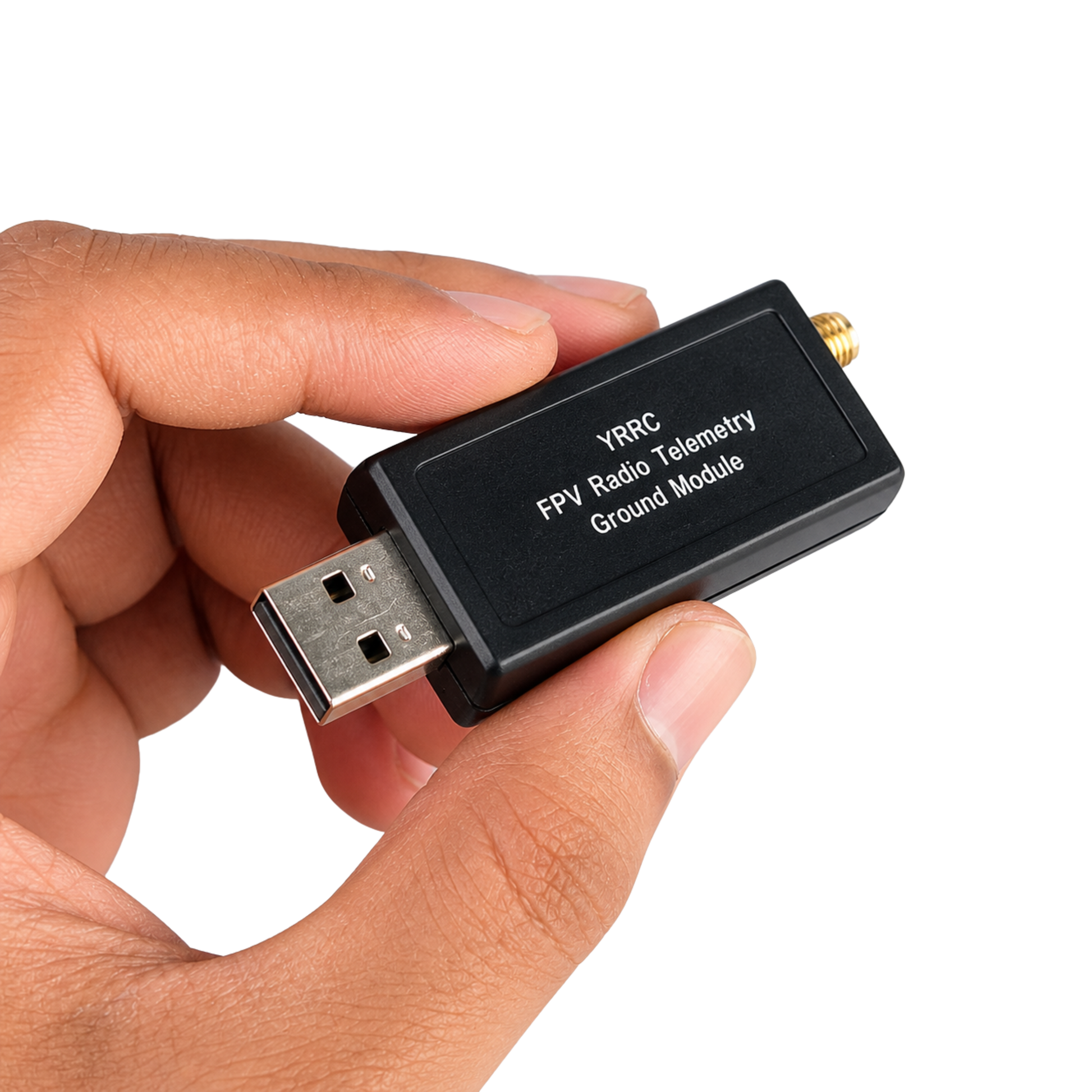

- 1× 500MW radio telemetry Ground module

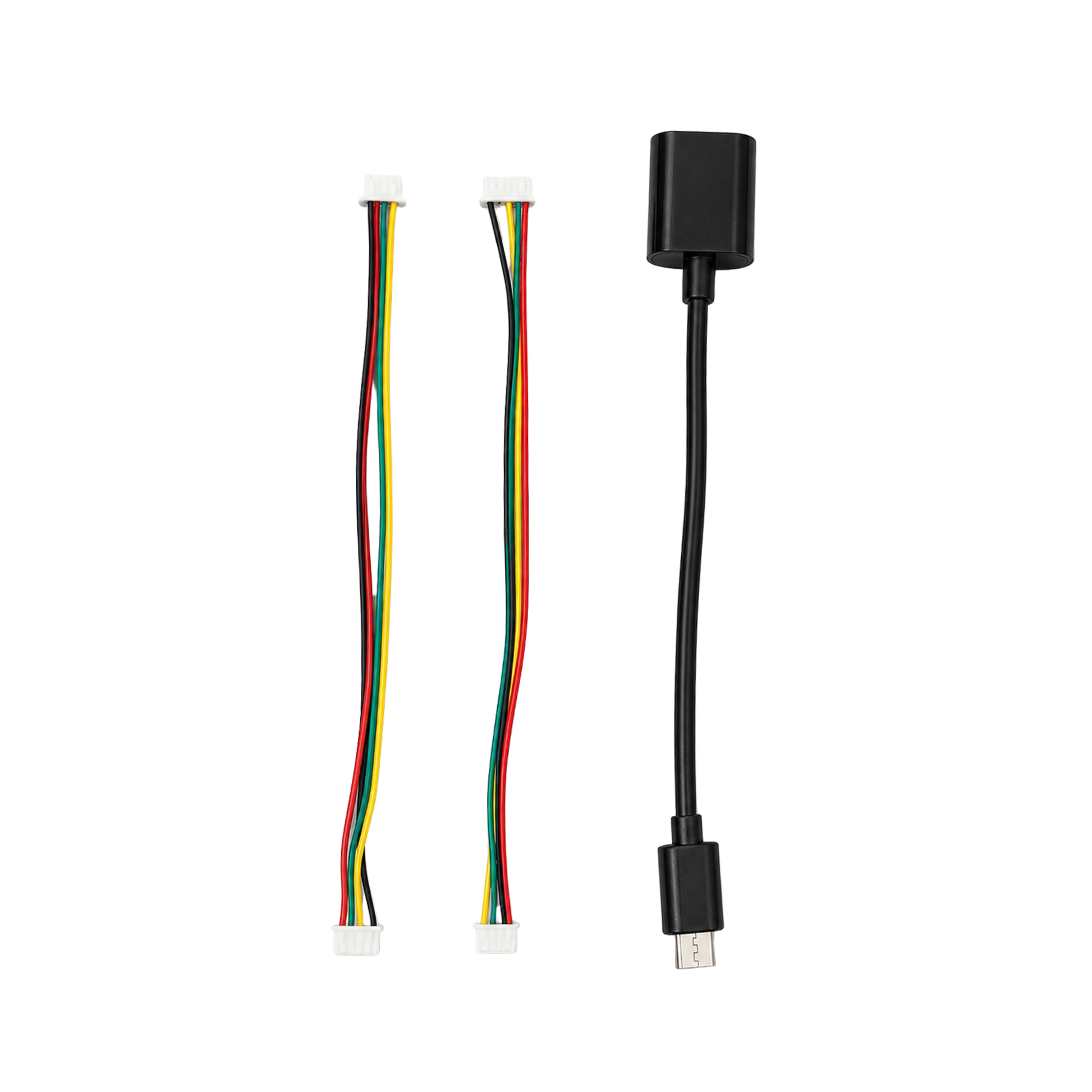

- 2× wire for TX and RX

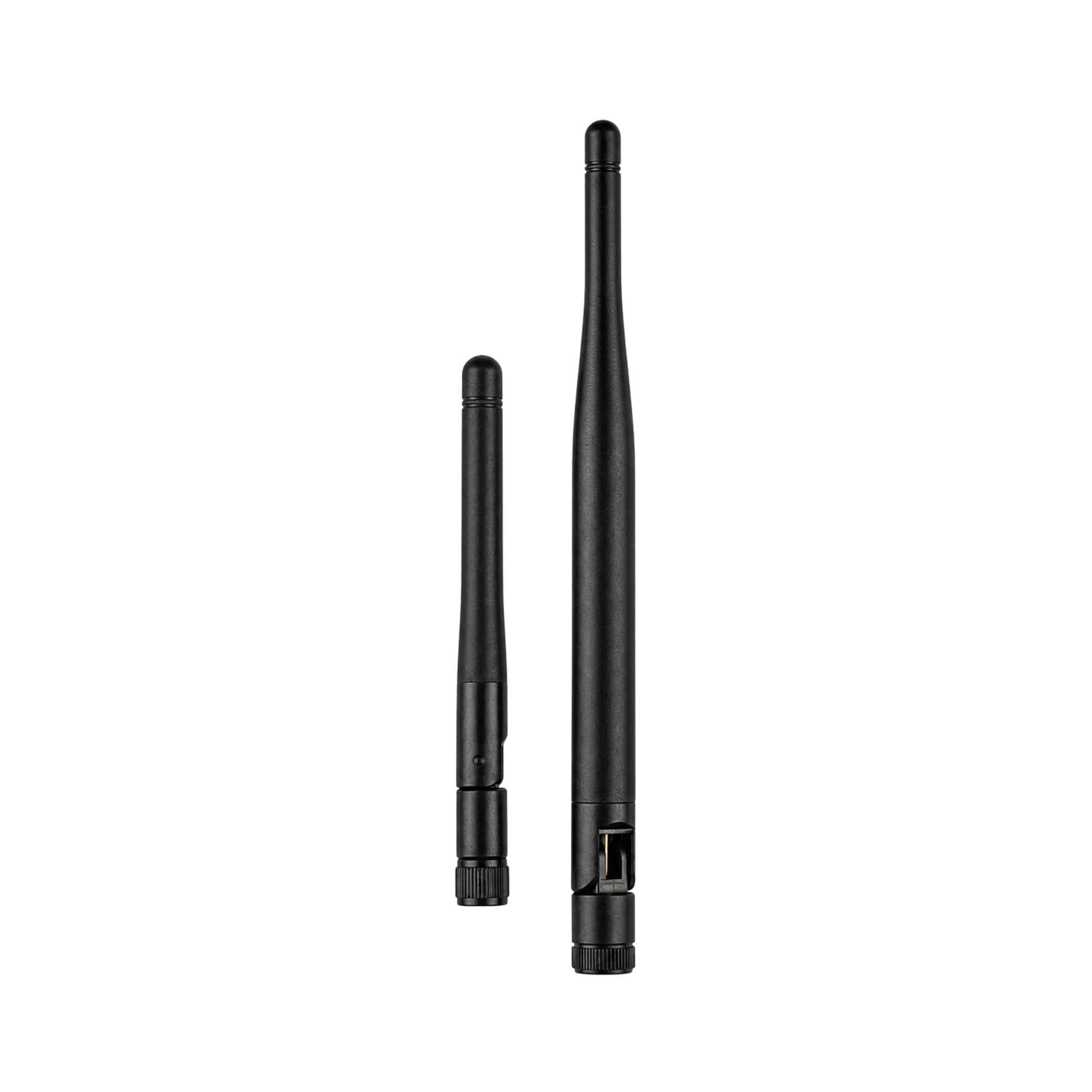

- 2× TV antennas
