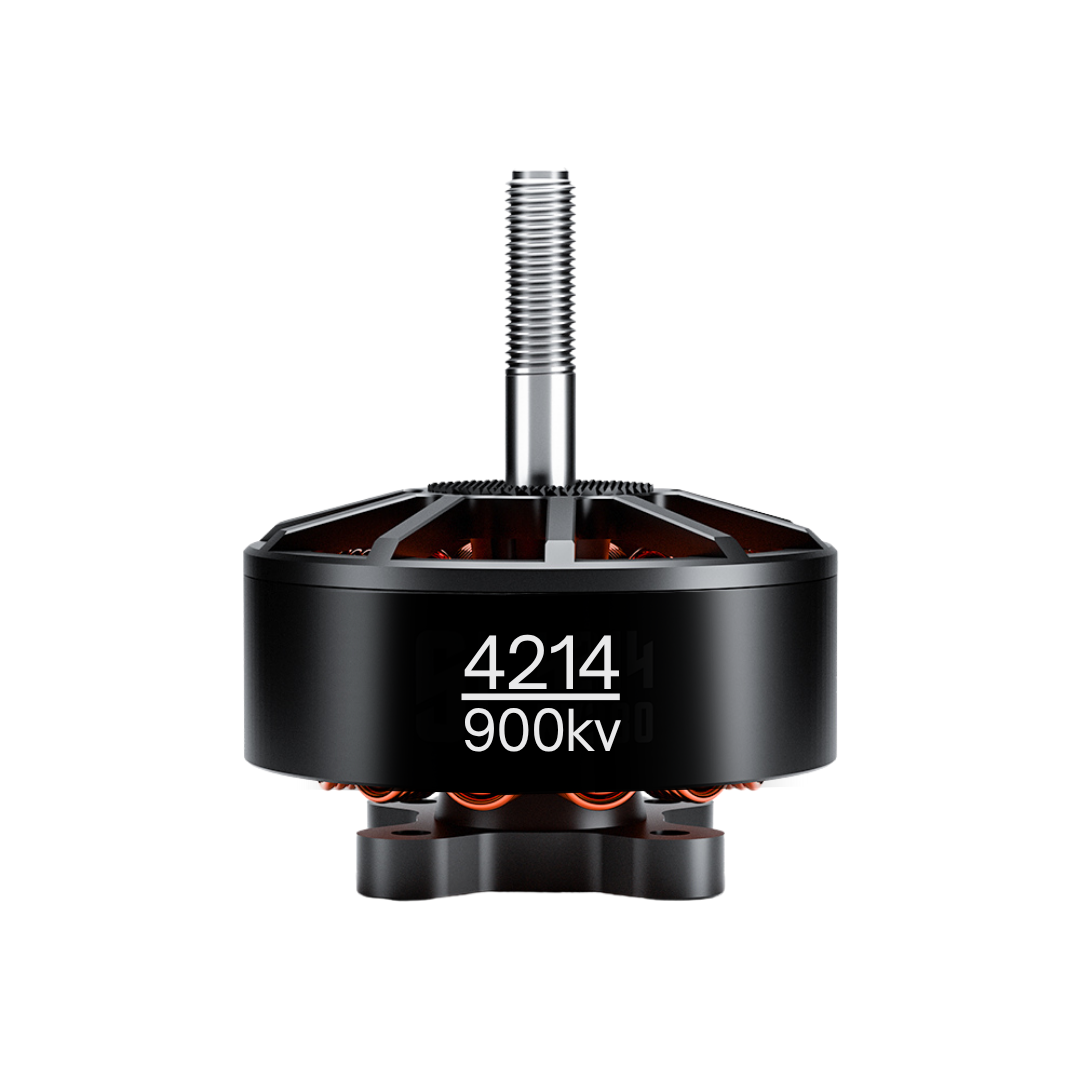

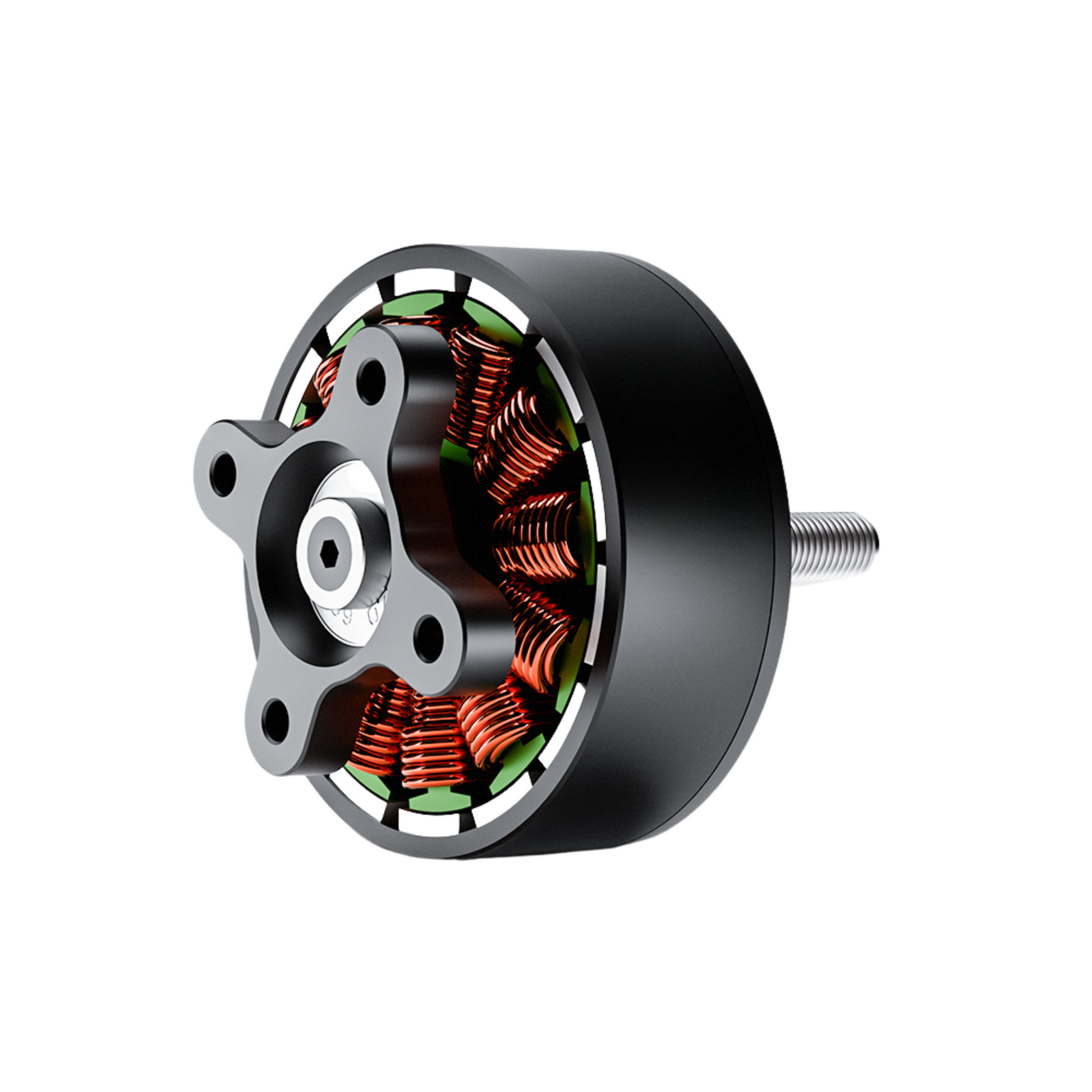

X-Rotor 4214 – 900KV 6S Brushless Drone Motor (For 13" Propeller)
Power Meets Precision – Introducing the high-performance X-Rotor 4214 900KV Brushless Motor, engineered specifically for large-scale multirotors, aerial photography drones, and industrial UAV applications. With its robust 6S power rating and compatibility with 13" propellers, this motor is designed to deliver superior thrust, smooth operation, and high efficiency under demanding conditions.
Crafted with premium materials and optimized for flight stability, the 4214 motor is ideal for quadcopters, hexacopters, and other high-end drone builds where reliability and consistent performance are crucial.
Key Features:
- Precision-balanced rotor for smooth & stable flight
- High-quality winding and magnets for improved durability
- Suitable for heavy-lift drones using 6S LiPo batteries
- Ideal for FPV racing, long-range flights, and industrial UAVs
- Supports up to 13" propellers with high thrust output
Specifications:-
| Model | X-Rotor 4214 |
|---|---|
| KV Rating | 900KV |
| Configuration | 12N14P |
| Shaft Diameter | 6 mm |
| Wire Spec | 16AWG, 600 mm |
| Weight (with wire) | 211.47 g |
| Internal Resistance | 31.71 mΩ |
| Working Voltage | 6S (22.2V) |
| No Load Current @15V | 3.77 A |
| Maximum Power | 2477.34 W |
| Maximum Current | 109.52 A |
| Mounting Holes | 4 × M4 (30mm pattern) |
Performance Datasheet:-
