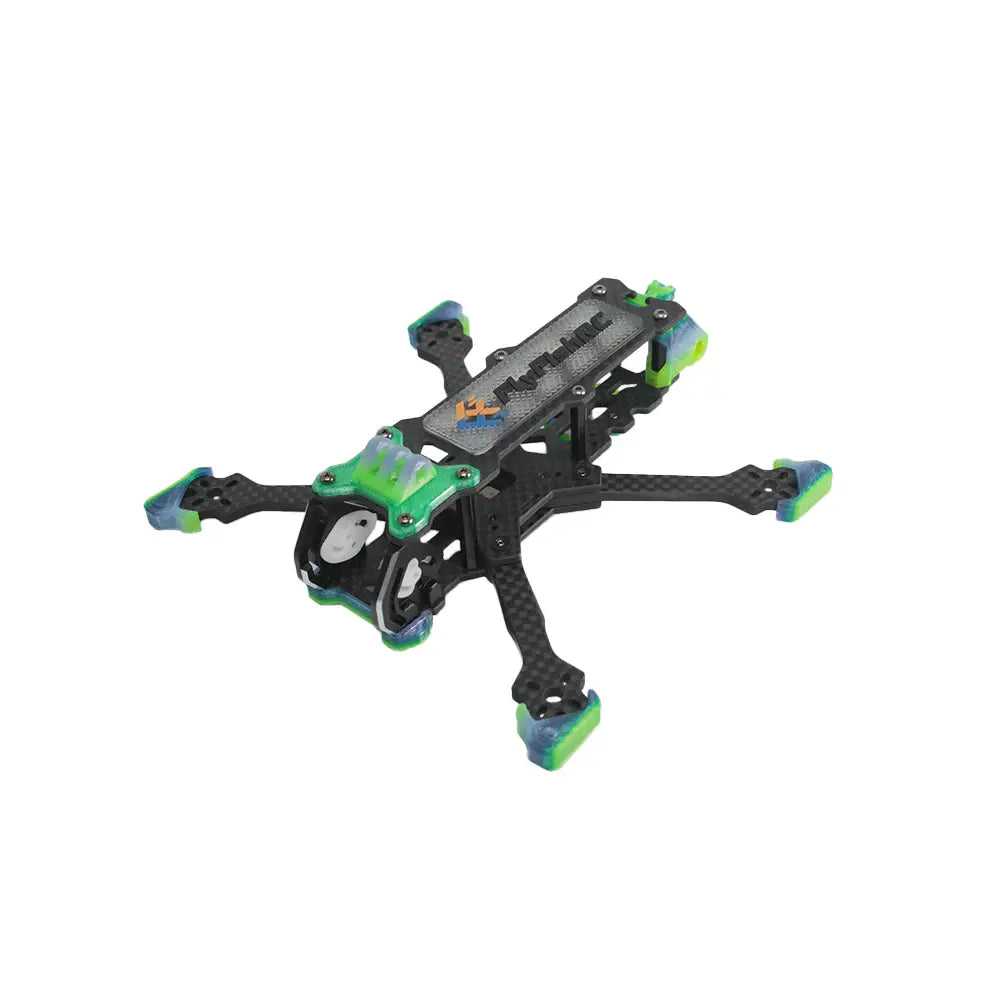

The frame is designed with a Squashed X configuration, allowing for maximum control and compatibility with a range of analog and HD systems available in the market. The high-quality TPU components are cleverly designed to facilitate a more integrated and neat installation, ensuring that even pilots with a degree of OCD will be satisfied with the cleanest possible appearance.
The designed a silicone damping board plugin specifically for the installation of the DJI O3 Air Unit camera. This will eliminate any possible jello in the DVR and is also compatible with cameras in 19mm/20mm format.
The frame is made of high-strength CNC aluminium alloy components and the highest quality T700 carbon fibre plates, with a super smooth surface and uniformly chamfered edges. Say goodbye to damaged cables and battery straps! And, isn’t it just more beautiful to look at?
The frame comes equipped with all the necessary accessories for analog and HD builds, and hardware with Loctite thread-locking adhesive is provided to increase reliability. The tight structural design minimizes resonance.
Freestyle drone frame kits are designed for drone enthusiasts and FPV (First-Person View) pilots who enjoy aerobatic and acrobatic flight manoeuvres. These frames are known for their durability, customization options, and ability to withstand crashes and high-speed flights.
Typical Features of a Freestyle Frame Kit:
Material: Freestyle frames are often made from lightweight yet robust materials, with carbon fibre being a popular choice. Carbon fibre provides strength while keeping the frame’s weight to a minimum.
Frame Size: The frame size can vary, but it’s typically designed to accommodate 5-inch propellers, which are commonly used in freestyle drones.
Frame Type: Freestyle frames come in various types, including X-frames, H-frames, and stretched-X frames, each offering different flight characteristics. Pilots can choose the frame type that best suits their flying style.
Motor Mounts: The frame usually includes motor mounts or arms where you can securely attach brushless motors. These mounts may have provisions for different motor sizes and configurations.
Camera Mounting: Freestyle frames often have dedicated camera mounts or platforms for FPV cameras and action cameras like GoPros. These mounts allow for adjustable camera angles to capture dynamic footage.
Battery Mounting: There is typically a designated area for mounting the drone’s battery. Battery placement can affect the quadcopter’s centre of gravity and flight characteristics.
Adjustable Components: Freestyle frames may include adjustable components such as camera angles, arm angles, and standoff heights. These adjustments allow pilots to fine-tune the quadcopter’s performance to their liking.
Durability: These frames are designed to withstand crashes and impacts, which are common in freestyle flying. Carbon fibre frames are known for their durability and resilience.
Weight Distribution: The frame is designed to distribute weight evenly, optimizing flight performance. This includes considerations for the placement of components like the flight controller, electronic speed controllers (ESCs), and antennas.
Compatibility: Freestyle frames are typically compatible with standard flight controllers, ESCs, motors, and other common FPV drone components.
Modular Design: Some frames have a modular design, making it easier to replace individual components in case of damage.
Lightweight: Keeping the frame lightweight is essential for freestyle drones, as it contributes to agility and manoeuvrability.
Aesthetic Design: Many freestyle frames have visually appealing designs, often with graphics and branding elements, enhancing the overall aesthetics of the quadcopter.
VX3 & VX3.5 Specifications:
Arm Thickness: 3.5mm
Top plate thickness: 2mm
Middle plate thickness: 2.4mm
Bottom plate thickness: 2.4mm
Keystone thickness: 3.5mm
CNC Side plate thickness: 5mm
Propeller size: 3~3.5 inch
Material: T700 carbon plate
FPV cam spacing: 19mm/20mm
VX3 Weight: 68.3g(with TPU parts)
VX3.5 Weight: 70.5g(with TPU parts)
Colour: Tropical Mix
VX3 Total Dimensions:118mm*135mm Wheelbase:144mm
VX3.5 Total Dimensions:127.5mm*148mm Wheelbase:160mm
Stack mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)
VTX mounting holes: 20mm*20mm/25.5mm*25.5mm(M2).
VX3/VX3.5 Manual Details Click
