TowerPro Servo Motors are optimum-quality and affordable cost servos.! They are suitable for a wide range of applications, including RC aircraft, automobiles, and robotics, Or just to have some fun with whatever crazy project you’re working on.
When you purchase TowerPro motors in India, they are almost usually NOT ORIGINAL, and these are no exception… These are NOT ORIGINAL Tower Pro Servos, either. However, they are dead cheap and Serve the purpose. We put them to the test and found them to be of good quality for the price.
Wire Description
- Red – Positive
- Brown – Negative
- Orange – Signal
Features:
- Servo arms & screws included and fit with Futaba servo arm
- CE & RoHS approved
- Servo case: Alloy case in the middle
- Gear Type: Metal gear
- Bearing: Double ball bearing
- Servo wire length: 32cm
- Servo Plug: JR (Fits JR and Futaba)
Package Includes:

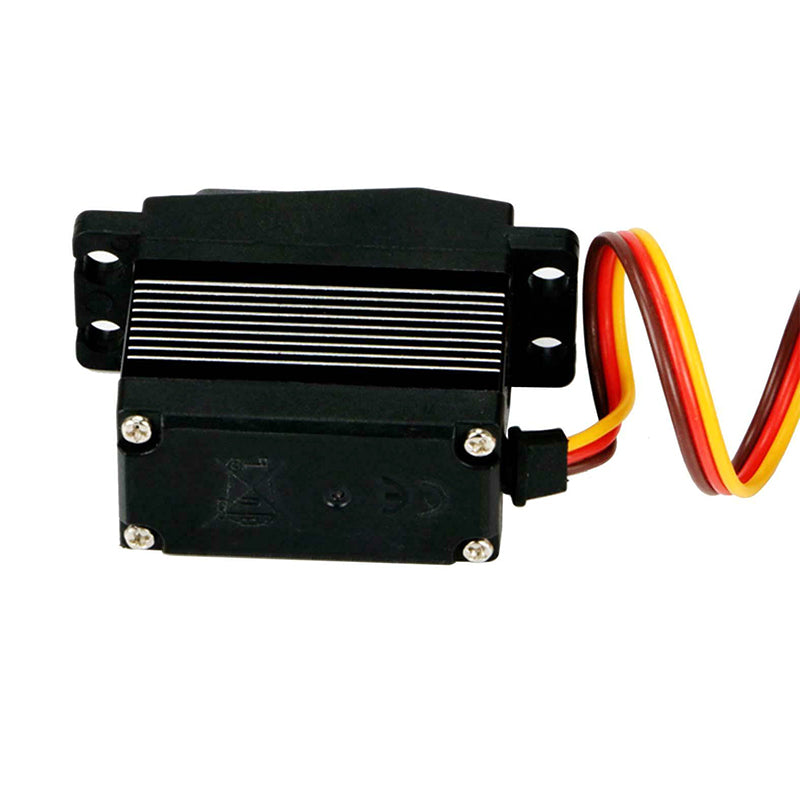

1× TowerPro MG958 Digital High Torque Metal Gear Servo Motor
1× Accessories parts (as shown in the image)
Specification:-
| Item Type: |
TowerPro Servo Motor |
|---|---|
| Model Series: |
MG Series |
| Torque Rating (kg-cm): |
18 to 20 |
| Model No.: |
MG958 |
| Operating Voltage (VDC): |
4.8 ~ 6 |
| Operating Speed @4.8V |
0.18sec/60° |
| Operating Speed @6.6V |
0.15sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) |
18 |
| Stall Torque @6.6V (Kg-Cm) |
20 |
| Current Draw at Idle(mA) |
10mA |
| Current at No Load |
170mA |
| Stall Current Draw (mA): |
1600mA |
| Operating Temperature (°C): |
0 to 55 |
| Cable Length (cm): |
32 cm |
| Servo Plug Type |
JR (Fits JR and Futaba) |
| Bearing Type |
Double ball bearing |
| Gear Type |
Metal gear |
| Servo case |
Alloy case in the middle |
| Length (mm): |
54.2 |
| Width (mm): |
20 |
| Height (mm): |
47.8 |
| Weight (g): |
68 |
| Shipping Weight | 0.08 kg |
| Shipping Dimensions | 8 × 6 × 3 cm |
