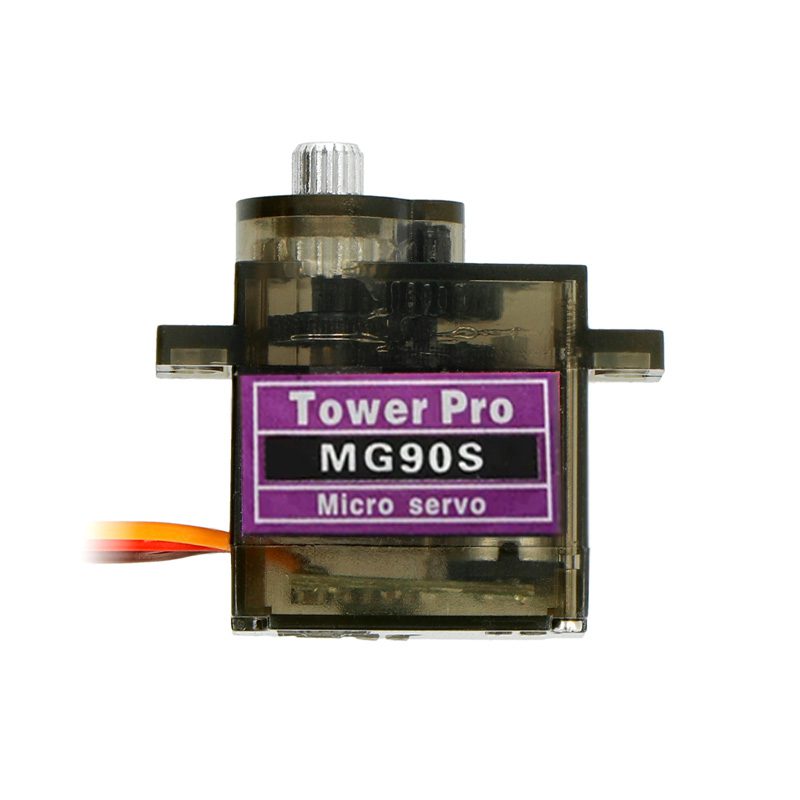

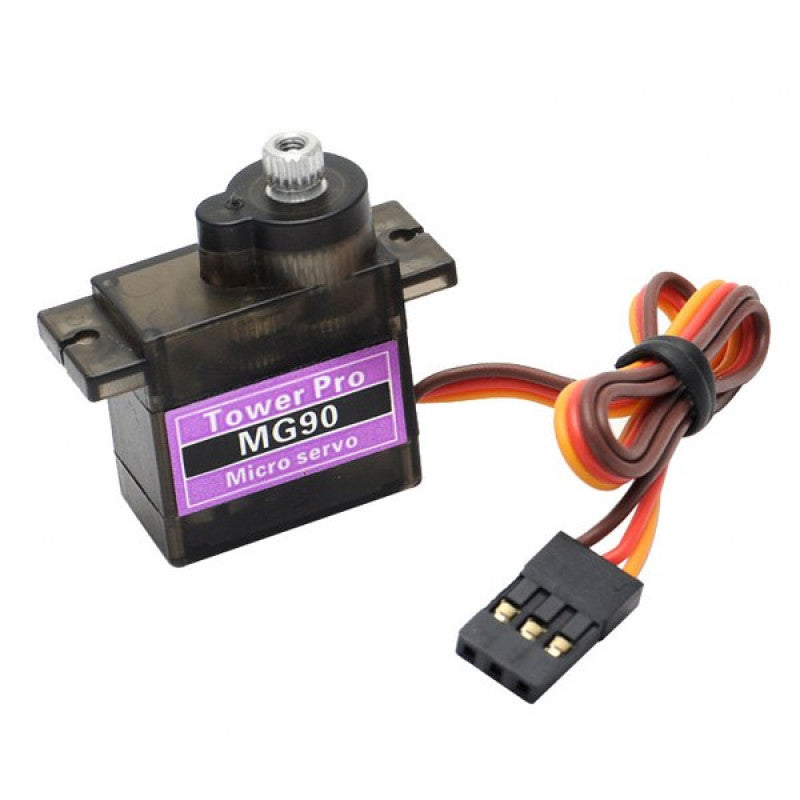

This is a TowerPro MG90S Mini Digital Servo Motor (180° Rotation).
TowerPro Servo Motors are optimum-quality and affordable cost servos.! They are suitable for a wide range of applications, including RC aircraft, automobiles, and robotics, Or just to have some fun with whatever crazy project you’re working on.
When you purchase TowerPro motors in India, they are almost usually NOT ORIGINAL, and these are no exception… These are NOT ORIGINAL Tower Pro Servos, either. However, they are dead cheap and Serve the purpose. We put them to the test and found them to be of good quality for the price.
Note: Sticker color may be different.
Features:
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power

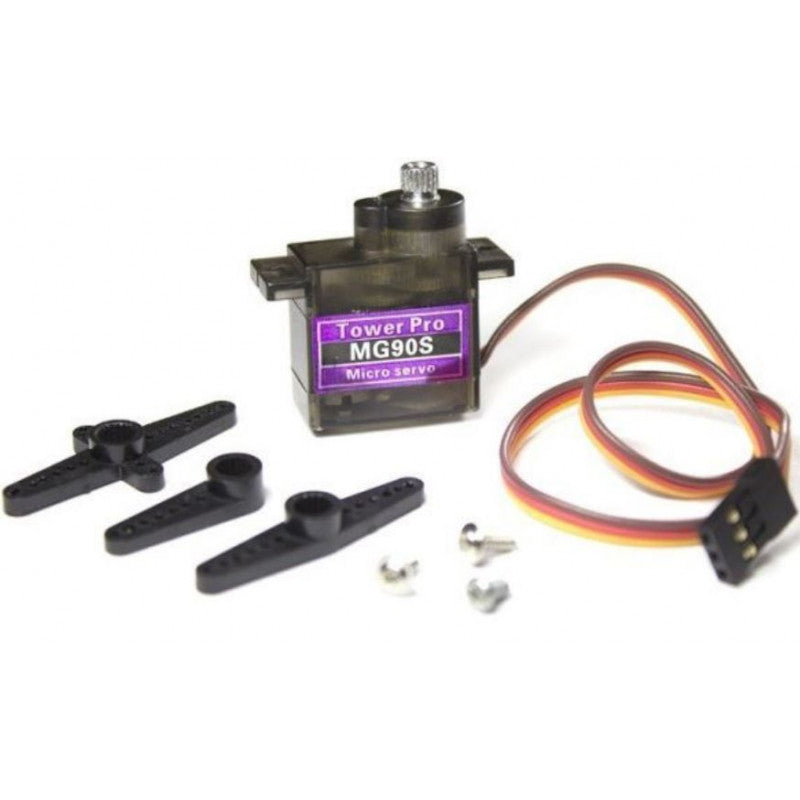

Package Includes:
1× TowerPro MG90S Mini Digital Servo Motor
1× Set of Horns
One Point
Two Point
Four Point
1× Set of Screws
Specifications:-
| Item Type: |
TowerPro Servo Motor |
|---|---|
| Model Series: |
MG Series |
| Rotation (Degree): |
180 |
| Torque Rating (kg-cm): |
1.8 to 2.2 |
| Model No: |
MG90S |
| Operating Voltage (VDC): |
4.8V~ 6.6V |
| Servo Plug Type |
JR |
| Stall Torque @ 4.8V (Kg-Cm) |
1.8kg-cm |
| Stall Torque @6.6V (Kg-Cm) |
2.2kg-cm |
| Weight (g): |
13 gm |
| Shipping Weight | 0.017 kg |
| Shipping Dimensions | 8 × 6 × 3 cm |
