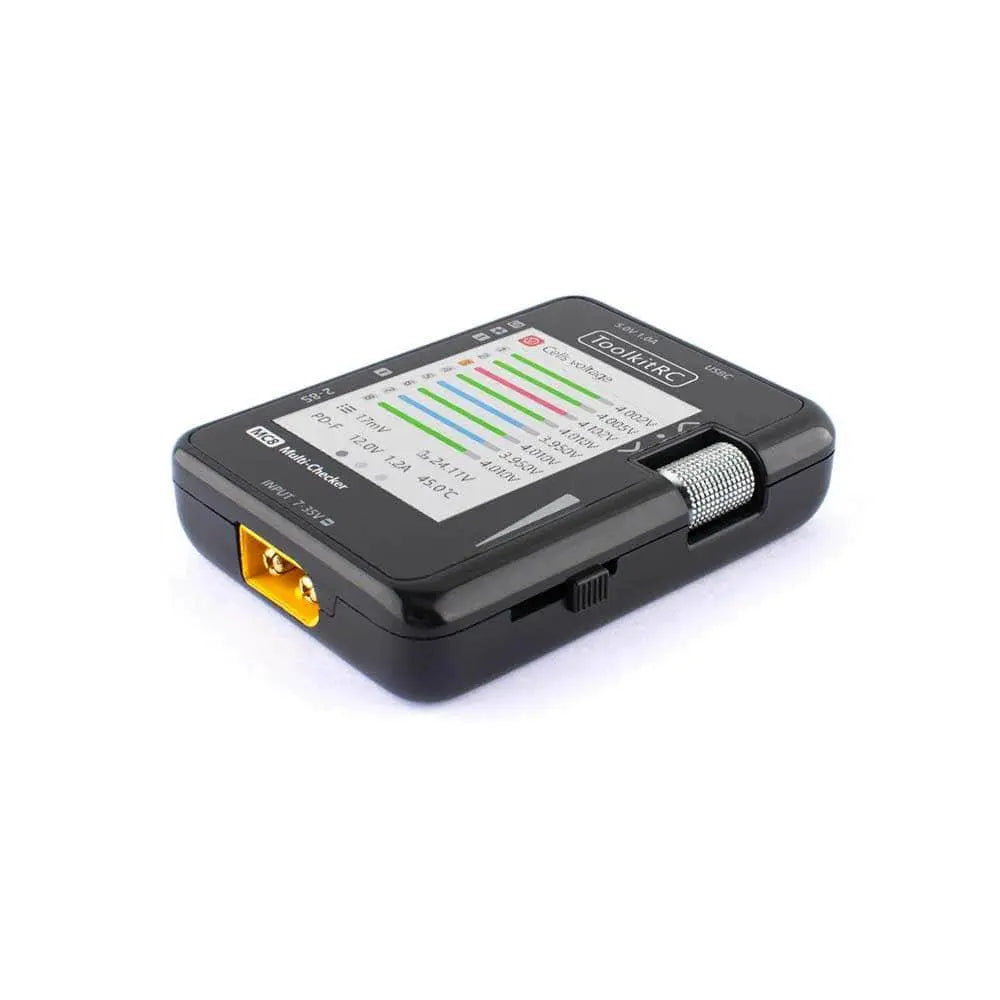

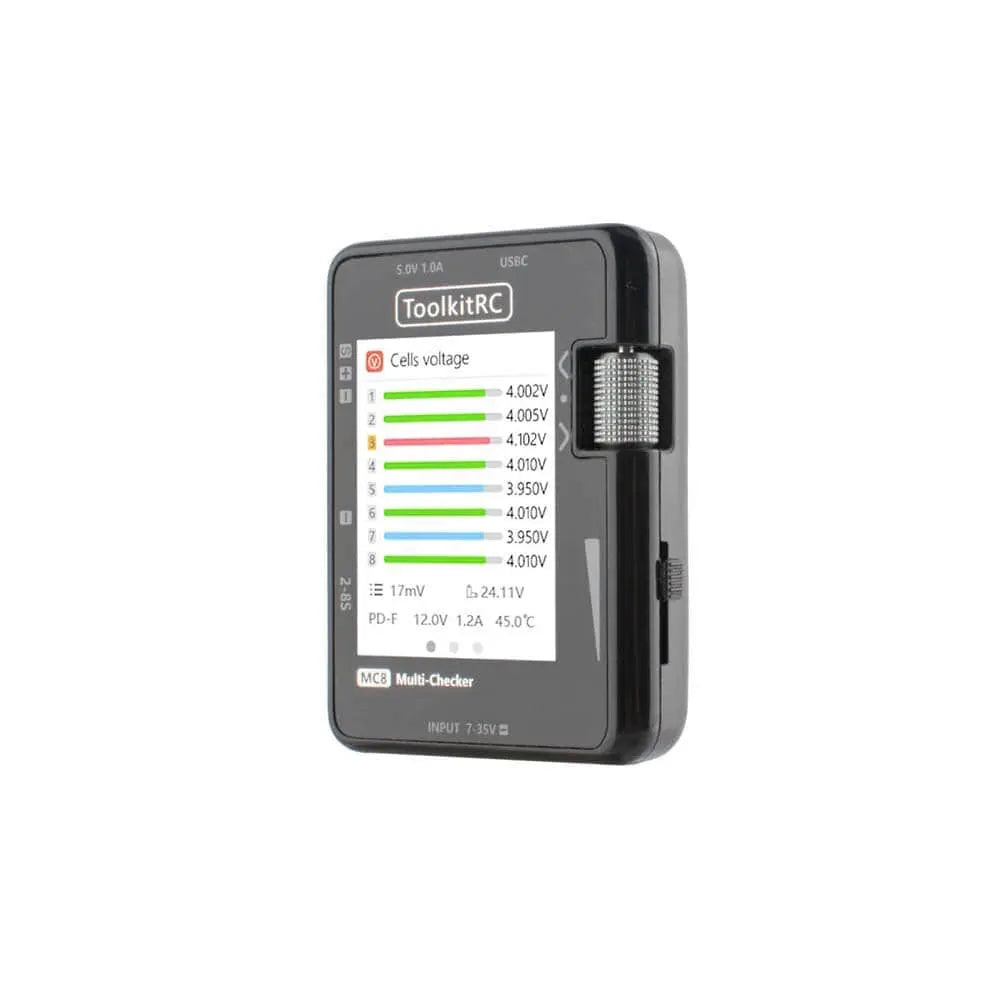

The latest from Toolkit is a feature-packed multi-purpose cell checker with a big, bright, easy-to-read display. Not only can you check cell voltages and balance your packs, you can also monitor the PWM/PPM/SBUS output of receivers, generate PWM output to test servos and ESCs, and use your LiPos for device charging (up to 20W PD)! Check the video below to see what it can do!
Features:
- Large Color Screen
- Battery Status Display
- PWM/PPM/SBUS Readout
- PWM Output
- One Touch Battery Balancer
- PD Fast Charging
- Metal Roller UI Control
- Innovative Slider Output Control
Specification:-
- LCD: 2″ IPS 320×240
- Dimensions: 68x50x15mm
- Weight: 50g
Checker
- Main Input port: XT60 7.0-35.0V
- Balance input: 0.5V-5.0V Lixx 2-8S
- Signal port input: <6.0V
- Balance current: MAX 60mA @2-8S
- Balance accuracy: <0.005V @ 4.2V
- USB-A output: 5.0V@1.0A firmware upgrade
- USB-C output: 5.0V-12.0V @MAX 20W
- USB-C protocol: PD3.0 QC3.0 AFC SCP FCP
Measurer
- PWM: 880-2200us @20-400Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
Output
- PWM: 1000-2000us @20-1000Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
Package Includes:
- 1× Toolkit RC MC 8 Multi-Functional 2-8S Battery Checker
