A GPS (Global Positioning System) module is a device that receives signals from GPS satellites in orbit to determine its precise location on Earth. Here's a general breakdown of what features you might find in a GPS module like the TBS M8.2:
-
Satellite Compatibility: GPS modules typically work with signals from multiple satellites to provide accurate positioning information. The number of satellites a module can connect to can affect the accuracy of the location data.
-
Module Type: The "M8.2" likely indicates the model or version of the GPS module. Different versions may have improvements in performance, accuracy, or additional features.
-
Antenna: The module is likely to have an integrated GPS antenna for receiving signals. The quality and design of the antenna can impact the module's performance.
-
Connectivity: The module may provide various connectivity options, such as UART (Universal Asynchronous Receiver-Transmitter) for communication with other devices like flight controllers in the context of drones.
-
Accuracy and Update Rate: GPS modules often specify their accuracy in terms of meters and their update rate, indicating how often they refresh the position data.
-
Compatibility: The TBS M8.2 GPS Module may be designed for compatibility with specific devices, flight controllers, or systems.
Package Includes:

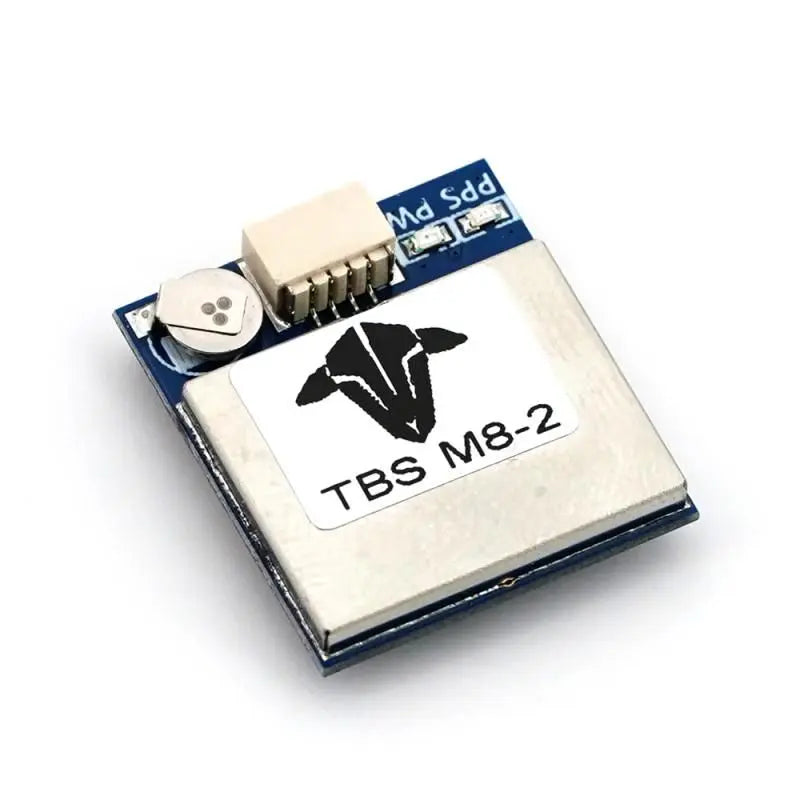

1x TBS M8.2 GPS Module
SPECIFICATION | |
---|---|
Chipset | ublox UBX-M8030 |
Frequency | L1, 1575.42MHz ; L2,1561.10MHZ;L3,1602.00MHZ |
Baud Rate | 4800bps-921600bps (Default - 9600bps) |
Channel | 72ch |
Sensitivity | (Tracking: -164dBm) | (Capture: -159dBm) | (Cold Start - 147dBm) |
Cold start | Average 26 seconds |
Warm start | Average 24 seconds |
Hot start | Average 1 second |
Accuracy | (HorizontalPosition:Autonomous<2m average) | (SBAS < 2.0m average) | (Timepulse signal: RMS 30 ns) |
Maximum height | 50000m |
Maximum speed | 500 m/s |
Maximum acceleration | ≦ 4G |
Refresh Rate | 1-10 Hz |
Size | 20 x 22 x 6 mm |
Weight | 5.2g |
Input Voltage | 3.3V-5V |
