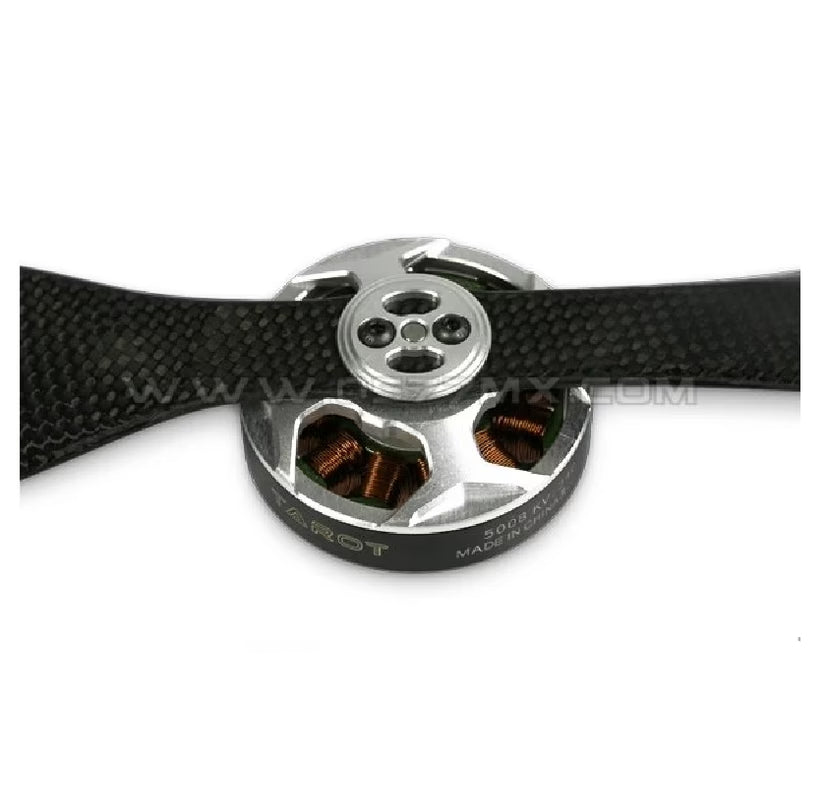

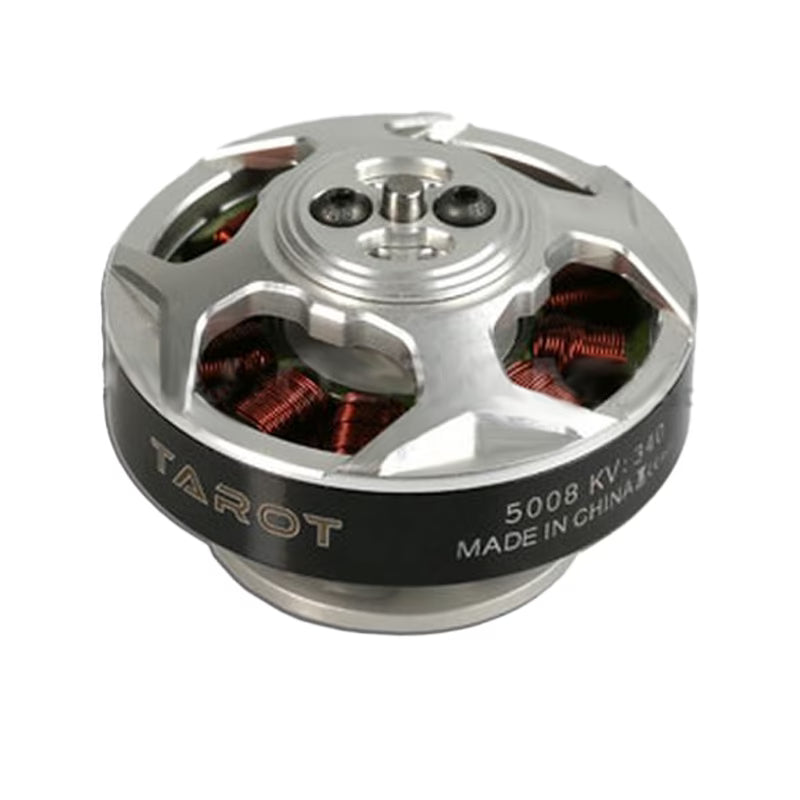

TAROT TL96020 5008 340KV HIGH POWER BRUSHLESS MOTOR

NOTE:- We might take 4 to 8 days to ship this product.

5008/340KV efficient multi-rotor brushless motor is designed for multi-rotor design, suitable for T960 folding six rotor rack TL960A, T18 Folding eight rotor rack TL18A00 other 17-18 inch rotor racks. Full CNC machined, appearance
Seamless smooth flat sheet, balance is excellent. New design of efficient turbofan cover, provides powerful airflow, the rotor mining Refined with a high magnetic NdFeB stator reinforced with high-strength epoxy to protect pressurized high temperature, and high magnetic flux outside Rotor motor through a special balance correction, improve the common external rotor motor vibration problems caused by poor balance, motor shaft using High alloy steels.

Upper and lower lid with large-size motor speed precision bearings with low friction torque, power loss, resistance Shock, instant high-speed radial support, and other advantages. 5008 / 340KV Brushless Motor has passed a strict new generation of dynamic, Static magnetic properties, magnetic temperature demagnetization loss, exercise vibration, noise, and load performance engineering technology demonstration. Continuation inherited TAROT brushless motor: long life, high efficiency, low power consumption, low noise, superior control, and stability characteristics.

Features:

Applicable Rotor Specifications:17-18 inch
Motor Outside diameter: 58.50mm
Stator diameter: 50.0mm
Stator Thickness: 8.0mm
Stator number: 12N
Motor Poles: 14P
Per volt speed: 340 RPM/Volt
25.2V empty annexed Current: 1.1 Amps
Motor Weight: 168 Grams
Gear shaft mounting diameter: ¢ 4.0 mm
Motor Length: 35.0 mm
Motor Shaft Length: 42.0 mm

Package Includes:

4× Cup head screws M3x8
2× Button head screws M3x8
1× Metal rotor mounting piece
1× 5008KV340

Specification:-
