The TAROT 4114 320KV Brushless Motor is a high-performance and precision-balanced motor, specifically designed for heavy-lifting multicopters, aerial photography drones, and industrial UAVs. Built with advanced materials and cutting-edge engineering, this motor delivers exceptional power, smooth operation, and excellent heat dissipation. Whether you’re a professional drone operator or an enthusiast, the TAROT 4114 320KV motor is the perfect choice for high-thrust, low-noise, and long-endurance flight applications.
Features:
High Efficiency & Power: Optimized 320KV motor provides superior thrust while maintaining low power consumption, making it ideal for long-duration flights and heavy payloads.
New Turbofan Cover: Designed with an innovative turbofan cooling system, ensuring efficient heat dissipation and improved performance under high loads.
Neodymium Iron Boron Rotor: Offers strong magnetic power, improving motor efficiency and stability during high-speed operations.
Epoxy-Coated Stator: Ensures longer motor life and increased durability by protecting against environmental damage.
Factory Balanced Motor: Minimizes vibration issues, ensuring smoother operation, better flight stability, and reduced stress on the drone frame.
Alloy Steel Shaft: Provides high strength and durability, reducing wear and tear for extended usage.
Specialized Bearings: Features low frictional torque, reduced power consumption, impact resistance, and strong radial support for enhanced reliability.
Lightweight Design: Optimized for performance while keeping the weight minimal, contributing to better drone efficiency.

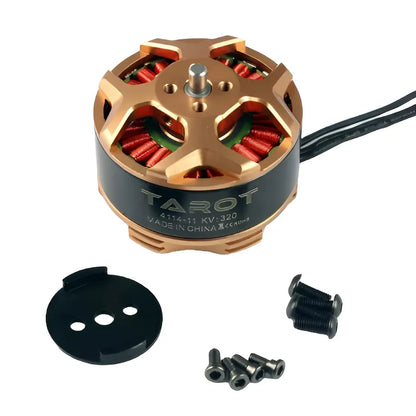

Package Includes:
1× TAROT TL100B08-02 4114 320KV 6S Multirotor Brushless Motor
Specification:-
| Motor Type | Brushless Motor |
| Stator Diameter | 41.0 mm |
| Stator Thickness | 14.0 mm |
| No of poles | 22P |
| Diameter (mm): | 0.31mm |
| Rated Speed (RPM): | 320 RPM/Volt |
| Internal Resistance(mOhm) | 126 mΩ |
| Motor Weight (g) | 148 Grams |
| Gear shaft mounting diameter | 4.0 mm |
| Motor Length (mm): | 32.0 mm |
| Motor Shaft Length (mm) | 37.0 mm |
| Shipping Weight | 0.20 kg |
| Shipping Dimensions | 7 × 7 × 6 cm |
