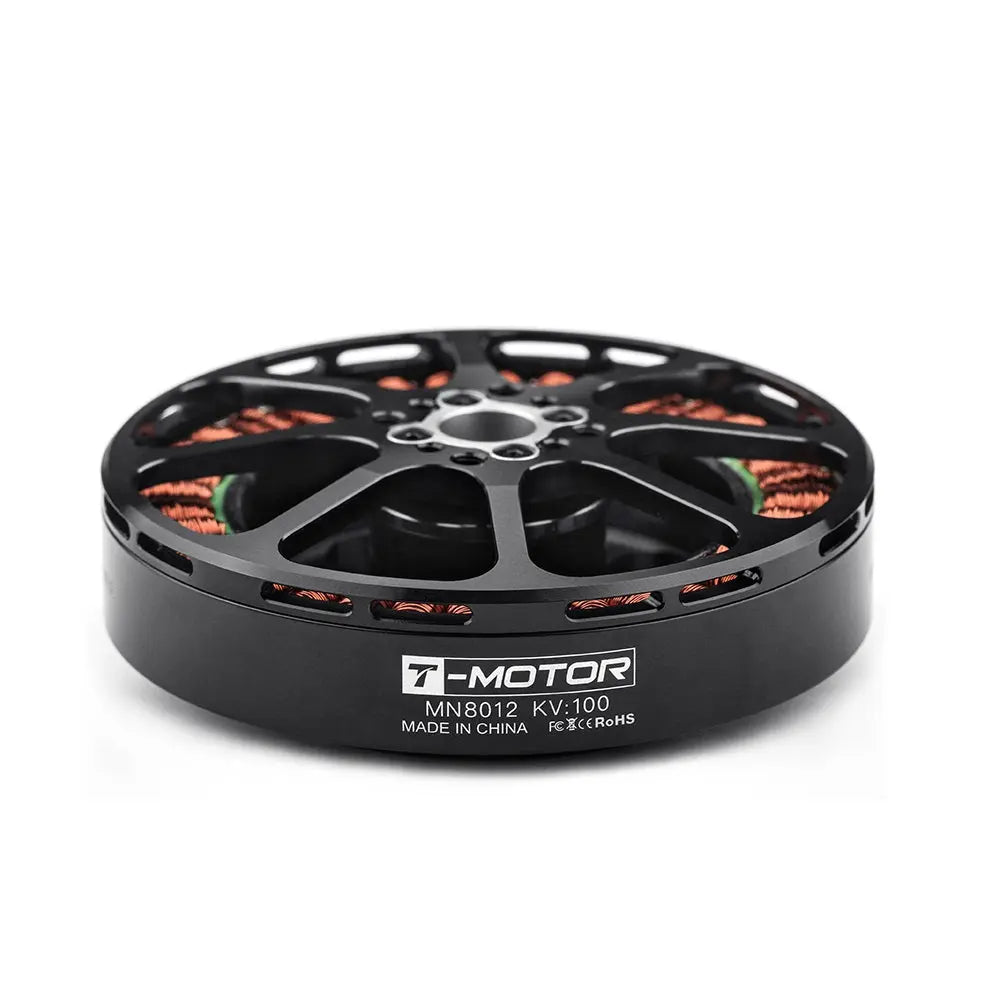

T Motor Antigravity MN8012 KV100
T Motor Antigravity MN8012 KV100
SKU:1402972
(Including GST)
NOTE:- We might take 4 to 8 days to ship this product.
T Motor Antigravity MN8012 KV100 is a brushless drone motor that has high power, a fast reaction speed, and stable operation. MN8012 series Brushless motor from tiger motors provides high efficiency, low power consumption, and energy-saving performance
Features:
Ultra-light, high efficiency
Max.Thrust:11.8kg,
Motor Weight:351g,
Power Ratio:34
220ºC high-temperature resistance Wires
Anti-rust treatment Stator with 180°C high temperature-resisting coatings
36N42 Configuration
12S Rated Voltage(Lipo)
Coil Insulation Test 1000V/Ss
Rotor Dynamic Balance Standard 15Mg
IP35 Protection
Package Includes:
1× T Motor Antigravity MN8012 KV100
Specification:-
Internal Resistance |
85mΩ |
---|---|
Rated KV |
100 |
Idle Current (24V) |
1.0A |
Peak Current (180s) |
40A |
Max. Power (180s) |
1873W |
Motor Size |
Φ87.8 * 29mm |
Shaft Diameter |
IN12mm Bearing Imported 6901ZZ |
Magnet Level |
180t high-temperature resistance |
Cable Size |
16AWG*90mm Copper |
Weight |
351 g (with Cable) |
Shipping Weight | 0.6 kg |
Shipping Dimensions | 15 × 10 × 6 cm |
