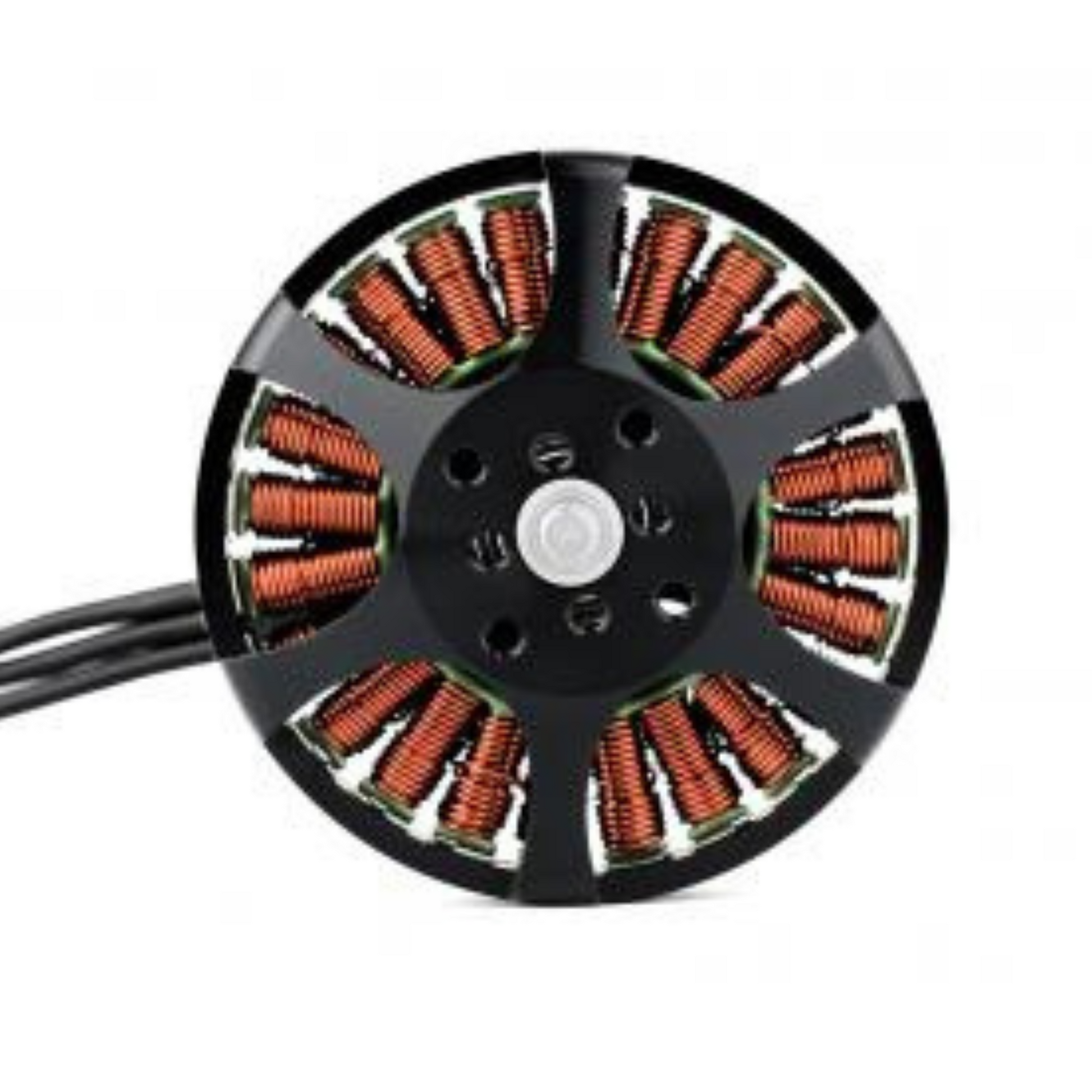

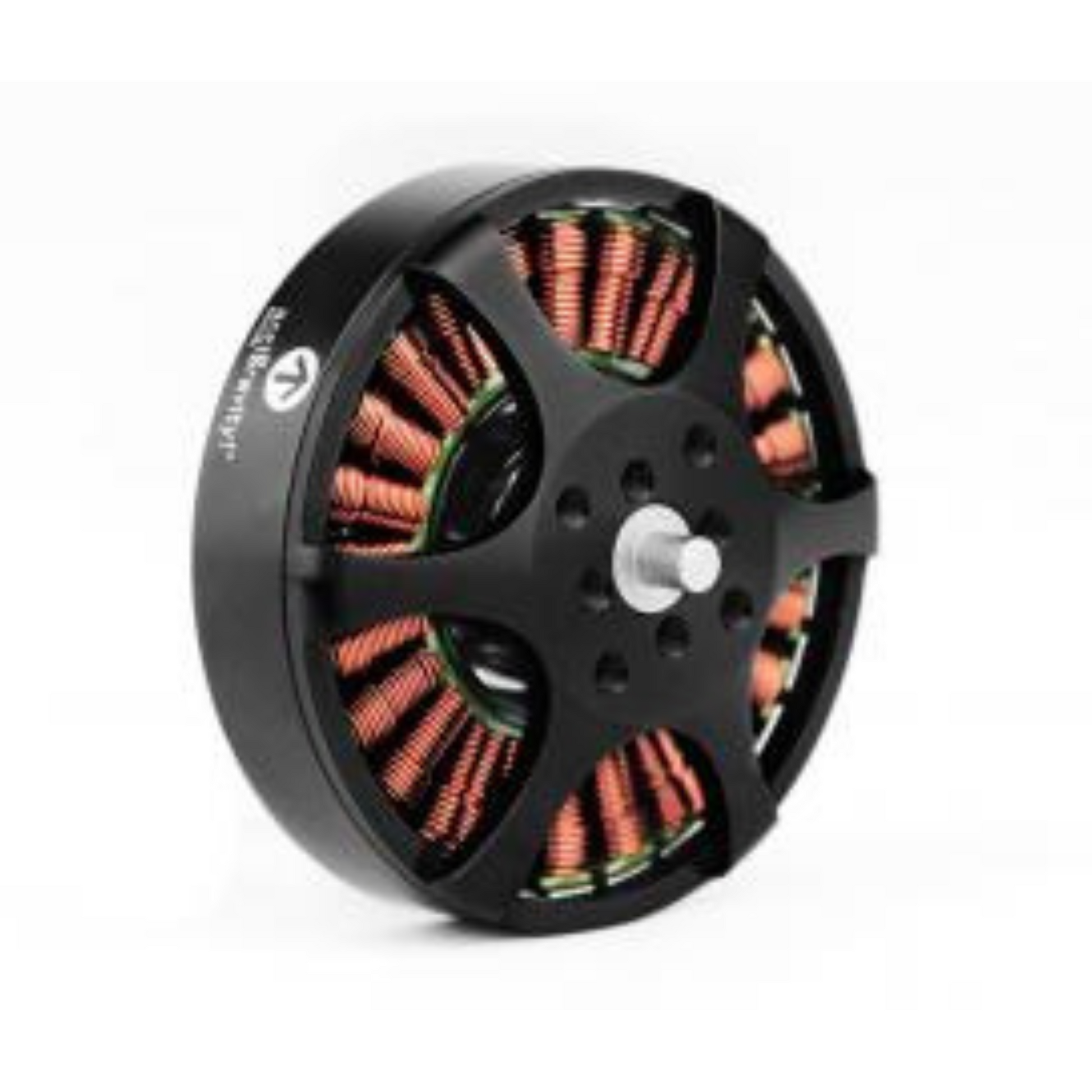

This is amazing T MOTOR ANTIGRAVITY MN5008 KV340 offers some of the highest levels of quality and performance in a motor to date.
We at Hi Tech xyz.in believe in supplying quality products to the makers who really are struggling hard to build something that is best in performance while assuring the long life of the design by using the branded components.
Lightweight Antigravity 5008 type T-motors are available with an Ultra-thin design, processed by high strength aluminum. The use of a single thick copper wire winding reduces the energy dissipation of the motor. Antigravity T Motor contains a unique cooling design so that ventilation of winding is well, perfect dynamic test make motor easier to speed up and run more stably. The Antigravity Tiger motor has excellent assembling workmanship with great rotor dynamic balance.
Dimensions:
Package Includes:
1× T Motor Antigravity MN5008 KV340
Specification:-
| Motor KV (RPM/V): |
340 |
|---|---|
| Motor Size (mm/inch) |
55.6*32mm |
| Configuration: |
24N28P |
| Shaft Diameter (mm): |
6mm |
| Bearing |
Imported 696ZZ |
| Lead Cable |
80mm |
| Copper Wire |
180°C high temperature resistance: Level H |
| Coil Insulation Test |
500V |
| Centrifugal Cooling Design: |
Centrifugal Cooling Design: Yes |
| Rotor Standard |
≤15mg (Dynamic Balance Standard) |
| Motor Standard |
≤10mg ( Dynamic Balance Standard) |
| Protection |
IP35 |
| Idle Current(A) |
0.9A(22V) |
| Rated Voltage (Lipo) |
6S |
| Peak Current(180s) |
35A |
| Max. Power (W) |
760W(180s) |
| Shipping Weight | 0.198 kg |
| Shipping Dimensions | 11 × 9 × 4 cm |
