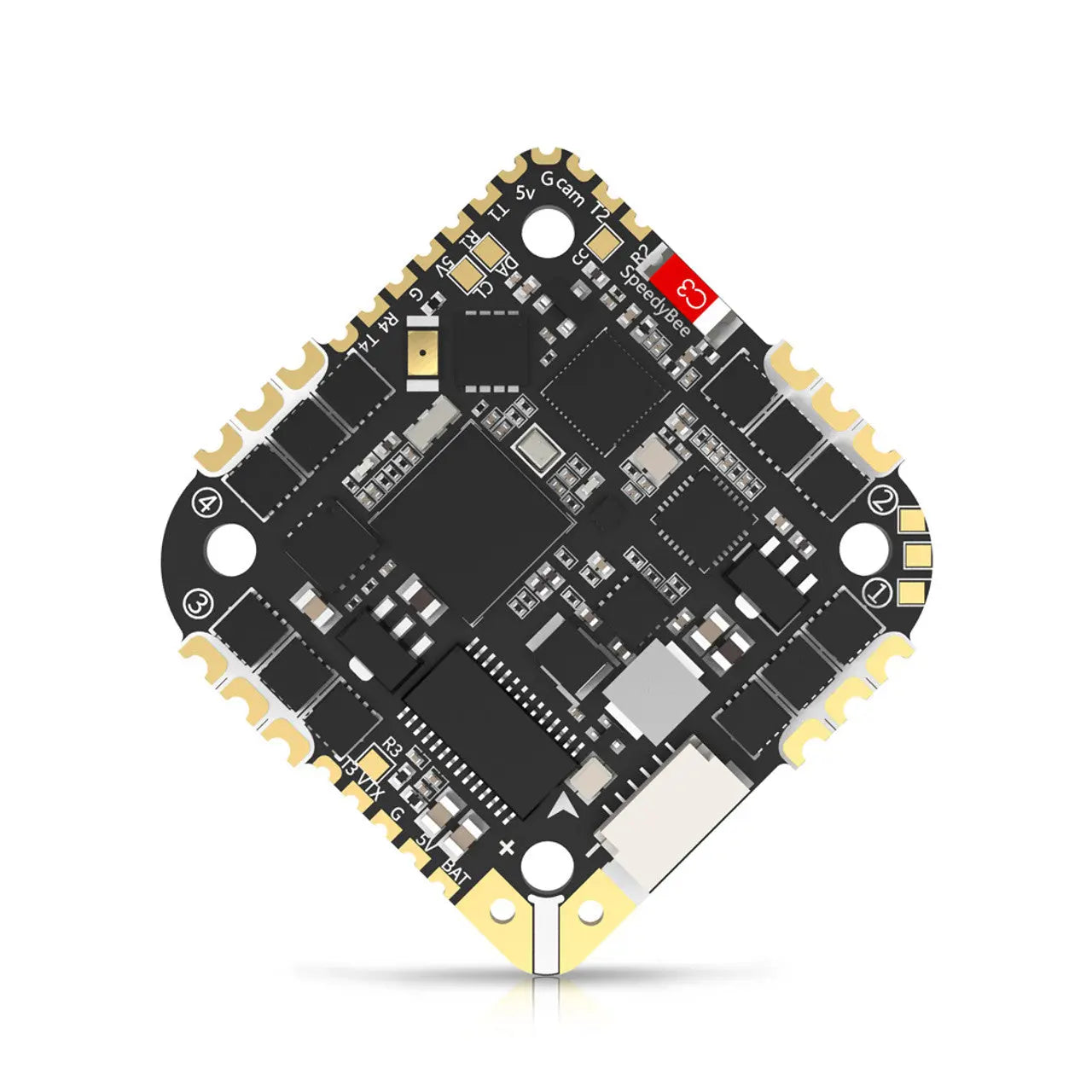

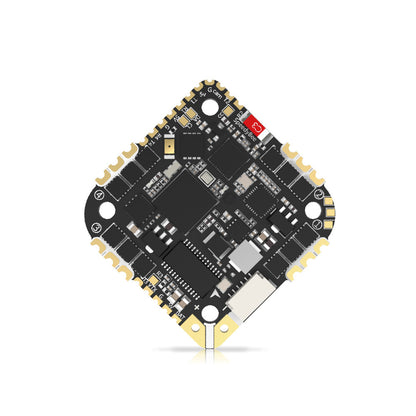

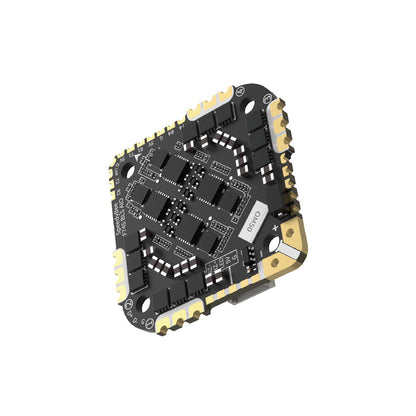

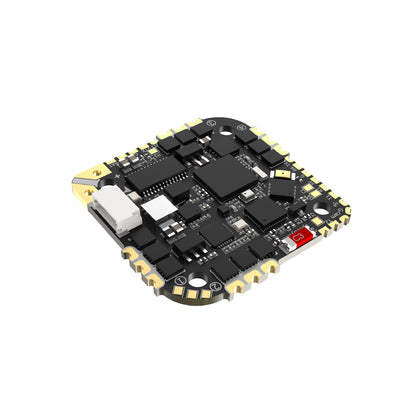

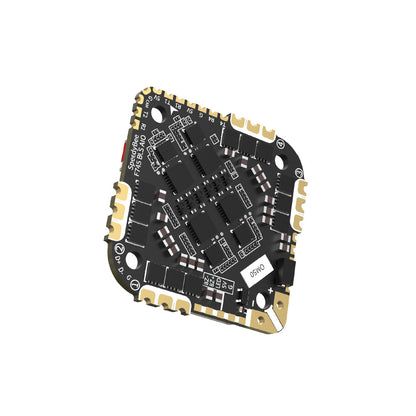

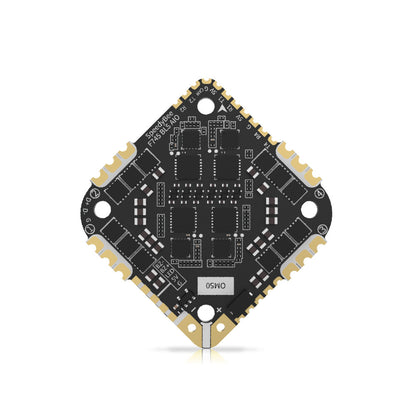

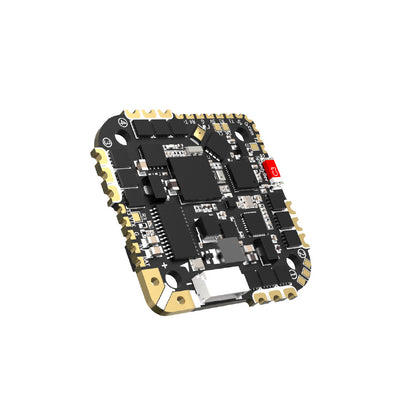

The SpeedyBee F745 35A BLS 25.5×25.5 AIO Flight Controller is designed to provide a compact and integrated solution for small drones, where space is limited, and minimizing weight is crucial. This all-in-one flight controller aims to deliver high performance and convenience in a tiny package.
The SpeedyBee F745 AIO includes an F745 flight controller and a 35A ESC. Featuring a BMP280 barometer, OSD, 8MB Memory Blackbox, and MPU600 Gyro… this AIO board is the perfect addition to your FPV build.
Features:
Flight Controller:
F7 Processor: The flight controller typically features an F7 processor, offering advanced processing capabilities for smooth and precise flight control.
Integrated OSD (On-Screen Display): An integrated OSD allows you to overlay real-time telemetry data onto your FPV feed. This data can include battery voltage, flight mode, and other essential information.
Multiple UART Ports: The board often includes multiple UART ports for connecting peripherals like GPS modules, receivers, and telemetry devices.
Onboard BEC (Battery Eliminator Circuit): Some models have an onboard BEC, which provides a regulated power supply for your camera and video transmitter (VTX), reducing the need for external voltage regulators.
Betaflight or Cleanflight Support: The SpeedyBee F745 flight controller typically supports popular firmware options like Betaflight or Cleanflight, offering a wide range of flight features and customization options.
Blackbox Support: You can record flight data using the Blackbox feature for later analysis and tuning.
Electronic Speed Controllers (ESCs):
BLS (BLHeli_S) Firmware: The ESCs commonly feature BLHeli_S firmware, known for its reliability and performance. It supports popular communication protocols like DShot.
35A ESC Rating: The 35A ESC rating indicates that these speed controllers can handle a maximum current draw of 35 amps, making them suitable for micro and mini-sized drones.
Individual ESC Control: Each ESC is individually controlled, providing more precise motor control and diagnostics.
Telemetry Support: Some ESCs may offer telemetry support, allowing you to receive real-time information about the state of your motors and ESCs, including temperature and RPM.
25.5×25.5mm Form Factor: The stack is designed to fit a 25.5×25.5mm mounting pattern, which is a common size for micro and mini quadcopters.
Compact and Lightweight: The SpeedyBee F745 AIO Flight Controller is compact and lightweight, making it well-suited for small and lightweight drones.
More Features
- Wireless ESC firmware flashing + full BLHeli_S configuration
- Wireless FC firmware flashing + full Betaflight configuration
- Powerful and Durable 35A 6S ESC with TOSHIBA MOSFETs
- 4 UARTS + Barometer + I2C pads + 8MB BlackBox flash
- Change motor directions wirelessly
- DJI plug for simpler digital build
- Powerful F745 FC + 35A ESC

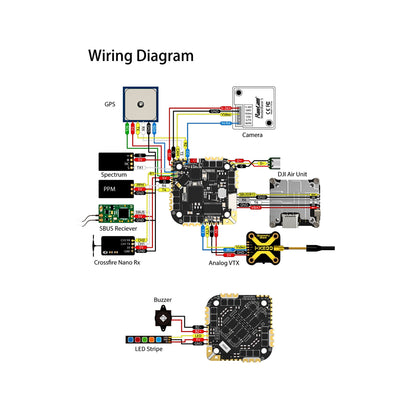

FLIGHT CONTROLLER
- USB Connection: Need to solder a USB TYPE-C module to D+, D-, GND pads.
- 5V Output: 4 groups of 5V output. The total current load is 2.5A.
- SmartPort: Use any TX pad of UART for the Smart Port feature.
- BLE Bluetooth: Supported. Used for parameter configuration
- UART: Full UART * 4(UART1, UART2, UART3, UART4)
- 3.3V Output: Supported. Up to 500mA current load.
- Supported Flight Controller: BetaFlight(Default)
- Firmware Target Name: SPEEDYBEE F745AIO
- Buzzer: BZ+ and BZ- pad used for 5V Buzzer
- BetaFlight Camera Control Pad: Yes(CC pad)
- Flash FC Firmware Wirelessly: Supported
- Download/Analyze Blackbox: Supported
- BOOT Button: Used to enter DFU mode
- Current Sensor: Supported. Scale=256
- DJI Air Unit 6-pin Connector: Built-in.
- LED Pad Used for WS2812 LED
- ESC Telemetry UART: None
- RSSI Input: Not supported
- Flash(for Blackbox): 8MB
- ESC Signal Pads M1 – M4
- IMU(Gyro): MPU6000
- Barometer: BMP280
- MCU: STM32F745
- 9V Output: None
- OSD: Supported
- I2C: Supported.
ESC
- Current Sensor: Supported(Scale=256)
- ESC Protocol: DSHOT300/600
- Firmware: BLHeli_S JH40
- Continuous Current: 35A
- Burst Current: 45A(5S)
- Power Input: 3-6S LiPo
- Power Output: VBAT
Package Includes:
1× SpeedyBee F745 35A BLS 25.5×25.5 AIO Flight Controller
| SPECIFICATIONS:- | |
| Overview | |
| Product Name | SpeedyBee F745 35A BLS AIO |
| Power Input | 3S - 6S Lipo |

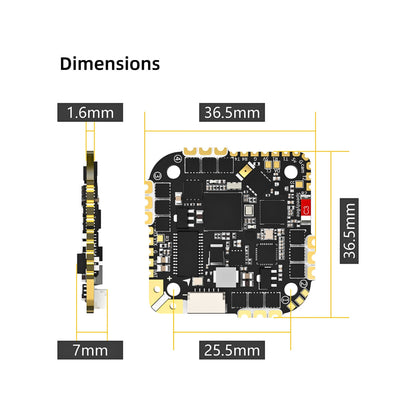

| Mounting | 25.5 x 25.5mm, 3mm hole diameter |
| Dimension | 36.5mm(L) x 36.5mm(W) x 7mm(H), recommended for quads at 3.5" or above |
| Weight | 10.1g |
| FC | |
| MCU | STM32F745 |
| IMU(Gyro) | MPU6000 |
| USB Connection | Need to solder a USB TYPE-C module to D+,D-,GND pads. |
| Barometer | BMP280 |
| OSD | Supported |
| BLE Bluetooth | Supported. Used for parameter configuration |
| Flash FC Firmware Wirelessly | Supported |
| Download/Analyze Blackbox | Supported |
| DJI Air Unit 6-pin Connector | Built-in. |
| Flash(for BlackBox) | 8MB |
| Current Sensor | Supported. Scale=256 |
| BetaFlight Camera Control Pad | Yes(CC pad) |
| 5V Output | 4 groups of 5V output. The total current load is 2.5A. |
| 9V Output | None |
| ESC Signal Pads | M1 - M4 |
| UART | Full UART * 4(UART1, UART2, UART3,UART4) |
| ESC Telemetry UART | None |
| I2C | Supported. |
| LED Pad | Used for WS2812 LED |
| Buzzer | BZ+ and BZ- pad used for 5V Buzzer |
| BOOT Button | Used to enter DFU mode |
| RSSI Input | Not supported |
| SmartPort | Use any TX pad of UART for the SmartPort feature. |
| Supported Flight Controller | BetaFlight(Default) |
| Firmware Target Name | SPEEDYBEE F745AIO |
| ESC | |
| Power Input | 3-6S LiPo |
| Continuous Current | 35A * 4 |
| Burst Current | 45A(5seconds) |
| ESC Protocol | DSHOT300/600 |
| Power Output | VBAT |
| Current Sensor | Supported(Sacle=256) |
| Firmware | BLHeli_S JH40 |
