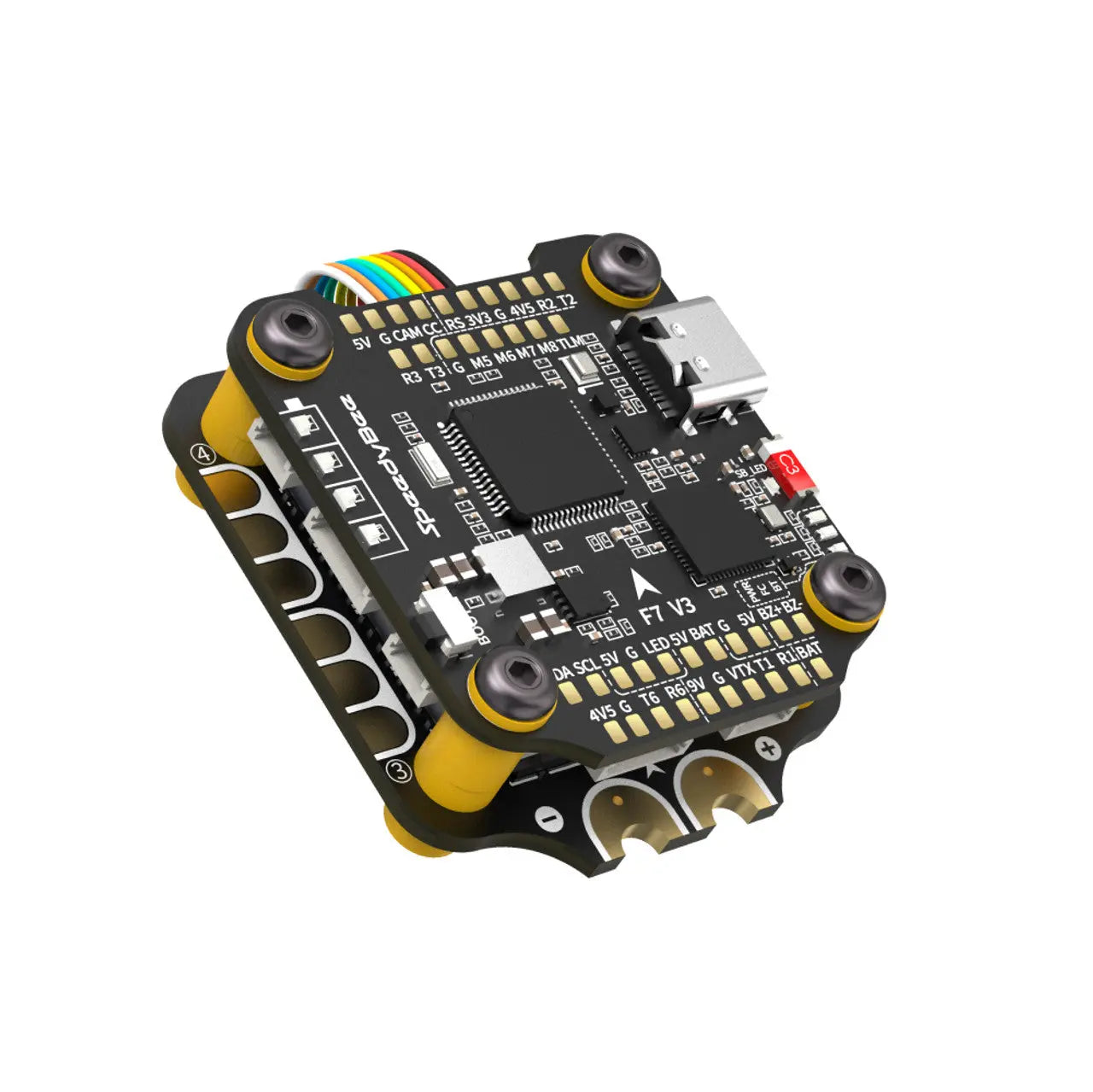

The SpeedyBee F7 V3 BL32 50A 30×30 Stack is designed for high-performance FPV (First-Person View) racing and freestyle drones. It combines a powerful flight controller and robust electronic speed controllers, offering features that cater to the demanding needs of drone racers and enthusiasts.
Features:
Flight Controller:
F7 Processor: The flight controller is equipped with an F7 processor, providing fast and efficient data processing. This allows for smooth flight performance and rapid response to control inputs.
Multiple UART Ports: It typically includes multiple UART ports for connecting various peripherals and accessories, such as GPS modules, receivers, and telemetry devices.
Integrated OSD (On-Screen Display): An integrated OSD allows you to display real-time telemetry data on your FPV goggles or video feed, including battery voltage, flight mode, and more.
Betaflight or Cleanflight Support: The flight controller often supports popular firmware such as Betaflight or Cleanflight, providing a wide range of flight features and customization options.
Built-in BEC (Battery Eliminator Circuit): Some models include an integrated BEC that provides regulated power to other components like the camera and VTX (Video Transmitter).
Blackbox Support: Blackbox data logging capability allows you to record flight data for analysis and tuning.
Electronic Speed Controllers (ESCs):
BLHeli_32: The ESCs in this stack typically use BLHeli_32 firmware, which is known for its advanced features, high performance, and reliability.
50A Rating: A 50A ESC rating indicates that these speed controllers can handle high current loads, making them suitable for powerful motors and propellers.
DShot Support: DShot is a digital communication protocol for ESCs, known for its precision and responsiveness, and is commonly supported by BLHeli_32 ESCs.
Current Sensor: Many BLHeli_32 ESCs have built-in current sensors, allowing you to monitor the current consumption of your drone in real-time.
Telemetry Support: Some ESCs offer telemetry support, allowing you to receive real-time information about the state of your motors and ESCs, including temperature and RPM.
Individual ESC Control: Each ESC is individually controlled, which can be beneficial for fine-tuning and diagnostics.
30x30mm Form Factor: The stack is designed to fit a 30x30mm mounting pattern, which is a common size for mini-quads and racing drones.
Package Include:
1× SpeedyBee F7 V3 BL32 50A 30x30 Stack
| Component | Specification |
|---|---|
| Flight Controller (FC) | SpeedyBee F7 V3 |
| Processor | STM32 F722, 216MHz |
| Gyro | MPU6000 (SPI Bus) |
| Onboard OSD | BetaFlight OSD chip (AT7456E) |
| Blackbox | 16MB onboard flash memory |
| BEC Output | 5V/2A and 9V/3A |
| UARTs | 6 full UARTs |
| USB Port | USB Type-C |
| Barometer | BMP280 |
| Mounting Size | 30.5x30.5mm (M3 holes) |
| Firmware | BetaFlight-compatible |
| Bluetooth | Built-in module for SpeedyBee App |
| ESC | SpeedyBee BLHeli_32 50A 4-in-1 ESC |
| Current Rating | 50A |
| Support for Protocols | BLHeli_32 |
| Input Voltage Range | 3-6S LiPo |
| Dimensions | 30x30mm (30.5x30.5mm mounting) |
