SpeedyBee Adapter 3 for drone
SpeedyBee Adapter 3 for drone
SKU:055040
(Including GST)
Couldn't load pickup availability
The third iteration of the useful SpeedyBee Adapter is the best yet! Configure, charge, check, analyze, flash, you name it, the Adapter 3 probably does it. And all from your smartphone, no need for a laptop! With so many ways to use this tool, it will become standard in your FPV bags.
Turn your smartphone into your mobile FPV companion
Connect to the SpeedyBee mobile app, and configure your flight controller anytime, anywhere. Or flash the latest version of Betalight/Emuflight/INAV in just
2 minutes before your flight session. The choice is yours.
Analyzing Blackbox data has never been easier
No laptop, no separate app, no hassle. Connect your quad to the SpeedyBee mobile app and analyze your Blackbox data* in just 1.5 minutes after a flight.
Get the most out of your practice sessions now.
*Currently supports Betaflight and Emuflight only
Your LiPo batteries = Powerful 30W power banks
Connect SpeedyBee Adapter 3 to a LiPo battery and charge your mobile phone* and tablets when you need them the most. Supports mainstream
QC3.0/AFC/Apple 2.4A (iPhone 6s and above) and other fast charging protocols with charging power up to 30W. Complete with over-current
protection, short-circuit protection and over-temperature protection to protect your gadgets from unwanted accidents.
Phone Model |
Battery Capacity |
Battery level after halfan hour of charging |
Mi 11 Ultra |
5000mAh |
52% |
Samsung S10 |
3400mAh |
49% |
HUAWEI P40 Pro |
4400mAh |
45% |
iPhone 11 |
3110mAh |
22% |
Forgot your LiPo checker? Worry not
Connect your 1S – 6S LiPo and the display will immediately show your battery voltage and the remaining power with a specific colour code*.
The built-in beeper will alert you if the remaining power is less than 40% to help extend your battery lifespan.
*GREEN(>80%), WHITE(40-80%) and RED(<40%).

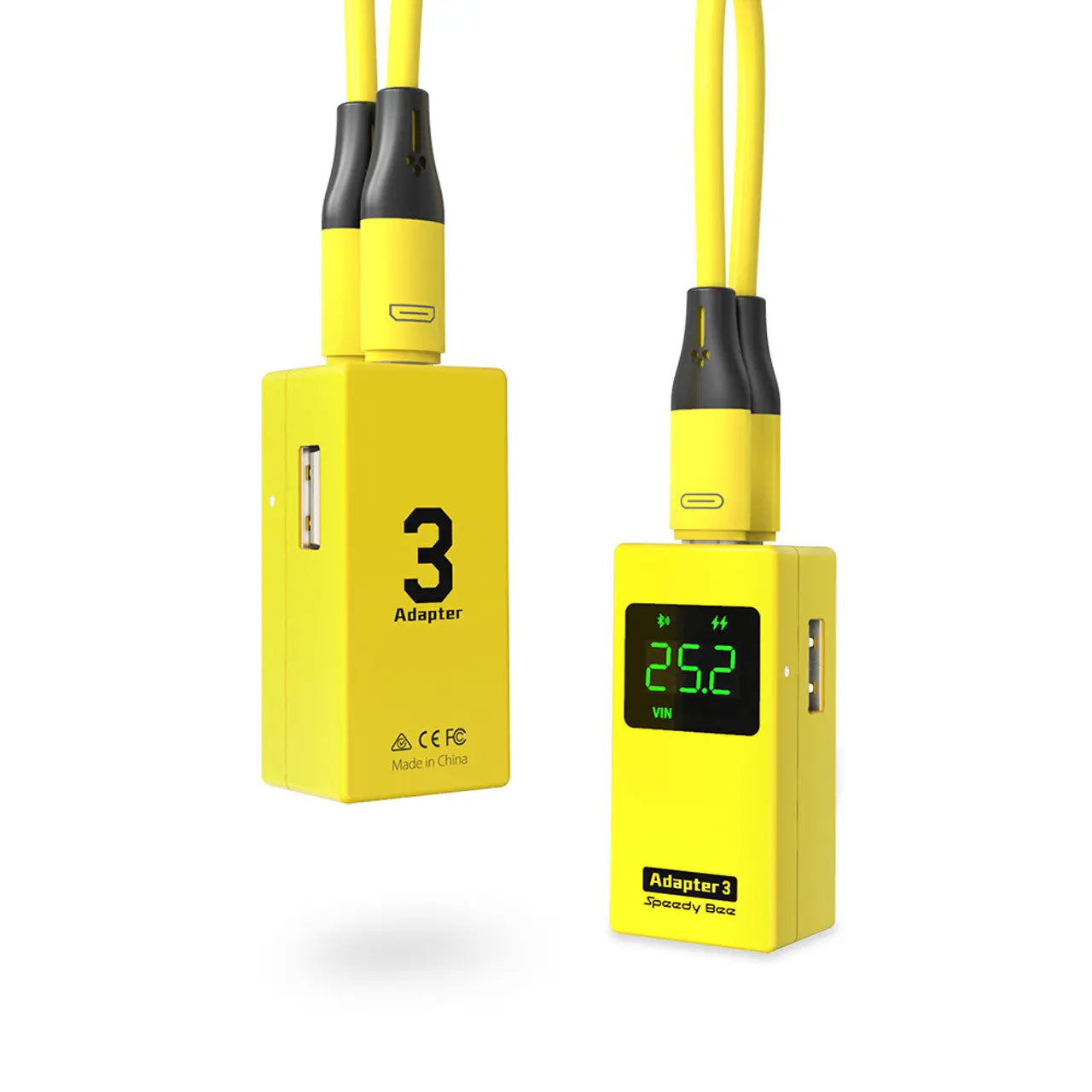

MicroUSB or Type C? Why not both?
SpeedyBee Adapter 3 comes with a dual-head data cable, with MicroUSB 2.0 and USB 3.0 Type C connector on each end. No more worries about connector
compatibility regardless of what flight controller you are using in your build.
WiFi + Bluetooth = the best of both worlds
Use Bluetooth for quick access to your firmware configurator, or switch to Wi-Fi to flash firmware or download Blackbox data at a higher speed.
And all you need is just one LiPo
Access the configurator function using any LiPo batteries available to you. Supports all 1S – 6S LiPo with PH2.0 or XT60 connectors. Plug in that beefy 6S 1500mah, or that tiny 1S Whoop battery (minimum voltage 3.8V), to the SpeedyBee Adapter 3 you are ready to access the configurator.
Features
- Wireless Firmware Flasher & Configurator
- 30W Fast USB Charger
- Wireless Blackbox Analyser
- Wireless ESC Flasher
- 1-6S LiPo Checker
- iOS & Android Compatible
- USB-C & Micro USB
Turn your smartphone into your mobile FPV companion
Connect to the SpeedyBee mobile app, and configure your flight controller anytime, anywhere. Or flash the latest version of Betaflight/Emuflight/INAV in just 2 minutes before your flight session. The choice is yours.
Analyzing Blackbox data has never been easier
No laptop, no separate app, no hassle. Connect your quad to the SpeedyBee mobile app and analyze your Blackbox data* in just 1.5 minutes after a flight. Get the most out of your practice sessions now.
*Currently supports Betaflight and Emuflight only
Configure your BLHeli_S ESCs wherever you want
Why stop at the flight controller? Change your BLHeli_S ESCs setting or update the firmware anytime, anywhere. Broken motor? Solder it up, take your smartphone out, and configure your motor direction wirelessly with the latest SpeedyBee app
– now supporting BLHeli_32 and BLHeli_S ESCs.
Forgot your LiPo checker? Don’t Worry
Connect your 1S – 6S LiPo and the display will immediately show your battery voltage and the remaining power with a specific colour code*. The built-in beeper will alert you if the remaining power is less than 40% to help extend your battery lifespan.
*GREEN(>80%), WHITE(40-80%) and RED(<40%).
| Item | SpeedyBee Adapter 3 | SpeedyBee Adapter 2 | OTG |
| Support 1-6S LiPo input | ✔ | ✔ | N/A |
| XT60 and PH2.0 connectors | ✔ | ✔ | N/A |
| BF/INAV/EMU configuration | ✔ | ✔ | ✔ |
| Flight control firmware upgrade | ✔ | ✔ | ✘ |
| Built-in WiFi | ✔ | ✔ | ✘ |
| Built-in Bluetooth | ✔ | ✘ | ✘ |
| Blackbox downloader and analyzer | ✔ | ✘ | ✘ |
| 8-bit BLHeli_S ESC firmware updater | ✔ | ✘ | ✘ |
| Built-in MicroUSB and Type C connector | ✔ | ✘ | ✘ |
| Fast charging output up to 30W | ✔ | ✘ | ✘ |
| Built-In LiPo Voltage Checker | ✔ | ✘ | ✘ |
Package Include:
1× Adapter 3
1× Manual Card
| SPECIFICATIONS:- | |
| Product Name | SpeedyBee Adapter 3 |
| Power Input Voltage Range | 1-6S(3.8V+ for 1S) |
| Power Input Connector | XT60-Male, PH2.0 male |
| Required Mobile Device System Version | Android 7.0+ | iOS 12.0+ |
| Supported SpeedyBee App Version | V1.6.1 + for iOS | V1.5.6+ for Android |
| Maximum Output Current for Flight Controllers | 700mA @5V |
| Fast Charging Output interface | USB A Port |
| Minimum Input Voltage for Charging output | 7.4V(2S LiPo) |
| Supported Fast Charging Protocol | • QC3.0/QC2.0 |
| • AFC | |
| • FCP | |
| • SCP/High SCP | |
| • PE2.0/PE1.1 | |
| • SFCP | |
| Max Fast Charging Current | 3.5A |
| Max Fast Charging Power | 30W |
| Case Material | ABS + PC |
| Liquid Silicone Cable Length | 12.4cm |
| Dimension(Main Body) | 24.8*21.8*53.6mm |
| Net Weight | 35g |
