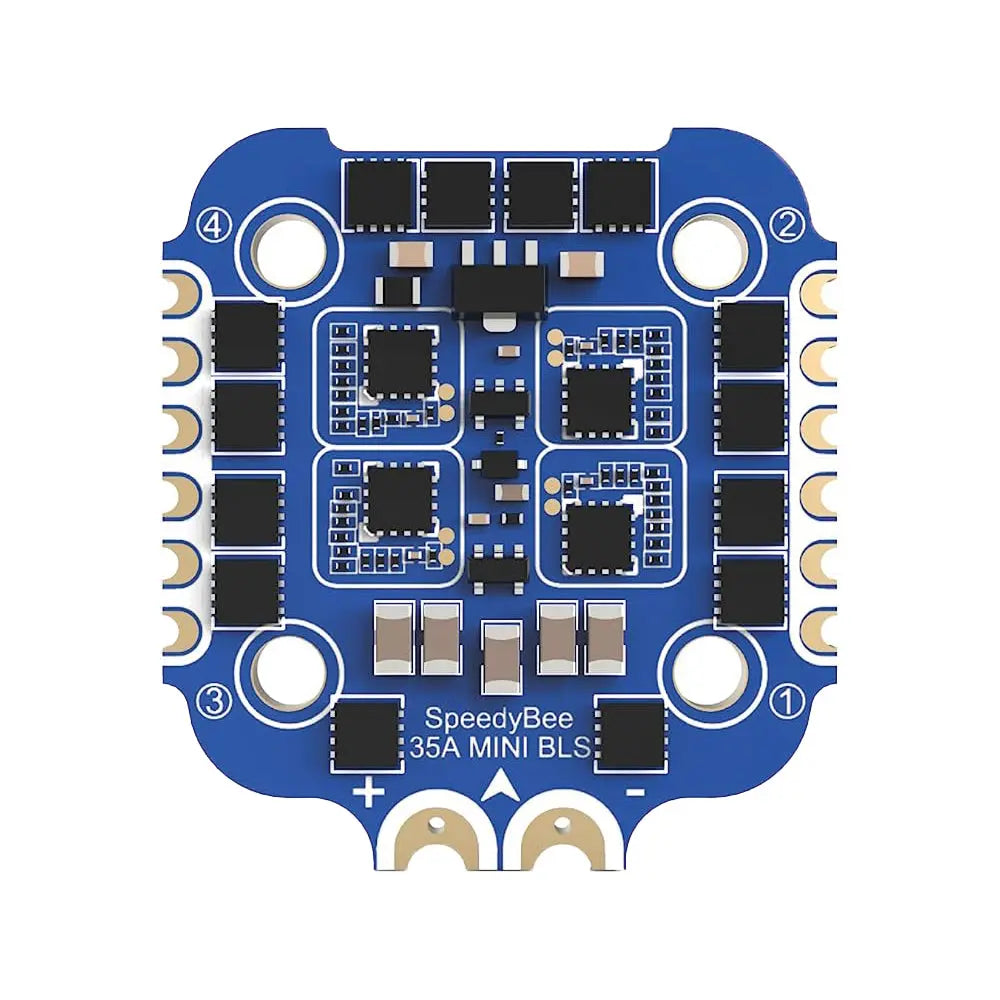

SpeedyBee 20x20mm 35A 3-6S 4 in 1 ESC for FPV Drone.

The SpeedyBee 35A 4 in 1 ESC is a compact and high-performance electronic module integrated into the power distribution system of FPV racing drones. It’s specifically designed to provide precise control over the speed and performance of the drone’s motors. This 4 in 1 ESC combines four individual ESCs into a single module for efficient power distribution and space-saving design.

SpeedyBee 35A Mini ESC,2-6S 4 in 1 BLHeli_S ESC Wireless Tuning Electronic Speed Controller Support DSHOT300/600 for FPV Drone, Mounting Hole 20x20mm

Tune Flight controller and ESC wirelessly! Power the quad, connect the SpeedyBee app via Bluetooth, configure the UART Ports,PID,OSD and every other settings on this flight controller.Also,every parameter of the BLHeli_S ESC in this
stack can be set via the app.
Change motor directions wirelessly: It’s convenient to change the motor directions just in a few simple steps on SpeedyBee app.
Real 35A BLHeli_S ESC: 6-layer 2oz PCB plus optimized circuit design equals stable and strong current output. The four-channel continuous 140A output can reach 30 seconds.
Revised CPU, More durable: SpeedyBee 35A Mini ESC designed to give your motors smooth power with great stability and durability, more affordable.When there is any question, please feel free tell me ,we will solve it for you soon!

Key Features:

Input Voltage Range: This ESC is compatible with input voltages ranging from 3S to 6S LiPo batteries. This flexibility allows you to use a wide range of battery configurations to suit your FPV racing or freestyle needs.

Current Rating: Each of the four ESC channels has a 35A current rating, representing the maximum continuous current that each channel can handle. This high current rating allows it to power motors with varying current requirements, making it suitable for high-performance applications.

Compact Form Factor: The 20x20mm mounting size is ideal for smaller drone frames with limited space. Its compact footprint is a standard size for mini quadcopters.

Advanced Motor Control: The ESC typically features advanced motor control firmware like BLHeli_S or BLHeli_32, known for their reliability and performance. These firmware versions offer advanced features like active braking and rapid response times.

PWM and DSHOT Compatibility: The ESC supports various control signal input options, including traditional PWM (Pulse Width Modulation) and DSHOT, a modern digital communication protocol, offering users flexibility in selecting their preferred control method.

On-Board Protection: Many modern ESCs include protection features like over-current protection, thermal protection, and motor lock-up detection to safeguard the ESC and motors from damage in the event of a malfunction.

4 in 1 Design: The 4 in 1 design combines four individual ESCs into a single module, reducing the number of components in your drone and simplifying wiring. This design is space-efficient and minimizes clutter in your drone’s build.

Mounting Holes: The ESC typically includes mounting holes for secure installation within your drone’s frame. This helps keep the ESC protected and vibration-free.

Features:
Wireless full-featured BLHeli_S ESC tuning
Real 35A BLHeli_S DSHOT600 ESC
20x20mm Mounting Hole
This ESC wirelessly tuned with Flight Controller
Continuous 140A output can reach 30 seconds

Package Includes:
1× SpeedyBee 35A BLHeli_S Mini 4-in-1 ESC
1× 8pin JST cable(For FC & ESC Connection)
1× 35V 470uF Capacitor
5× M2(Hole Diameter) 6.6mm(Height) Anti-vibration Silicone Grommets
5× M2 Silicone O-Ring
5× M3(Hole Diameter) 6.6mm(Height) Anti-vibration Silicone Grommets
5× M3 SiliconeO-Ring
