Frequency: The "5.8 GHz" in the product name indicates the operating frequency of the antenna. This is a common frequency for FPV systems in the radio control and drone racing community.
-

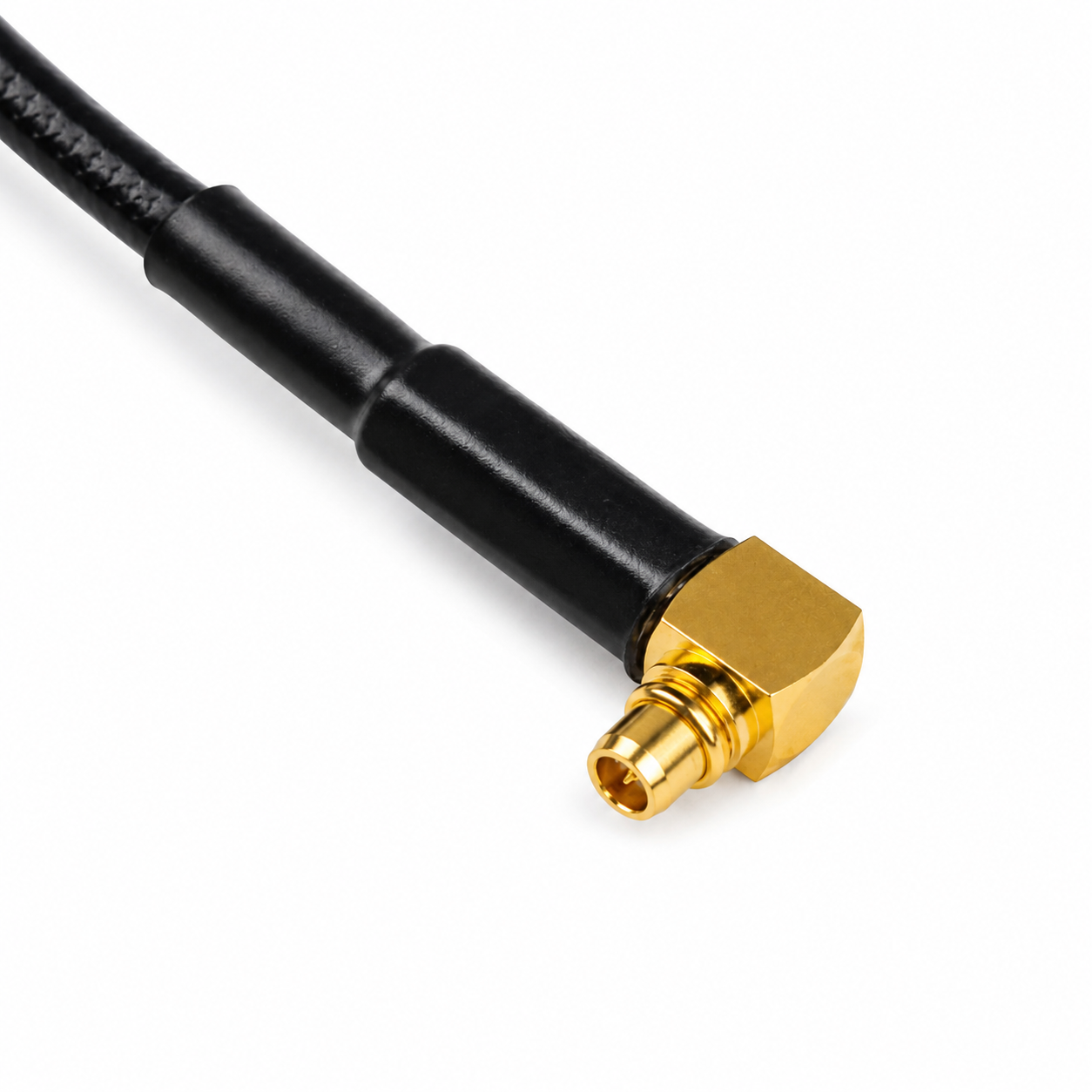

Connector Type: "MMCX" refers to the type of connector used on the antenna. MMCX connectors are a common choice for FPV equipment due to their small size and secure connection.
-
Polarization: Antennas can be polarized either linearly (vertical or horizontal) or circularly (right-hand or left-hand). Circular polarization is often preferred for FPV applications, as it helps to minimize signal interference and multi-path reflections.
-
Beam Angle: The "90°" in the product name suggests that this antenna may have a 90-degree beam angle. The beam angle determines the coverage area and directionality of the antenna's signal transmission and reception.
-
Gain: Antennas can have different levels of gain, which affects their performance in terms of signal range and directionality. Higher gain antennas can provide longer range but may have a narrower beam.
-
Durability and Build Quality: Antennas used in FPV and drone racing are often exposed to outdoor conditions and potential crashes. Therefore, the build quality and durability of the antenna are essential factors to consider.
-
Compatibility: Make sure the antenna is compatible with your FPV equipment, such as video transmitters and receivers, and that it uses the correct connector type and frequency band.
Specification | Details |
---|---|

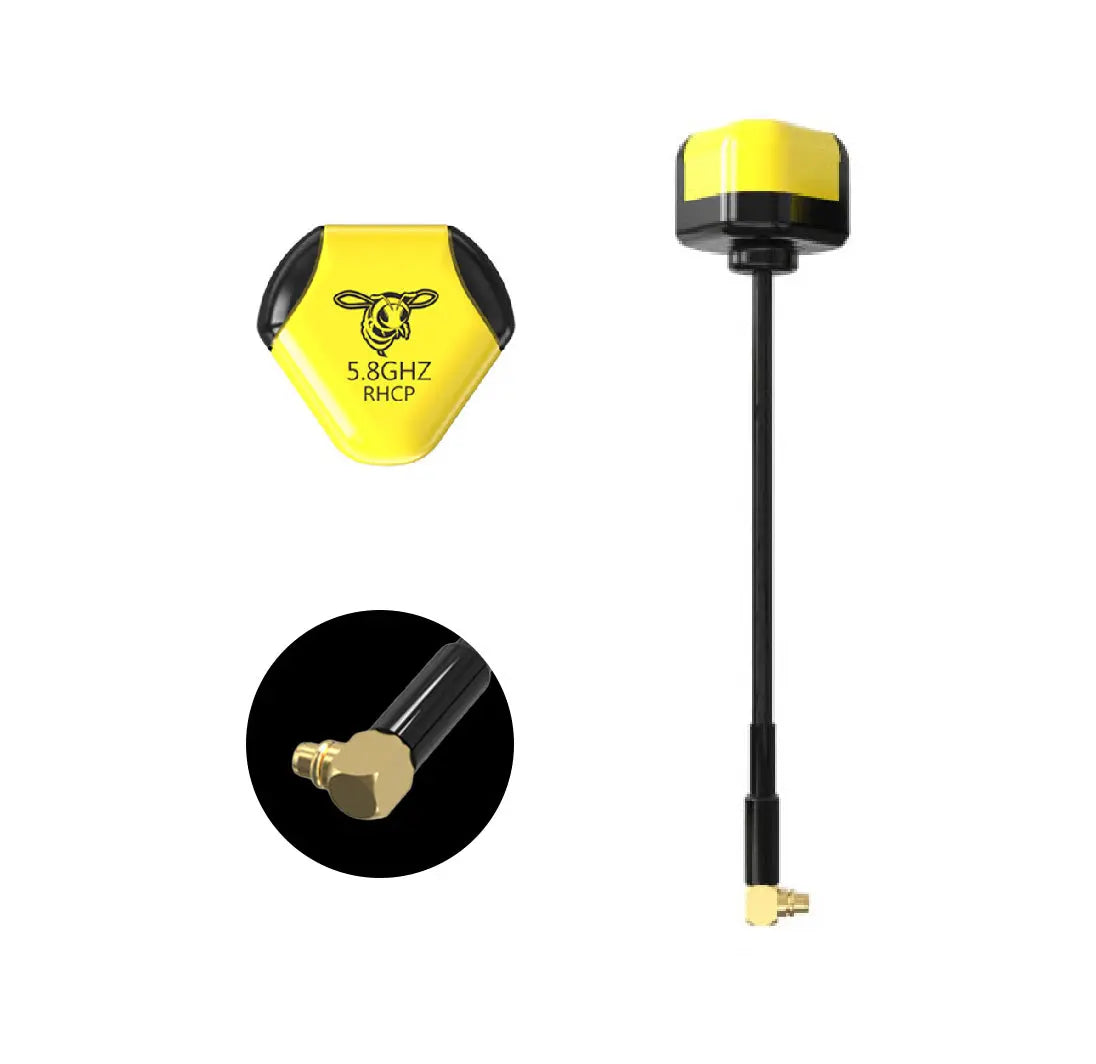

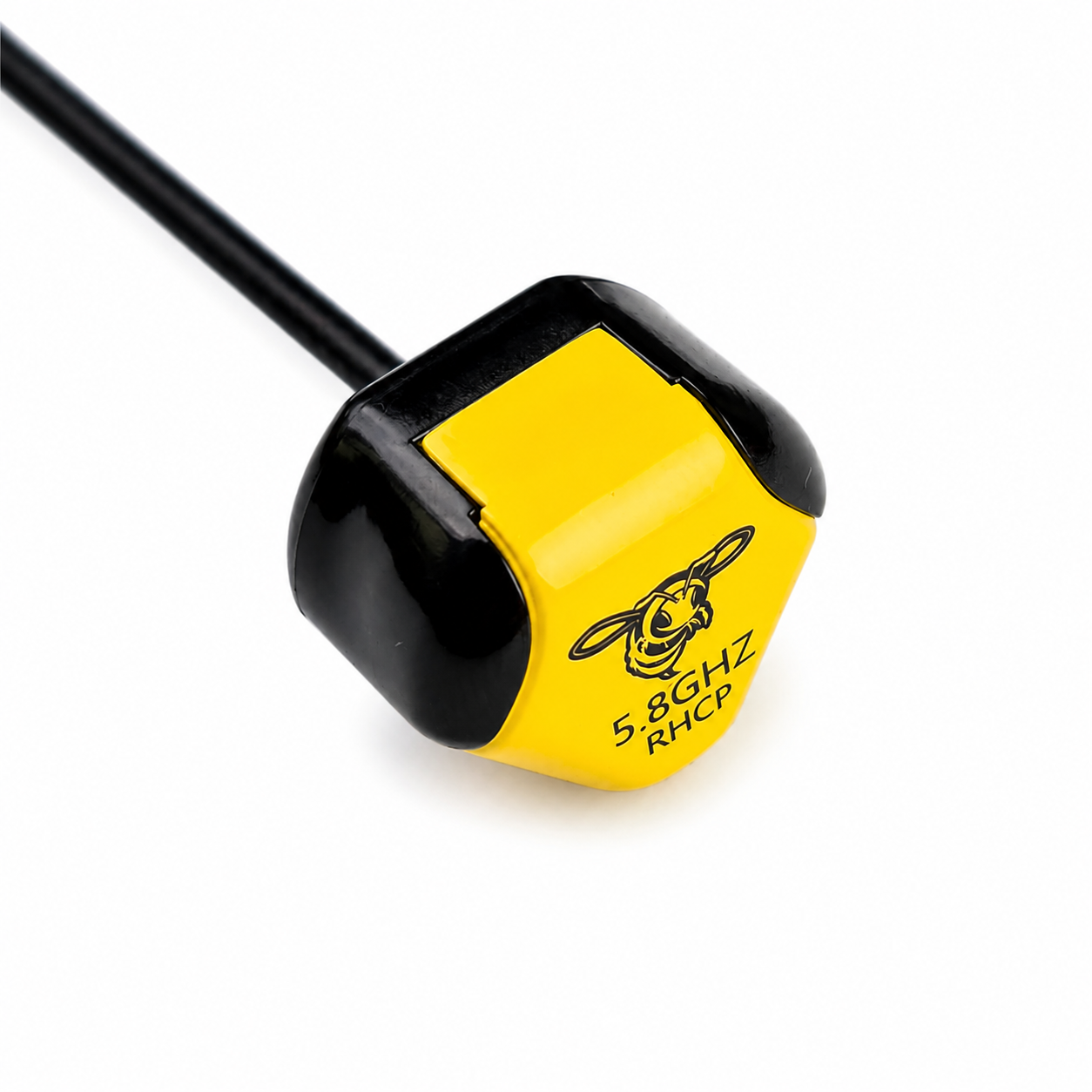

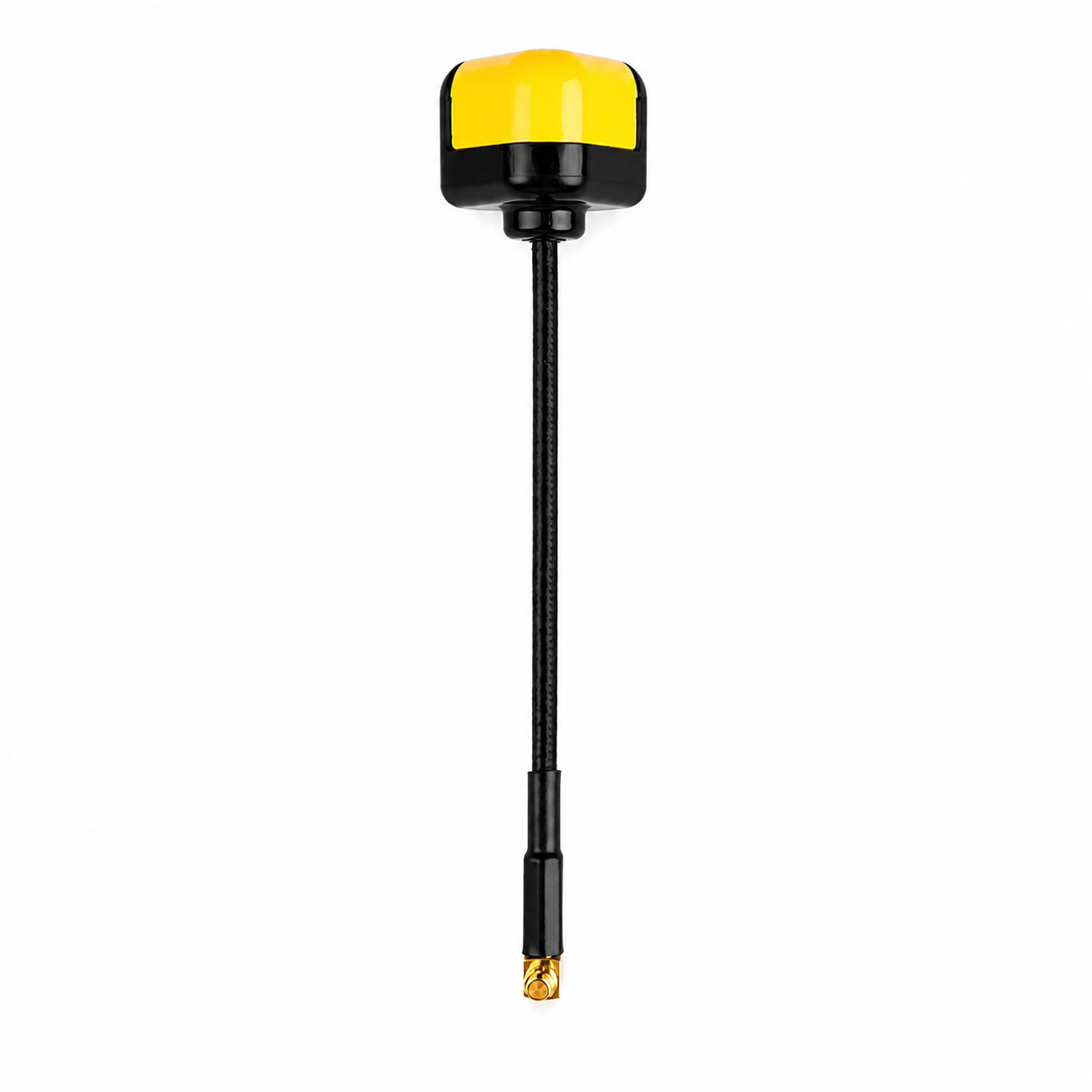

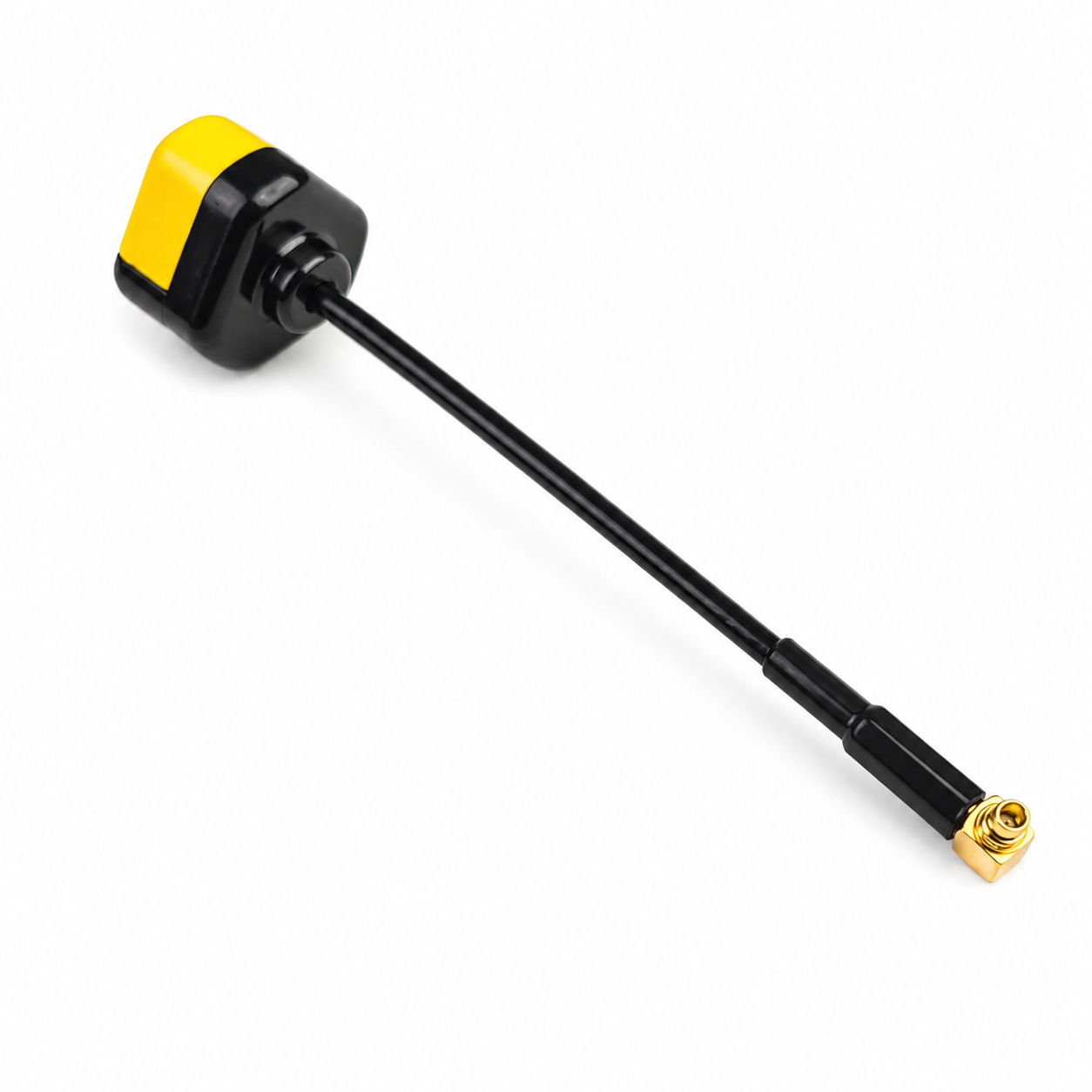

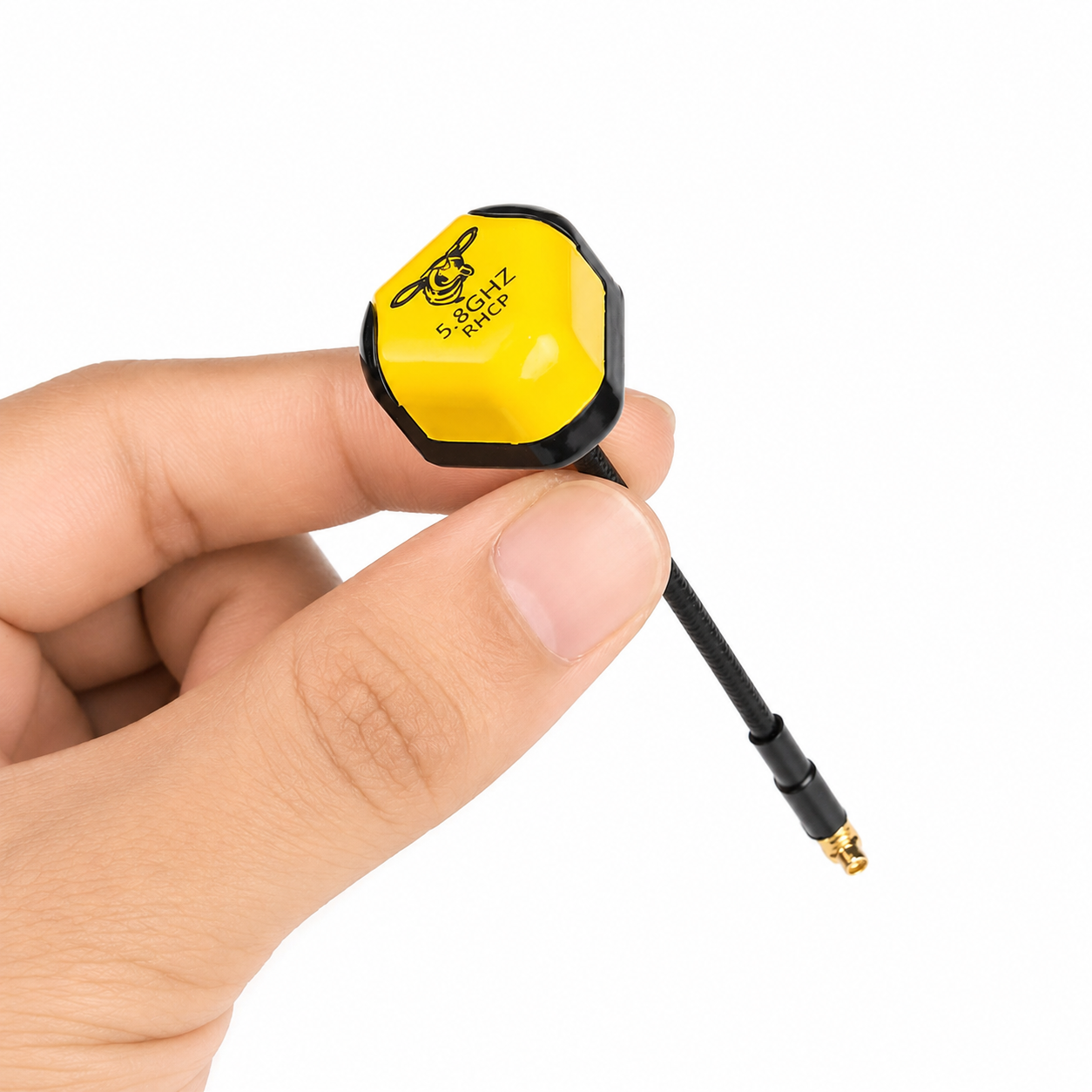

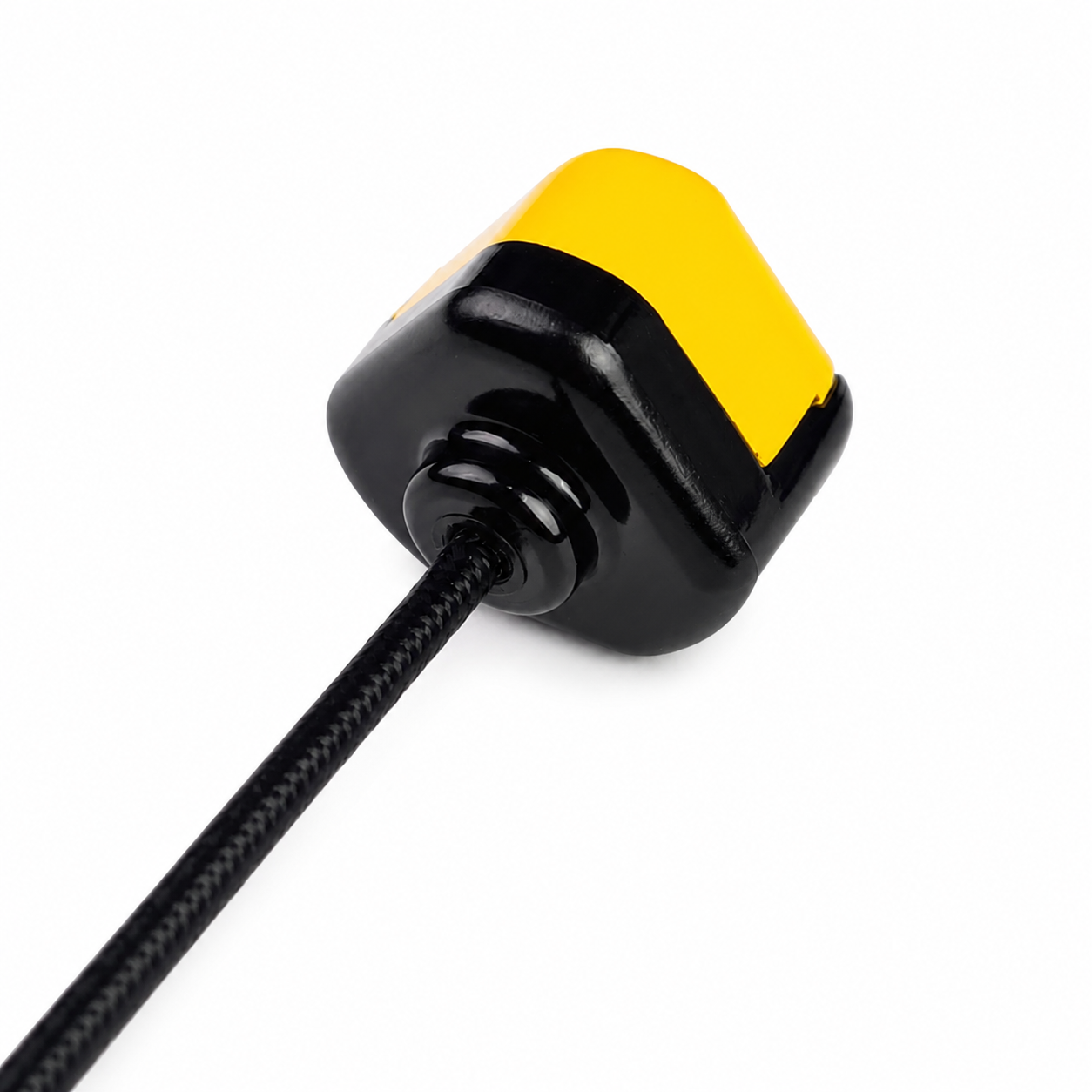

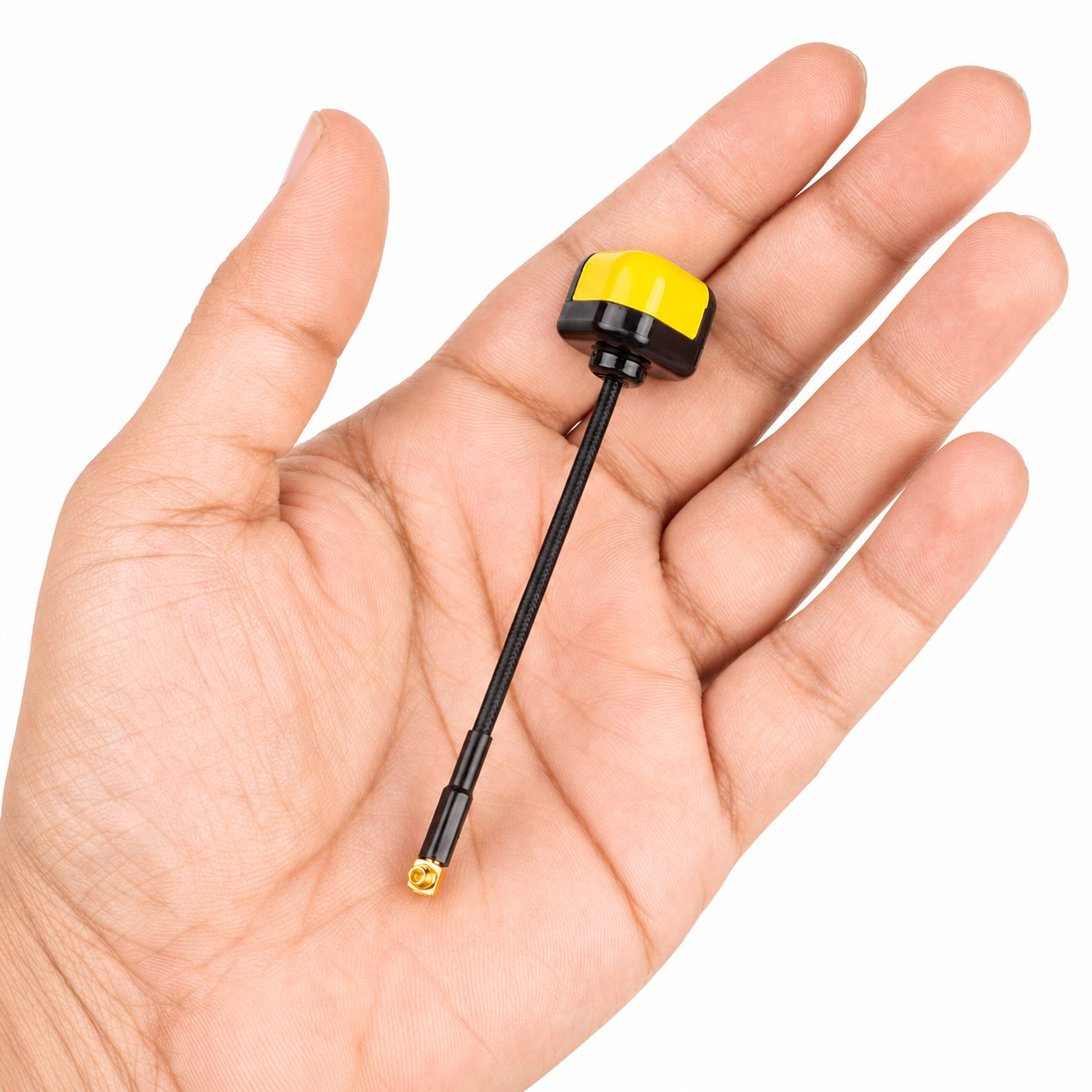

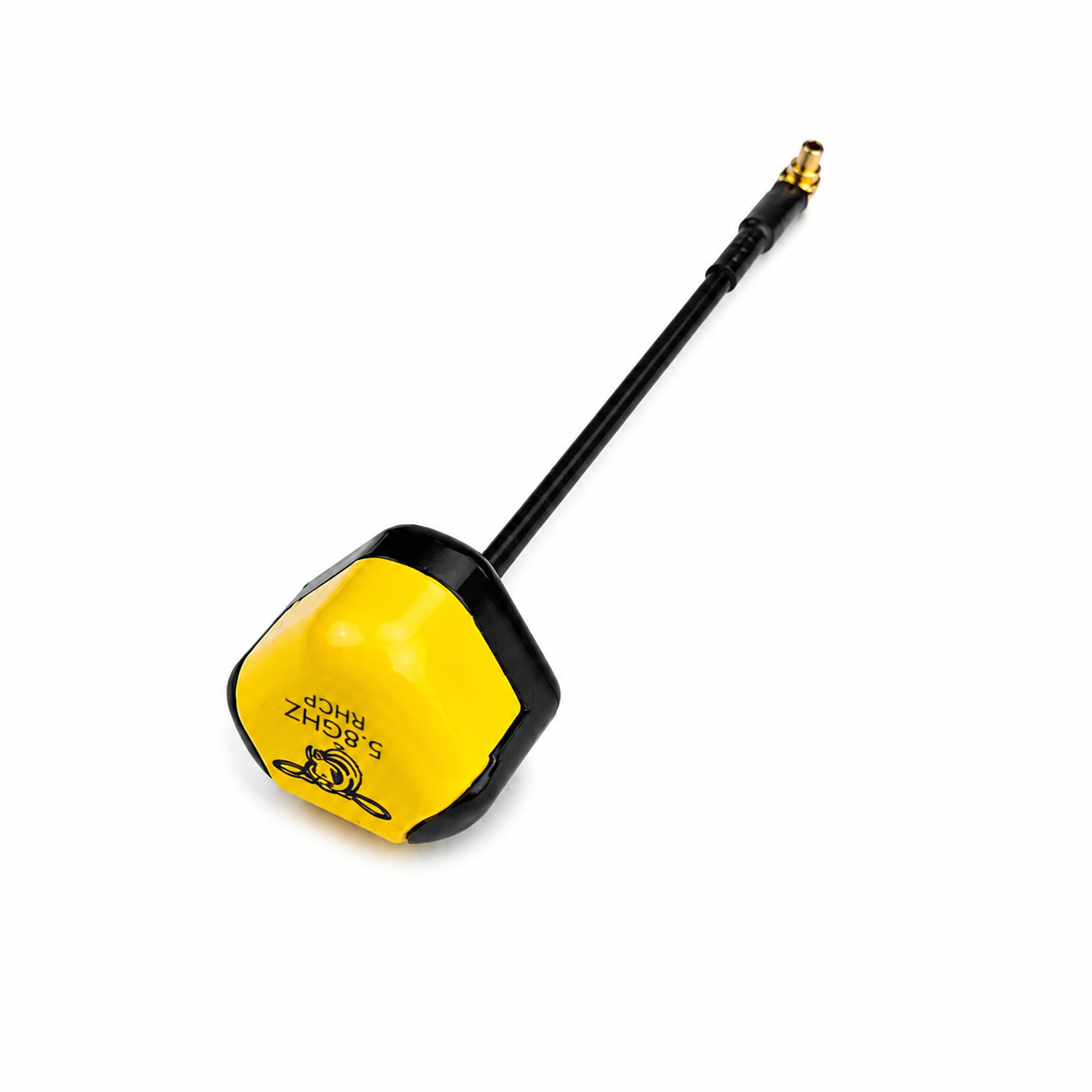

Product Name | Speedy Bee 5.8 GHz MMCX-90 Degree Antenna V2 |
Frequency | 5.8 GHz |
Polarization | RHCP (Right-Hand Circular Polarization) |
Connector Type | MMCX (90-Degree) |
Length | 50mm (including connector) |
Gain | 2.5dBi |
Radiation Pattern | Omnidirectional |
Impedance | 50 ohms |
Weight | 8g |
Application | FPV (First-Person View) for drones and quadcopters |
Durability | Improved impact resistance |
Material | Durable plastic and copper |
