Package Include:

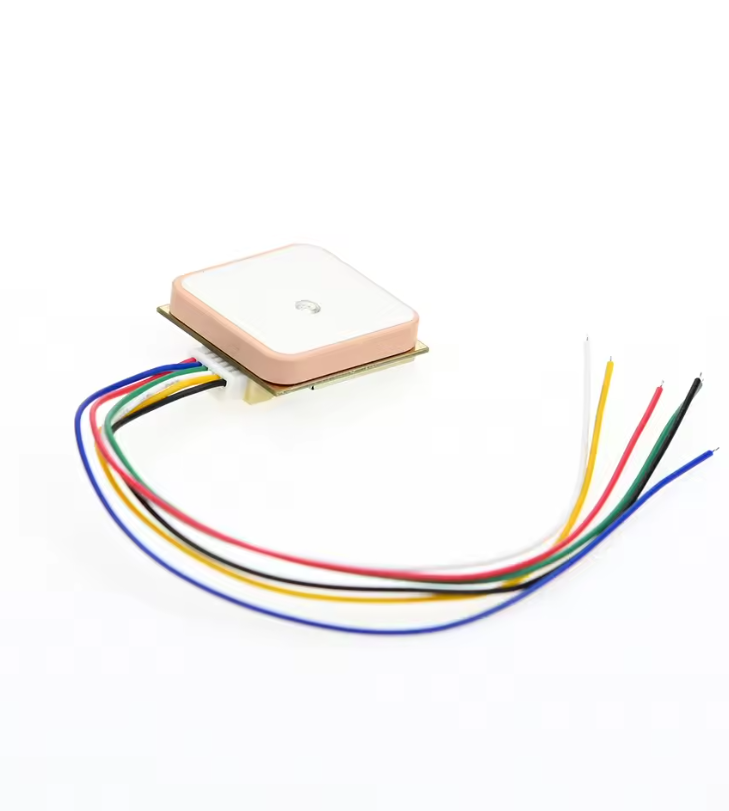

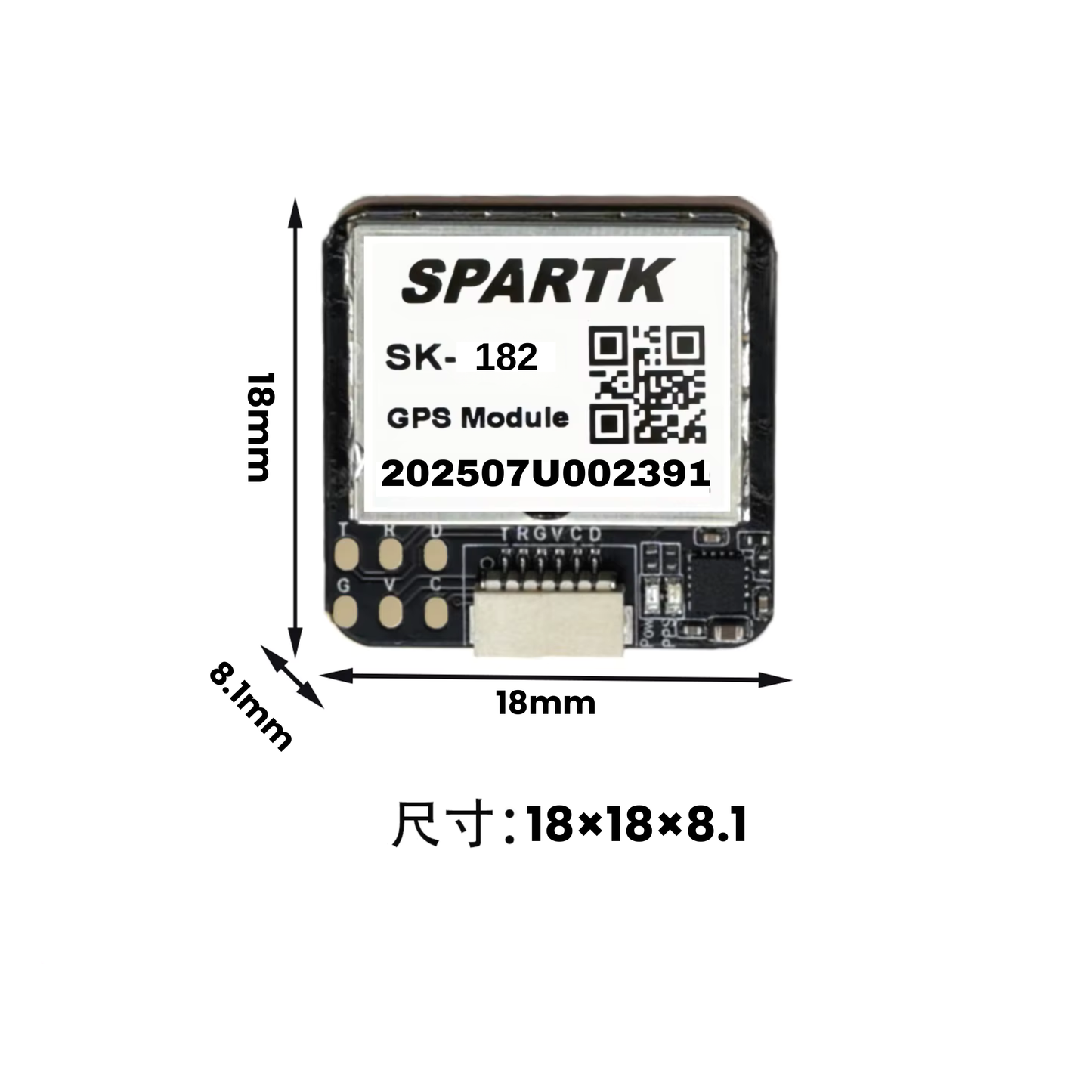

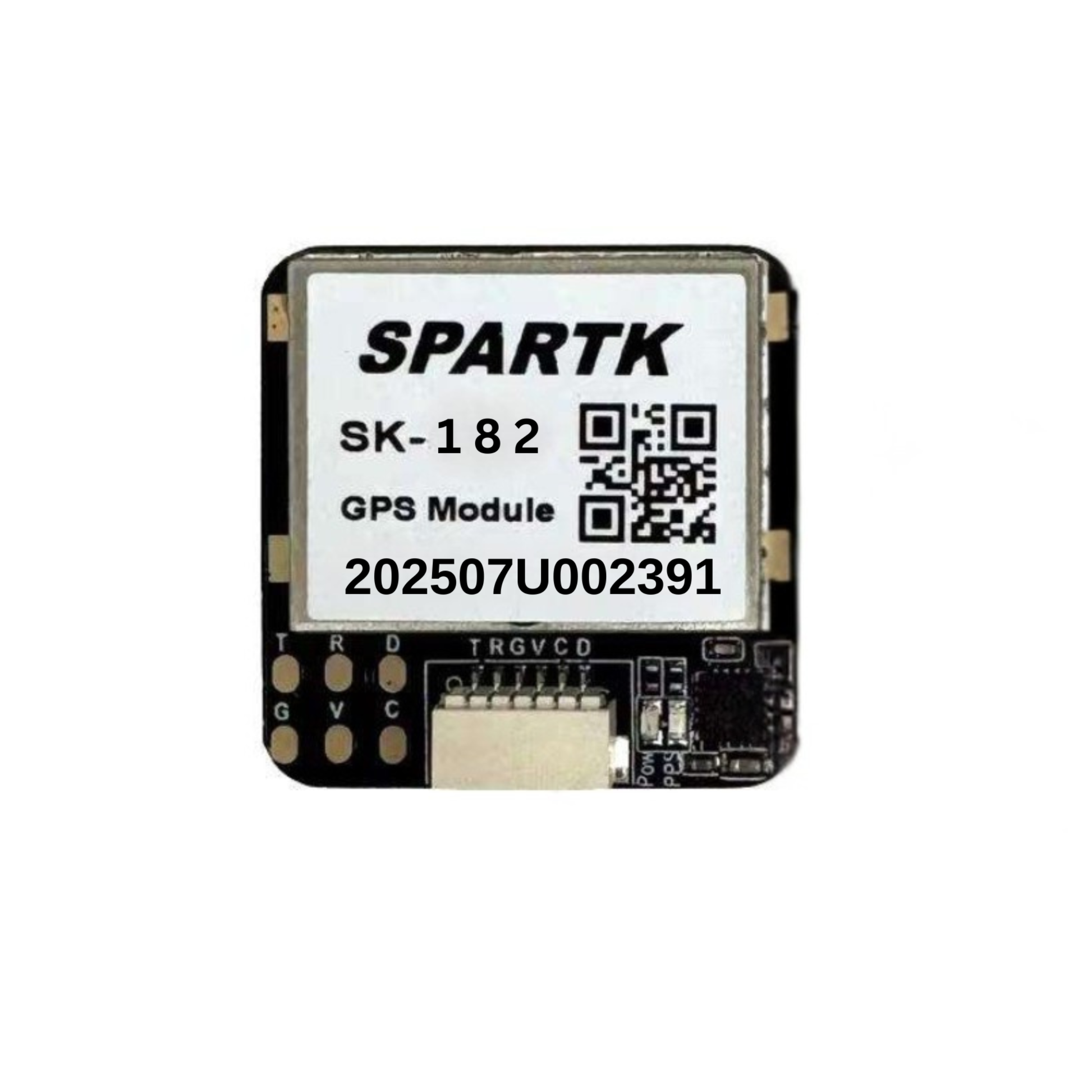

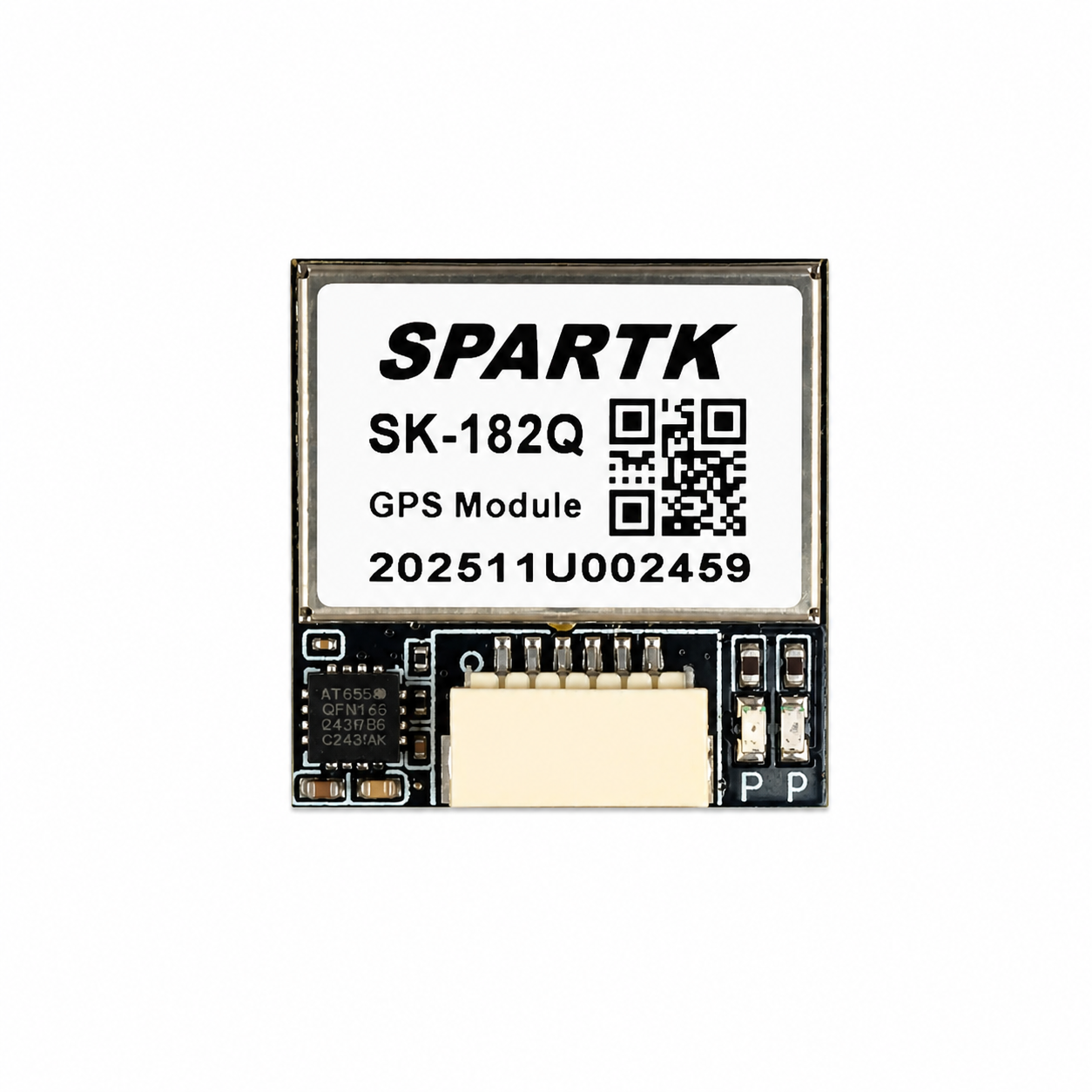

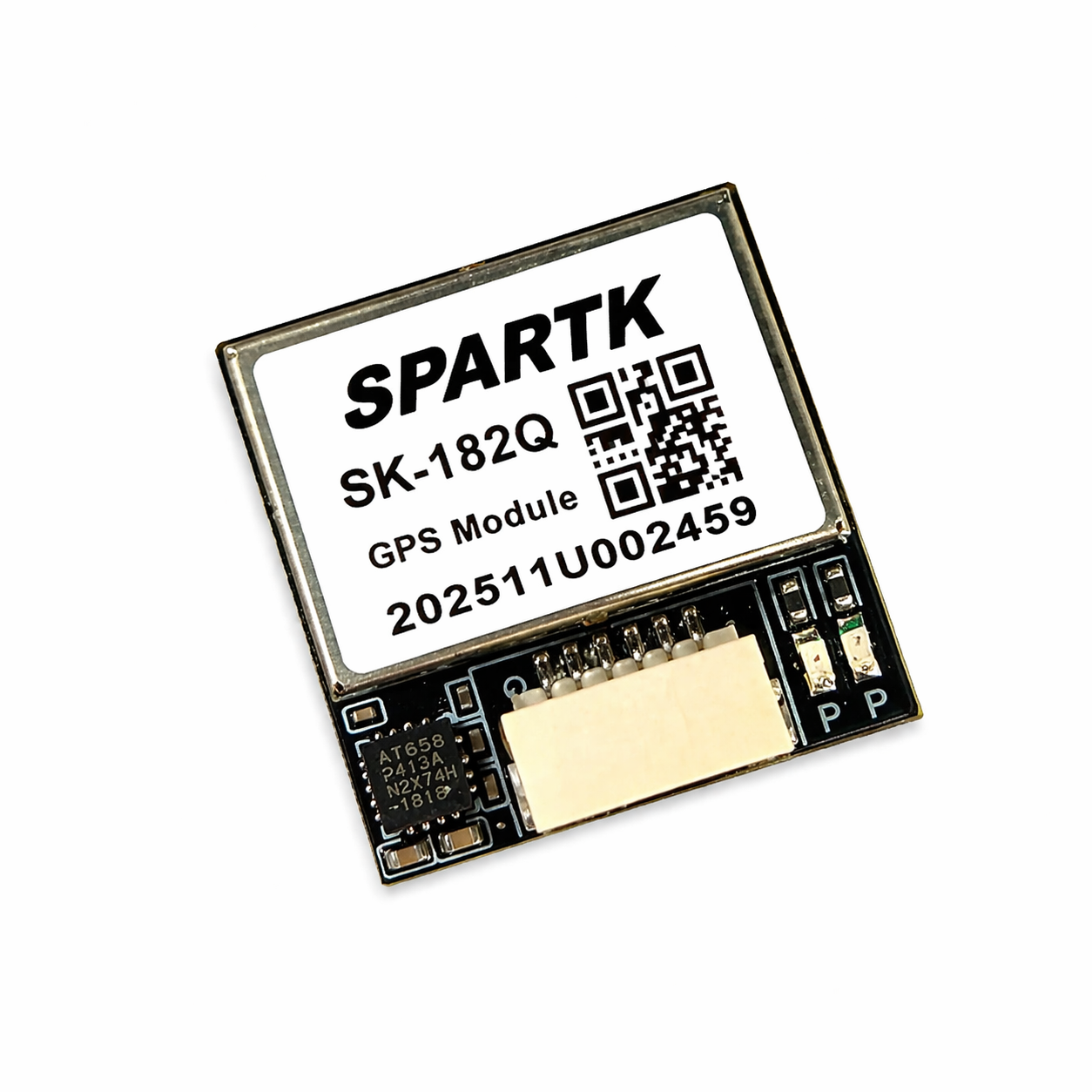

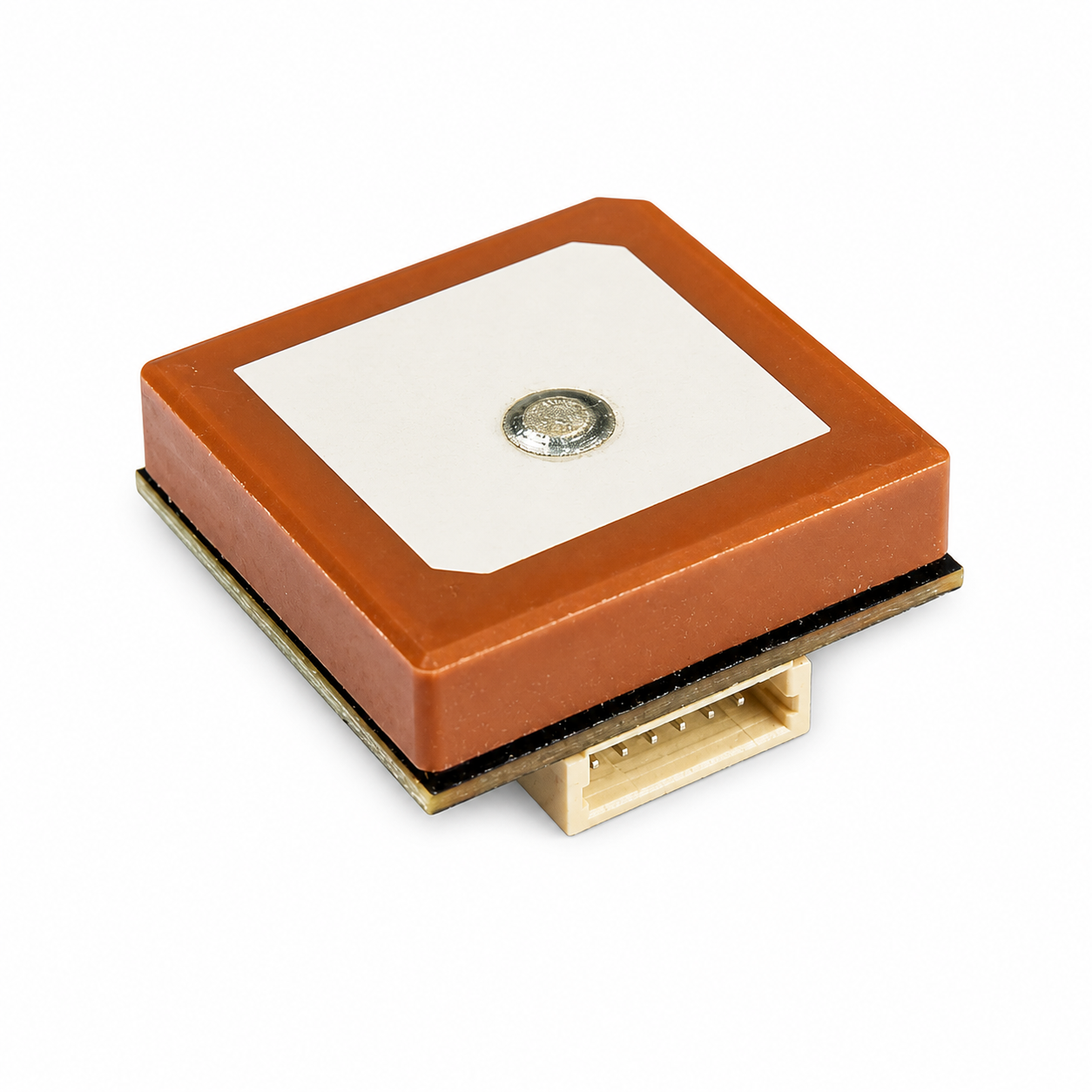

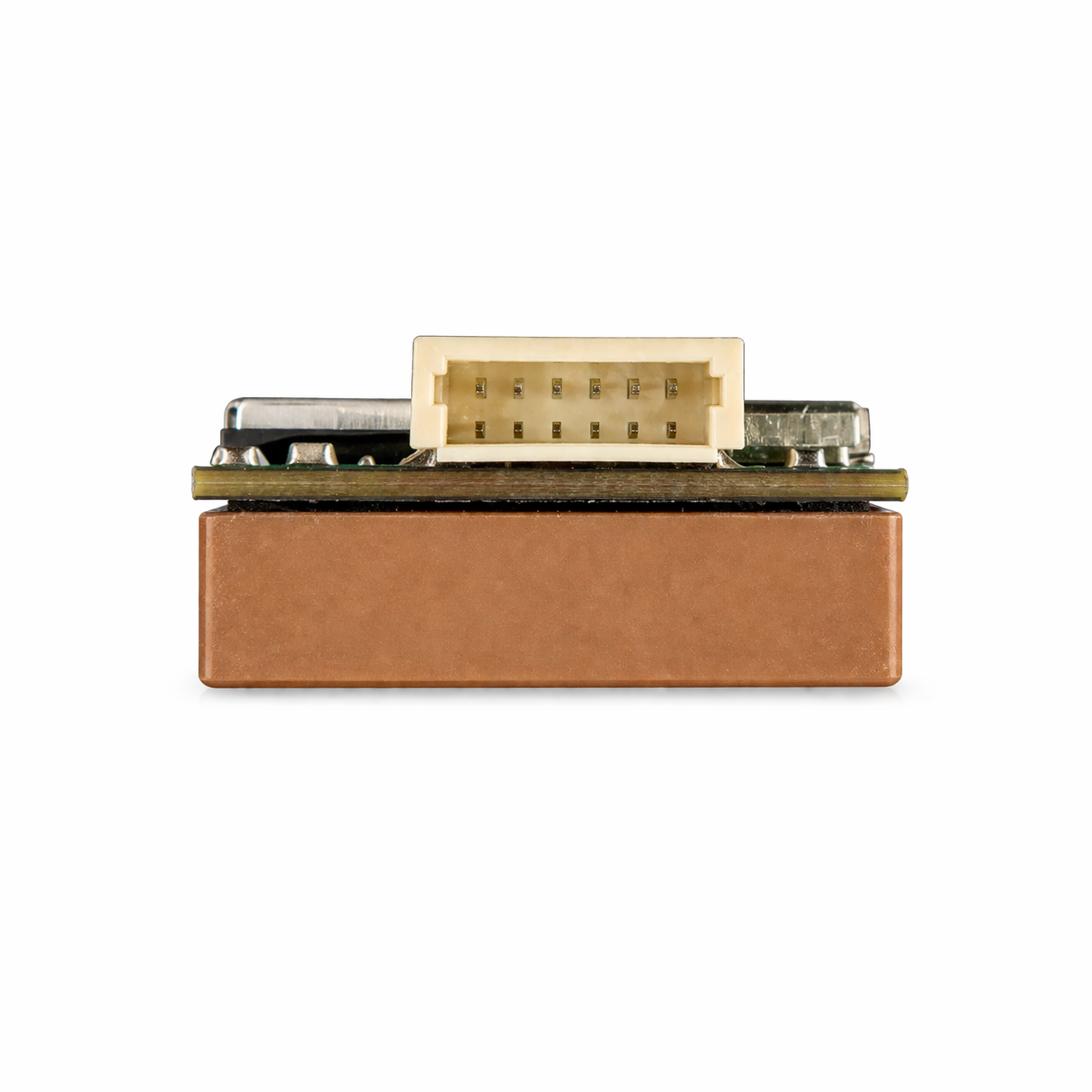

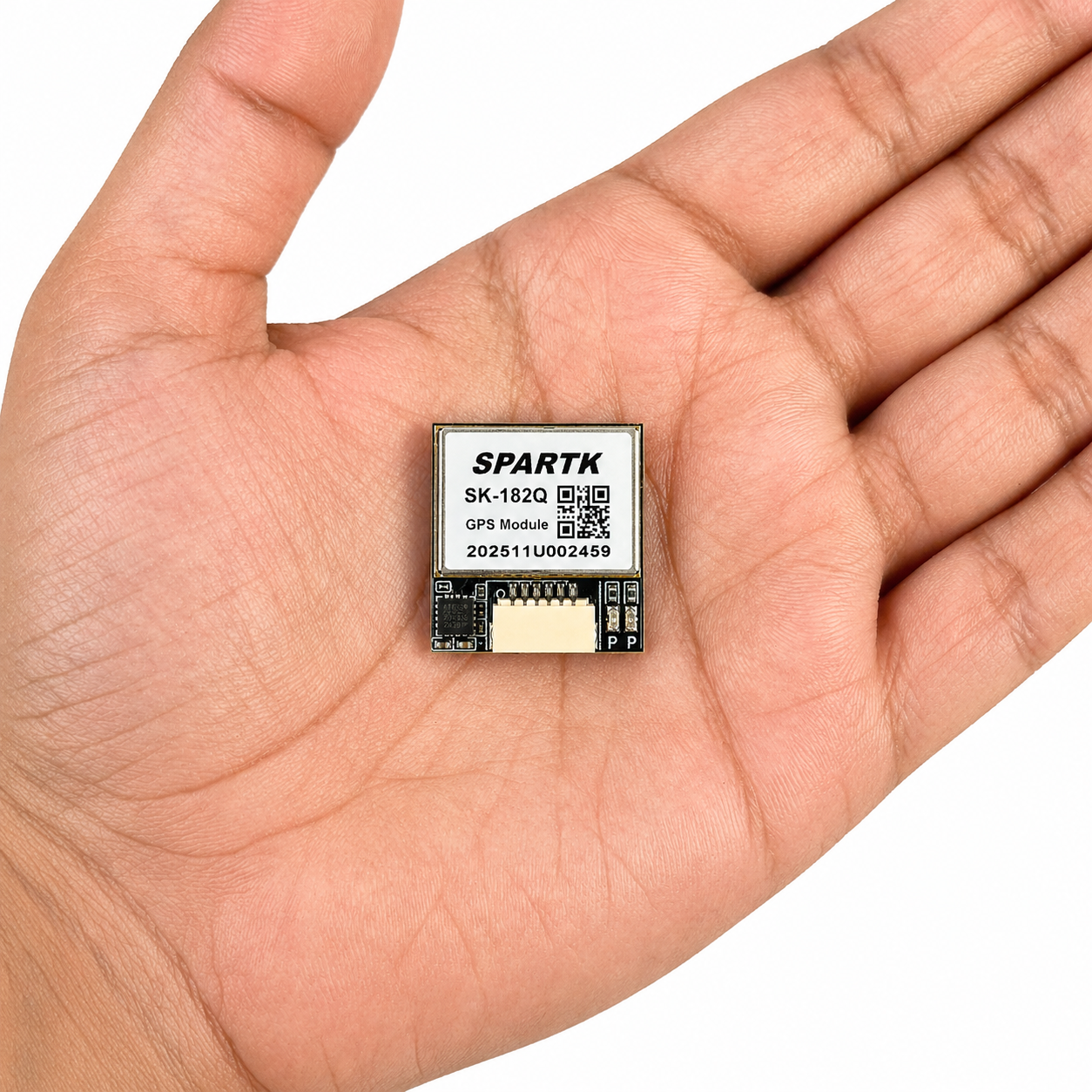

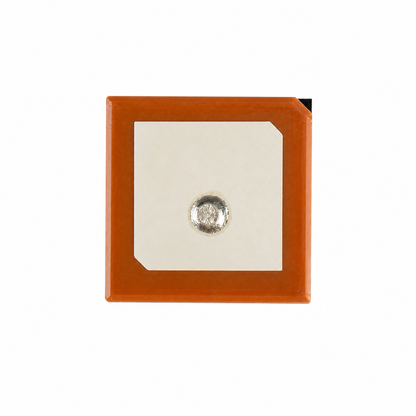

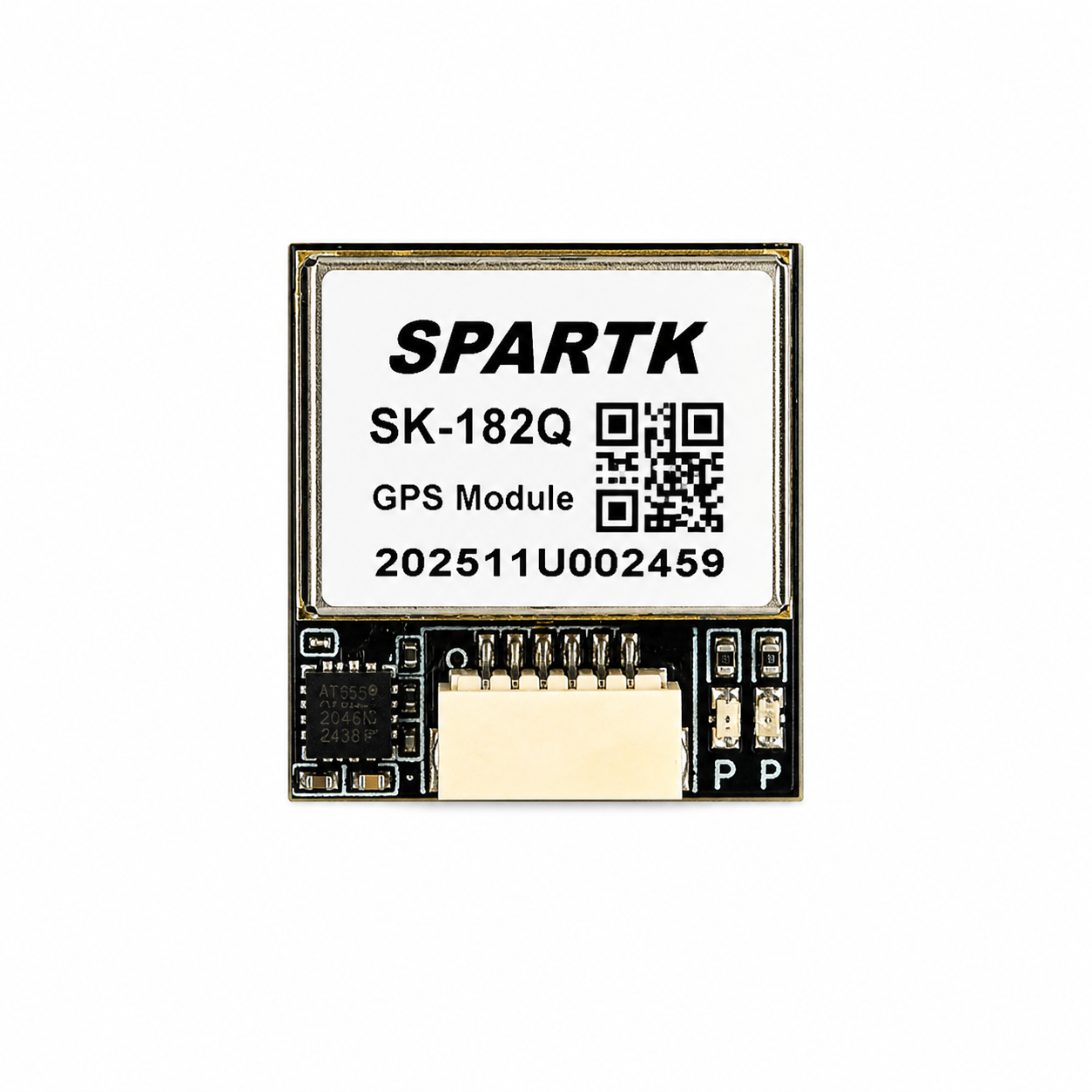

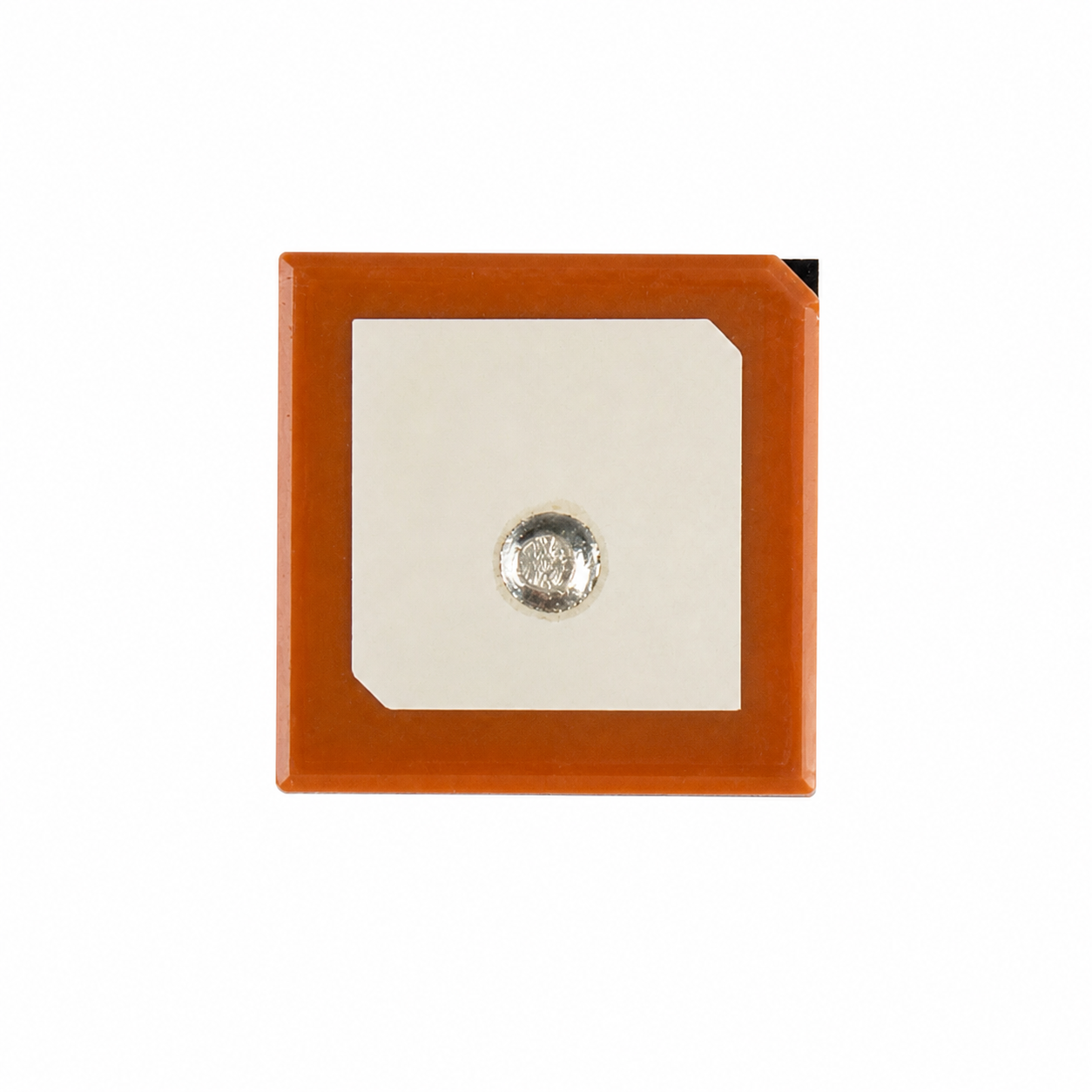

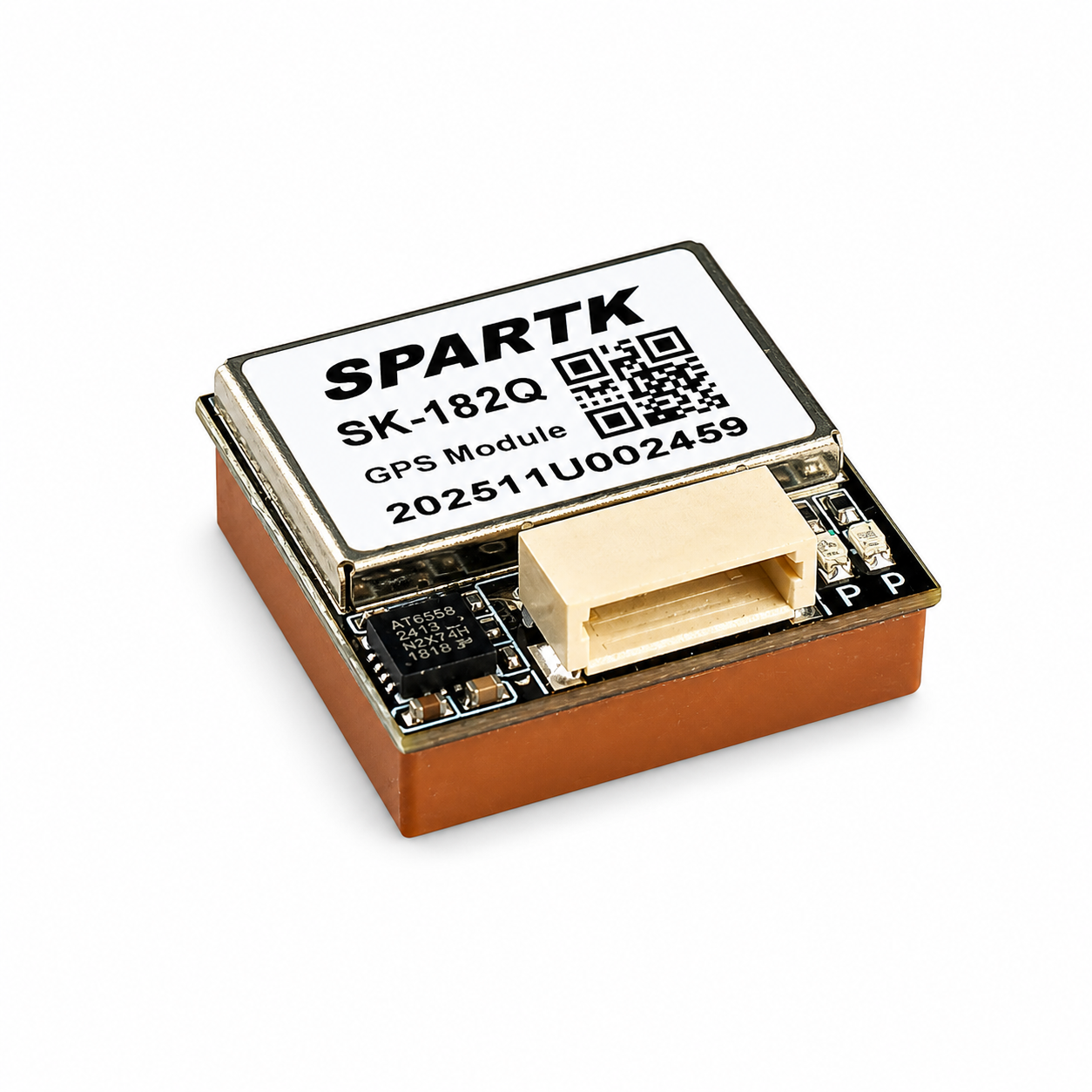

1× SPARTIK SK-182 with Compass GPS Module
| Product Specifications | |
|---|---|
| GPS Chip | 10050 |
| Frequency | BeiDou B1I/B1C; GPS L1 C/A; QZSS L1 C/A/S; GLONASS L1OF; Galileo E1B/C; SBAS L1 C/A (WAAS, EGNOS, MSAS, GAGAN) |
| Baud Rate | 4800bps – 921600bps (Default: 38400bps) |
| Sensitivity | Track: -167 dBm Capture: -160 dBm Cold Start: -148 dBm |
| Startup Time | Cold Start: 26s Warm Start: 24s Hot Start: 1s |
| Accuracy | Horizontal: 1.5m CEP Time Accuracy: 30ns |
| Output Level | TTL Level |
| Output Protocol | NMEA 0183 Standard Protocol (configurable output statements) |
| Update Frequency | 1Hz – 10Hz (Default: 1Hz) |
| Voltage | DC 3.3V – 5V (Typical: 5V) |
| Current | Approx. 40mA (Normal operation) |
| Compass Chip | QMC5883L |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 105°C |
