Package Include:

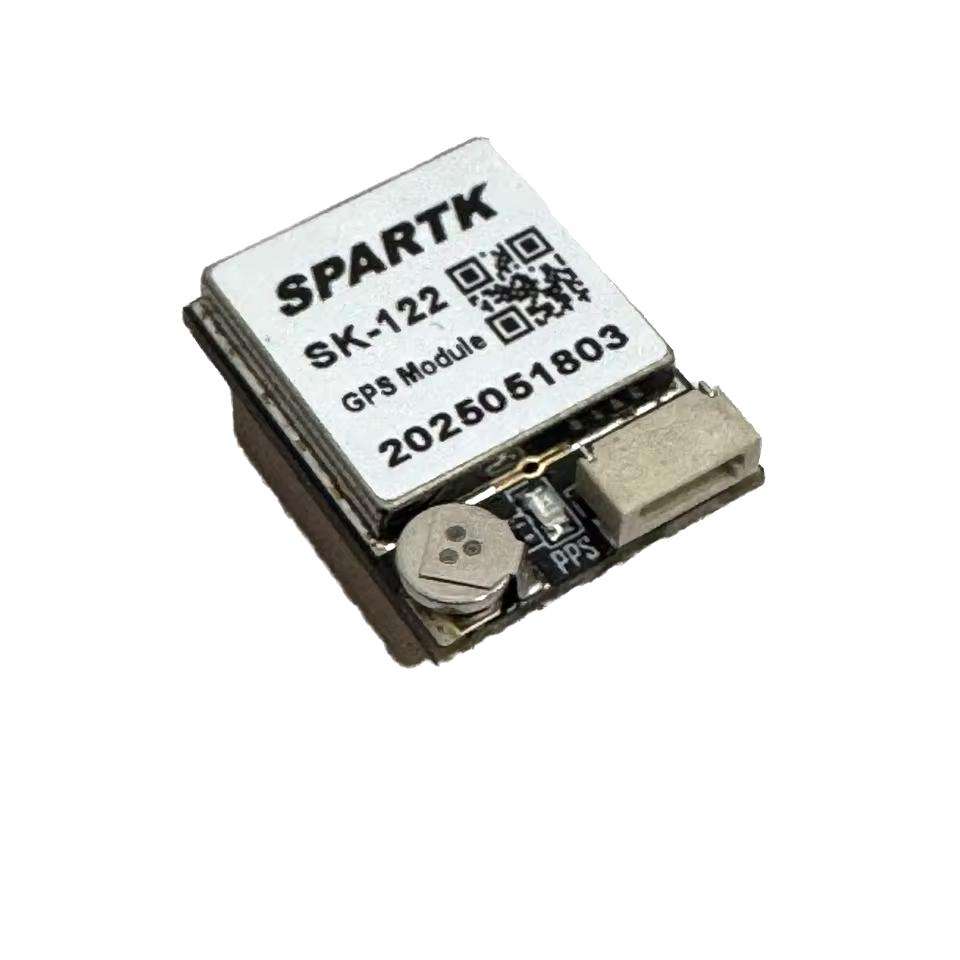

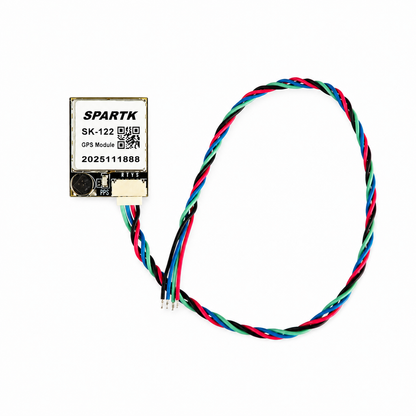

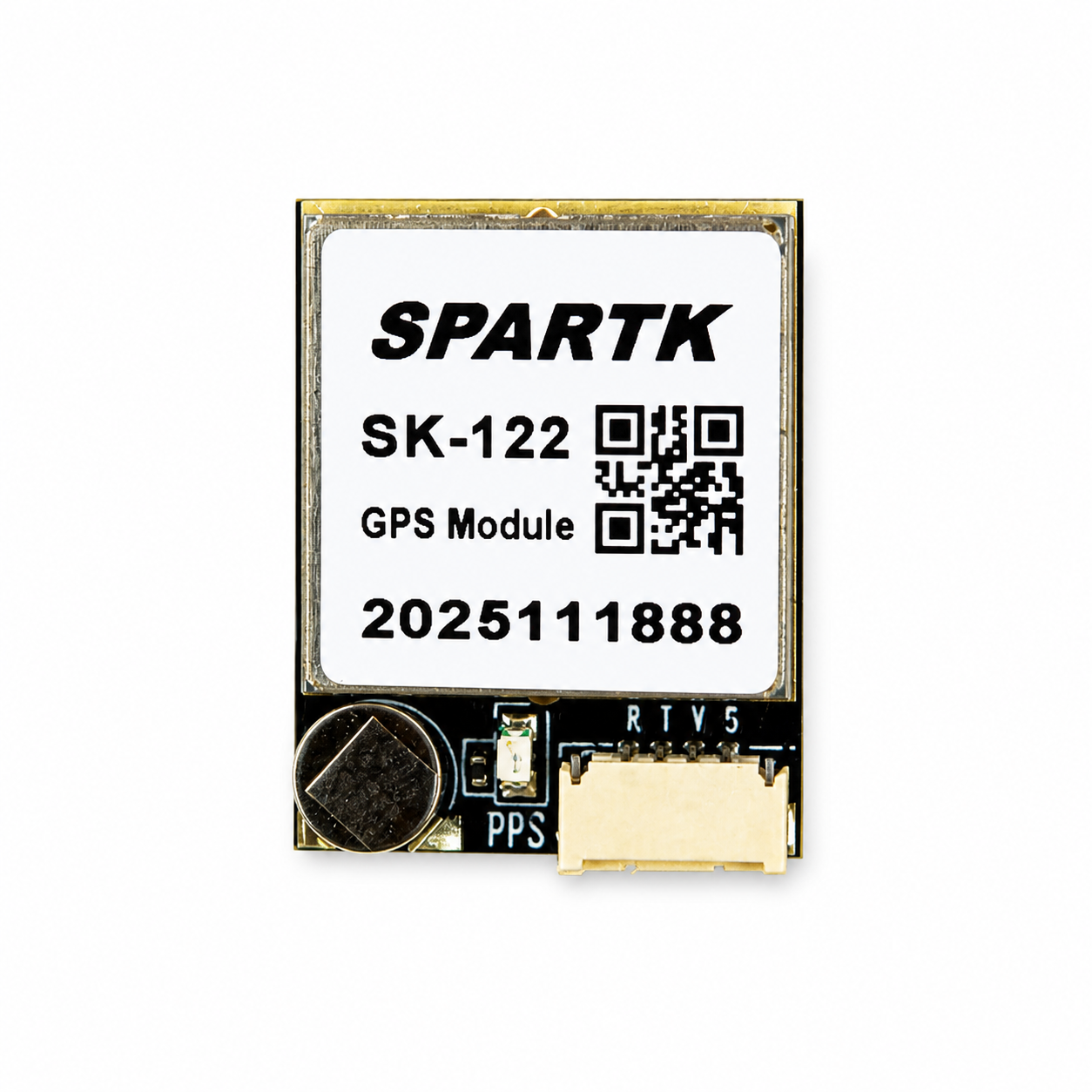

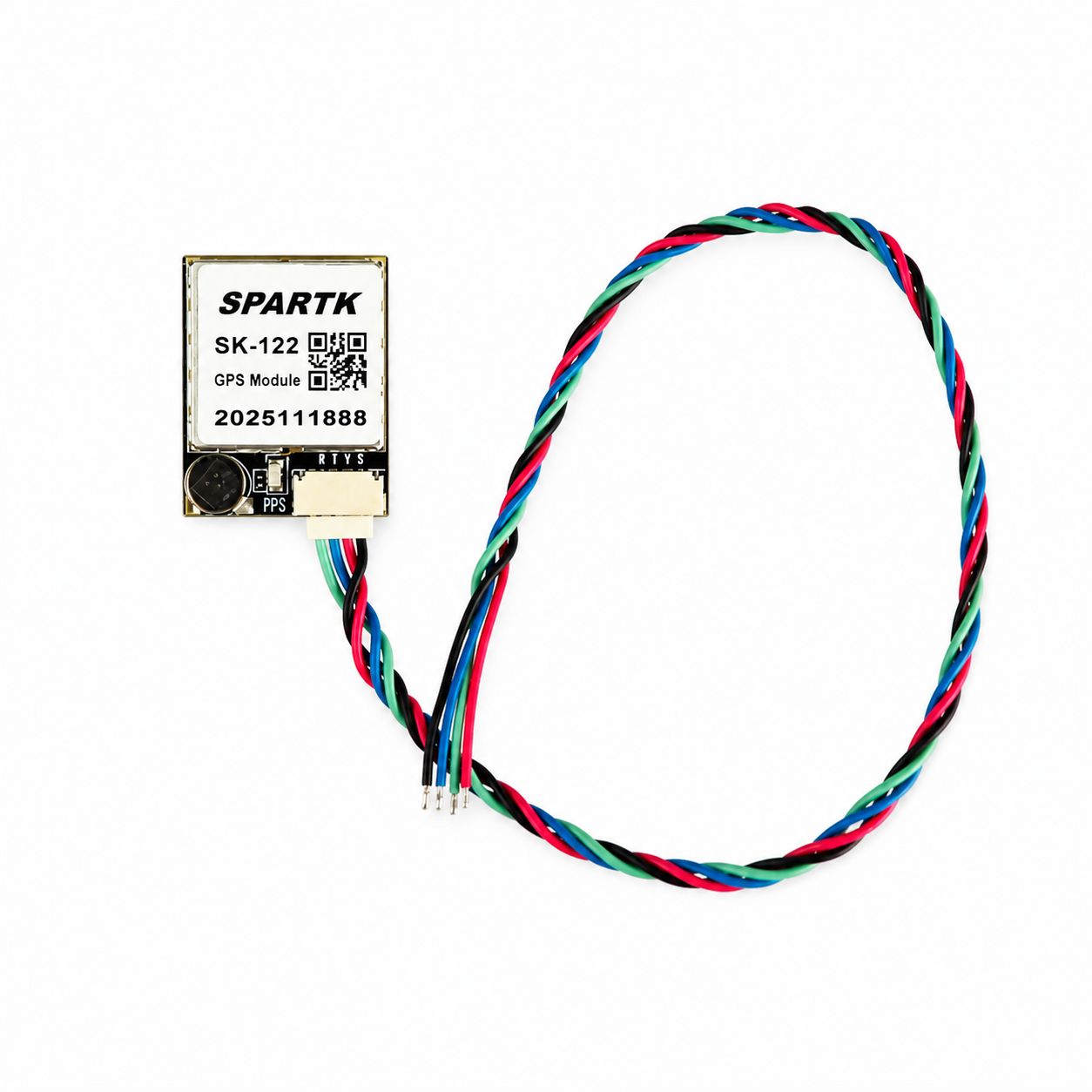

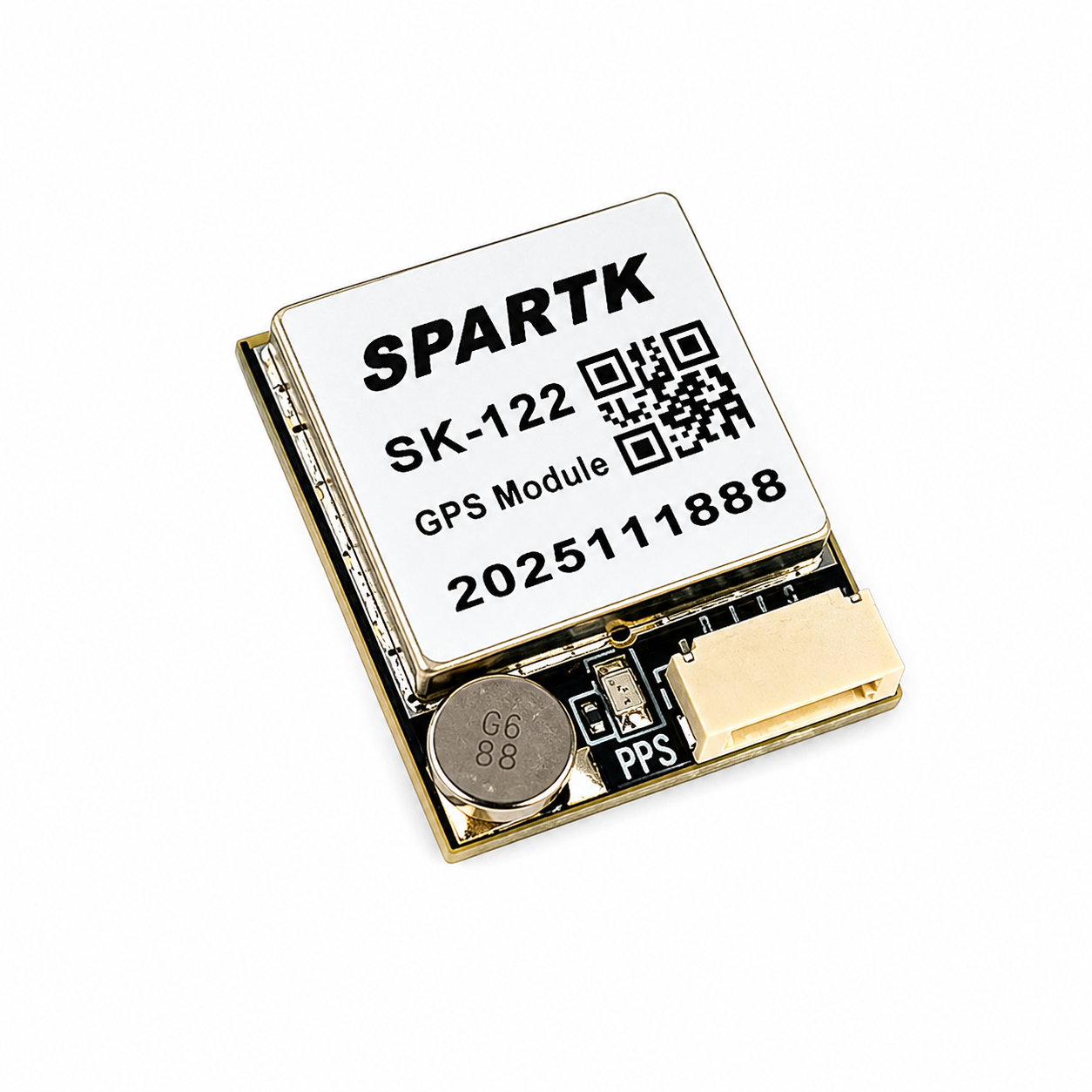

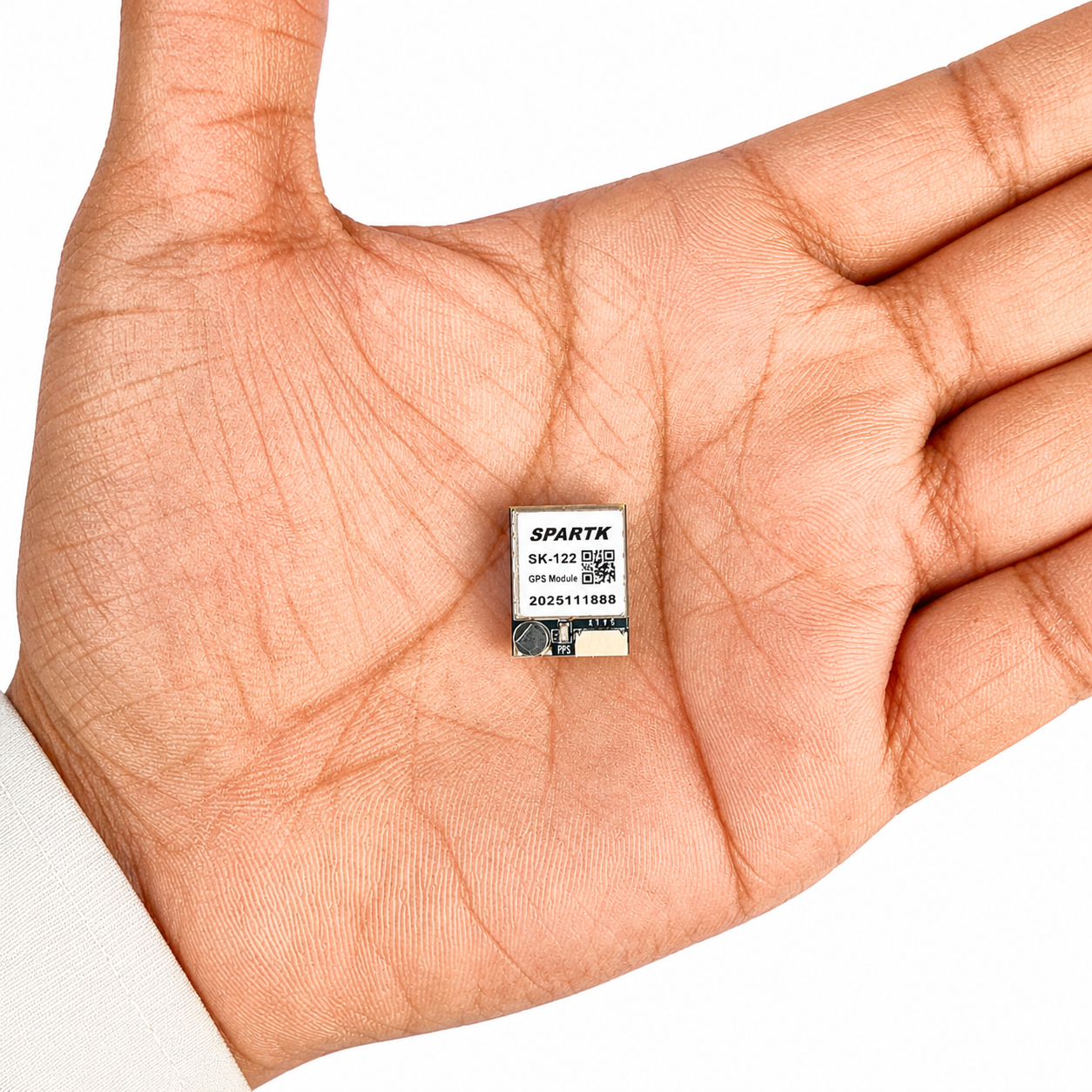

1× SPARTIK SK-122 Compact GPS Module (Without Compass)
| SPARTK SK-122 GPS Module – Product Specifications | |
|---|---|

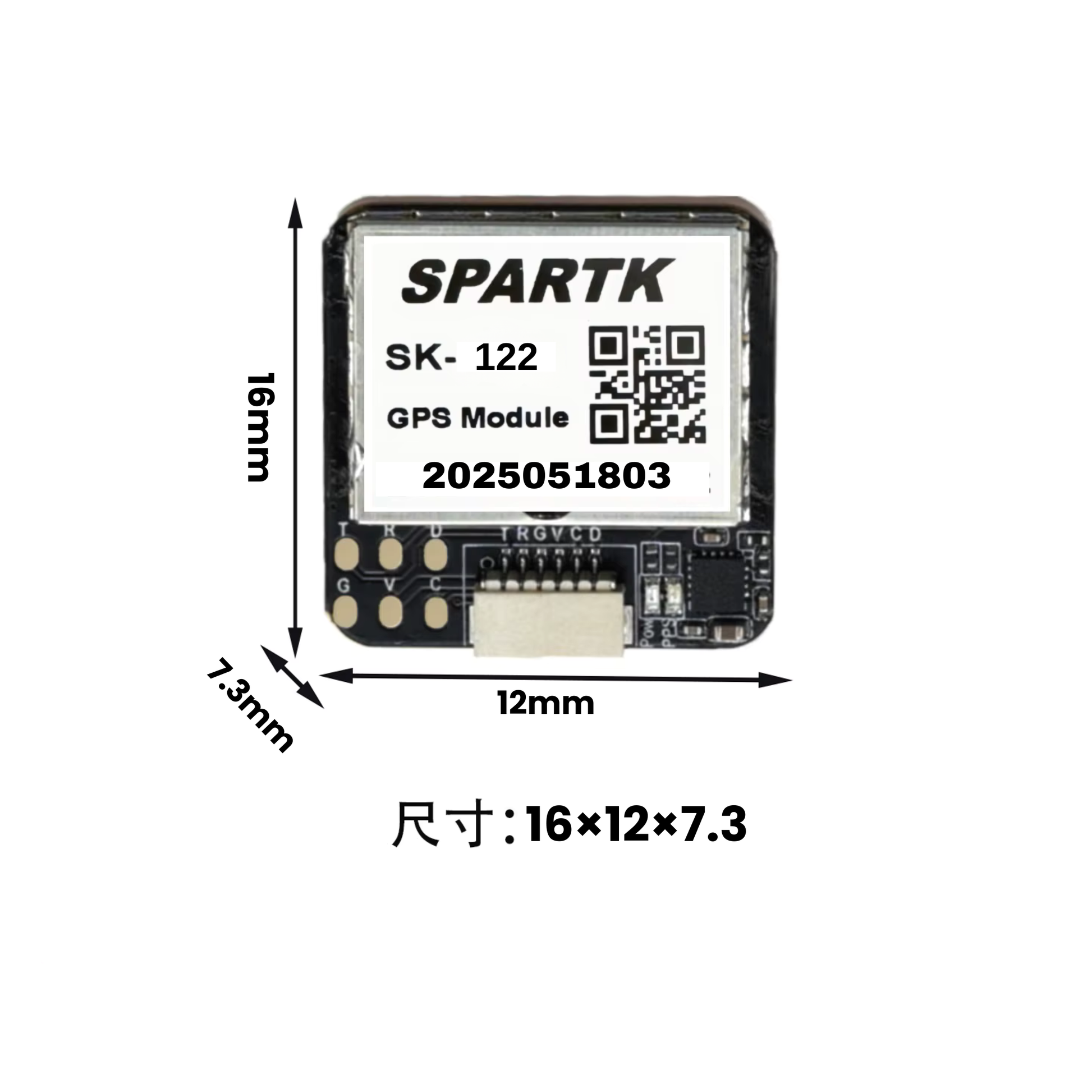

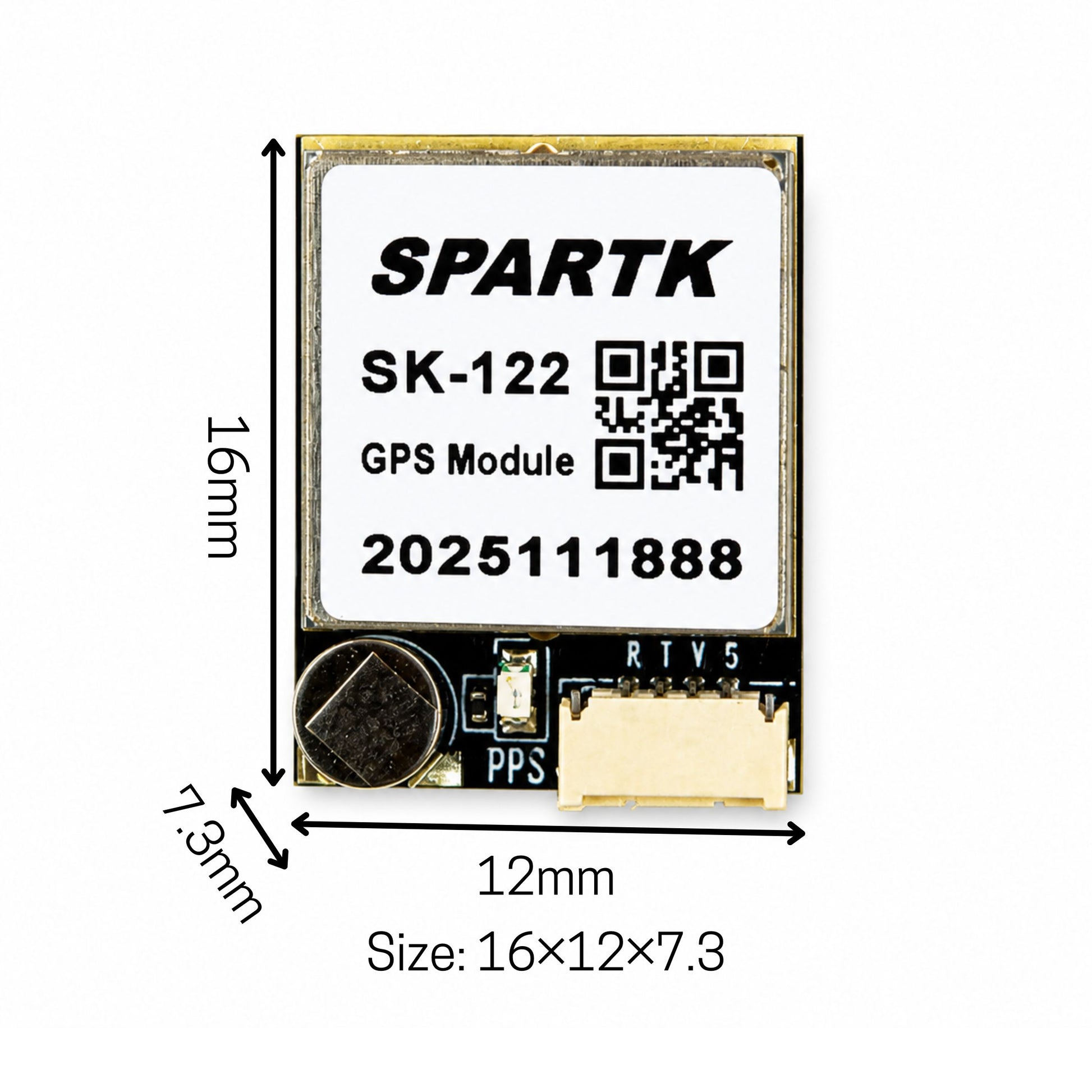

| Model | SPARTK SK-122 (Compact 12×12 mm) |
| GPS Chip | 10050 |
| Frequency Bands | BeiDou B1I/B1C GPS L1 C/A QZSS L1 C/A/S GLONASS L1OF Galileo E1B/C SBAS L1 C/A (WAAS, EGNOS, MSAS, GAGAN) |
| Baud Rate | 4800 – 921600 bps (Default: 38400 bps) |
| Sensitivity | Track: –167 dBm Capture: –160 dBm Cold Start: –148 dBm |
| Startup Time | Cold Start: 26s Warm Start: 24s Hot Start: 1s |
| Accuracy | Horizontal: 1.5m CEP Time Accuracy: 30ns |
| Output Level | TTL Level |
| Protocol | NMEA 0183 Standard (Configurable) |
| Update Rate | 1 Hz – 10 Hz (Default: 1 Hz) |
| Voltage | DC 3.3V – 5V (Typical: 5V) |
| Current Consumption | Approx. 40mA |
| Operating Temperature | –40°C to 85°C |
| Storage Temperature | –40°C to 105°C |
