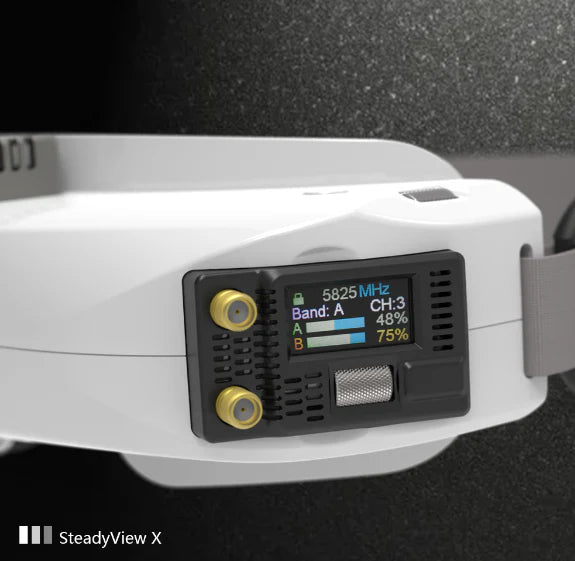

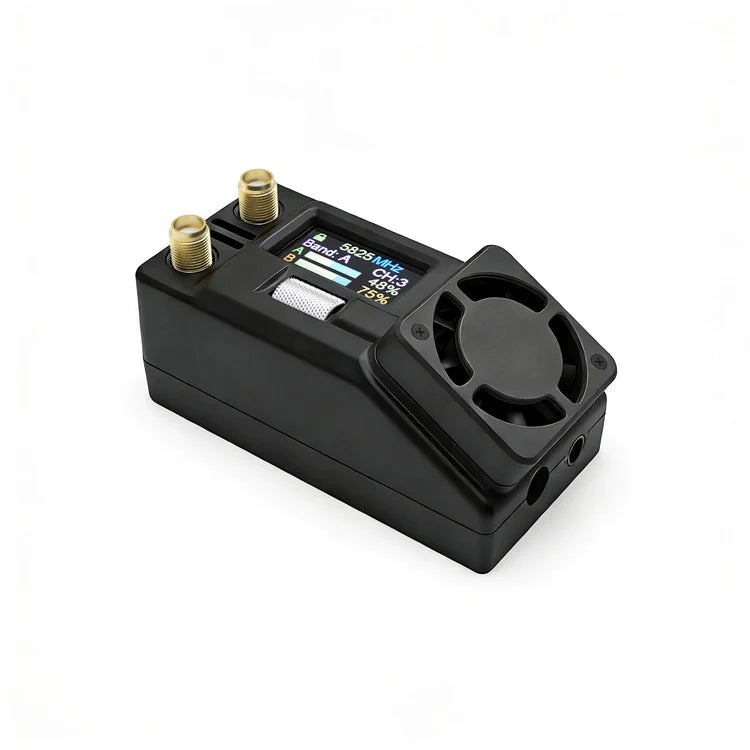

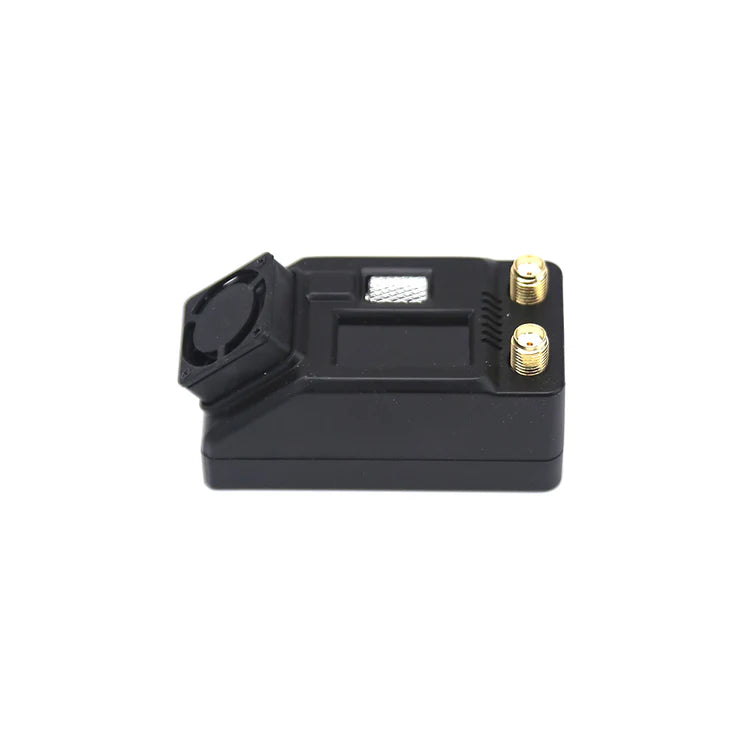

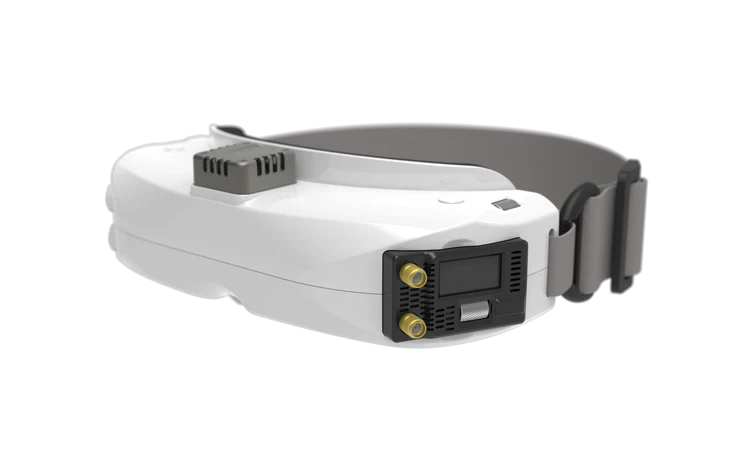

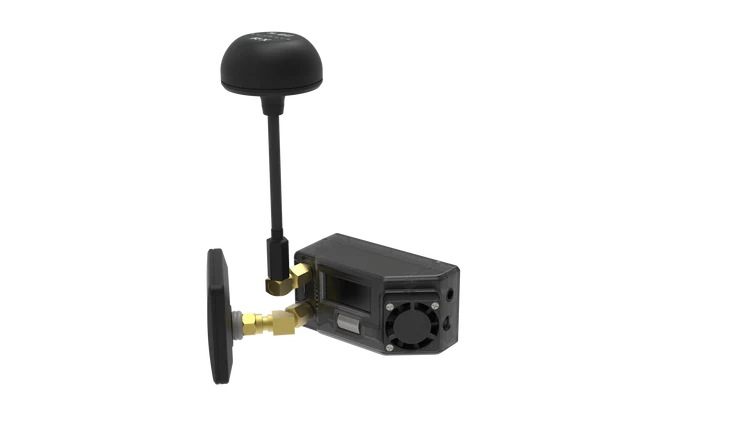

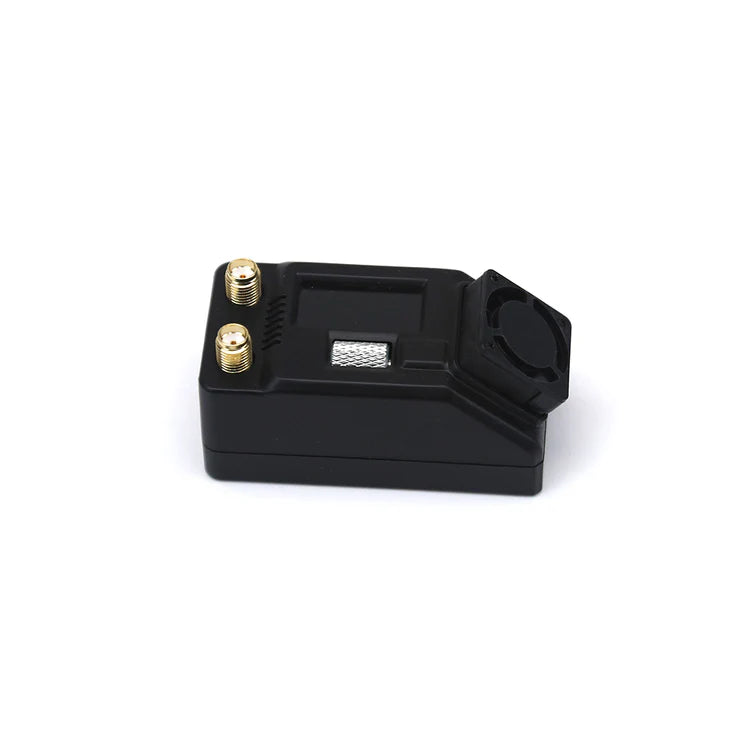

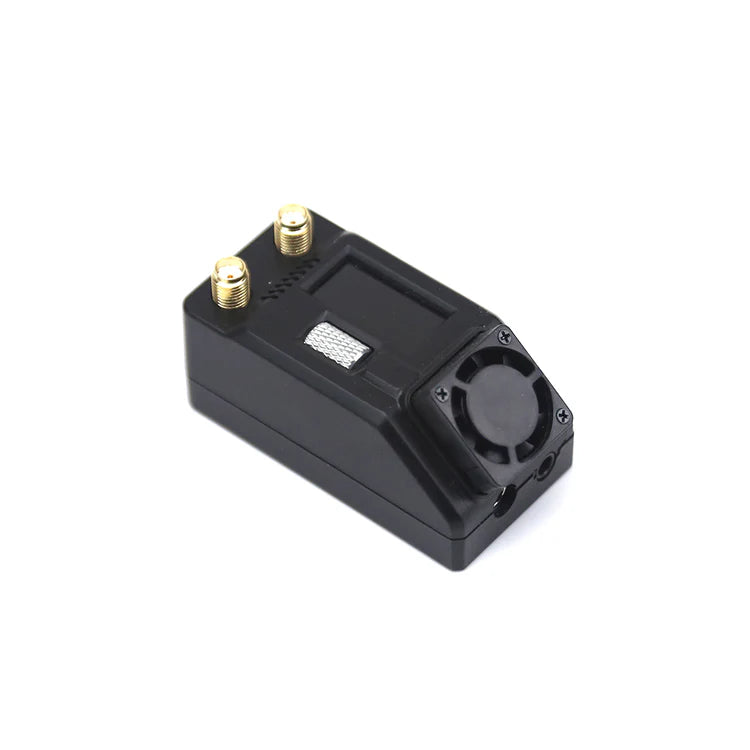

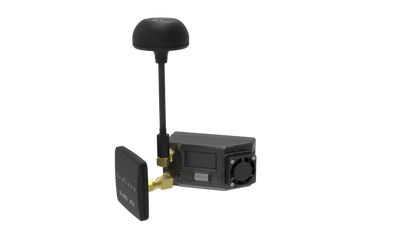

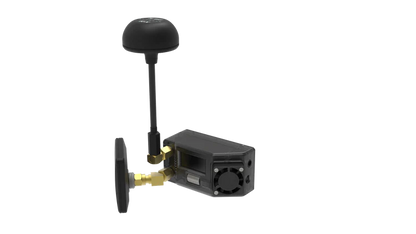

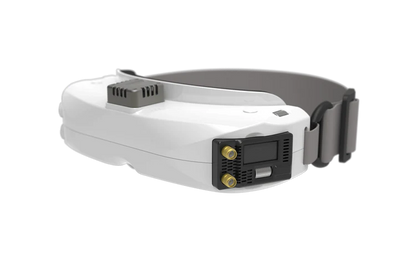

Steadyview X Screen receiver is the upgrade V3.3 version of steadyview receiver, the receiver merges two signals into one, avoid image tearing and rolling in the multi-path environment, and make the image more stable and clear in challenging condition. The RX has an IPS screen and shuttle wheel, use can the shuttle wheel to set the RX. The SteadyView XΒ stvx5gΒ receiver has ground station KIT, user can use it on any monitor or goggles which have an AV IN port. Also, the steadyview X have an ELRS backpack build in, user can use the ELRS TX backpack and Lua script to synchronize the VTX and VRX. It supportsΒ diversity.
The Steadyview X 5G version support X band, also work with 5.8G, but sensitivity may less 1 or 2 db, but the stock 5.8G didnt support 5G(X Band)

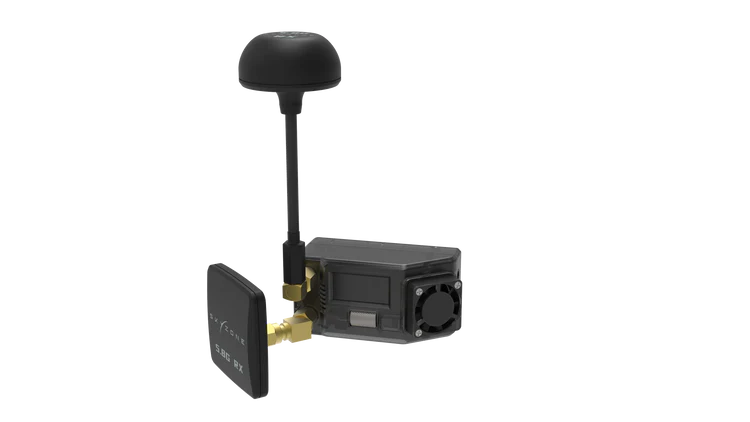

The "patch antenna" in the kit is RHCP.
Features:
IPS Screen

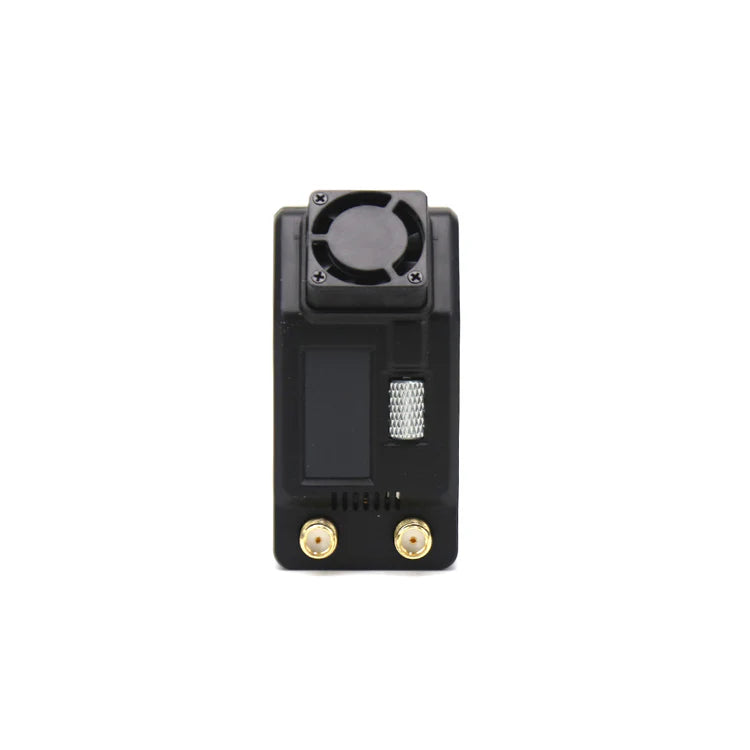

Shuttle Wheel control

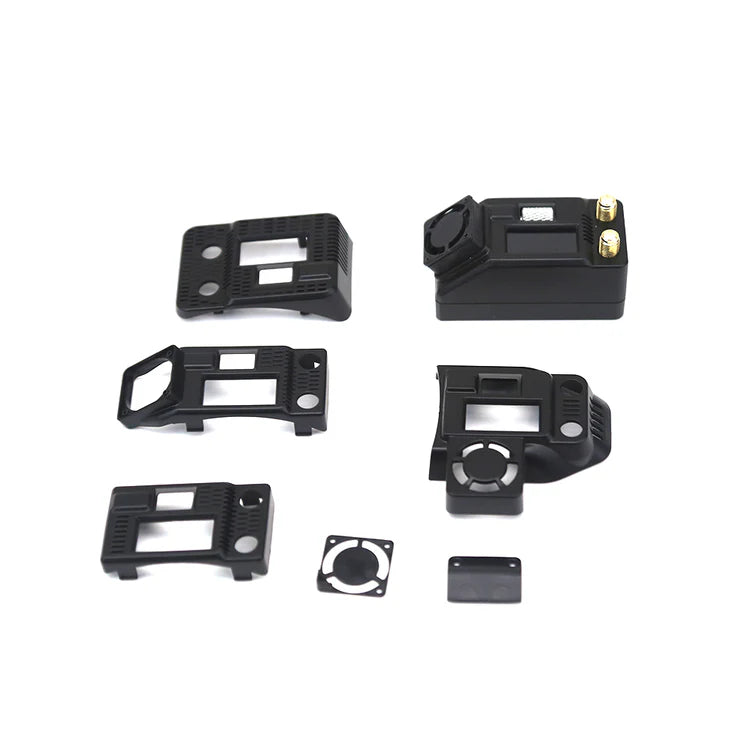

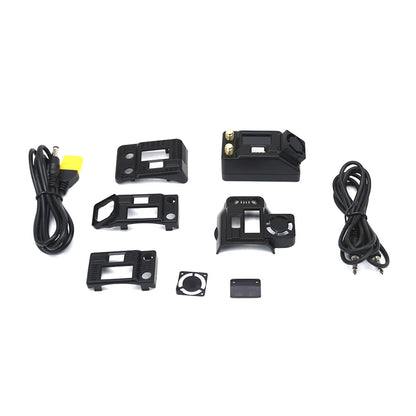

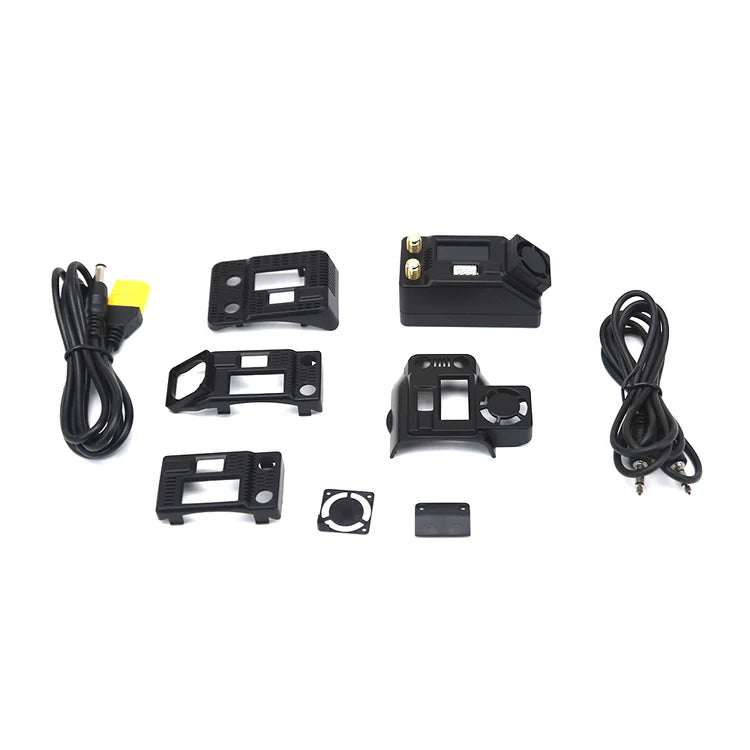

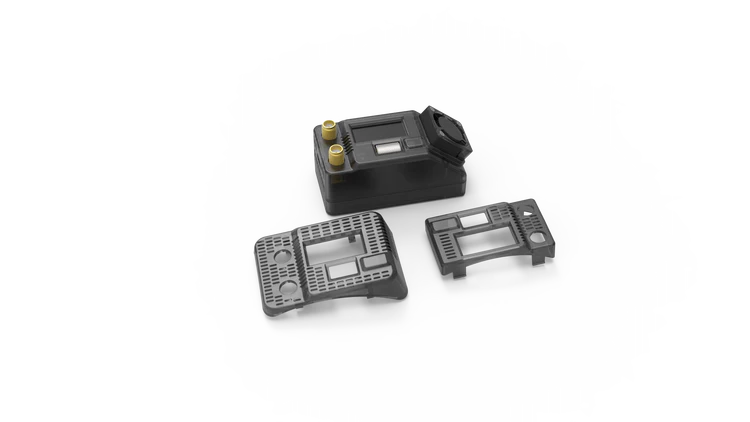

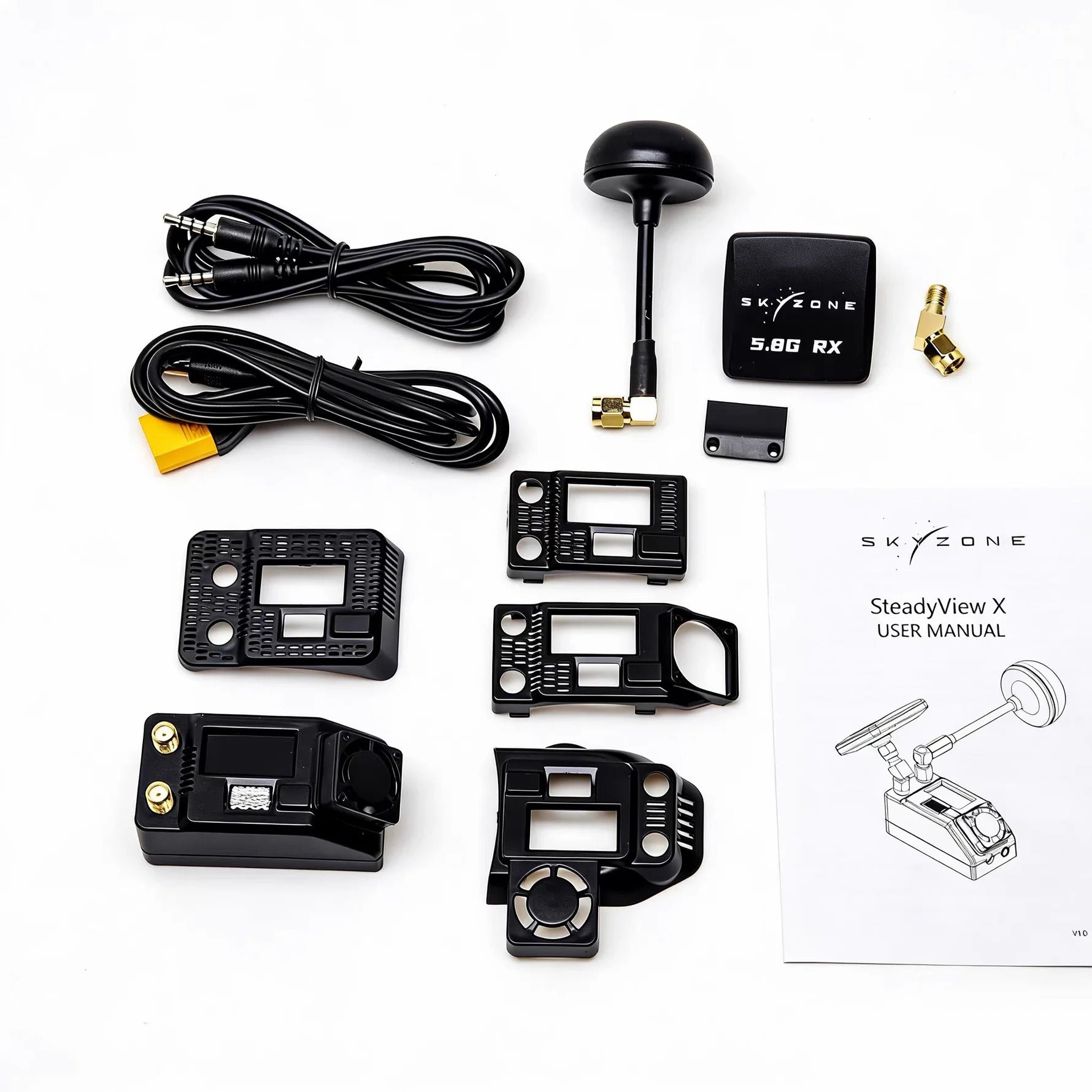

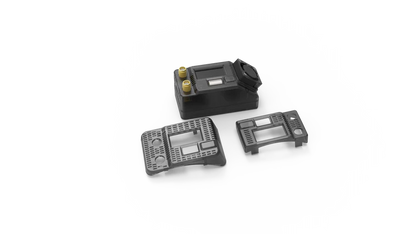

Ground Station Kit
3 MIX Mode one DIV mode
ELRS VRX backpack intergrated
--High sensitivity receiver: -98dBmΒ±1dBm
--Wild range voltage input: 2~6S lipo
--USB C: support firmware update or power on the RX
--3.5mm: Video and Audio output
--weight: 250g
--package size: 15*15*8cm
SteadyView X 5.0G
SteadyView X 5.8G
SteadyView X 7.5G(6.5G-8.5G)
