The SKYDROID T10 remote control system is a versatile and high-quality solution for precise control and FPV monitoring of your RC models. The mini FPV camera provides real-time video feedback to the pilot, enhancing the flying or operating experience.

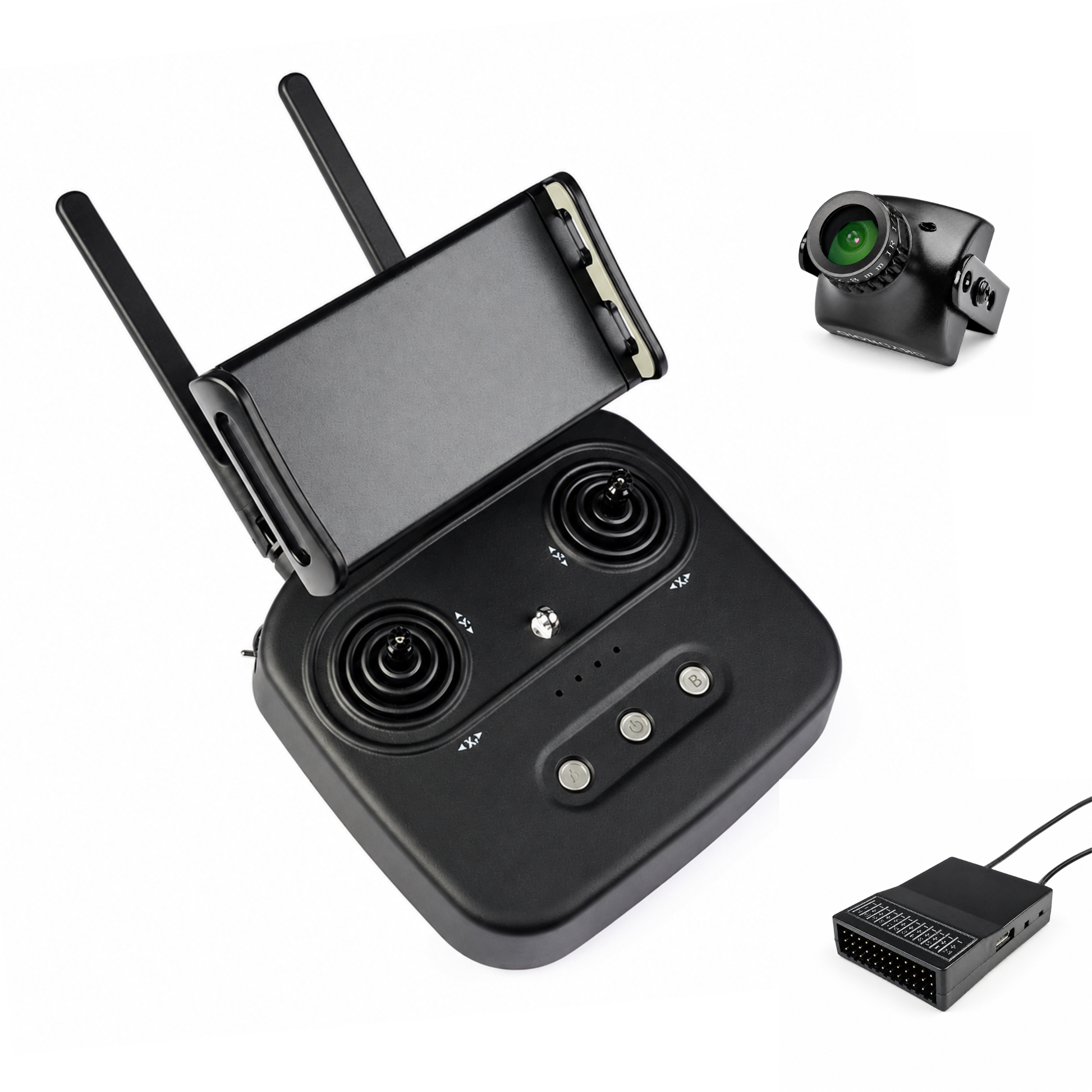

Skydroid T10 2.4GHz 10CH FHSS Transmitter Digital Integrated Remote Control Video and Telemetry System for RC Drone
SKYDROID T10 2.4GHZ 10CH FHSS TRANSMITTER WITH R10/R10 MINI 10CH RECEIVER AND CAMERA SUPPORT S.BUS PPM PWM OUTPUT FOR RC DRONE
Features:
2.4GHz Frequency: The T10 remote control system operates on the 2.4GHz frequency band, which is known for its stable and interference-resistant signal transmission. This technology minimizes the risk of signal interference from other radio systems or external sources.
10 Channels: The transmitter provides up to 10 channels, offering extensive flexibility for controlling and monitoring various functions on your RC model. These channels can be used for controlling servos, motors, camera gimbals, and other accessories.
Compact and Portable: The T10 system is designed to be compact and portable, making it easy to carry and use in the field. The ergonomic design ensures a comfortable grip during prolonged RC sessions.
Mini FPV Camera: The system includes a mini FPV camera, typically mounted on the RC model. This camera captures real-time video footage, providing the pilot with a first-person view of what the model sees, enhancing situational awareness and control precision.
Real-Time Video Transmission: The FPV camera is usually integrated with a real-time video transmission system that sends the video feed directly to the pilot’s screen on the transmitter. This allows the pilot to monitor the model’s perspective while operating it.
User-Friendly Interface: The transmitter often features an intuitive interface with a colour display and user-friendly controls. This simplifies setup and adjustments, including the ability to switch between different channels and camera views.
Customizable Interface: The T10 system typically offers customization options for the interface layout and placement of control elements, allowing the pilot to tailor the interface to their preferences and needs.
Fail-Safe Function: The system may support a fail-safe function that can be programmed to return your RC model to a predefined position or perform another predefined action in the event of signal loss, enhancing safety.
Versatile Control: The T10 system is designed to work with various RC models, making it a versatile solution for different types of RC equipment, including drones, fixed-wing aircraft, and more.

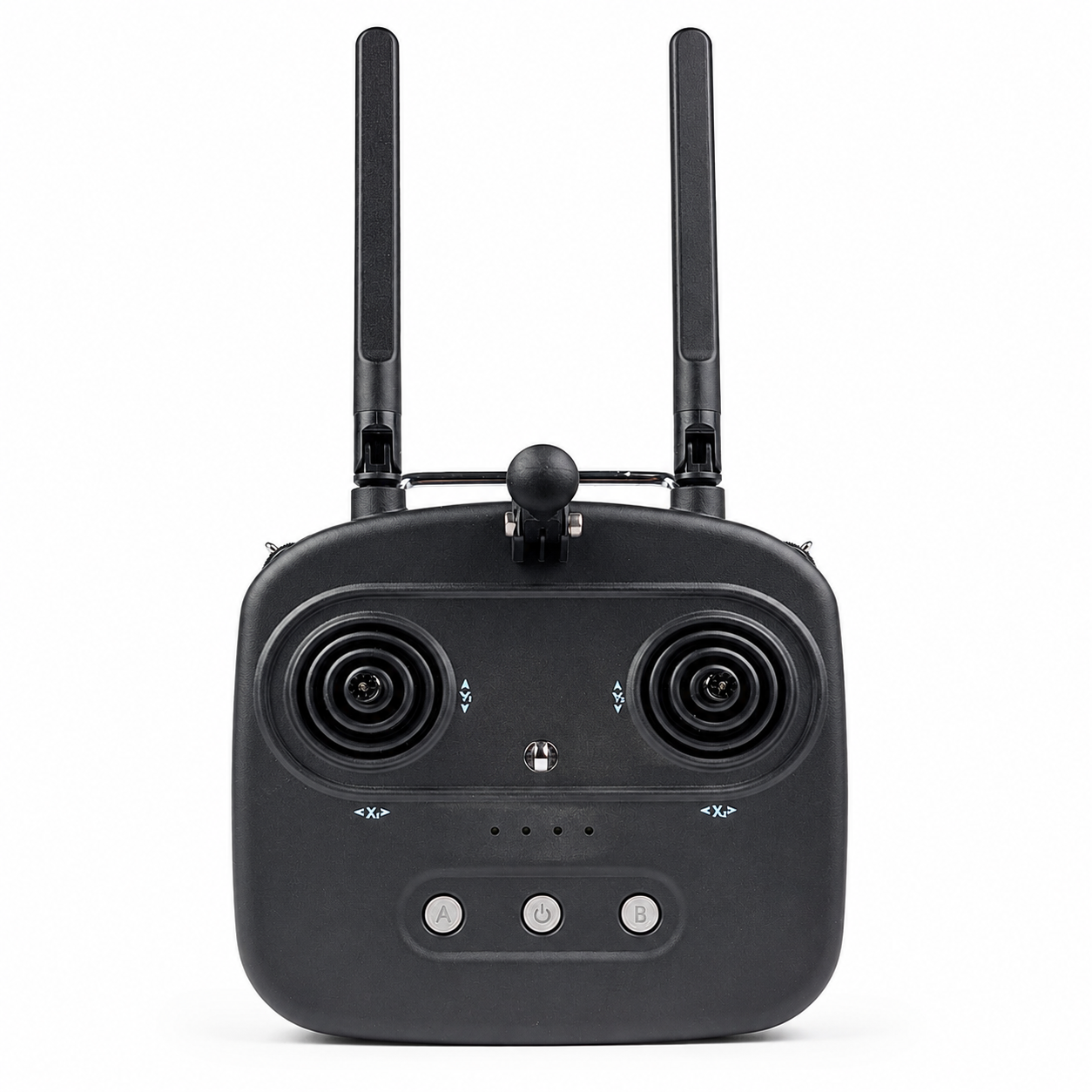

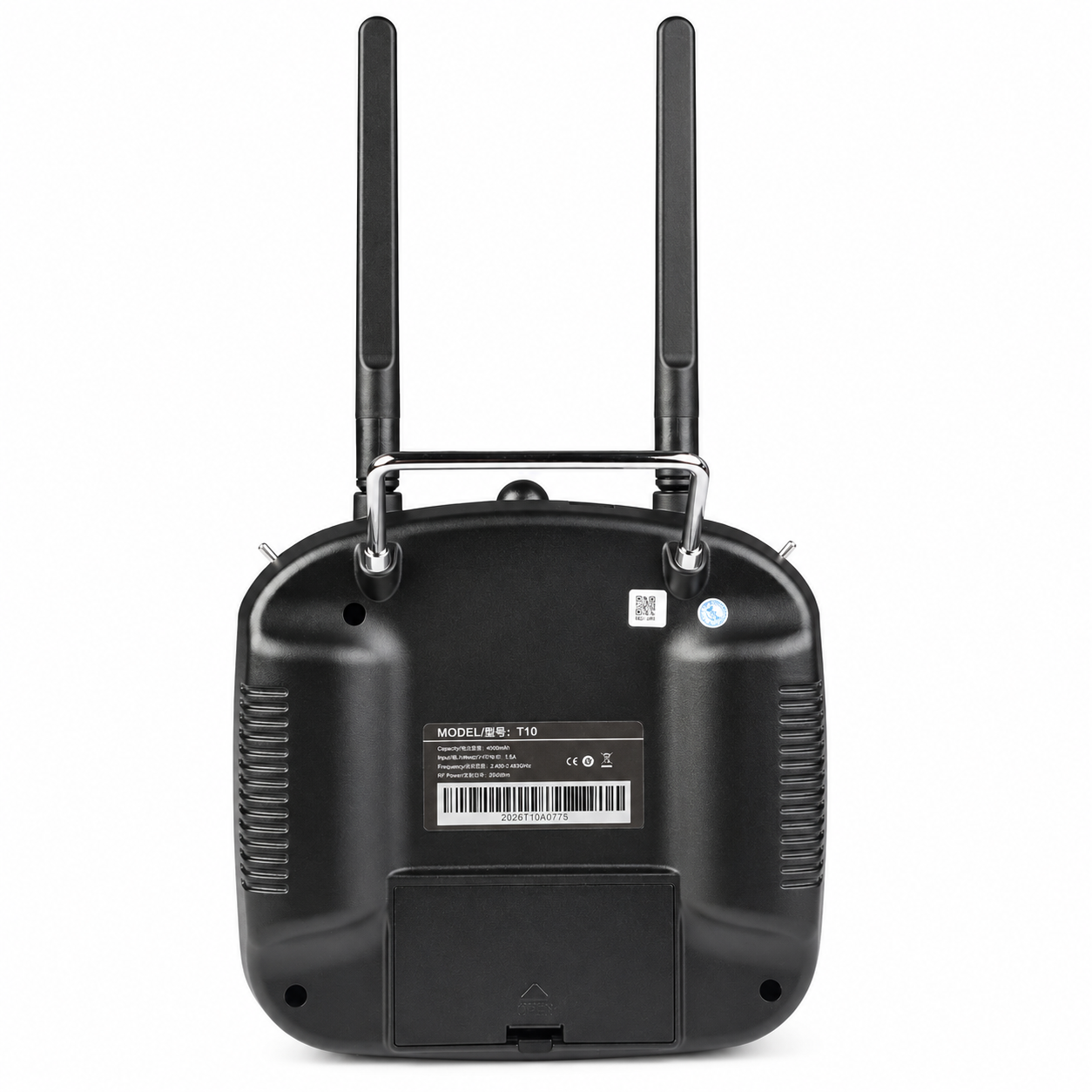

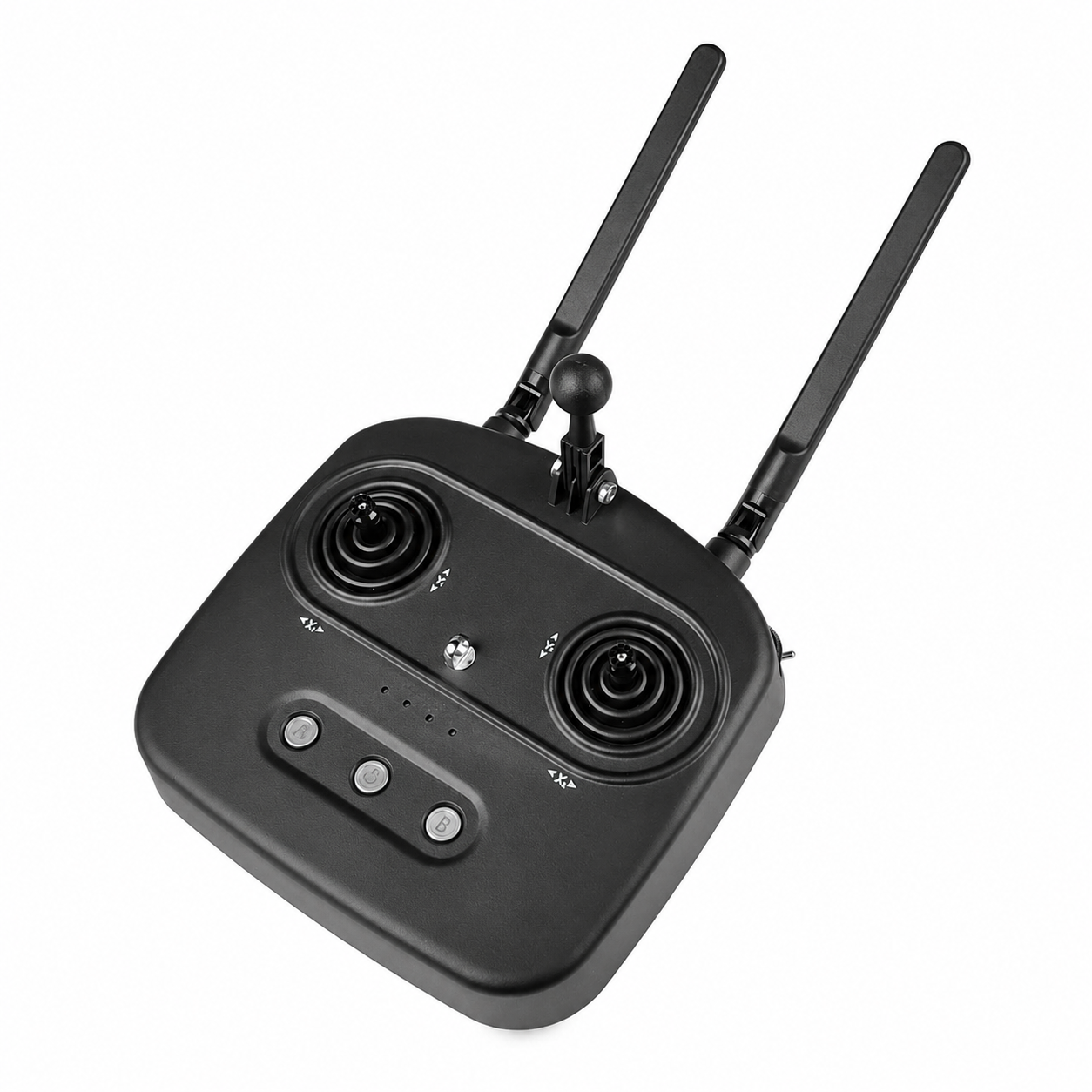

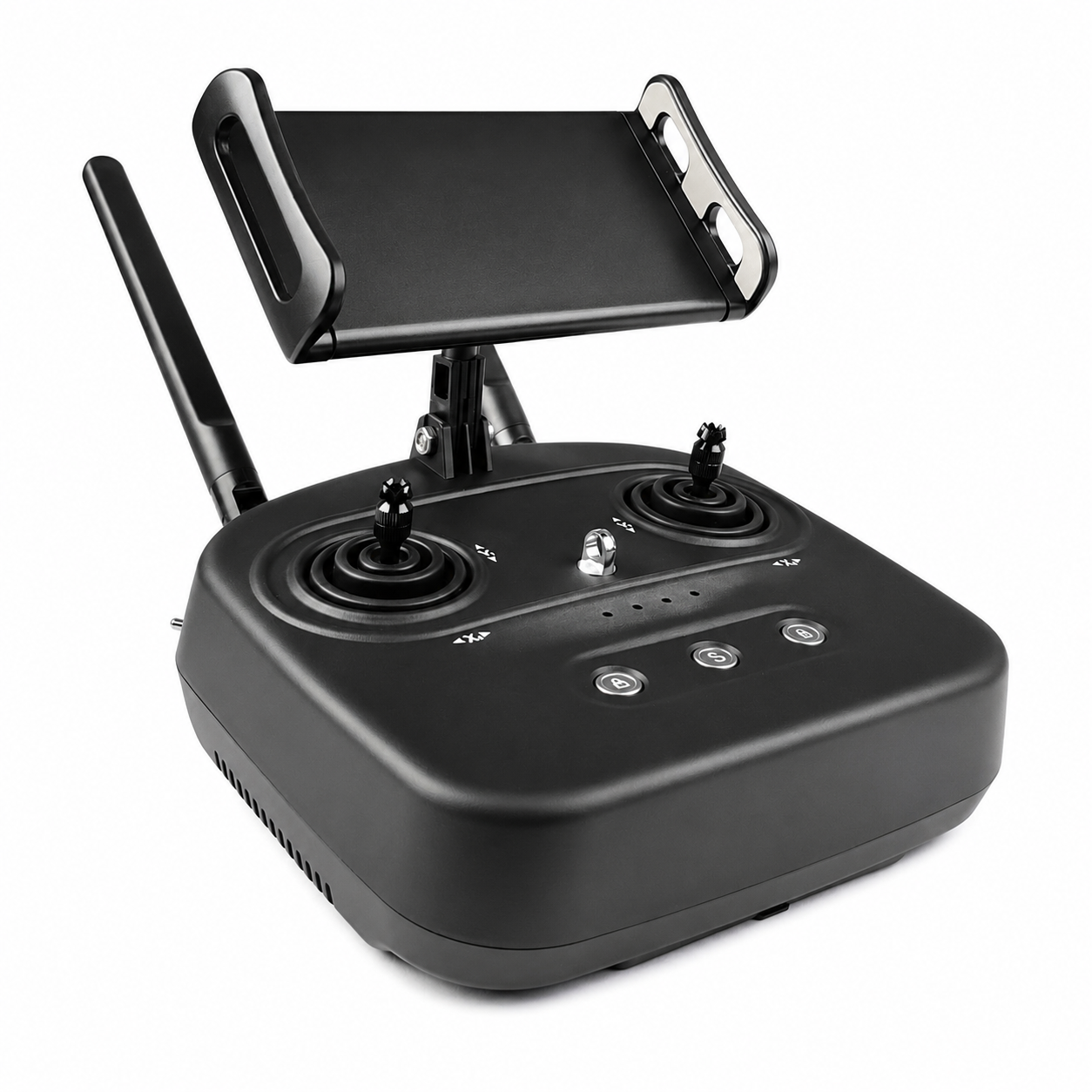

Specifications:-
Brand: SKYDROID

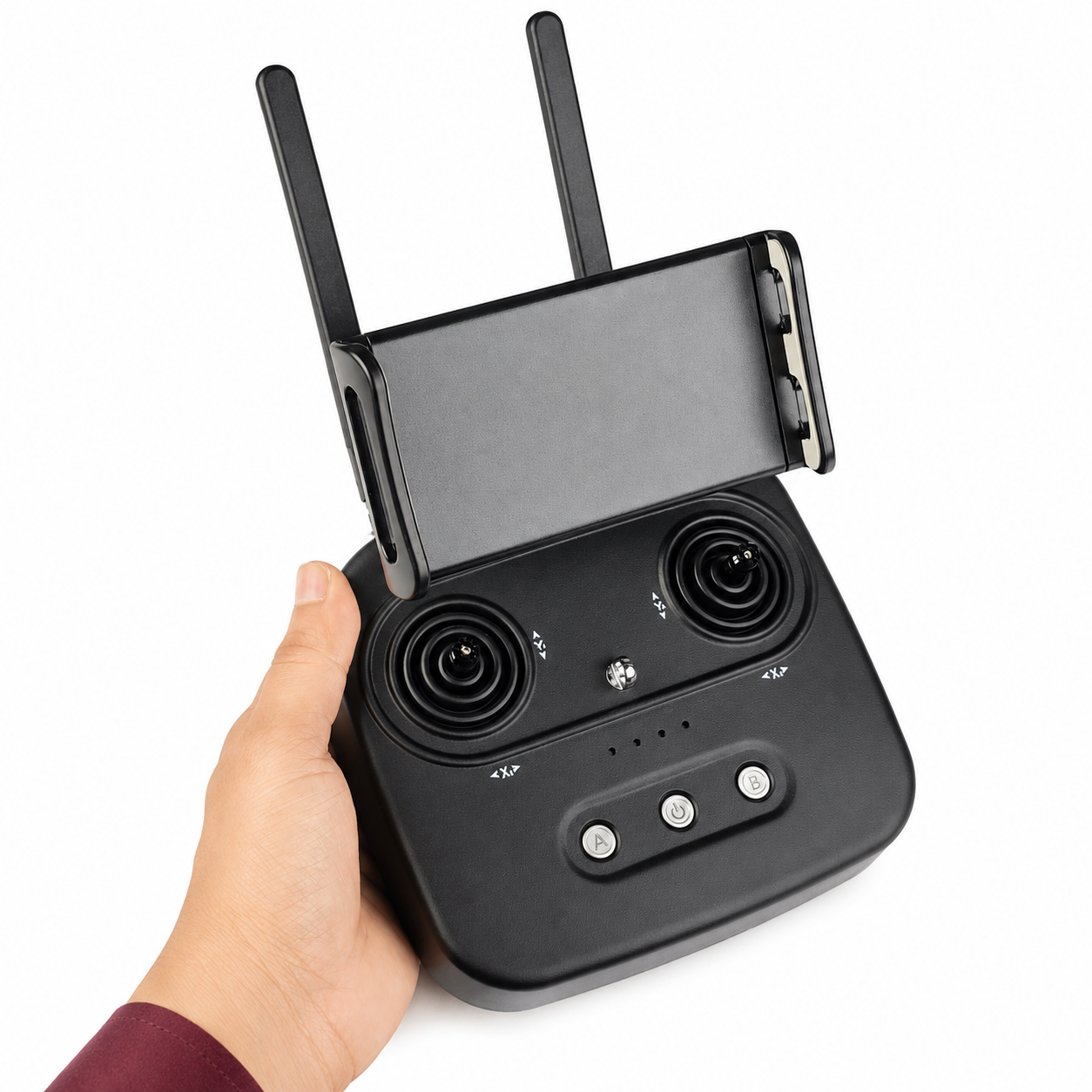

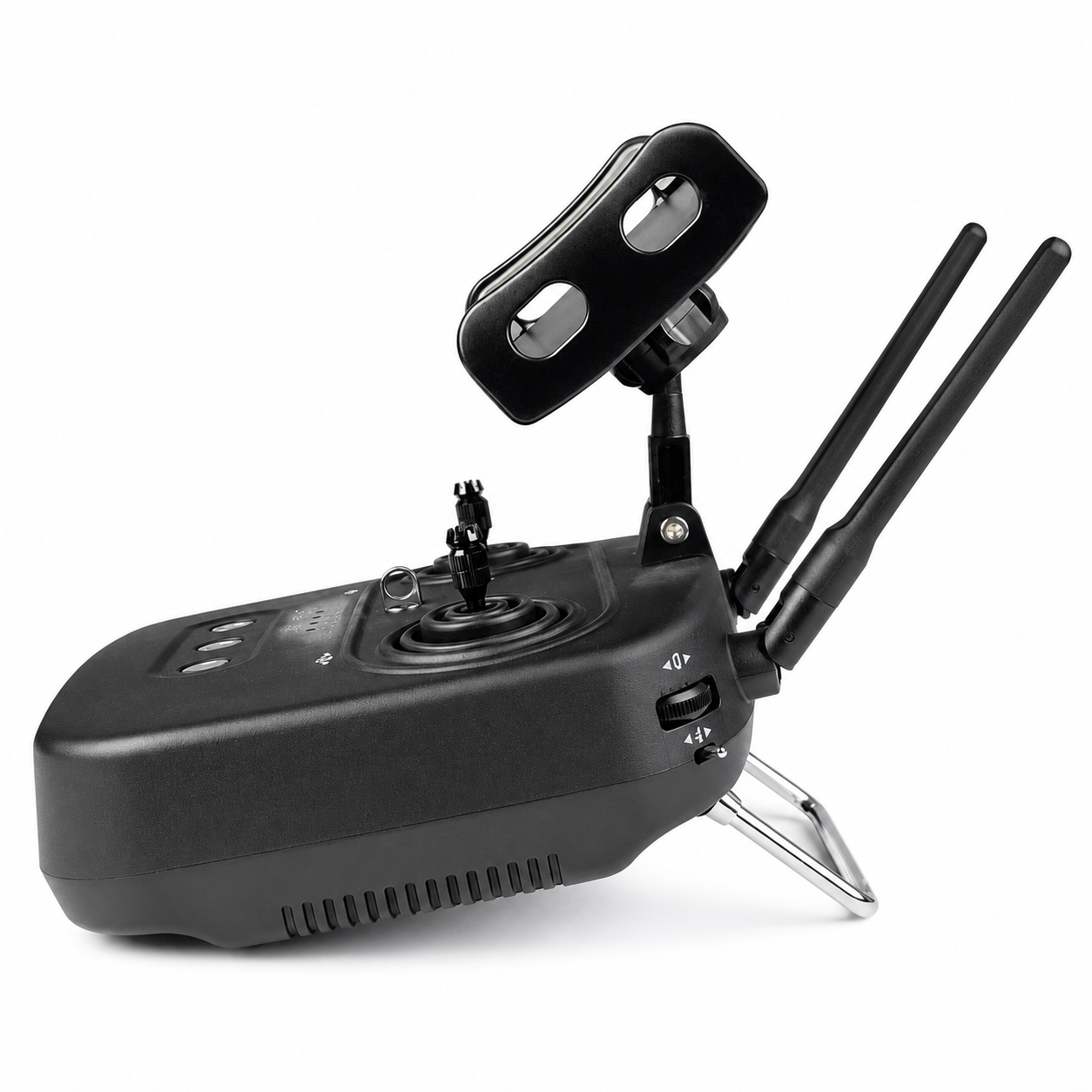

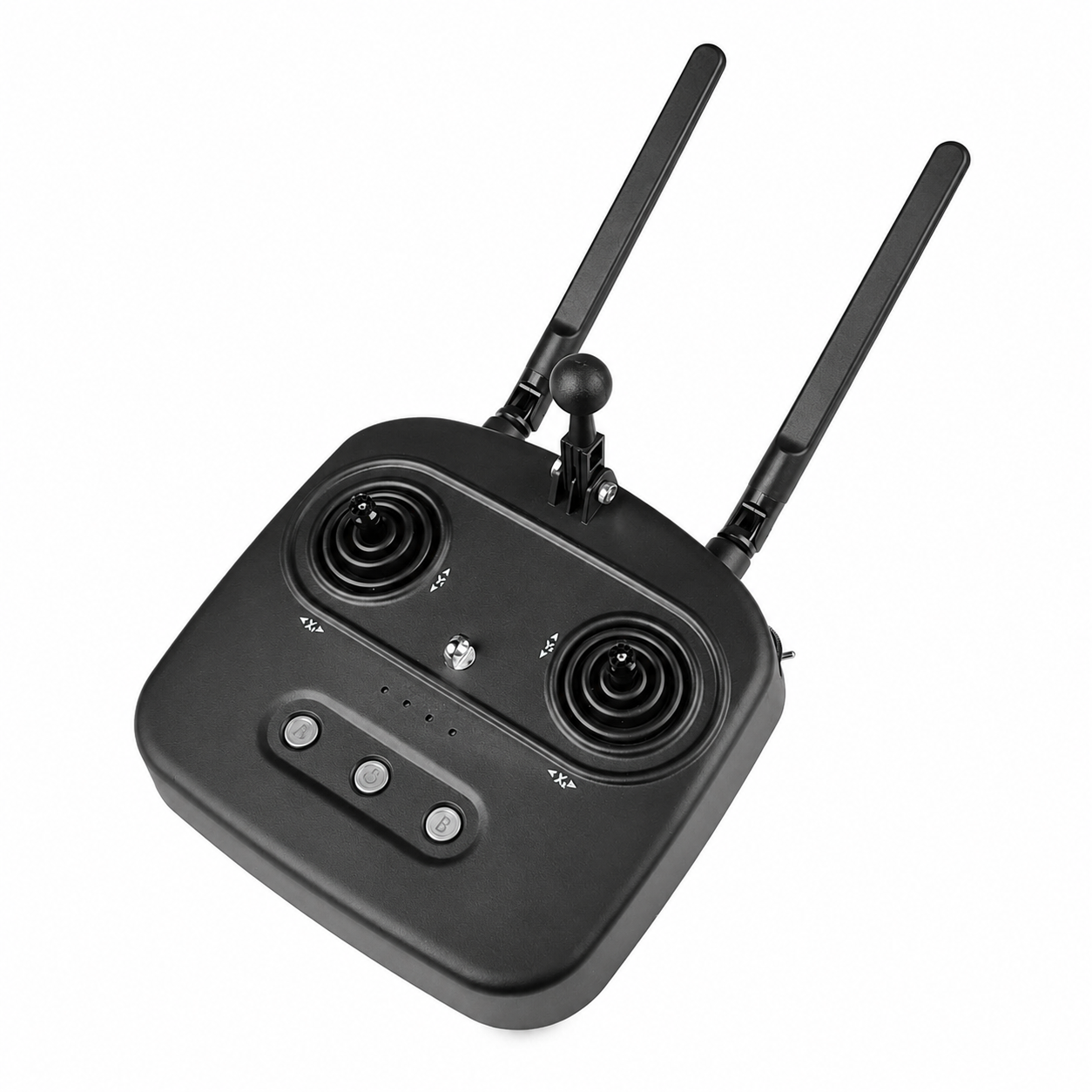

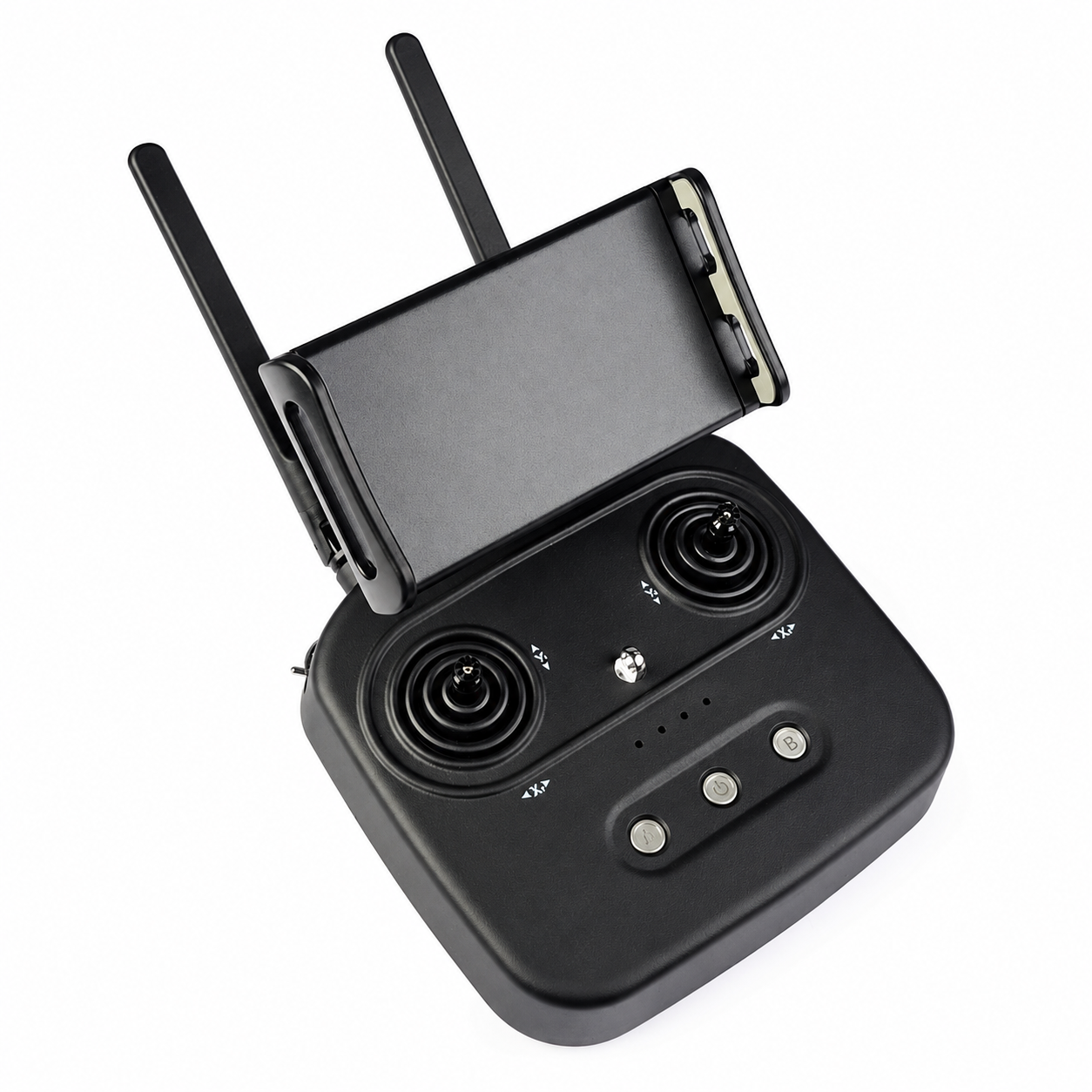

Item name: T10 Transmitter
Number of channels: 10 channels
Frequency: 2.400-2.483GHz
Working voltage: 4.2V
Working Current: 100mA
Modulation: New FHSS
Weight: 525g
Firmware: APP online
Dimension: 160*150*50mm
Duration: 20 hours
Battery Capacitor: 4000mA
Charge Port: MICRO-USB
Application: Helicopter,Fixed wing, Quadcopter, car boat

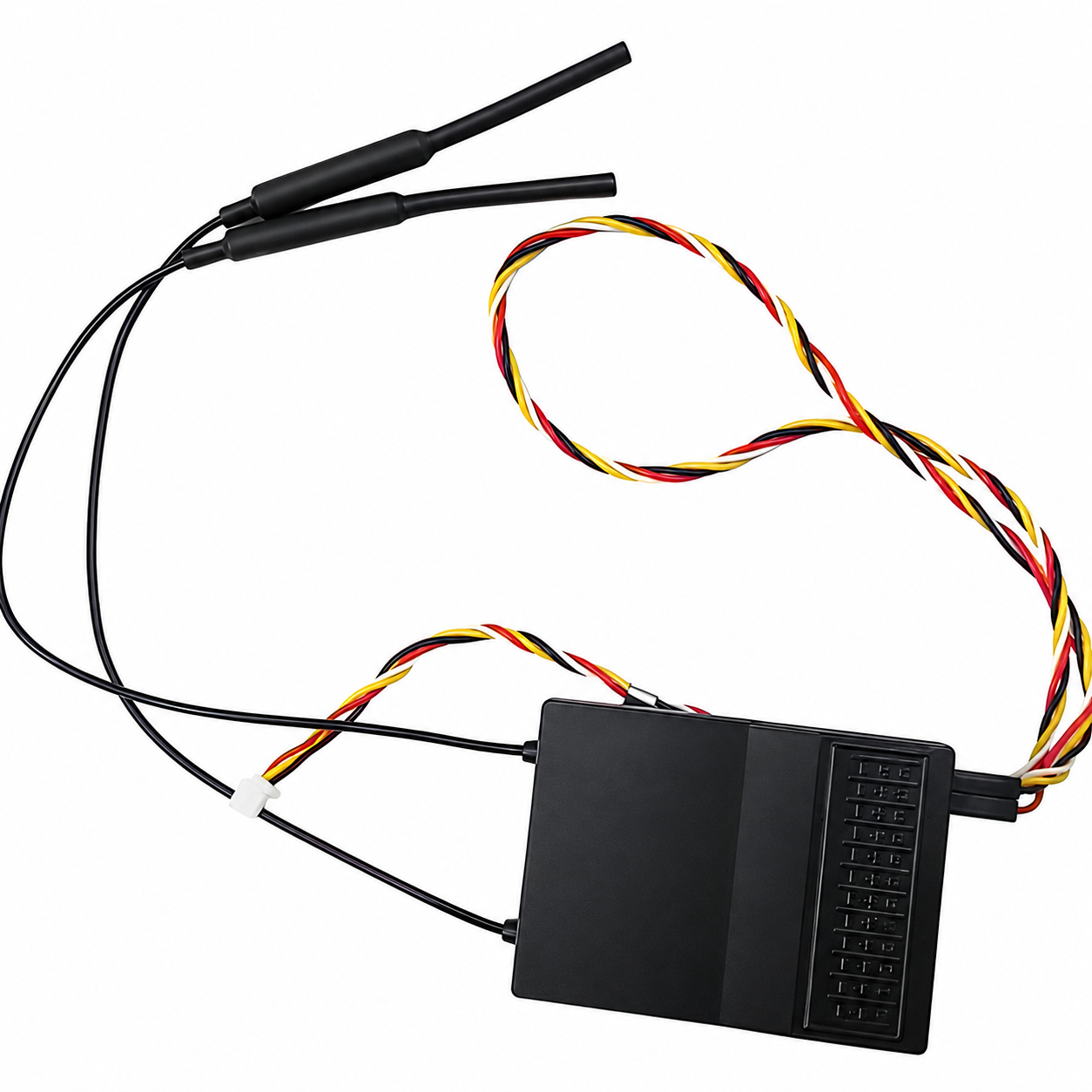

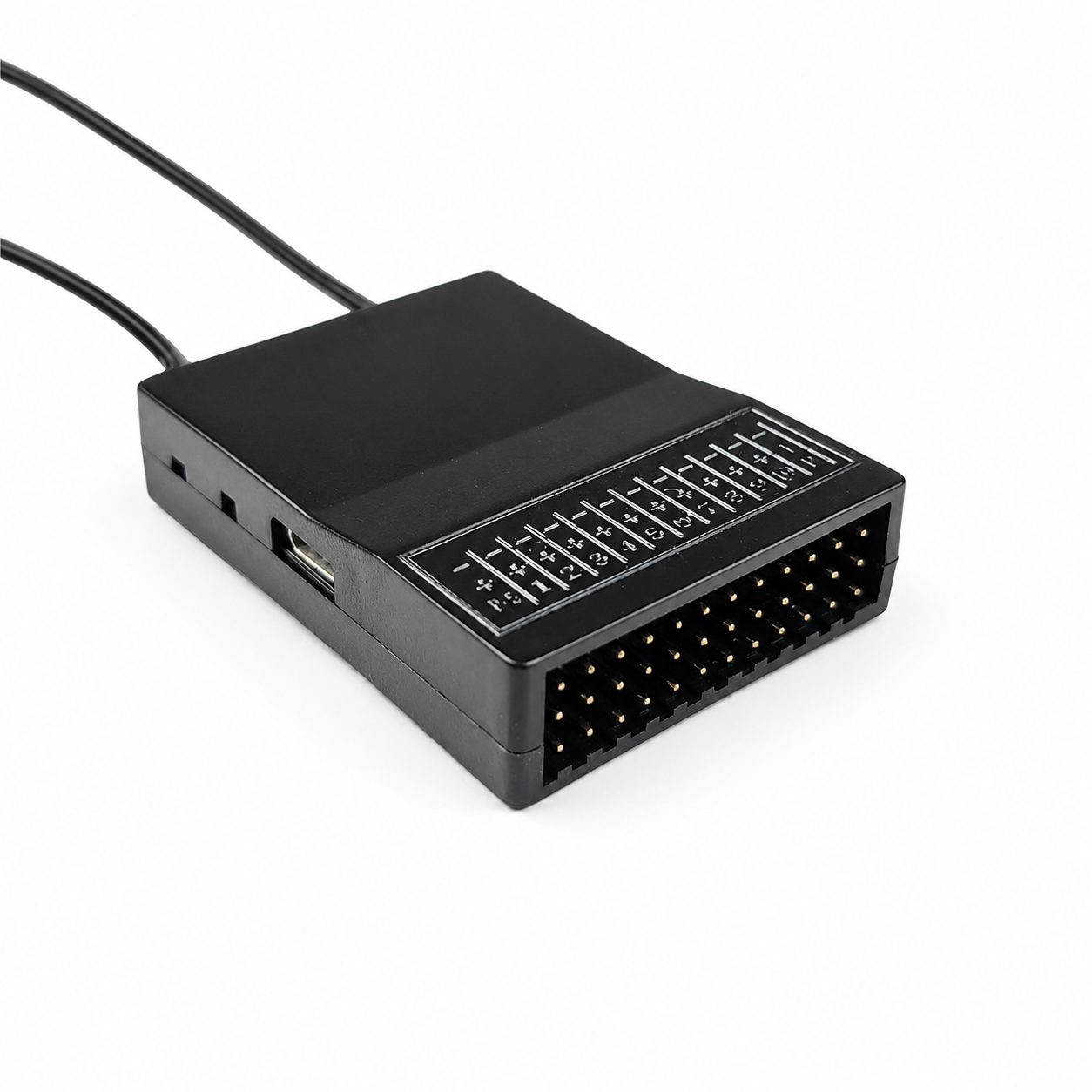

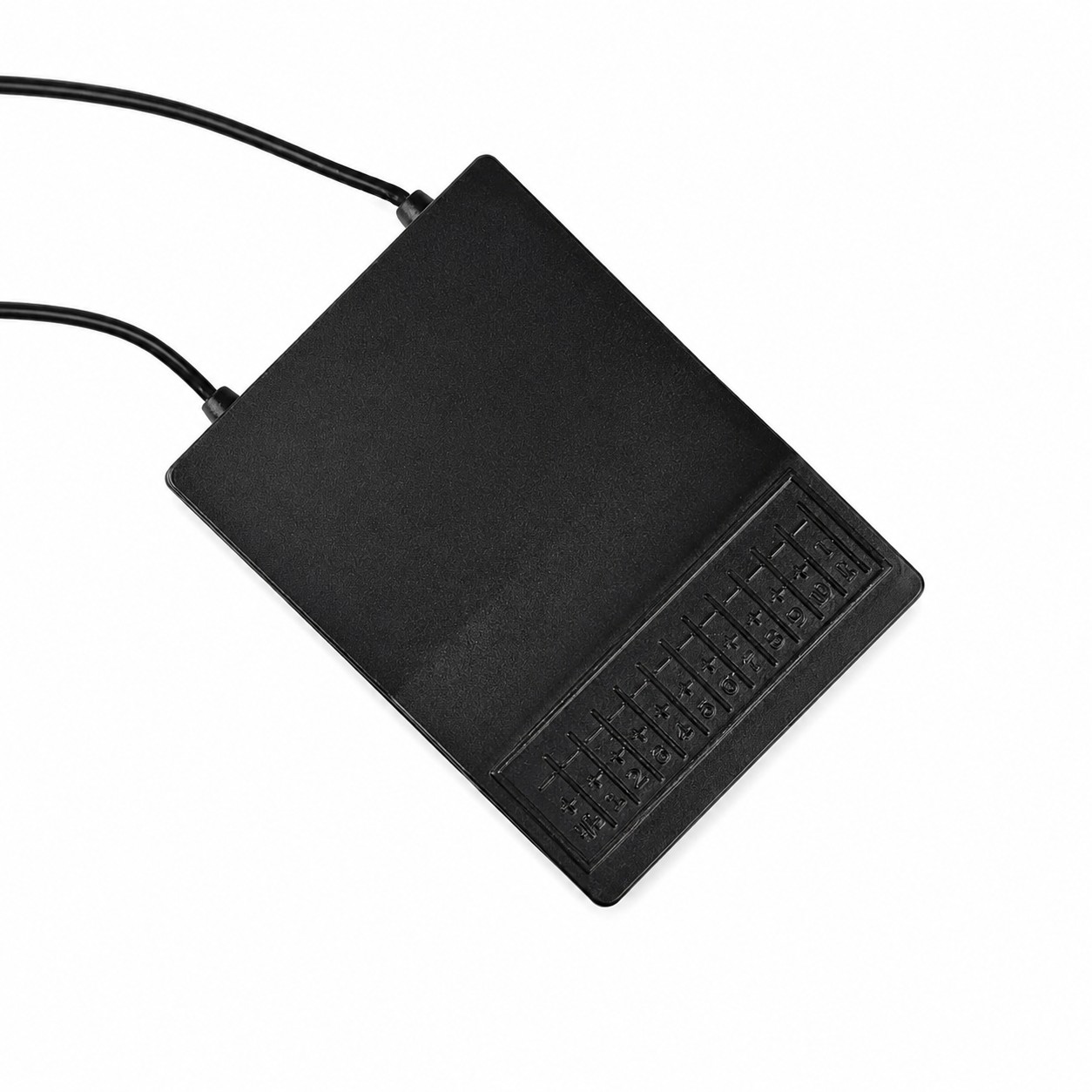

R10 Receiver
Model: R10
Number of channels: 10 channels
Working voltage: 4.5-5.5v
Working Current: 100mA
Dimension: 50*31*12MM
Weight: 20g

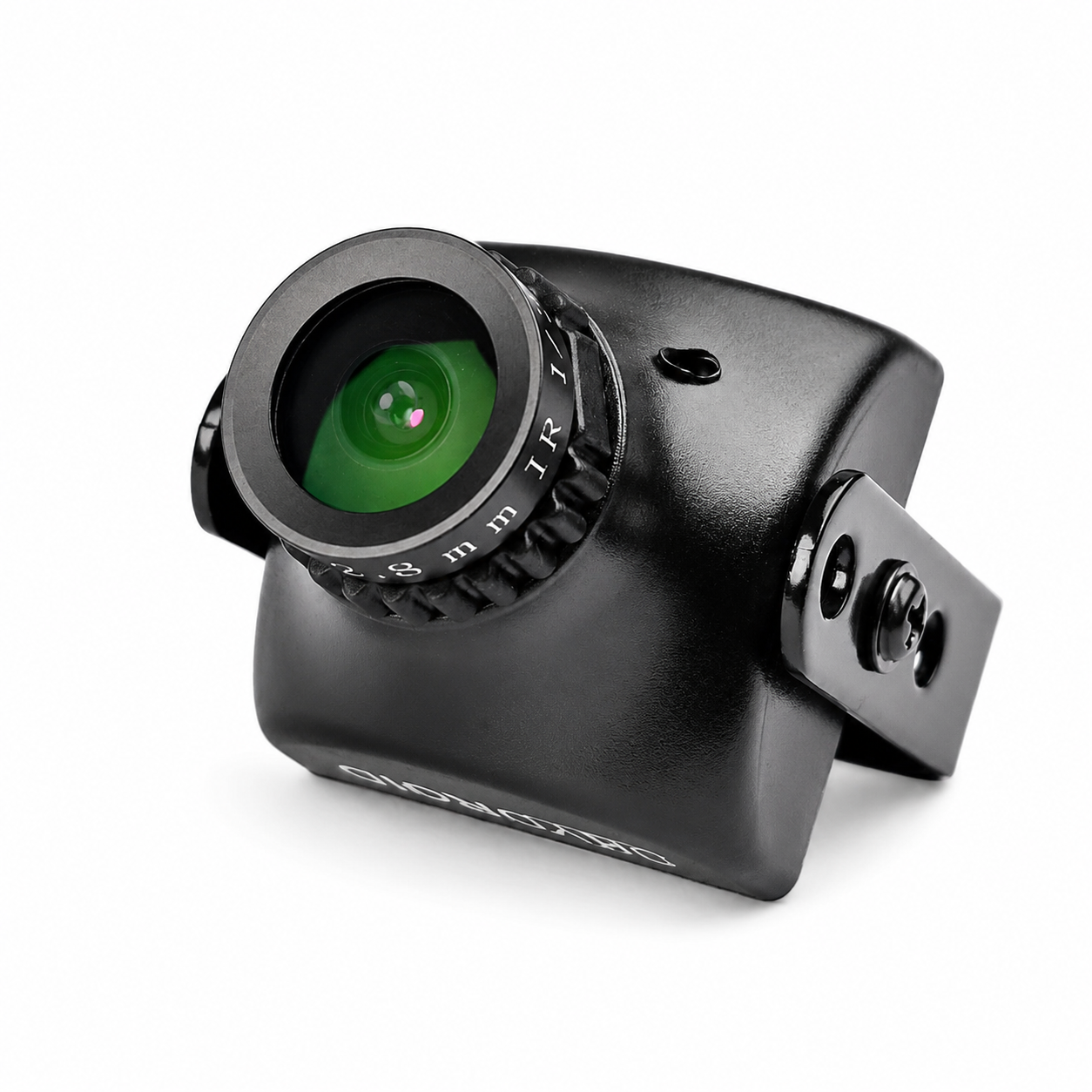

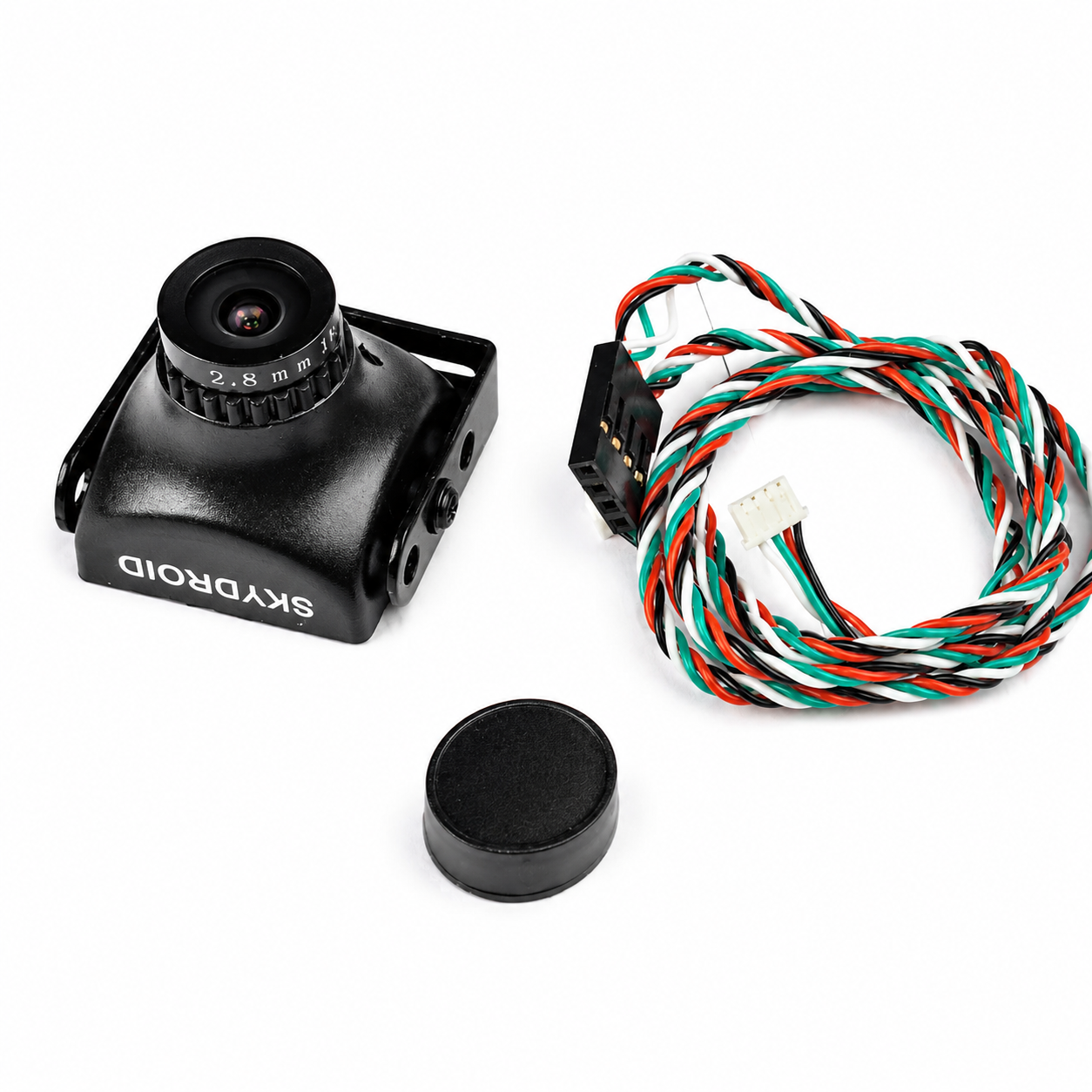

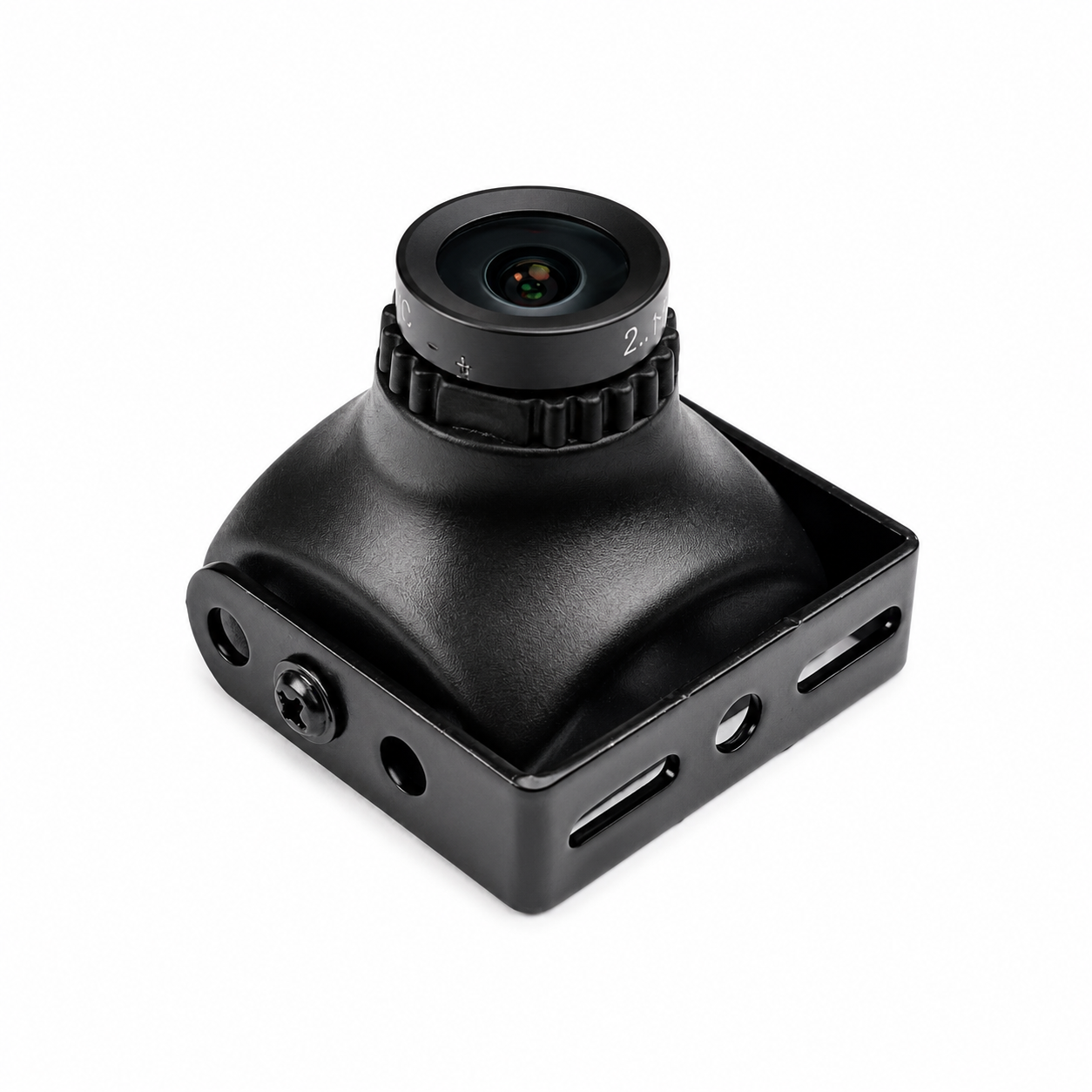

Camera
Model: MINIDCAM
Size: 30x29x26 mm
Working Current: 180mA
Weight: 15.6g
R10 Mini Receiver Usage:
– Connect the receiver SBUS line and the digital transmission line to the flight control
– Connect the camera cable to the camera
– Power on the flight control, press the receiver’s counter button, and the green light flashes quickly to start the frequency.
-The remote control is turned on, and the receiver’s green light is always on after the drip is dripping.
– Plug the remote control into the data line and display the image. After connecting to the ground station, the data can be used.
More Features:
-Dual antenna plus dual RF module with integrated control algorithms ensuring reliable communication via full angle high gain
antennas the t10 uses the latest in FHSS(Frequency Hopping Spread Spectrum) technology to achieve perfect control and operation
-Integrated with digital video transmission, farthest to 10KM
-Integrated with data transmission, farthest to 20KM
-Parameter adjustments via app with upgraded traditional oSd to touch panel control ( Connected via Bluetooth or USe, also
supports S BUS PPM PWM Seria ports and external devices, etc
-Connects the app via Bluetooth, switching the operation model, adjusting the data of forward and reverse, rudder volume, channel
binding, runaway protection value, SBUS, PPM output and digital baud rate. Providing parameter saving and loading functions
-Based on the “Tower” APP to ensure optimal compatibility with Pixhawk systems a large map view allows for easy waypoint selection
and route planning including one key return to home. The t10 Also supports Tower, QGC, JIYI, TOPXGUN and BOYING APP
-Using 2 pcs of 18650 batteries(Need buy separatedly),endurance over 20 hours with 20DBm transmission frequency
-High integrated datalink with video data transmission and telemetry all-in-one unit Ultra-small size, with folding brackets,
strong and stable
-A Number of optional cameras can be selected for your application such as a mini digital camera digital camera with LED, 20 times
zoom camera etc
-Specially designed for UAV, Helicopter, Fixed Wing, Multi Rotor or Boat operation In video transmission (optional camera), Data
Link and control of UAV.
Package Included:
1× T10 Transmitter
1× R10 Receiver
1× Camera
