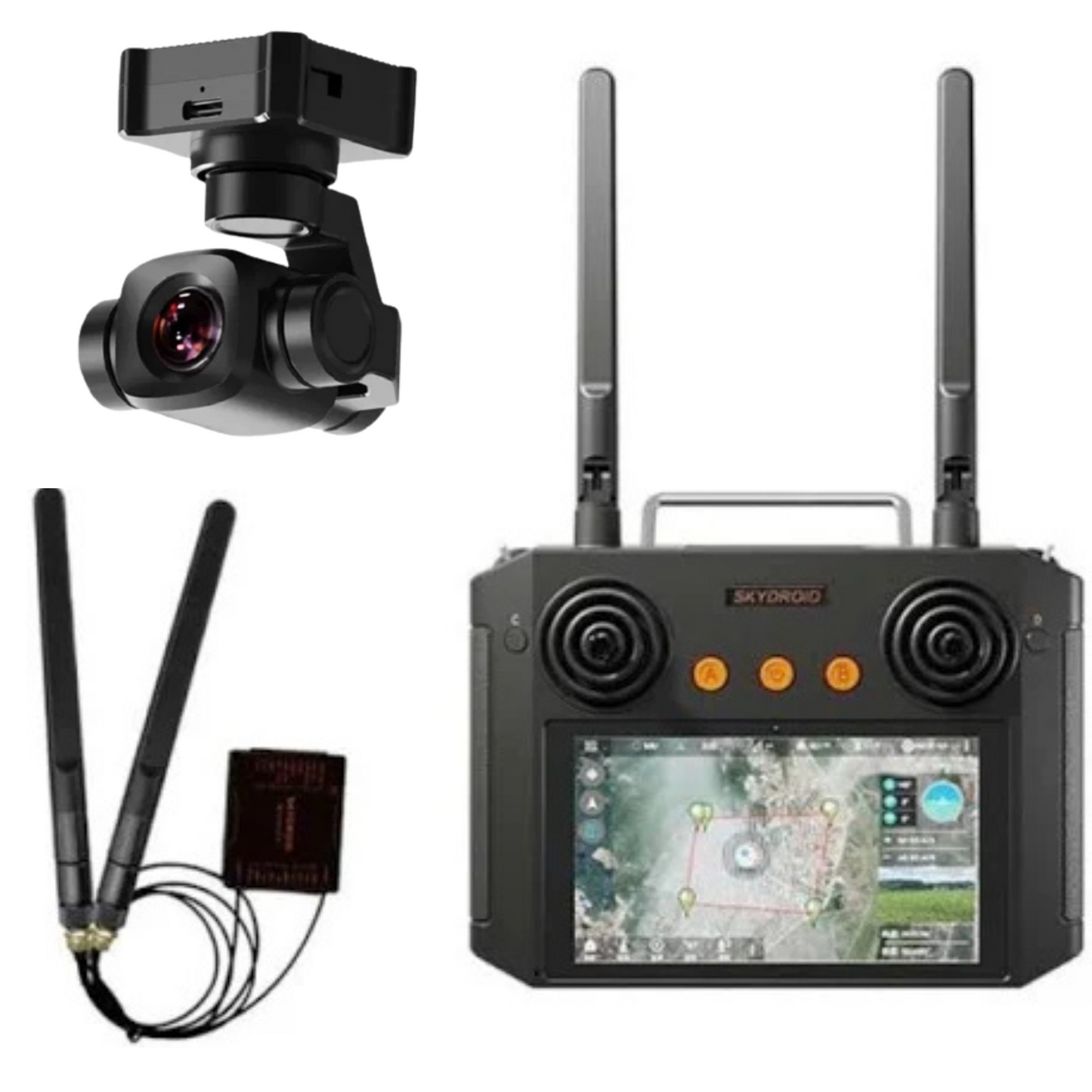

Skydroid H12 Pro Radio Transmitter with A8 Mini Gimbal Camera

Skydroid H12 Pro Radio Transmitter:

The SKYDROID H12 2.4GHz Long Range Radio is a powerful, industrial-grade remote control system designed for high-performance RC drones, robots, and a wide range of industrial applications. Featuring a built-in Android smartphone and a high-brightness 5.5-inch display, the H12 offers exceptional clarity, long-range control, and seamless video streaming. With FHSS spread spectrum technology, the H12 can achieve a control range of up to 30 km, making it ideal for agriculture drones, security surveillance, fire protection, surveying, border defense, and more.

Features:

1. Built-in Android smartphone for seamless app integration and control
2. 6-20 hours of battery life for extended operation
3. Control range of up to 30 km with strong anti-interference
4. HD video streaming for real-time feedback
5. Comes with a carry case for easy transport and storage
6. Industrial-grade radio for maximum durability and reliability
7. Simple and quick setup for immediate use
8. Clear, low-latency image transmission for enhanced control
9. Versatile use across various applications, from agriculture to industrial robots.

SIYI A8 Mini Gimbal Camera:

A8 mini gimbal camera, lightweight and elegant, carrying a 4K 1/1.7-inch Sony starlight night vision sensor. A8 mini comes with powerful AI identification and tracking based on a neural network processing unit and supports a max 6X digital zoom. Ethernet and HDMI output are compatible with both SIYI links and third-party links. And CVBS (AV) output for analog FPV. A8 mini can be widely used for enterprise drones, UGV, USV, robotics, RC hobby planes, and FPV drones.

Features:

1. The system offers versatile connectivity with various video output ports, including Ethernet, HDMI, and CVBS (AV). For control signal input, it supports S.Bus, UART, and Ethernet UDP. Additionally, the system provides S.Bus as the control signal output port, ensuring compatibility with a range of devices and interfaces.
2. The gimbal has an angular vibration range of ±0.01°, offering precise stabilization, and supports controllable pitch angles from -135° to +45°, yaw angles from -160° to +160°, and roll angles from -30° to +30°.
3. The camera features a fixed focal length lens with 6X digital zoom, an equivalent focal length of 21 mm, and utilizes a Sony 1/1.7-inch image sensor with an effective resolution of 8 MP.
4. The camera’s aperture is F2.8, providing optimal light control, and it offers a wide field of view with a diagonal angle of 93° and a horizontal angle of 81°.
5. For video recording, the camera supports multiple resolutions, including 4K, 2K, 1080p, and 720p, with varying frame rates.
6. Video storage uses the H.265 codec, with bitrates of 20 Mbps for 4K/2K and 15 Mbps for 1080p/720p.
7. The supported file systems include FAT32 and ExFAT, and the camera can capture photos in JPG format and videos in MP4 format.
8. MicroSD cards up to Class 10 and a maximum capacity of 512 GB are supported.
9. The camera operates in still photography mode with a single-shot capability, and its white balance is set to auto for convenient adjustments.

Package Include:

1× Skydroid H12 Pro Radio Transmitter
1× SIYI A8 Mini Gimbal Camera
1× Radio Receiver Receiver
