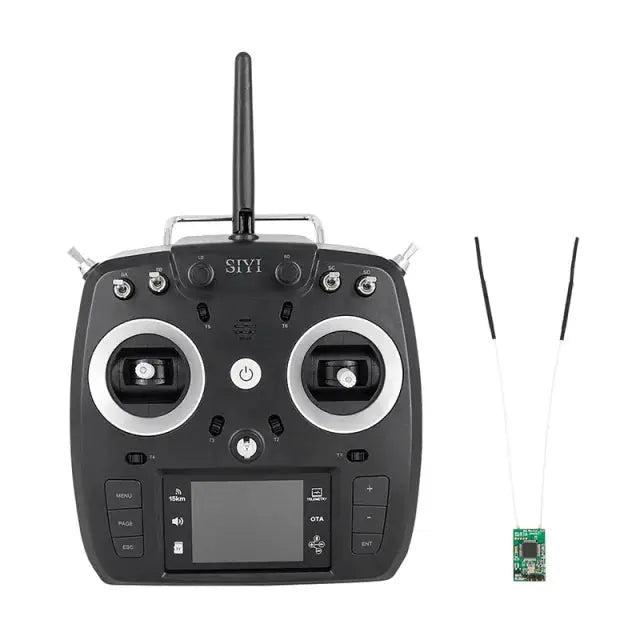

SIYI FT24 Long Range 15KM Remote Controller with Bluetooth Telemetry and SIYI FR Mini Receiver.

The SIYI FT24 Long Range Remote Controller is designed to offer precise control and long-range capabilities for a wide range of remote-controlled models. The inclusion of the SIYI FR Mini Receiver and Bluetooth telemetry support enhances its functionality and user experience.

Features:

Long Range Communication: The FT24 remote controller is known for its impressive long-range capabilities, with a potential range of up to 15 kilometers (approximately 9.3 miles). This extended range makes it suitable for long-range FPV (First-Person View) flying and applications where maintaining control over a considerable distance is essential.

Bluetooth Telemetry: The controller features Bluetooth connectivity, allowing you to connect to a mobile device or tablet. This enables you to access telemetry data and make configuration adjustments via a dedicated app or software. It provides real-time information about your RC model’s status, such as battery voltage, signal strength, altitude, and more.

Compact and Portable: The FT24 controller is designed to be compact and portable, making it easy to carry and use in the field. Its ergonomic design ensures a comfortable grip during prolonged RC sessions.

User-Friendly Interface: The controller typically features an intuitive interface with a color display and user-friendly controls. This simplifies setup and adjustments, allowing for customization of control parameters.

Support for SIYI FR Mini Receiver: The system usually includes the SIYI FR Mini Receiver, which acts as the communication link between the controller and your RC model. This receiver is known for its reliability and long-range capabilities, ensuring a stable connection.

Fail-Safe Function: The controller and receiver combination often supports a fail-safe function, which can be programmed to return your RC model to a predefined position or perform another predefined action in the event of signal loss, enhancing safety.

Customizable Interface: The controller offers customization options for its interface, allowing you to tailor the layout and placement of control elements to suit your preferences and specific needs.

Versatile Control: The controller is designed to work with various RC models, making it a versatile solution for different types of RC equipment.

Technical
2.4G ISM Band | 15KM Range | High Brightness LCD Monitor | Customizable Voice Broadcast | OTA Upgrading |
Wireless Binding | Dual Operator, Wireless Coach Mode | Voltage Telemetry | Built-in Bluetooth

Overall:
Model: FT24
Frequency Band: 2400 to 2483 MHz
Control Range: 15 Kilometers / 9.3 Miles (unobstructed, free of interference)
Channels: 12 physical channels, 16 communication channels
Compatible RC Models: Planes, Copters, Gliders, Multi-Rotors, Vehicles, Boats, Robotics

Transmitter:
Monitor: 2.8-inch LCD Screen
Language Display: Chinese / English
Dimensions (antenna folded): 191 x 175 x 64 mm
Weight: 586 g
Compatible Battery Type:
– 2 x 18650 Li-ion (battery life 22 hours)
or
– 1 x 2S LiPo Battery (XH 2.54 3-Pin Port)
Working Temperature: 0 to 55℃

FR Mini Receiver:
Signal Output: 16 channels of S.BUS, 8 channels of PWM
Interface & Ports:
– SBUS & PWM: Pins
– Datalink (to FC): UART 4-Pin
– Firmware Upgrade: Micro-USB
Dimensions (antenna excluded): 24 x 15 x 3 mm
Weight: 1.5 g
Antenna Gain (standard omni): 2 dBi
Working Voltage: 5 V
Voltage Telemetry Range: 0 ~ 26 V
Working Temperature: -10 to 55℃

Documents
FT24_User_Manual

Firmware
FT24 & FM30 Firmware Pack

Windows Software
SIYI PC Assistant

Package Included:
1x FT24 Radio Transmitter
1x FR Mini Receiver
