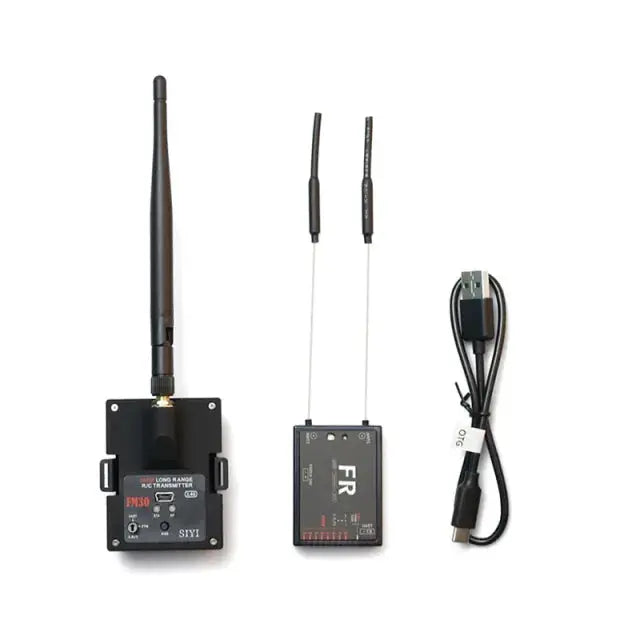

SIYI FM30 Long Range Radio Module/Range Extender with Bluetooth Telemetry and FR Receiver Support OpenTX, EdgeTX, ExpressLRS, Yaapu Script 30KM Range.

The SIYI FM30 Long Range Radio Module is a high-performance, long-range communication module that provides reliable control and telemetry for RC models. It is designed to enhance the capabilities of your radio control system, extending the range and providing telemetry data via Bluetooth connectivity.

2.4G ISM Band | 30KM Range | Built-in Bluetooth | Mavlink Telemetry | Support JR Bay | Support OpenTX / EdgeTX |
Support Yaapu Script | Wireless Binding | OTA Firmware Update | Voltage Telemetry | Protocol, SBUS, PPM

Features:

Long Range Communication: The FM30 module is known for its impressive long-range capabilities, with a potential range of up to 30 kilometers (approximately 18.6 miles). This extended range makes it ideal for long-range FPV (First-Person View) flights and applications where maintaining control over a considerable distance is crucial.

Multi-Protocol Support: The module typically supports multiple RF protocols and radio control systems. It can work with OpenTX, EdgeTX, ExpressLRS, and other compatible systems, offering versatility for use with different models and transmitters.

Bluetooth Telemetry: The module is equipped with Bluetooth connectivity, allowing you to establish a wireless connection to your mobile device or tablet. This enables you to receive telemetry data and make configuration adjustments via a dedicated app or software.

Telemetry Support: The FM30 module supports telemetry, providing real-time information about your RC model’s state. This may include data like battery voltage, GPS coordinates, signal strength, altitude, and more.

Support for Scripts: The module may be compatible with various RC scripts, such as the popular Yaapu telemetry script. These scripts enhance the functionality of your radio control system, allowing for advanced features and customization.

Compatibility: The SIYI FM30 module is designed to work with a range of radio control transmitters and receivers, offering compatibility with various RC models and configurations.

Easy Installation: The module is designed for straightforward installation, with standard connectors and mounting options for easy integration into your RC setup.

Fail-Safe Function: The system typically supports a fail-safe function that can be programmed to return your RC model to a predefined position or perform another predefined action in the event of signal loss. This enhances the safety of your RC operations.

Compact Design: The module is usually compact and lightweight, ensuring it can be easily installed in various RC models without adding significant weight or bulk.

Overall:
Mode2: FM30
Frequency Band: 2400 to 2483 MHz
Latency: 10 ms
Control Range: 30 Kilometers / 18.6 Miles (unobstructed, free of interference)
Channels: 16 communication channels
Compatible RC Models: Planes, Copters, Gliders, Multi-Rotors, Vehicles, Boats, Robotics

Transmitter module:
Signal Input: UART, S.Bus, PPM
Antenna Connector: SMA Male
Antenna Gain: 3 dBi
Power Input: 5 to 10 V
Power Consumption: 0.7 W
Dimensions (antenna detached): 59 x 43 x 18.5 mm
Weight: 36 g
Working Temperature: -10 to 55℃

FR Receiver:
Signal Output: 16 channels of S.BUS, 8 channels of PPM, 8 channels of PWM
Interface & Ports:
– SBUS & PWM: Pins
– Datalink (to FC): UART 4-Pin
– Firmware Upgrade: Micro-USB
Dimensions (antenna excluded): 51.5 x 38 x 13 mm
Weight (antenna excluded): 20 g
Antenna Gain (standard omni): 2 dBi
Working Voltage: 5 to 8.4 V
Voltage Telemetry Range: 0 ~ 50 V
Power Input: 14.8 to 50.4 V (4S to 12S)
Working Temperature: -10 to 55℃

Documents
FM30_User_Manual_en_v1.1.pdf

Firmware
FT24 & FM30 Firmware Pack
Technical

Package Included:
1 x SIYI FM30 Transmitter Module
1 x SIYI FR Receiver
