Simonk 30A 2-3s Brushless ESC With T Plug & Bullet Connector For Drone & RC Plane.

Simonk 30A 2-3s Brushless ESC With T Plug & Bullet Connector For Drone & RC Plane.

SKU:035003

Regular price Rs. 449.00
Regular price Sale price Rs. 449.00
Sale Sold out
Shipping calculated at checkout.

(Including GST)

View full details

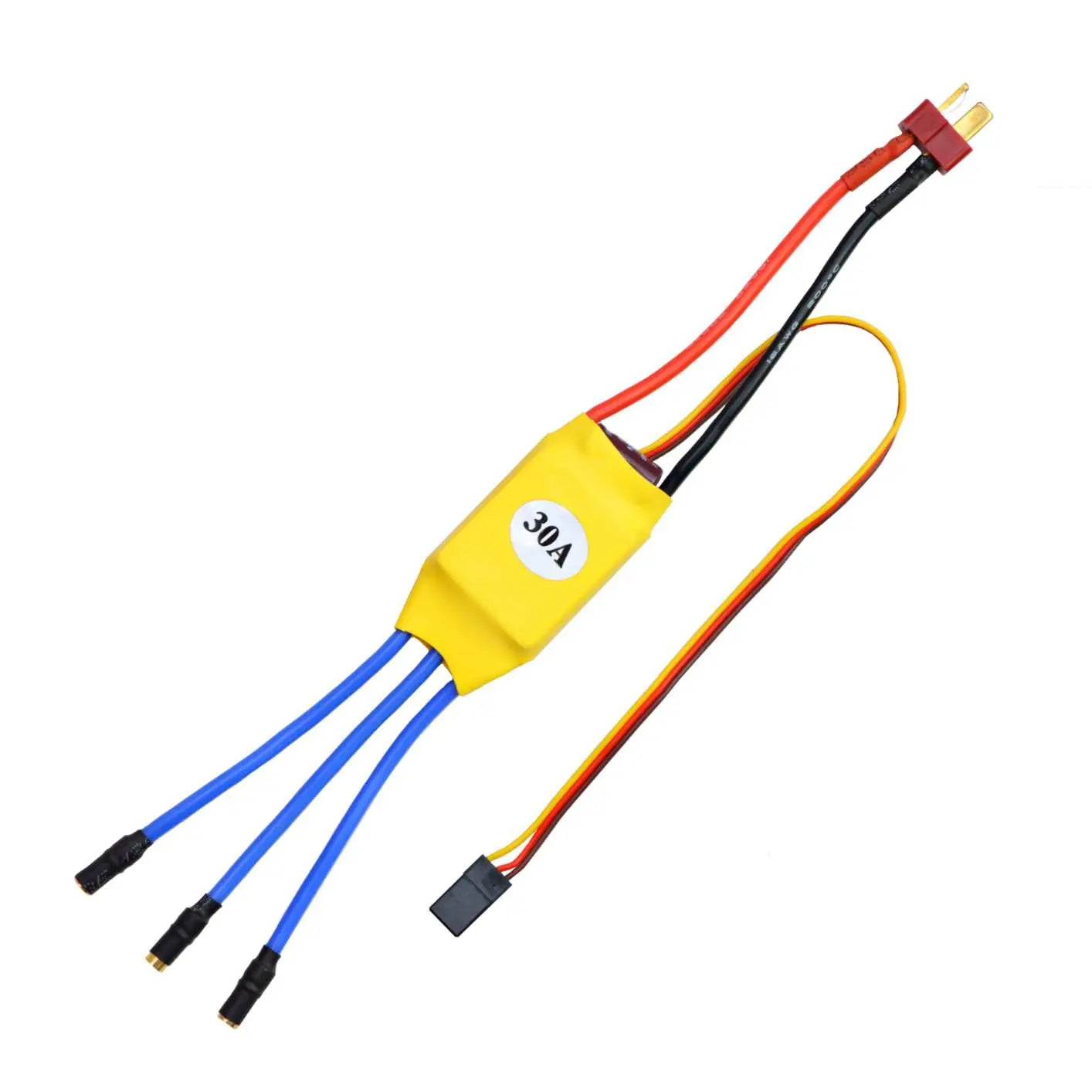

The Simonk 30A 2-3s Brushless ESC with T Plug & Bullet Connector is a compact and high-performance electronic module integrated into the power distribution system of a drone or RC plane. These ESCs are designed to provide precise control over the speed and performance of brushless motors, making them ideal for various applications in the RC hobby, including quadcopters, hexacopters, and RC aircraft.

Key Features:

Input Voltage Range: These ESCs are compatible with input voltages ranging from 2S to 3S LiPo batteries. This voltage range covers a variety of common multirotor and RC plane setups.

Current Rating: Each ESC has a 30A current rating, which represents the maximum continuous current it can handle. This is suitable for powering motors with varying current requirements within the 2-3S voltage range.

Compact Form Factor: The compact size of these ESCs is ideal for smaller multirotor drones and RC planes, allowing for easy integration into the frame or fuselage.

Simonk Firmware: These ESCs are typically equipped with the Simonk firmware. Simonk firmware is known for its simplicity and reliability in motor control, making it suitable for a wide range of RC applications.

T Plug & Bullet Connector: The T Plug, also known as a Deans connector, is a popular type of battery connector in the RC hobby. These ESCs come with T Plug connectors for battery input and bullet connectors for motor output, which is a common configuration for many RC setups.

Motor and Battery Connectors: These ESCs are designed with bullet connectors for motor output and T Plug connectors for battery input. These connectors are widely used in the RC community and provide a secure and efficient connection.

PWM Control: These ESCs support traditional PWM (Pulse Width Modulation) control signals from the flight controller or receiver.

On-Board Protection: Some ESCs include features like over-current protection, thermal protection, and voltage cutoff to prevent damage to the ESC and connected components in the event of a malfunction.

Set of 4: This package typically includes a set of four ESCs, making it suitable for multirotors and drones that require multiple motors for propulsion.

Brand Name: Simonk
Item Name: Brushless ESC
Current: 30A
BEC Output: 5V/2A
Working Voltage: 2-3S LiPo
Wire Type: silicone
BEC Cable: 180mm DuPont
Power Wire: 85mm T-Plug Male
Phase Wire: 85mm Female Bullet
Frequency: 16KHz
Weight: 27g

Package Included:
1× Simonk 30A 2-3s Brushless ESC With T Plug & Bullet Connector

Specification:-

Item Type:

Brushless ESC

Model

SIMONK 30A

Burst Current (A)

40

Constant Current (A)

30

BEC (Y/N):

Yes

BEC

(5V/2A)

Compatible LiPO Batteries

2 to 3S

Color:

Red

Application

BLDC Motors, Multirotors, Rc Planes etc.

Length (mm):

34

Width (mm):

24

Height (mm):

9

Weight (g):

23

Shipping Weight 0.027 kg
Shipping Dimensions 10 × 10 × 5 cm
