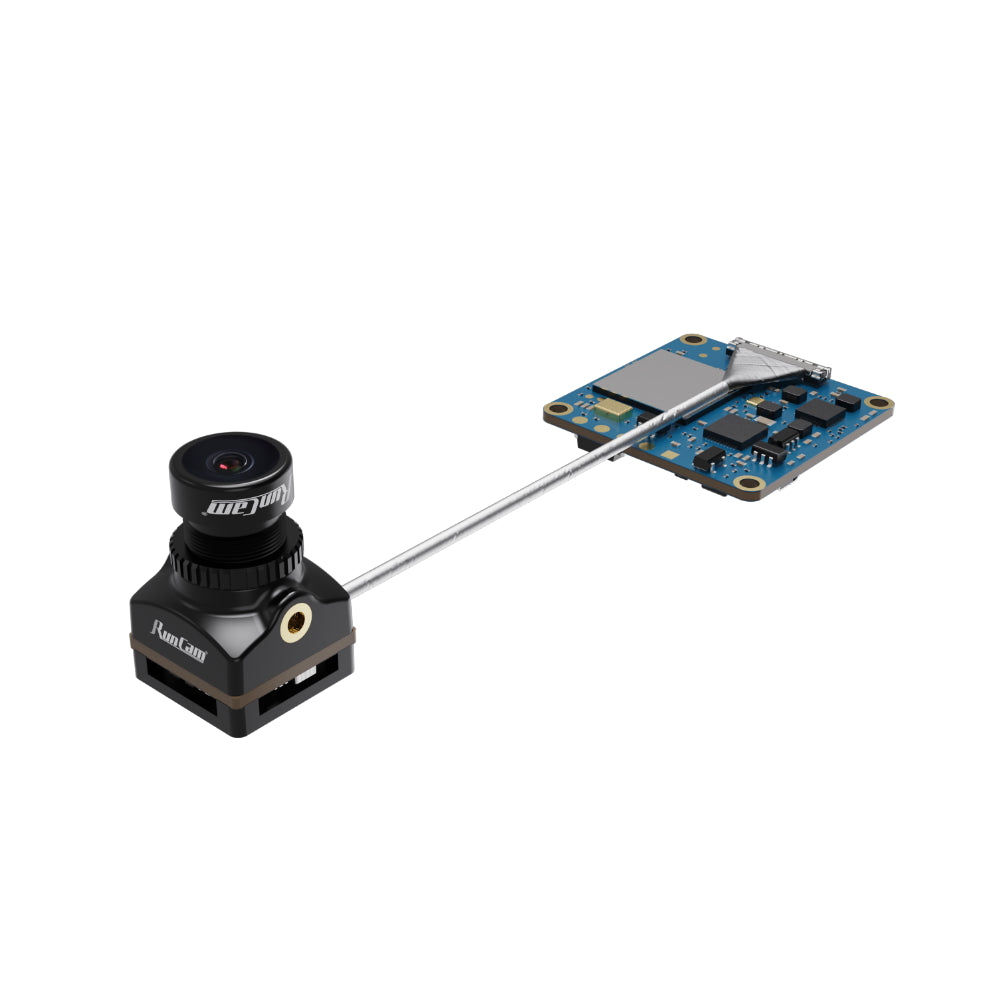

SPLIT 4 4K High Definition Recording / Low Latency FPV 2 IN 1
4K 30FPS 2.7K 60 FPS & FPV Camera / Low latency (average 55MS) / Wide voltage (5-20V)
FPV aspect ratio 16:9/4:3 switchable / Power-off protection for video files / UART control
FPV aspect ratio 16:9/4:3 switchable / Power-off protection for video files / UART control
Easy Installation
Lens module size (14*14mm)
Hole Distance of PCB Installation (25.5*25.5mm)
Hole Distance of PCB Installation (25.5*25.5mm)
4K1080P
SONY 13MP Pixel SENSOR
Dimensions & Installation
Package
-
1× Camera -
1× 14 to 19 bracket -
1× 3PIN Cable -
1× Set of M2 screws -
1× Manual
Parameters
| Model | Split 4 |
| Image Sensor | SONY 13MP |
| Field of View(FOV) | 140° |
| Video Resolution | 4K@30fps/2.7K@60fps/2.7K@50fps/1080P@60fps |
| Video File Format | MP4 |
| TV Mode | NTSC (720*480)/PAL (720*576) Switchable |
| Interface | UART |
| Max Micro SD Card Supported | Max. 128GB SAMSUNG 128GB U3 recommended (2.7K60/2.7K50/1080P120 requires U3 or above; other solutions require U1 or above) Please make sure that the file format of the SD card is exfat, otherwise, it will easily cause errors. |
| Power Input | DC 5-20V (Non-direct power supply from the battery, Powered directly with the battery will generate surges and burn the camera.) |
| Lens Module Size | 14*14mm |
| Mounting Hole Distance | 25.5*25.5mm |
| PCB Size | 29*29mm |
| Working Current | MAX 450mA @5V |
| Weight | 10.2g |
Manual
