The RunCam Night Eagle 3 is an ultra-sensitive night flight camera. The camera has an OSD for displaying a pilot ID, power-on time, and external battery voltage. Micro-size 19x19mm. It is one of the best night vision of analog FPV cameras, the Eagle 3 aims to take back the crown with its clear, high-resolution picture and wide range of applications – doing exceptionally in low-light scenarios with its Starlight CMOS sensor
Features:
- Model: RunCam Night Eagle 3
- Image Sensor: 1/2.8”2MP
- Horizontal Resolution: 1000TVL
- Lens: FOV D:125° H:107° V:56° FOV D:97° H:75° V:56°
- Screen Format: 16:9 4:3
- Signal System: TSC / PAL Switchable
- Integrated OSD: Yes
- Mirror/Flip: Available
- S/N Ratio: >50dB
- Electronic Shutter Speed: Auto
- Sensitivity: 11390 mV/Lux-sec
- Day/Night: Black & White
- Menu Control: Joystick Control
- Operating Power: DC 5-24V
- Operating Current: 90mA@12V / 250mA@5V
- Housing Material: ABS
- Net Weight: 8.5g

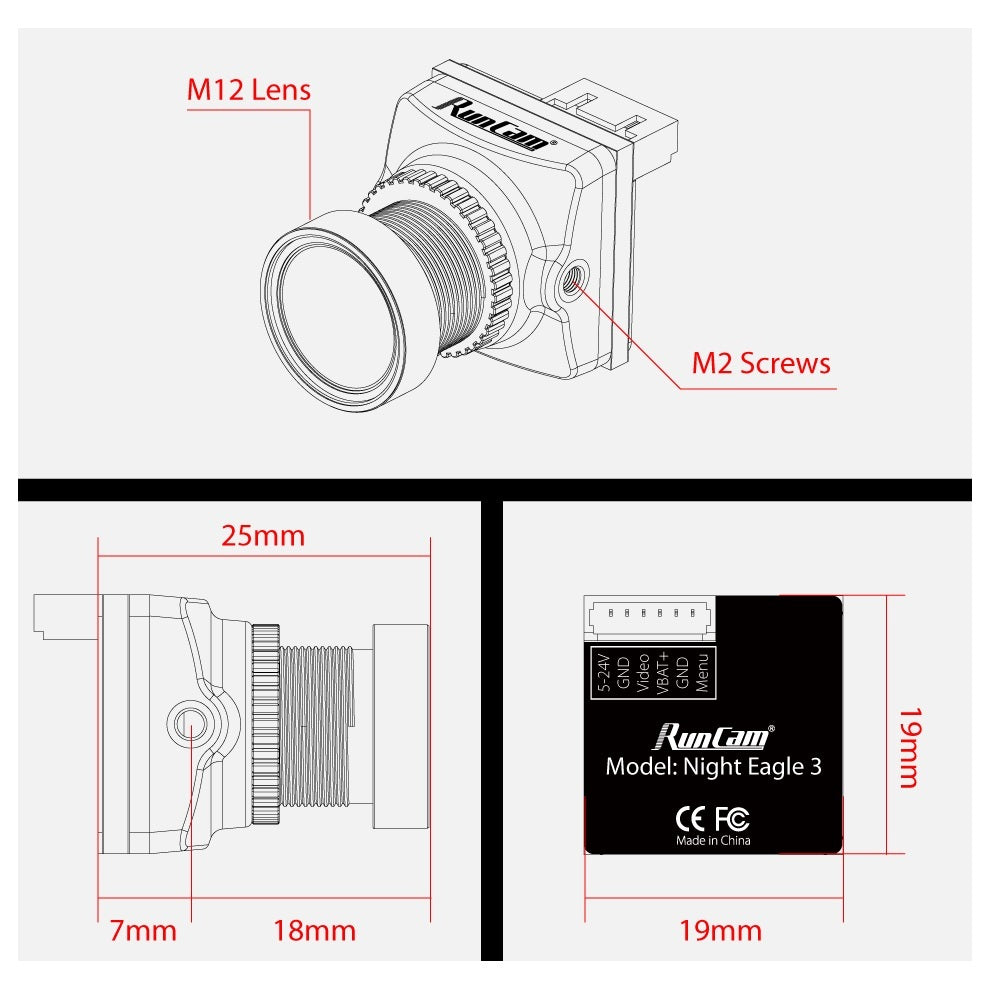

- Dimensions (L x W x H)mm: 19 x 19 x 25
Package Includes:
1× RunCam Eagle 3 Night Vision Camera
1× 5D-OSD menu cable
1× 6pin FPV silicone cable
1× Set of screws
1× User Manual
Specification:-
| Item Type: |
FPV Camera |
|---|---|
| Resolution (TVL) |
1000 |
| Current Drawn |
250mA @ 5V, 90mA @ 12V |
| Lens |
FOV: 97° (4:3), 125° (16:9) |
| Aspect Ratio |
4:3/16:9 switchable |
| Sensitivity (dBm) |
11390 mV/Lux-sec |
| Image Sensor |
1/2.8" 2MP |
| Dimensions (LxWxH) mm |
25x19x19mm |
| Input Voltage (V) |
5-24V DC |
| TV Output |
NTSC |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 7 × 5 × 3 cm |
