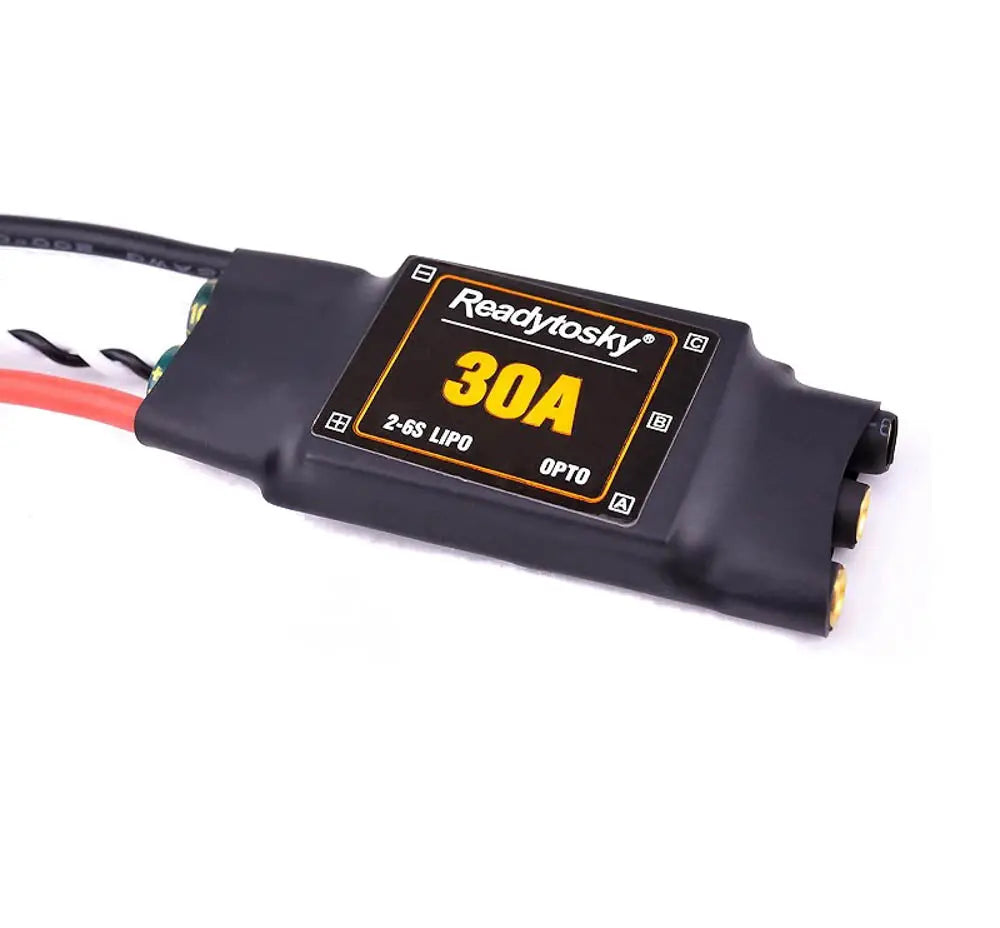

ReadytoSky 30A 2-6S ESC 3.5mm Banana connector.

ReadytoSky 30A 2-6S ESC 3.5mm Banana connector.

SKU:035007

Regular price Rs. 549.00
Regular price Sale price Rs. 549.00
Sale Sold out
Shipping calculated at checkout.

(Including GST)

View full details

The ReadytoSky 30A 2-6S ESC with 3.5mm banana connectors is a compact and high-performance electronic module integrated into the power distribution system of a drone. It is designed to provide precise control over the speed and performance of the drone’s motors. The 3.5mm banana connectors are used for easy and secure motor connections, ensuring a reliable and low-resistance power path.

An opto ESC isolates the high-power side (battery and motor) from the signal side (connection to the receiver) by internally transmitting the receiver throttle signal from the input side to the output side of the ESC through an optocoupler.
ReadytoSky 30A 2-6S ESC is specifically made for quadcopters and multi-rotors. Which provides faster and better motor speed control giving better flight performance compared to other available ESCs.
ReadytoSky 30A 2-6 ESC comes with a multi-integrated special program, fast throttle response, and surpasses all kinds of open-source software.

Key Features:

Input Voltage Range: The ESC is compatible with input voltages ranging from 2S to 6S, making it suitable for a wide range of LiPo battery configurations. This flexibility allows users to adapt the ESC to different drones and voltage setups.

Current Rating: This ESC has a 30A current rating, which represents the maximum continuous current that each of its ESC channels can handle. The 30A rating is suitable for powering motors with varying current requirements.

Compact Form Factor: The compact size of the ESC is suitable for various drone frames and configurations, making it versatile and compatible with different drone designs.

High-Quality Components: The ReadytoSky series is known for using high-quality components to ensure reliability and efficient performance.

Advanced Motor Control: The ESC typically features advanced motor control firmware, which ensures reliable and precise control of the motors. This firmware might include features like active braking, rapid response times, and smooth motor control.

3.5mm Banana Connectors: The inclusion of 3.5mm banana connectors makes motor connections secure and low-resistance. This ensures a stable and efficient power path from the ESC to the motors.

PWM and DSHOT Compatibility: The ESC supports various control signal input options, including traditional PWM (Pulse Width Modulation) and DSHOT, a modern digital communication protocol. This flexibility allows users to choose their preferred control method.

On-Board Protection: Many modern ESCs include protection features like over-current protection, thermal protection, and motor lock-up detection to safeguard the ESC and motors from damage in the event of a malfunction.

Motor Connectors: The ESC typically includes connectors for attaching the motor wires and a power input lead to connect to the drone’s battery.

Features:
Specifically optimized firmware ESC, the ESC has a very good compatibility
Highly intelligent, adaptive ability, extremely easy to use
The throttle signal line is a twisted pair, of copper wires to reduce the cross-talk signal generated
Supports up to 621Hz refresh rates up to the throttle signal, compatible with a variety of flight control (Note: More than 500Hz signal of the throttle are all non-standard signal)
Use MOSFET special driver chip, performance, and stability far beyond the driving circuit with discrete components built

Packages Include:
1 x ReadytoSky 30A 2-6S ESC 3.5mm Banana connector

    SPECIFICATION

Model 30A 2-6S ESC
Cont. Current 30A
Max. Current 40A
Voltage 4 V-16.8V
Connector Female-Banana connector
BEC No (OPTO ESC)
Li-ion/Li0poly 2-6S
Weight 30g
Shipment Weight 0.01 kg
Shipment Dimensions 5 × 4 × 1 cm
