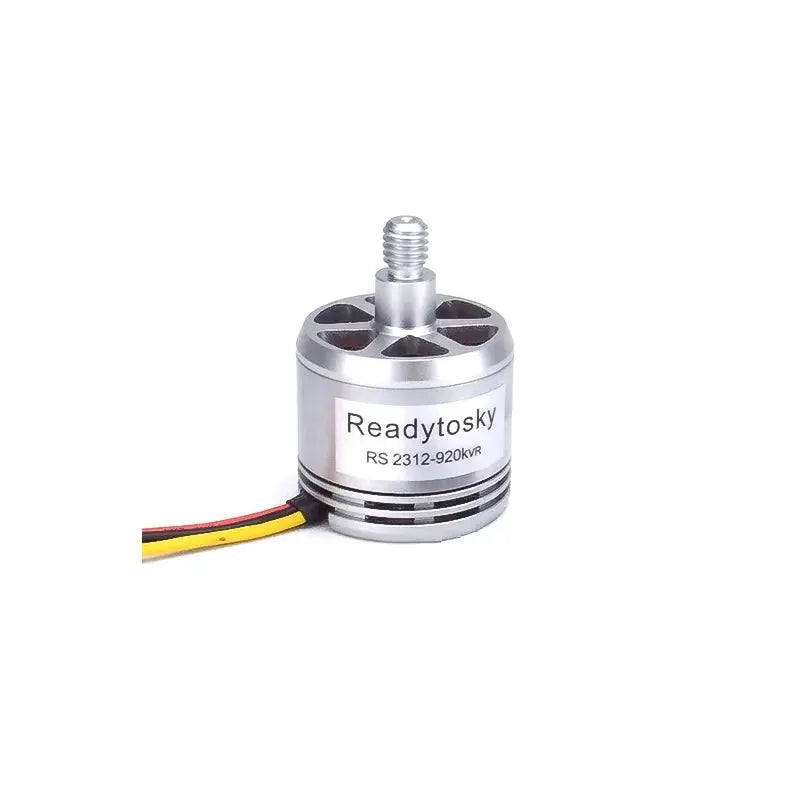

The Readytosky 2312 920KV Brushless DC Motor is designed for use in drones and other remote-controlled aircraft. This specific motor is a counter-clockwise (CCW) rotating motor, and it offers a balance of performance and efficiency for various aerial applications. Here’s a description of the motor and its key features:
The Readytosky 2312 920KV Brushless DC Motor is engineered to meet the needs of drone enthusiasts and aerial hobbyists. It is specifically designed for use as a counter-clockwise (CCW) rotating motor in multirotor configurations, where it pairs with clockwise (CW) rotating motors to provide balanced thrust for stable flight.
Key Features:
Brushless Motor: This motor uses a brushless design, which eliminates physical brushes that can wear out over time. Brushless motors are known for their durability, efficiency, and precise control.
KV Rating (920KV): The “KV” rating indicates the motor’s RPM (revolutions per minute) per volt. A 920KV motor like this one rotates at around 920 RPM per volt when running without a load. This rating determines the motor’s speed and compatibility with different propellers and voltage setups.
CCW Rotation: This motor is specifically designed to rotate in a counter-clockwise (CCW) direction when viewed from the front. It complements CW rotating motors to achieve balanced thrust in a multirotor configuration.
Voltage Compatibility: The motor is designed to operate within a specified voltage range. It is essential to match the motor’s voltage requirements with the power source, typically a lithium-polymer (LiPo) battery. This motor may be suitable for use with 3S or 4S LiPo batteries, but always check the manufacturer’s specifications for precise voltage requirements.
High Efficiency: Brushless motors are known for their efficiency, which contributes to longer flight times in drones and RC aircraft.
Durable Construction: The motor is constructed with durability in mind, often featuring a robust metal casing and high-quality bearings, to withstand the rigors of flight.
Wide Range of Applications: While commonly used in multirotor drones, this motor can also be suitable for other aerial applications where precise control and high efficiency are required.
Easy Installation: Designed for ease of use, this motor should be straightforward to install on your drone frame, and it often comes with pre-soldered connectors for easy integration.
Features :
Equips Japanese EZO bearing to ensure smooth operation.
The outer covering is designed using CNC Machined Aluminium.
The use of aluminum in design makes it lightweight.
180-degree magnets
Motor KV: 920 (RPM/V)
No-Load Current (Io/10V): 0.45 Amps
Li-PO Batteries: 2S-4S
Motor Resistance (Rm): 0.117 Ohms
Max Continuous Current: 14 Amps
Max Power: 220 Watts
Package included :
1× 2312 920KV Brushless DC Motor for Drone (CCW Motor Rotation)
