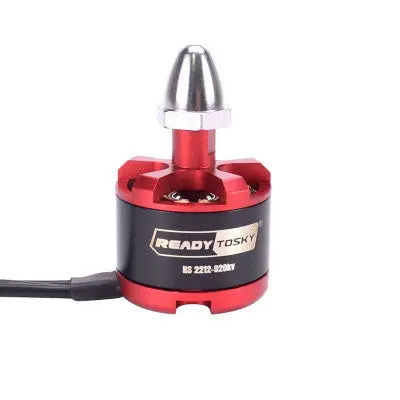

The Readytosky 2212 920KV CCW (Counter-Clockwise) Self-Locking Brushless Motor is a component designed for drones and RC planes, offering reliable propulsion for aerial applications. Here’s a description of the motor and its key features:
The Readytosky 2212 920KV CCW Self-Locking Brushless Motor is engineered for use in remote-controlled aircraft, specifically drones and RC planes. As a counter-clockwise (CCW) rotating motor, it complements clockwise (CW) rotating motors in a multirotor configuration to provide balanced thrust for stable flight.
Key Features:
Brushless Motor: This motor uses a brushless design, eliminating physical brushes that wear down over time. Brushless motors are favored for their durability and efficiency.
Self-Locking Propeller Design: The “self-locking” feature implies that the motor comes with a built-in propeller adapter or nut designed to securely lock the propeller in place. This simplifies the installation process and ensures that the propeller remains firmly attached during flight.
KV Rating (920KV): The “KV” rating represents the motor’s RPM (revolutions per minute) per volt. A 920KV motor like this one rotates at around 920 RPM per volt when running without a load. This rating determines the motor’s speed and compatibility with different propellers and voltage setups.
Voltage Compatibility: The motor is engineered to operate within a specified voltage range. It’s essential to match the motor’s voltage requirements with the power source, typically a lithium-polymer (LiPo) battery. The motor may be suitable for use with 3S or 4S LiPo batteries.
High Efficiency: Brushless motors are known for their efficiency, which contributes to longer flight times in drones and RC planes compared to brushed counterparts.
Durable Construction: The motor is designed to withstand the challenges of aerial applications. It often features a robust metal casing and high-quality bearings.
CW Version Required: To achieve balanced propulsion in multirotor drones, you’ll need a clockwise (CW) motor counterpart alongside this CCW motor.
Wide Range of Applications: This motor is versatile and suitable for various types of drones, multirotors, quadcopters, and RC planes, making it an excellent choice for hobbyists and enthusiasts.
Easy Installation: The self-locking design streamlines the process of attaching and securing the propeller onto the motor shaft, making it easier for users.
CCW Rotation: This motor specifically rotates in a counter-clockwise (CCW) direction when viewed from the front. It pairs with CW motors to provide balanced thrust in multirotor setups.
More Features :
Stable Performance.
The design of the 2212 920KV is capable of withstanding competitional conditions.
The Motor Comes in a compact size.
The motor goes with 30 A ESC.
Offers great performance and value for money
Motor KV: 920 RPM/V
Motor Rotation: CCW
Thrust: Around 0.5 kg
LiPO Batteries: 3S-4S
ESC: 30 A
Shaft Diameter: 6 mm
Package Included :
1× 2212 920KV Brushless Motor for DJI
1× Silver Cap
| SPECIFICATION:- | |
| Model | 2212 |
| Motor KV (RPM/V) | 920 |
| Maximum Thrust (gm) | 500 |
| Compatible LiPO Batteries | 3S ~ 4S |
| Shaft Diameter (mm) | 6 |
| Rated Voltage(V) | 7 ~ 12 |
| Required ESC (A) | 30 |
| Length (mm) | 28 |
| Width (mm) | 28 |
| Height (mm) | 46 |
| Weight (gm) | 60 |
| Shipment Weight | 0.064 kg |
| Shipment Dimensions | 8 × 6 × 5 cm |
