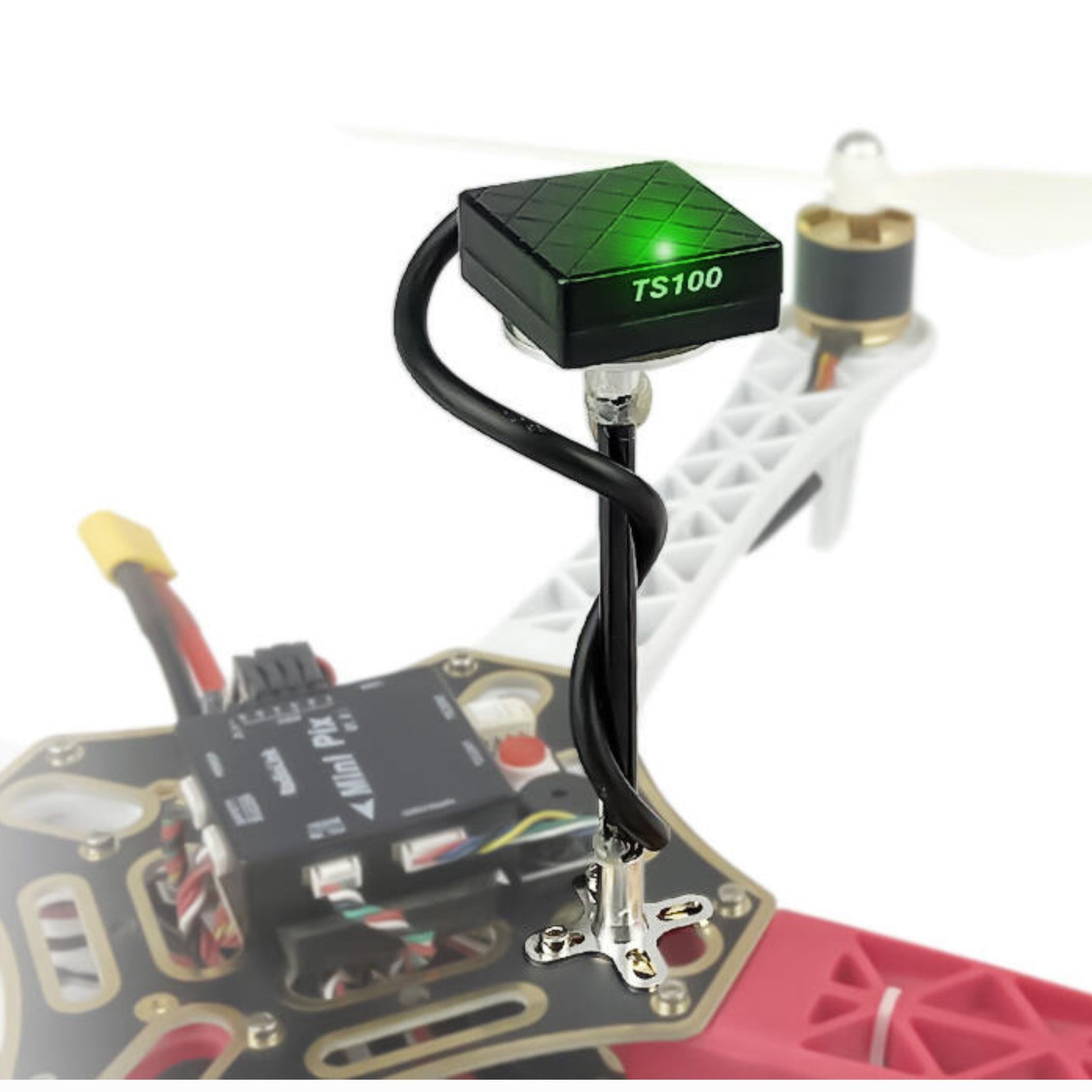

The Radiolink TS100 Mini GPS is a small and highly sensitive GPS module that provides accurate positioning and navigation data for a wide range of applications. It is commonly used to enable features like GPS-based flight modes, return-to-home (RTH), waypoint navigation, and real-time tracking.
Features:

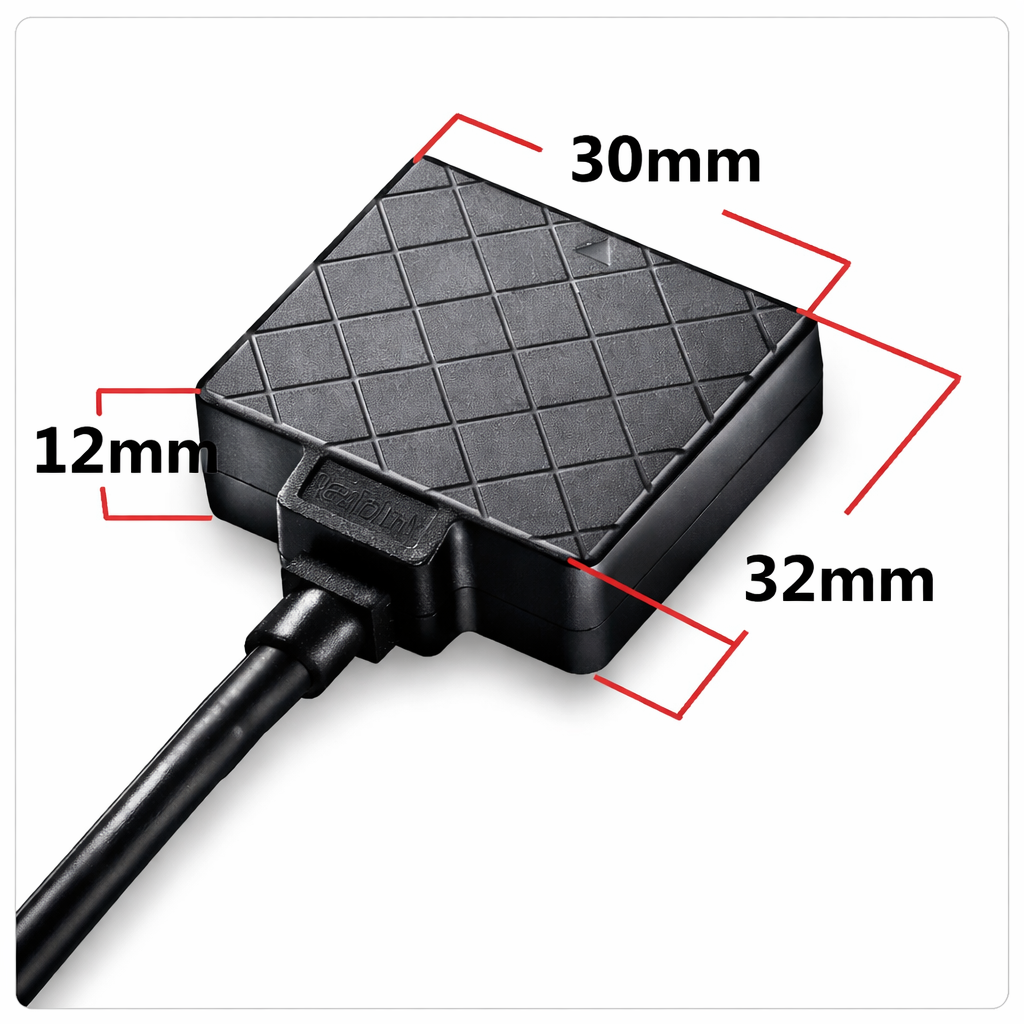

Compact Size: The TS100 Mini GPS is known for its compact and lightweight design, making it easy to integrate into small drones and other devices without adding significant weight or bulk.
High Sensitivity: This GPS module typically features high sensitivity, which allows it to acquire satellite signals quickly and maintain a reliable GPS lock even in challenging environments or urban areas.
Fast Position Fix: The TS100 is designed to provide a fast and accurate position fix, which is essential for applications that require real-time location data.
GPS and GLONASS Support: Many TS100 Mini GPS modules support both GPS and GLONASS satellite systems, which can improve positioning accuracy and reliability by using signals from multiple satellite constellations.

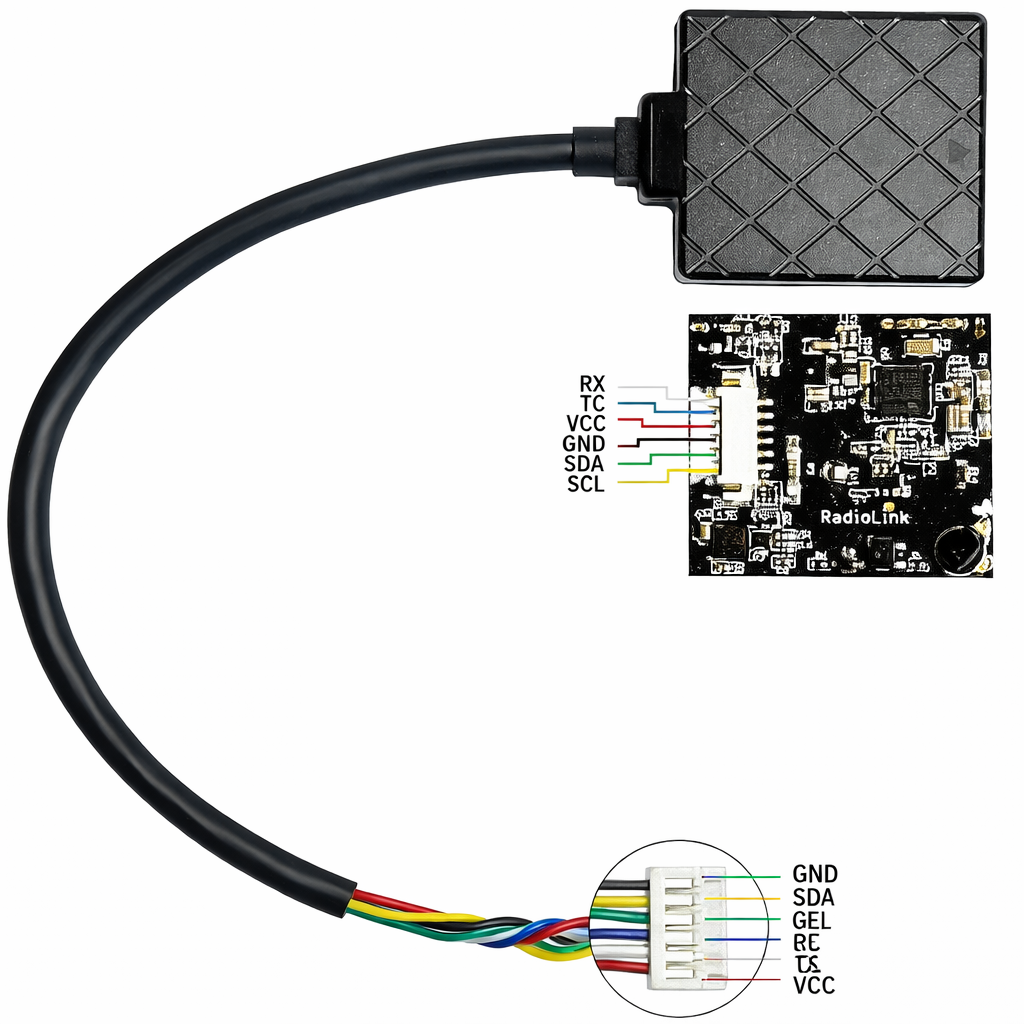

UART Interface: It often connects to the flight controller or microcontroller through a UART (Universal Asynchronous Receiver-Transmitter) interface, which is a common communication protocol for transmitting GPS data to the onboard controller.
Low Power Consumption: The TS100 Mini GPS is typically designed with low power consumption, making it suitable for battery-powered applications such as drones and remote-controlled vehicles.
Voltage Range: The module typically operates on a voltage range of 5V to 6V, which is compatible with most flight controllers and microcontrollers.
Compatibility: These GPS modules are designed to be compatible with a wide range of flight controllers, autopilots, and microcontrollers. They can often be used with popular open-source flight control software such as ArduPilot or PX4.
Antenna: The TS100 Mini GPS often includes an integrated or external antenna for improved signal reception. An external antenna connector may be available for those who need to use a more powerful or specialized GPS antenna.
LED Status Indicator: Some models feature LED status indicators to provide visual feedback on GPS lock status, signal strength, and module activity.
Data Output: The module outputs standard NMEA sentences (National Marine Electronics Association) or other formats containing essential information such as latitude, longitude, altitude, speed, and time.
Features:
Supermini Size
Excellent Performence
Worry-free practice
Power supply: voltage 5VDC+-5%, current 50~55mA
Positional Accuracy: 50-centimeter precision when working with concurrent GNSS.
Velocity precision: 0.1m/s
Max update rate: up to 10Hz
Max height: 50000m
Max speed: 515m/s
Max acceleration: 4G

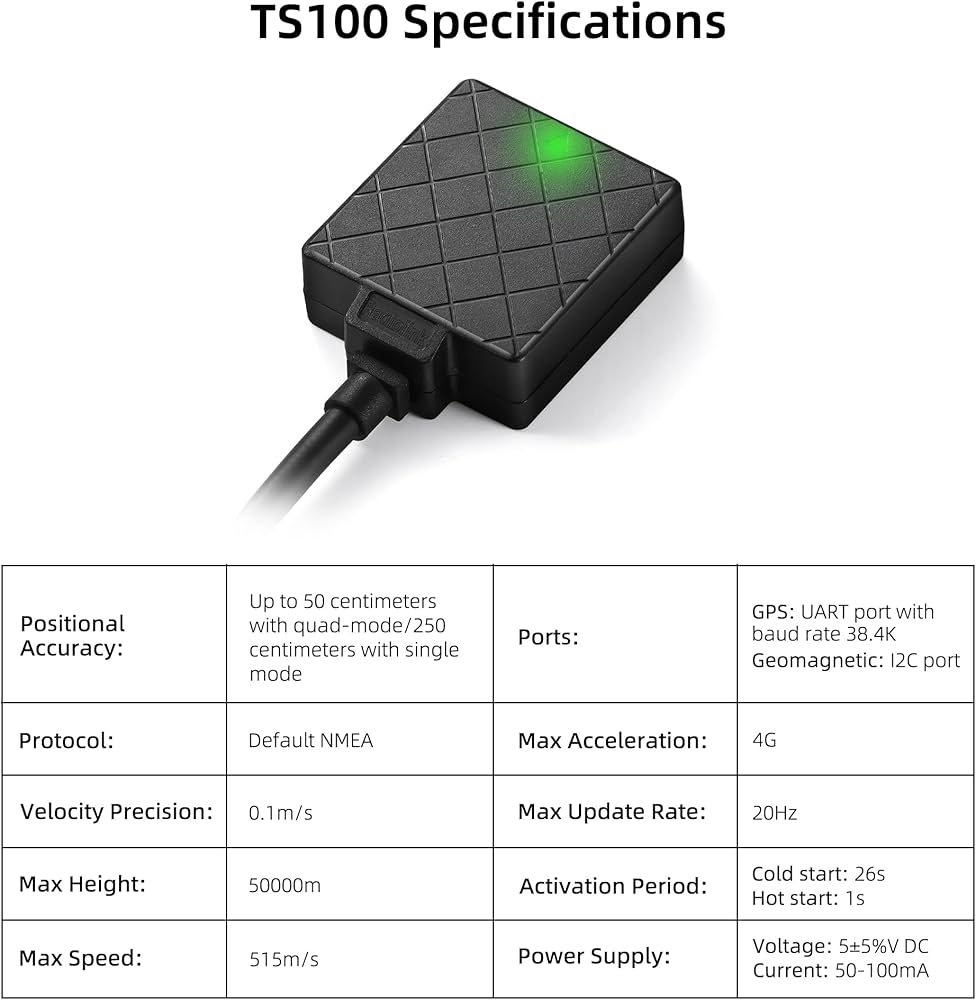

Specifications:
Max update rate: up to 10Hz
Max height: 50000m
Max speed: 515m/s
Max acceleration: 4G
Tracking & Nav: -167dBm, Reacquisition: -163dBm, Cold start: -151dBm, Hot start: -159dBm.
Time to first fix: Cold start: 26s, Hot start:1s
Baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K
Package Included:
1× TS100 Mini GPS
|
SPECIFICATION:-
|
|
| Operating Voltage (VDC) | 5+ |
| Accuracy | 50-centimetre |
| Average Current Consumption (mA) | 50~55mA |
| Maximum Speed | 515m/s |
| Shipment Weight | 0.2 kg |
| Shipment Dimensions | 32 × 30 × 12 cm |
