RTK Base Station

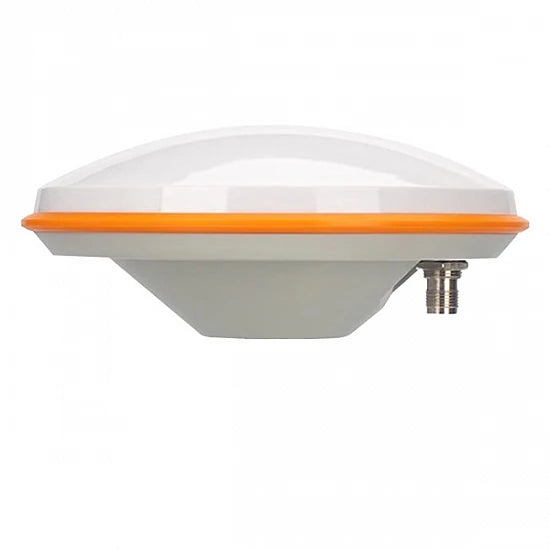

Radiolink ANT-B10
High Quality of Signal Reception and Low Delay
Accurate Directivity:
The four-feed eight-pin antenna design achieved a low axial ratio, small phase center offset, and high positioning accuracy. The phase center has high stability and good repeatability, the directivity is accurate during use, and it is worry-free of movement.
Multi-star Reception:
The four-feed eight-pin antenna has high gain at low elevation angles and strong tracking capability for low-elevation satellites, ensuring the measurement system has enough satellites.
High Quality of Signal Receive and Low Delay:
The ceramic filter and time-delay compensation circuit design are adopted to obtain accurate measurement time and improve positioning accuracy.
Anti-out-of-band Interference:
The antenna adopts a front ceramic filter design and a two-stage ceramic filter design, with high out-of-band suppression, effectively suppressing out-of-band interference signals, without fear of being close to radio communication equipment, 4G/5G transmission towers, high-voltage lines, etc.
Anti-in-band Interference:
The Radiolink BaseStation's ultra-low noise coefficient, high linearity LNA, and wide dynamic range make it Highly Effective against same-frequency interference.
Fast Switching between Base Station and Rover:
The RTK base station and RTK rover use the same design and firmware. You only need to load different configuration parameters to complete fast switching.
The base station and rover use Type-C interfaces, and both ends can be switched freely.
RTK Rover Antenna
Radiolink ANT-M7
Accurate Directivity:
Adopting four-feed eight-arm passive antenna reception, the Radiolink RTK Rover has a low axial ratio, small phase center offset, high positioning accuracy, high phase center stability, great repeatability, and directivity. Suitable for high-speed aircraft.
Anti-out-of-band Interference:
The antenna adopts the design of a pre-SAF filter and two-stage surface acoustic wave filter, with high out-of-band suppression, effectively suppressing out-of-band interference signals, without fear of being close to radio communication equipment, 4G/5G transmission towers, high-voltage lines, etc.
Anti-in-band Interference:
Ultra-low noise coefficient, high linearity LNA, and wide dynamic range make the Radiolink RTK Rover achieve strong anti-same-frequency interference
IP67 Protection:
Dustproof, waterproof, and corrosion-resistant design, worry-free of the outdoor harsh environment of wind and sun, supports all-weather continuous operation.
RTK Receiver

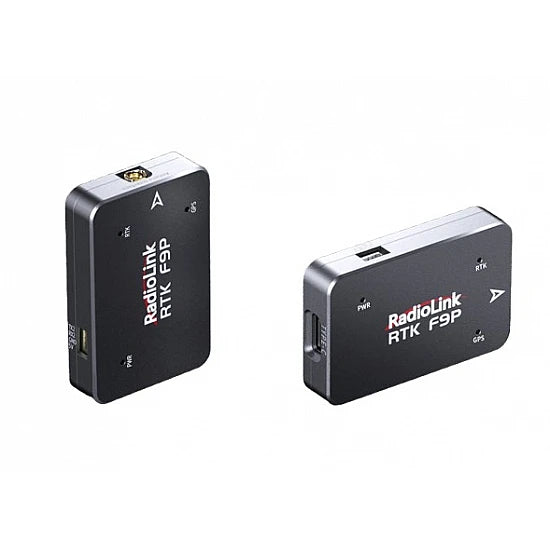

Radiolink RTK F9P
Zero-loss PCB Antenna Feeder
Ublox F9P Module
Adopts the Ublox F9P, which is the best-performance industry RTK module.
Zero-loss PCB Antenna Feeder:
The trace impedance from the SMA antenna to the RTK module RF input pin is
calculated and tested with a network analyzer to achieve almost zero loss.
Low-noise Circuit Design
Using 3PEAK low ripple fast response LDO TPL910A, the output voltage ripple is as low as 4.5uVrms,
The digital-analog circuit isolation PCB routing makes the F9P performance perfect.
Built-in Geomagnetic Chip:
Built-in isenTEK IST8310, the mainstream geomagnetic chip for drone flight controller.
Complete Interface
One USB port, 2 UART ports, and one I2C interface(the same port as UART1)
to adapt to the mainstream interfaces of drones.
:
All-Round Protection Design:
The antenna end is equipped with TVS and ESD protection tubes, and the data interface is equipped with ESD tubes that ensure the safety and reliability of the RTK receiver, RTK BaseStation, and RTK Rover.
