Brand Assurance
22+ years of RC experience.
RadioLink Electronic Limited was founded on September 15th, 2003, and registered a trademark in China, the European Union, and the USA.
In 2013, ten channels transmitter AT10 with full functions and full model types was launched. Radiolink succeeded in finishing the strategy transformation from full set of electronic design solutions provider to a professional RC remote control system designer and manufacturer.
Business License
EU Trademark
China and US Registered Trademarks
R&D Capacity
In 2014, Radiolink planned to develop flight controller and picked up the PIXHAWK finally by comparing most of the flight controllers. It took about one year and seven months to repeatedly test and learn all the functions such as basic use, PID parameter regulation, review a Log of helicopter, fixed wing, multicopter, car and boat. Redesigned the circuit after totally understanding the circuit design and program code of PIXHAWK, achieved less interference of inner components, less noise, more accurate compass and safety while flying, resolved the problem that Altitude Hold was not so much precision.
Quality Assurance
Radiolink took about six months to develop the Automation software Testing system, ensuring the quality of every function of every PIXHAWK. As the only PlX manufacturer that realizes test automation from the sensor to the interface, testing efficiency of Radiolink is far more than traditional manual testing.
Production Assurance
Complete automatic, anti-static form SMT to welding achieved less interference of inner components. Full mechanical, anti-static, fully automated welding from patch to backhand welding, to reduce the interference of geomagnetic sensors, which greatly improves the efficiency of production inspection. All the chips, such as the processor, sensors, and others, are imported as a whole package by the primary agency. Dust-free and environmentally-friendly workshop ensures its durability.
Equipped with the SUI04, Omnidirectional Obstacle Avoidance
An external I2C expansion board can be connected, supporting up to 6 SUI04 ultrasonic obstacle avoidance modules, achieving omnidirectional obstacle avoidance in all directions (front, back, left, right, and upward), as well as altitude hold downwards. This ensures safety for applications such as firefighting, emergency rescue, tea garden and orchard plant protection, and educational training.
Power Module* with Wide Voltage Input
The power module that comes with the flight controller with a wide voltage input range of 2-12S (7.4-50.4V), a maximum detection current of 90A (single ESC maximum detection current is 22.5A), a BEC output voltage of 5.3±0.2V, and a BEC output current of 2A.
PIXHAWK Connectors(Radiolink PIXHAWK is 2.4.8)
|
||||||||||||||||||||||||||||||

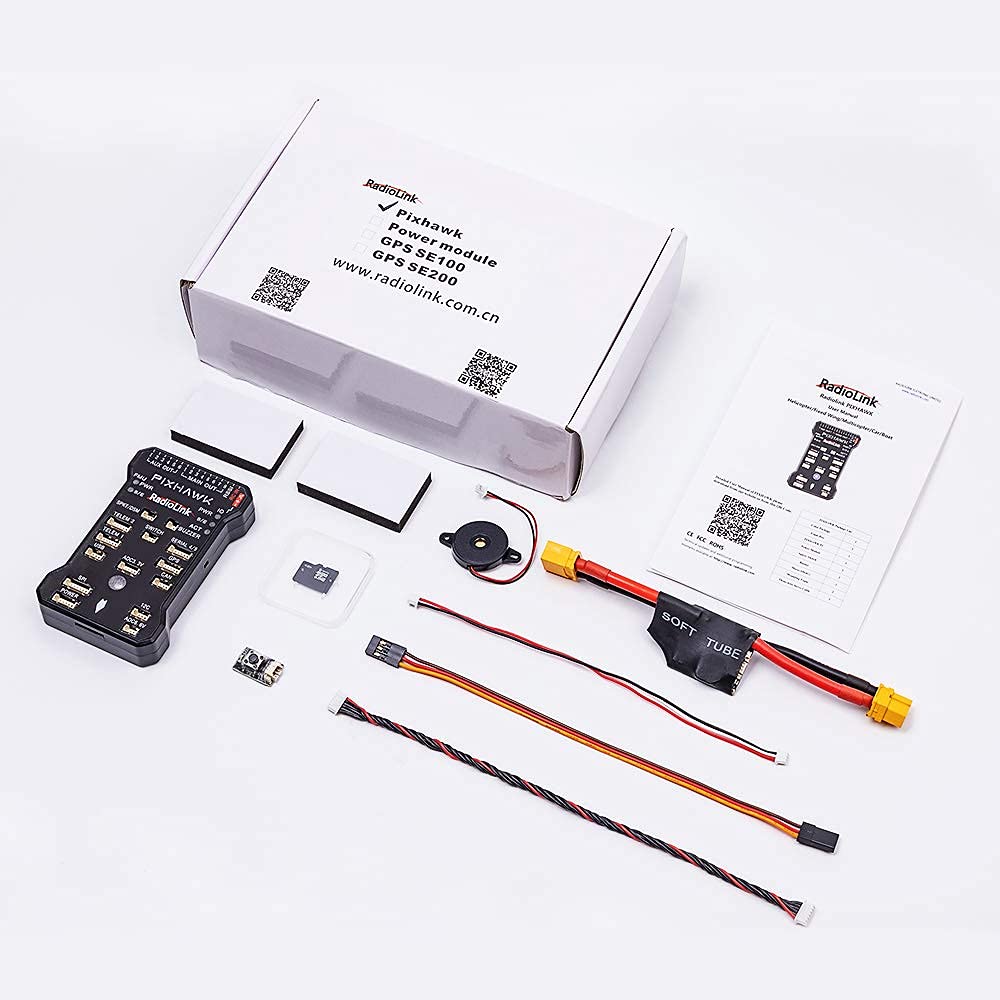

Package Includes:
1× Radiolink Pixhawk Flight controller Board
1× Power Module
1× SD Card
1× Safety Switch
1× 3-wire Servo Cable
1× Buzzer
2× Mounting Foam
Specifications
|
Weight & Dimension
|
Dimension
|
82.2*51.8*16.5mm(3.2*2*0.65")
|
|
Weight
|
38g(PIXHAWK only)
|
|
|
Hardware Specification
|
Main Processor
|
STM32F427VIT6
|
|
Coprocessor
|
STM32F100C8T6
|
|
|
Sensor
|
Gyro & Accelerometer
|
MPU6000
|
|
E-compass
|
IST8310
|
|
|
Barometer
|
MS5611
|
|
|
FRAM
|
256 Kb(718 waypoints for multicopter, 724 waypoints for airplane, car and boat )
|
|
|
Connector
|
Type
|
XH socket
|
|
SPK/DSM
|
1
|
|
|
Mavlink UART
|
2 (with RTS/CTS)
|
|
|
USB Port
|
2
|
|
|
Buzzer
|
1
|
|
|
Safety Switch
|
1
|
|
|
ADC Port
|
3.3V*1&6.6V*1
|
|
|
SERIAL4/5 Port
|
1
|
|
|
GPS UART
|
1
|
|
|
CAN Port
|
1
|
|
|
SPI Port
|
1
|
|
|
I2C
|
1
|
|
|
Signal Output
|
SBUS/PPM/CRSF
|
|
|
RSSI Signal
Strength Input |
PWM/3.3V
|
|
|
PWM Output
|
8 OneShot/PWM Output(Configurable)
|
|
|
DSHOT Protocol
|
Support(must upgrade the firmware to V4.0 or above)
|
|
|
Aux Output
|
6 PWM Output(Configurable)
|
|
|
SD Port
|
1
|
|
|
Power Module
Specifications |
Weight
|
24.5g(0.86oz) without wire
|
|
Input Voltage
|
2-12S
|
|
|
Maximum Detection Current
|
90A
|
|
|
Output Voltage(BEC)
|
5.3V±0.2V
|
|
|
Output Current(BEC)
|
2A
|
|
|
Single ESC Maximum
Detection Current |
22.5A
|
|
|
Adaptable Models
|
||
|
Specifications
|
USB Voltage
|
5V±0.3V
|
|
Servo Voltage
|
Input Non Applicable
|
|
|
Operating Temperature
|
-30~85℃
|
|
