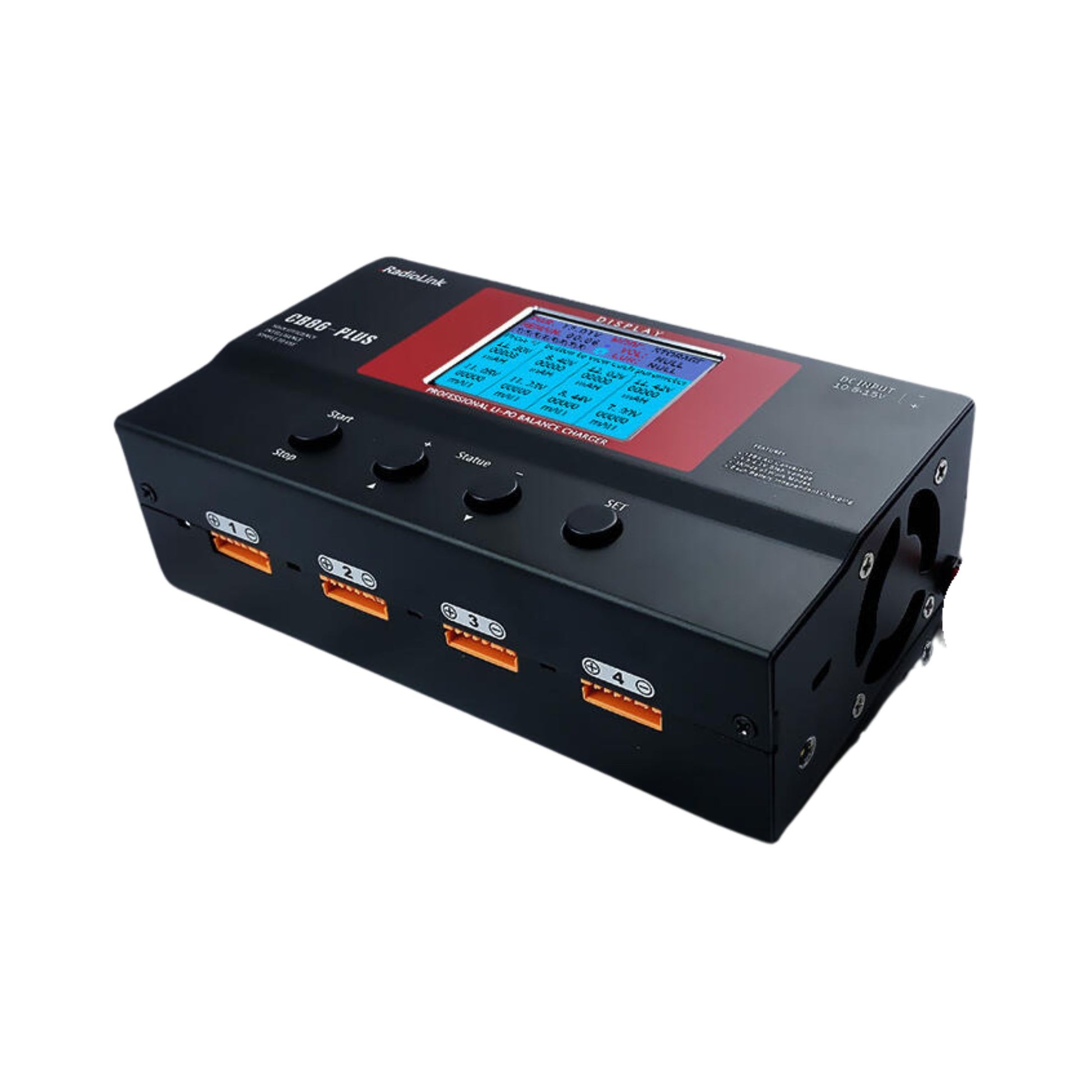

CB86-PLUS
High Precision Balance Charger
Guaranteed Protection
Pulse current charge mode, software optimization and circuit design optimization of
new version CB86-PLUS reduced the wastage of electron device, improves the service life and achieve better battery protection.
Statistical analysis of charging trend by software, new version CB86-PLUS can detect the hardware failure timely and then stop chargingimmediately.
CB86-PLUS is developed as polarity control which ensures protection to both the charger itself and the battery
when there’s reverse polarity connection and can automatically stop function if the input voltage is over(>15V) or less (<10.5V).
When CB86-PLUS is powered off, charging battery won’t be discharged and can be well protected.
Even any charging battery is accidentally pulled off, CB86-PLUS will self-protect to
reduce the risk of getting damaged caused by sudden voltage increase at the charging port.
Balance Current of 6A
With the design of balance charging, CB86-PLUS allows six independent circuits supply maximum six cells battery at the same time.
Charging current of 6A (i.e. balance current) much exceeds 0.5A of traditional charger.
Multiple Input
The input power supply can be a 3S LiPo battery,
adapter, or a DC power source of output voltage 10.5-15V and currently of more than 15A.

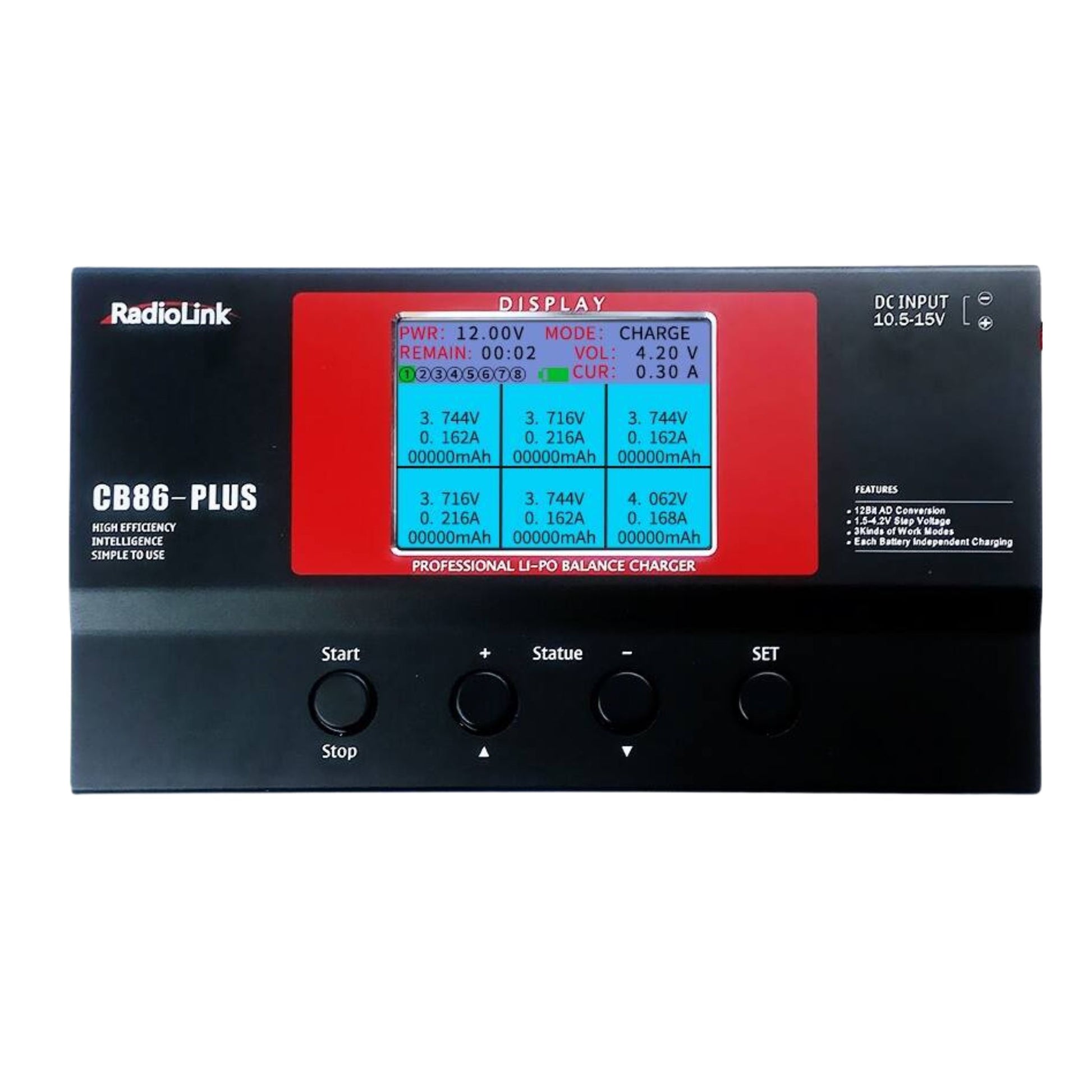

Real-Time Display
The charging status of each cell can be checked on the display of the charger.
When one cell of the battery has fully charged, a green cursor will indicate the charging status in addition to the beeping sound.
Real Time Operating System (RTOS) makes the function buttons response and parameter menu switch refresh without delay.
