Note: This product is available on backorder. This product will be shipped to you as soon as possible when it is in stock. It will take 10 to 15 days to ship you. If you made a prepaid order then your order will get confirmed first and if you placed an order on cash on delivery, then it will take time to confirm your order. There is no refund in any of these cases.

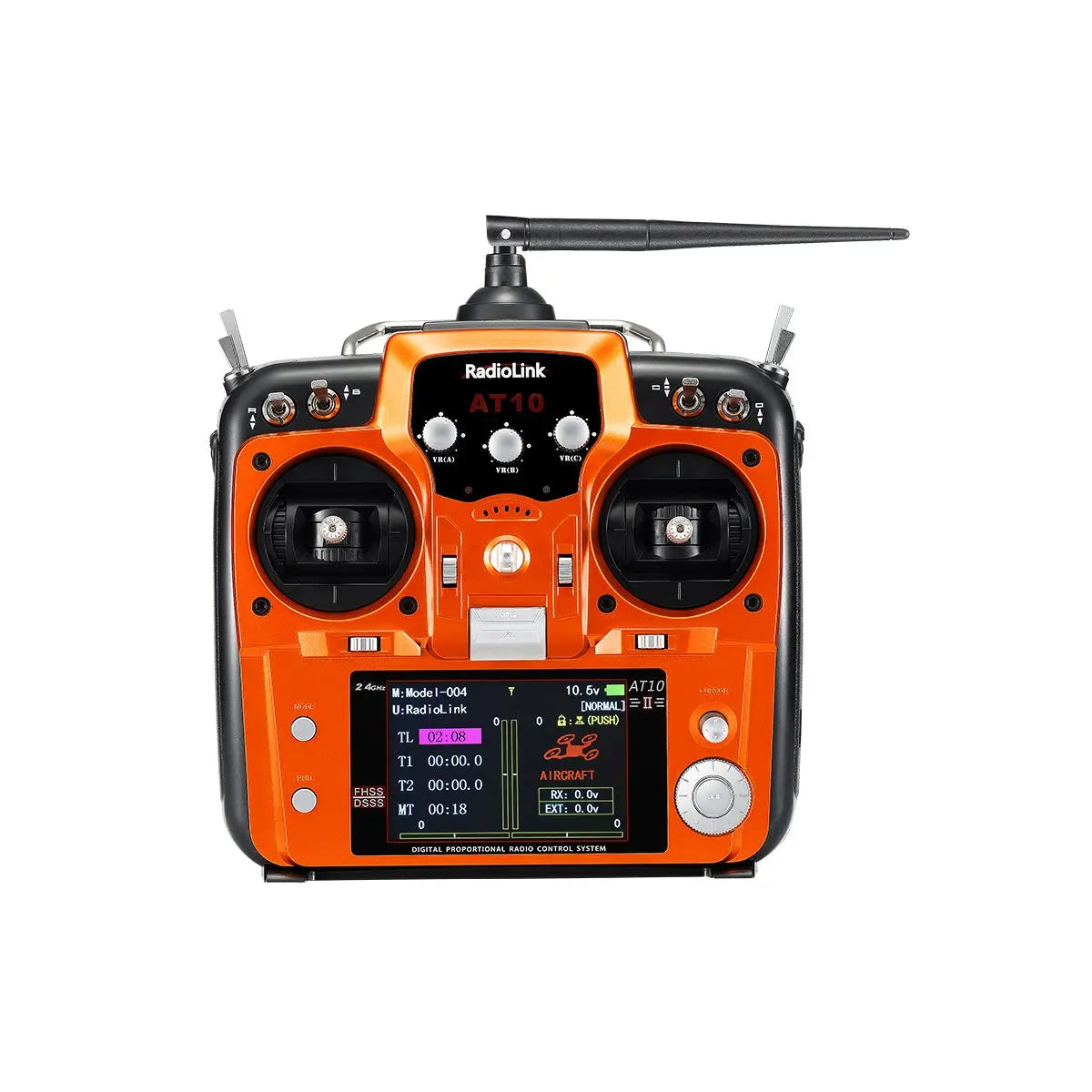

Radiolink AT10 2.4GHz 12CH Remote with R12DS Receiver For Drone has revolutionized the way people experience RC, and now this radio transmitter and Receiver can stand up to the top competitions. This 12 channel Transmitter, is developed by RADIOLINK for all the Radio Control model lovers and is patented by RADIOLINK at home. The system is specially developed for all the Radio control models, that offer super active and passive anti-jamming capabilities, very low power consumption, and high receiver sensitivity. With extreme rigorous testing by engineers and studying the markets for years.
2.4GHz is the standard of the new generation radio system because it has a lot of advantages. Operating at 2.4 GHz puts the radio control out of the frequency range of any ‘noise’ generated by the other electronic components on your helicopters – such as the brushless motor, Electronic speed controller, Servos, and any metal to metal noise – eliminating interference and glitching that can affect traditional frequency system.
Applications:
Ideal for Flying Virtually any Type of Aircraft- Fixed Wing, Rotary, Glider, Multirotor and Hybrids
Excellent Transmitter for Recreation, Sport, Competition or 3D Flying
Precautions:
Never Operates The model during adverse weather conditions. Poor Visibility can cause disorientation and loss of control of the model
Always ensure the trim levers at 0 and battery properly charged changed before connecting the receiver
always check all servos and their connections prior to each run
always be sure about turning off the receiver before the transmitter
Features:
User name and model setup can be saved (up to 15 aircraft)
RSSI and Telemetry
Adjustable display brightness and contrast
Multiple alarms
Servo reversing and end-point adjustment
Adjustable servo travel limit (prevents pushrod jamming)
Servo Cycle function helps locate servo problems
Dual, Triple and Exponential rates
Digitally controlled Trim switches
Sub-Trim program changes the servo neutral position
Adjustable gimbal-stick length and tension
Specifications:
AT10II RC Transmitter Specifications | |
Channels | 12CH |
Control Distance | Up to 4000 meters in the air |
Frequency | 2.4GHz ISM bands (2400MHz to 2483.5MHz) |
Channel Bands width | 5.0 MHz |
Spread Spectrum | DSSS&FHSS |
Adjacent Channel rejection | 38dbm |
Transmitter Power | <100mW (20dbm ) |
Operating Current | <90mA |
Operating Voltage | 7.4~15.0V |
Section Precision | 4096 |
Screen | 3.5 inches 16 colorful screen, 320*480 pixels |
Support receivers | R12DS, R9DS, R6DS, R6DSM, and R12DSM |
R12DS Specifications:
Operating Voltage | 4.6-10 V |
Operating Current | 38-45 mA@5V |
Signal Output | SBUS &PWM |
Channel | 12 CH |
Control Range | 4Km in the Air |
Weight | 14 gm |
Dimension | 50x32x15 mm |
Package Includes:
1× Radiolink AT10 2.4GHz 12CH Remote
1× R12DS Receiver
1× Hook and Spring
1× User Manual
1× Packing Box
